Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

15 part groups · 2 illustrations

Illustrations

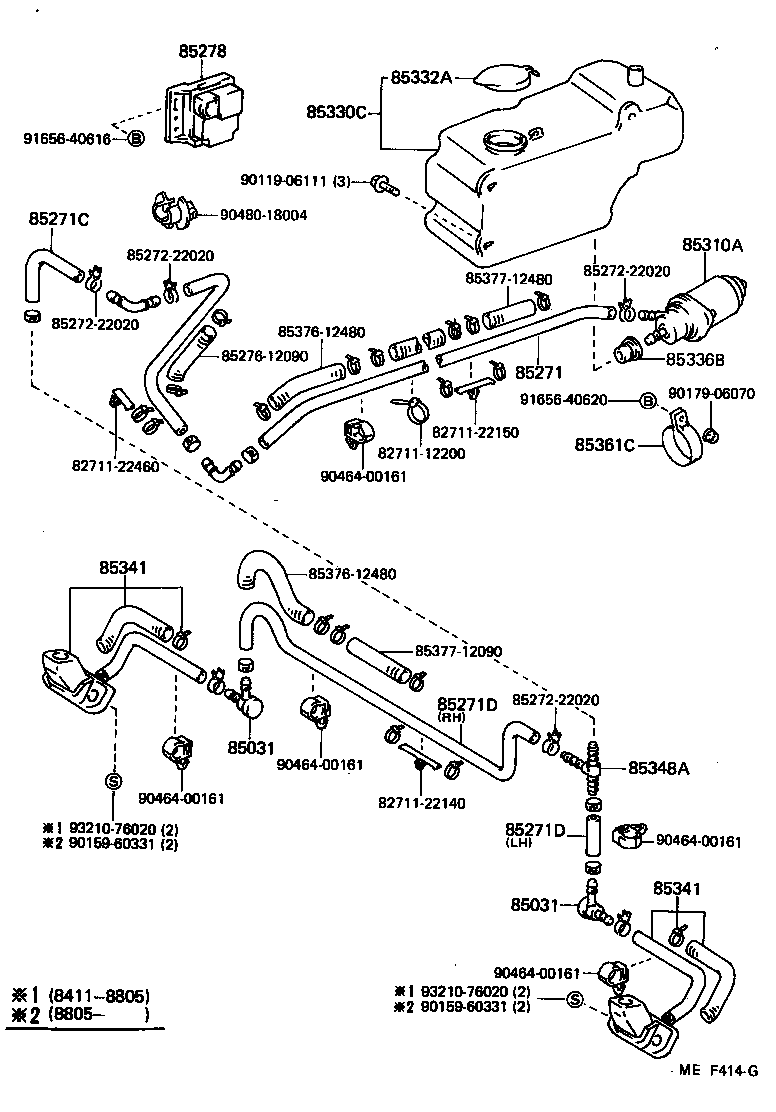

Figure MEF318E MEF318E 1984-11 → — Figure MEF414G MEF414G 1984-11 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85278 Relay Assy, Headlamp Cleaner Control
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85330C Jar Assy, Headlamp Cleaner Washer
85332A Cap, Headlamp Cleaner Washer Jar
85336B Packing, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85361C Bracket, Washer
85999B Bracket, Headlamp Cleaner Relay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
