Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 2 illustrations

Illustrations

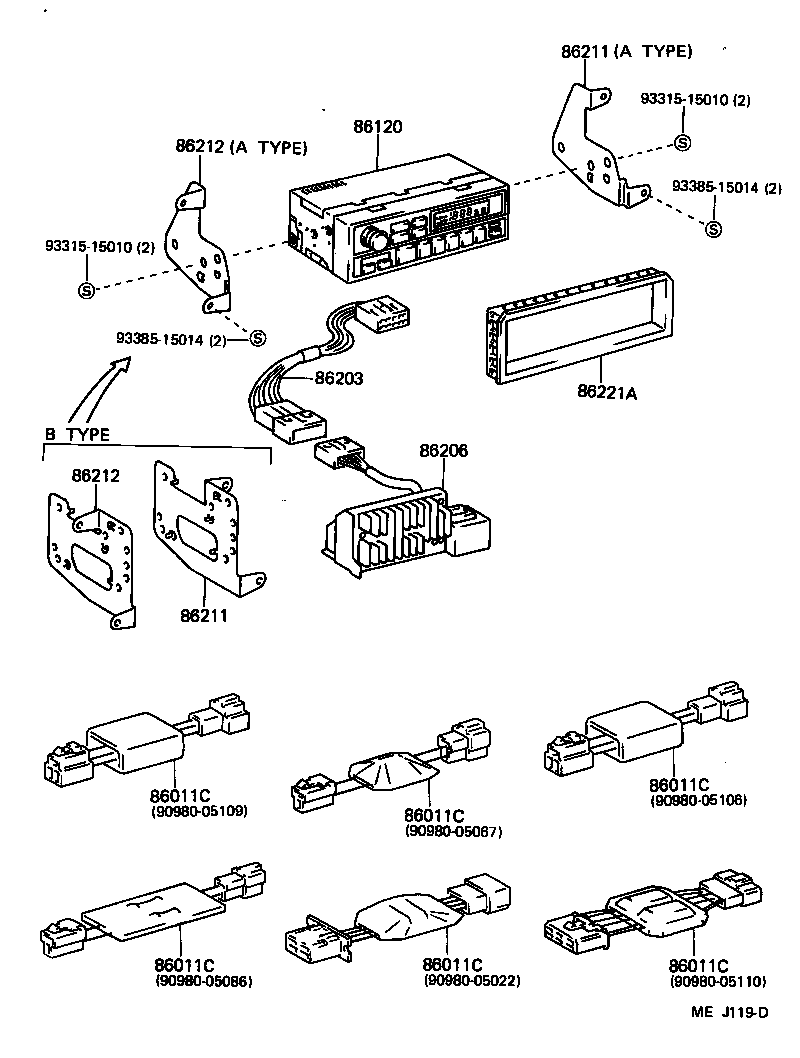

Figure MEF415C MEF415C 1984-11 → 1986-08 Figure MEJ119D MEJ119D 1986-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86203 Wire, Radio
86206 Converter Sub-assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86237 Wire, Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
