Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

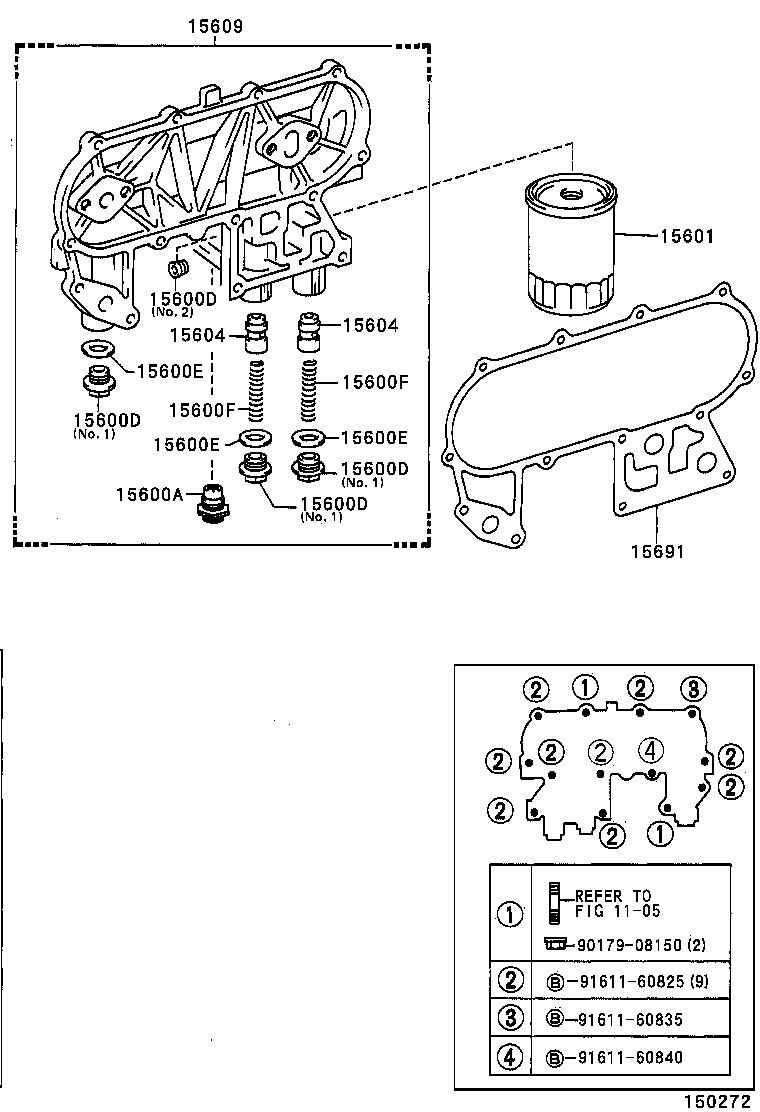

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600A — Union(FOR OIL FILTER) | ||||
| 15116-54020 |
Union(FOR OIL FILTER)
1990-01 → 1991-06
ended
|
2LT LJ7# | — | |
| 15116-54021 |
Union(FOR OIL FILTER)
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 15116-54021 |
Union(FOR OIL FILTER)
1991-06 → 1993-05
ended
|
2LT LJ7# | — | |
| 90404-20173 |
Union(FOR OIL FILTER)
1990-01 → 1993-05
ended
|
22R RJ70 | — | |
| 90404-27001 |
Union(FOR OIL FILTER)
1990-01 → 1992-08
ended
|
1PZ PZJ7# | — | |
| 90404-27001 |
Union(FOR OIL FILTER)
1990-01 → 1993-05
ended
|
1HZ HZJ7# | — | |
| 15116-54021 |
Union(FOR OIL FILTER)
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 15116-54021 |
Union(FOR OIL FILTER)
1993-05 → 1996-04
ended
|
1KZT KZJ7# | — | |
| 15116-54021 |
Union(FOR OIL FILTER)
1993-05 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 15116-54021 |
Union(FOR OIL FILTER)
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 15600D — Plug(FOR OIL FILTER) | ||||
| 90072-34402 note |
Plug(FOR OIL FILTER)
1990-01 → 1992-06
ended
|
2LT LJ7# | — | |
| 90341-18015 note |
Plug(FOR OIL FILTER)
1990-01 → 1993-05
ended
|
2LT LJ7# | — | |
| 90344-51005 note |
Plug(FOR OIL FILTER)
1992-06 → 1993-05
ended
|
2LT LJ7# | — | |
| 90341-18015 note |
Plug(FOR OIL FILTER)
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 90344-51005 note |
Plug(FOR OIL FILTER)
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 15600E — Washer(FOR OIL FILTER) | ||||
| 90430-18001 |
Washer(FOR OIL FILTER)
1990-01 → 1991-12
ended
|
2LT LJ7# | — | |
| 90430-18021 |
Washer(FOR OIL FILTER)
1991-12 → 1993-05
ended
|
2LT LJ7# | — | |
| 90430-18021 |
Washer(FOR OIL FILTER)
1993-05 → 1993-10
ended
|
2LT LJ7# | — | |
| 90430-18029 |
Washer(FOR OIL FILTER)
1993-10 → 1995-01
ended
|
2LT LJ7# | — | |
| 15600F — Spring, Compression(FOR OIL FILTER) | ||||
| 90501-16026 |
Spring, Compression(FOR OIL FILTER)
1990-01 → 1993-05
ended
|
2LT LJ7# | — | |
| 90501-16026 |
Spring, Compression(FOR OIL FILTER)
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-03002 |
Filter Sub-assy, Oil
1990-01 → 1992-04
ended
|
22R# RJ7# | — | |
| 90915-03006 |
Filter Sub-assy, Oil
1990-01 → 1991-06
ended
|
1PZ PZJ7# | — | |
| 90915-03006 |
Filter Sub-assy, Oil
1990-01 → 1991-06
ended
|
2LT LJ7# | — | |
| 90915-03006 |
Filter Sub-assy, Oil
1990-01 → 1991-06
ended
|
1HZ HZJ7# | — | |
| 90915-20001 |
Filter Sub-assy, Oil
1992-04 → 1993-05
ended
|
22R# RJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1991-06 → 1992-08
ended
|
1PZ PZJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1991-06 → 1993-05
ended
|
1HZ HZJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1991-06 → 1993-05
ended
|
2LT LJ7# | — | |
| 90915-20001 |
Filter Sub-assy, Oil
1993-05 → 1996-04
ended
|
22RE RJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1993-05 → 1996-04
ended
|
1KZT KZJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1993-05 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 90915-30002 |
Filter Sub-assy, Oil
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 15604 — Valve Sub-assy, Oil Safety | ||||
| 15131-54010 |
Valve Sub-assy, Oil Safety
1990-01 → 1993-05
ended
|
2LT LJ7# | — | |
| 15131-54010 |
Valve Sub-assy, Oil Safety
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-54110 |
Bracket Sub-assy, Oil Filter
1990-01 → 1990-05
ended
|
2LT LJ7# | — | |
| 15609-54111 |
Bracket Sub-assy, Oil Filter
1990-05 → 1993-05
ended
|
2LT LJ7# | — | |
| 15609-54111 |
Bracket Sub-assy, Oil Filter
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 15691 — Gasket, Oil Filter | ||||
| 15692-54030 |
Gasket, Oil Filter
1990-01 → 1993-05
ended
|
2LT LJ7# | — | |
| 15725-17010 |
Gasket, Oil Filter
1990-01 → 1992-08
ended
|
1PZ PZJ7# | — | |
| 15725-17010 |
Gasket, Oil Filter
1990-01 → 1993-05
ended
|
1HZ HZJ7# | — | |
| 15692-54030 |
Gasket, Oil Filter
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 15725-17010 |
Gasket, Oil Filter
1993-05 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 15725-17010 |
Gasket, Oil Filter
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
