Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

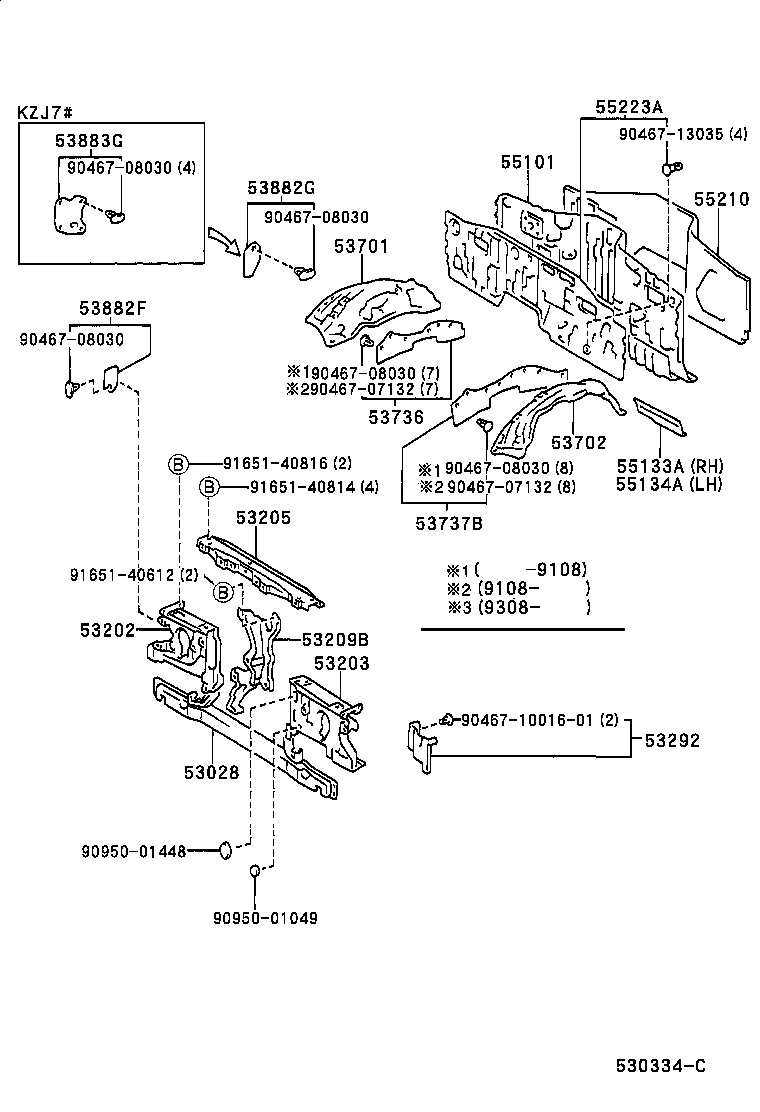

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53028 — Support Sub-assy, Radiator, Lower | ||||
| 53028-60020 |
Support Sub-assy, Radiator, Lower
1990-01 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53028-60040 |
Support Sub-assy, Radiator, Lower
1991-10 → 2001-08
ended
|
BJ73,HZJ7#,PZJ75 | — | |
| 53028-90K03 |
Support Sub-assy, Radiator, Lower
1990-01 → 1991-10
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53028-60021 |
Support Sub-assy, Radiator, Lower
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53028-60040 |
Support Sub-assy, Radiator, Lower
1993-05 → 1999-08
ended
|
BJ73,HZJ7# | — | |
| 53028-60040 |
Support Sub-assy, Radiator, Lower
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53202 — Support Sub-assy, Radiator, RH | ||||
| 53202-60040 |
Support Sub-assy, Radiator, RH
1990-01 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53202-60080 |
Support Sub-assy, Radiator, RH
1990-01 → 1991-10
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53202-60110 |
Support Sub-assy, Radiator, RH
1991-10 → 1993-05
ended
|
BJ73,HZJ7#,PZJ75 | — | |
| 53202-60041 |
Support Sub-assy, Radiator, RH
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53202-60110 |
Support Sub-assy, Radiator, RH
1993-05 → 1997-06
ended
|
BJ73,HZJ7# | — | |
| 53202-60111 |
Support Sub-assy, Radiator, RH
1997-06 → 1999-08
ended
|
HZJ7# | — | |
| 53202-60111 |
Support Sub-assy, Radiator, RH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53203 — Support Sub-assy, Radiator, LH | ||||
| 53203-60040 |
Support Sub-assy, Radiator, LH
1990-01 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53203-60080 |
Support Sub-assy, Radiator, LH
1990-01 → 1991-10
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53203-60110 |
Support Sub-assy, Radiator, LH
1991-10 → 1993-05
ended
|
BJ73,HZJ7#,PZJ75 | — | |
| 53203-60041 |
Support Sub-assy, Radiator, LH
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53203-60110 |
Support Sub-assy, Radiator, LH
1993-05 → 1997-06
ended
|
BJ73,HZJ7# | — | |
| 53203-60111 |
Support Sub-assy, Radiator, LH
1997-06 → 1999-08
ended
|
HZJ7# | — | |
| 53203-60111 |
Support Sub-assy, Radiator, LH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53205 — Support Sub-assy, Radiator, Upper | ||||
| 53205-60020 |
Support Sub-assy, Radiator, Upper
1990-10 → 2001-08
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53216-60040 |
Support Sub-assy, Radiator, Upper
1990-01 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53216-90K02 |
Support Sub-assy, Radiator, Upper
1990-01 → 1990-10
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53205-60020 |
Support Sub-assy, Radiator, Upper
1993-05 → 1999-08
ended
|
BJ73,HZJ7# | — | |
| 53216-60041 |
Support Sub-assy, Radiator, Upper
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53205-60020 |
Support Sub-assy, Radiator, Upper
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53209B — Brace Sub-assy, Hood Lock Support | ||||
| 53209-60020 |
Brace Sub-assy, Hood Lock Support
1990-01 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53209-60020 |
Brace Sub-assy, Hood Lock Support
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53292 — Seal, Radiator Support TO Frame, LH | ||||
| 53292-90K02 |
Seal, Radiator Support TO Frame, LH
1990-01 → 1993-05
ended
|
LJ70 RHD | — | |
| 53292-60020 |
Seal, Radiator Support TO Frame, LH
1993-05 → 1996-04
ended
|
KZJ70 RHD | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-60170 |
Apron Sub-assy, Front Fender, RH
1990-01 → 1993-05
ended
|
RJ70 CBR | — | |
| 53701-60200 |
Apron Sub-assy, Front Fender, RH
1990-01 → 1993-05
ended
|
RJ7# EFI | — | |
| 53701-60230 |
Apron Sub-assy, Front Fender, RH
1990-01 → 1993-05
ended
|
LJ70 RHD | — | |
| 53701-60240 |
Apron Sub-assy, Front Fender, RH
1990-01 → 1993-05
ended
|
LJ7# LHD | — | |
| 53701-60250 note |
Apron Sub-assy, Front Fender, RH
1990-01 → 1993-05
ended
|
LJ70,73 LHD | — | |
| 53701-60330 |
Apron Sub-assy, Front Fender, RH
1990-01 → 1993-05
ended
|
HZJ7#,PZJ7# | — | |
| 53701-60450 note |
Apron Sub-assy, Front Fender, RH
1991-02 → 1993-05
ended
|
HZJ70,73 | — | |
| 53701-60200 |
Apron Sub-assy, Front Fender, RH
1993-05 → 1996-04
ended
|
RJ7# | — | |
| 53701-60240 |
Apron Sub-assy, Front Fender, RH
1993-05 → 1995-01
ended
|
LJ7# | — | |
| 53701-60250 note |
Apron Sub-assy, Front Fender, RH
1993-05 → 1995-01
ended
|
LJ7# | — | |
| 53701-60330 |
Apron Sub-assy, Front Fender, RH
1993-05 → 1999-08
ended
|
HZJ7# | — | |
| 53701-60450 note |
Apron Sub-assy, Front Fender, RH
1993-05 → 1999-08
ended
|
HZJ70,73 | — | |
| 53701-60520 |
Apron Sub-assy, Front Fender, RH
1993-05 → 1996-04
ended
|
KZJ7# | — | |
| 53701-60530 note |
Apron Sub-assy, Front Fender, RH
1993-05 → 1996-04
ended
|
KZJ70,73 LHD | — | |
| 53701-60890 note |
Apron Sub-assy, Front Fender, RH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-60120 note |
Apron Sub-assy, Front Fender, LH
1990-04 → 1993-05
ended
|
LJ70 RHD LX | — | |
| 53702-60130 note |
Apron Sub-assy, Front Fender, LH
1990-01 → 1990-04
ended
|
LJ70 RHD LX | — | |
| 53702-60130 |
Apron Sub-assy, Front Fender, LH
1990-01 → 1993-05
ended
|
LJ70 RHD VX | — | |
| 53702-60130 note |
Apron Sub-assy, Front Fender, LH
1990-04 → 1993-05
ended
|
LJ70 RHD LX | — | |
| 53702-60230 |
Apron Sub-assy, Front Fender, LH
1990-01 → 1993-05
ended
|
RJ70 CBR | — | |
| 53702-60290 note |
Apron Sub-assy, Front Fender, LH
1991-02 → 1993-05
ended
|
HZJ70,73 | — | |
| 53702-60370 |
Apron Sub-assy, Front Fender, LH
1990-01 → 1993-05
ended
|
RJ7# EFI | — | |
| 53702-60420 |
Apron Sub-assy, Front Fender, LH
1990-01 → 1993-05
ended
|
LJ7# LHD | — | |
| 53702-60430 |
Apron Sub-assy, Front Fender, LH
1990-01 → 1993-05
ended
|
LJ70 RHD LX | — | |
| 53702-6A380 |
Apron Sub-assy, Front Fender, LH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53702-90K96 |
Apron Sub-assy, Front Fender, LH
1990-01 → 1993-05
ended
|
HZJ7#,PZJ7# | — | |
| 53702-60121 note |
Apron Sub-assy, Front Fender, LH
1993-05 → 1996-04
ended
|
KZJ70 RHD LX | — | |
| 53702-60131 |
Apron Sub-assy, Front Fender, LH
1993-05 → 1996-04
ended
|
KZJ70 RHD VX | — | |
| 53702-60131 note |
Apron Sub-assy, Front Fender, LH
1993-05 → 1996-04
ended
|
KZJ70 RHD LX | — | |
| 53702-60290 note |
Apron Sub-assy, Front Fender, LH
1993-05 → 1999-08
ended
|
HZJ70,73 | — | |
| 53702-60371 |
Apron Sub-assy, Front Fender, LH
1993-05 → 1996-04
ended
|
RJ7# | — | |
| 53702-60421 |
Apron Sub-assy, Front Fender, LH
1993-05 → 1996-04
ended
|
KZJ7#,LJ7# LHD | — | |
| 53702-60431 |
Apron Sub-assy, Front Fender, LH
1993-05 → 1996-04
ended
|
KZJ70 RHD LX | — | |
| 53702-90K96 |
Apron Sub-assy, Front Fender, LH
1993-05 → 1999-08
ended
|
HZJ7# | — | |
| 53702-6A360 note |
Apron Sub-assy, Front Fender, LH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53736 — Seal, Front Fender Apron, RH | ||||
| 53736-60020 |
Seal, Front Fender Apron, RH
1990-01 → 1991-06
ended
|
LJ7#,RJ7# | — | |
| 53736-60021 |
Seal, Front Fender Apron, RH
1991-06 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53736-60040 |
Seal, Front Fender Apron, RH
1991-06 → 1993-05
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53737-60040 |
Seal, Front Fender Apron, RH
1990-06 → 1991-06
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53737-90K03 |
Seal, Front Fender Apron, RH
1990-01 → 1990-06
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53736-60021 |
Seal, Front Fender Apron, RH
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53736-60040 |
Seal, Front Fender Apron, RH
1993-05 → 1999-08
ended
|
BJ73,HZJ7# | — | |
| 53736-60090 |
Seal, Front Fender Apron, RH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53737B — Seal, Front Fender Apron, LH | ||||
| 53737-60020 |
Seal, Front Fender Apron, LH
1990-01 → 1991-06
ended
|
LJ7#,RJ7# | — | |
| 53737-60021 |
Seal, Front Fender Apron, LH
1991-06 → 1993-05
ended
|
LJ7#,RJ7# | — | |
| 53737-60040 |
Seal, Front Fender Apron, LH
1991-06 → 1993-05
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53737-90K03 |
Seal, Front Fender Apron, LH
1990-01 → 1991-06
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53737-60040 |
Seal, Front Fender Apron, LH
1993-05 → 1999-08
ended
|
BJ73,HZJ7# | — | |
| 53737-60050 |
Seal, Front Fender Apron, LH
1993-05 → 1996-04
ended
|
KZJ7#,LJ7#,RJ7# | — | |
| 53737-60080 |
Seal, Front Fender Apron, LH
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53882F — Seal, Front Fender | ||||
| 53882-60020 |
Seal, Front Fender
1990-01 → 1993-03
ended
|
LJ7#,RJ7# | — | |
| 53882-60020 |
Seal, Front Fender
1993-03 → 1993-05
ended
|
LJ7# | — | |
| 53882-60030 |
Seal, Front Fender
1990-01 → 2001-08
ended
|
BJ73,HZJ7#,PZJ7# | — | |
| 53882-60020 |
Seal, Front Fender
1993-05 → 1996-04
ended
|
KZJ7#,LJ7# | — | |
| 53882-60030 |
Seal, Front Fender
1993-05 → 1999-08
ended
|
BJ73,HZJ7# | — | |
| 53882-60030 |
Seal, Front Fender
1999-08 → 2001-08
ended
|
HZJ7# | — | |
| 53882G — Seal, Front Fender | ||||
| 53882-60070 |
Seal, Front Fender
1990-01 → 1993-05
ended
|
LJ7# | — | |
| 53882-60070 |
Seal, Front Fender
1993-05 → 1996-04
ended
|
KZJ7#,LJ7# | — | |
| 53883G — Seal, Front Fender, Front | ||||
| 53883-60020 |
Seal, Front Fender, Front
1993-05 → 1996-04
ended
|
KZJ7# | — | |
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-6A750 note |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
HZJ7#,PZJ7# HT | — | |
| 55101-6A760 |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
HZJ75,PZJ75 PIC | — | |
| 55101-6A800 note |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
HZJ7#,PZJ7# HT | — | |
| 55101-6A800 note |
Panel Sub-assy, Dash
1992-08 → 1993-05
ended
|
HZJ75 PIC | — | |
| 55101-6A810 note |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
HZJ75,PZJ75 PIC | — | |
| 55101-6A850 |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
LJ7# LHD | — | |
| 55101-6B210 |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
LJ70 RHD | — | |
| 55101-6D720 note |
Panel Sub-assy, Dash
1999-08 → 2000-07
ended
|
HZJ71,74,78 | — | |
| 55101-6D800 |
Panel Sub-assy, Dash
1999-08 → 2001-08
ended
|
HZJ79 | — | |
| 55101-90L79 |
Panel Sub-assy, Dash
1990-01 → 1991-08
ended
|
RJ70 CBR | — | |
| 55101-90L82 |
Panel Sub-assy, Dash
1991-08 → 1993-05
ended
|
RJ70 CBR | — | |
| 55101-90S01 |
Panel Sub-assy, Dash
1990-01 → 1993-05
ended
|
RJ7# EFI | — | |
| 55101-6A750 note |
Panel Sub-assy, Dash
1993-05 → 1995-01
ended
|
HZJ7# HT | — | |
| 55101-6A750 |
Panel Sub-assy, Dash
1993-05 → 1996-08
ended
|
HZJ7# HT | — | |
| 55101-6A751 |
Panel Sub-assy, Dash
1996-08 → 1999-08
ended
|
HZJ7# HT | — | |
| 55101-6A760 |
Panel Sub-assy, Dash
1993-05 → 1996-08
ended
|
HZJ75 PIC | — | |
| 55101-6A761 |
Panel Sub-assy, Dash
1996-08 → 1999-08
ended
|
HZJ75 PIC | — | |
| 55101-6A800 note |
Panel Sub-assy, Dash
1993-05 → 1995-01
ended
|
HZJ7# HT | — | |
| 55101-6A810 note |
Panel Sub-assy, Dash
1993-05 → 1995-01
ended
|
HZJ75 PIC | — | |
| 55101-6A850 |
Panel Sub-assy, Dash
1993-05 → 1996-04
ended
|
KZJ7#,LJ7# LHD | — | |
| 55101-6B210 |
Panel Sub-assy, Dash
1993-05 → 1996-04
ended
|
KZJ70 RHD LX | — | |
| 55101-6C620 note |
Panel Sub-assy, Dash
1993-05 → 1996-04
ended
|
KZJ7# LHD | — | |
| 55101-6C650 |
Panel Sub-assy, Dash
1993-05 → 1996-04
ended
|
KZJ70 RHD VX | — | |
| 55101-6C650 note |
Panel Sub-assy, Dash
1993-05 → 1996-04
ended
|
KZJ70 RHD LX | — | |
| 55101-90S01 |
Panel Sub-assy, Dash
1993-05 → 1996-04
ended
|
RJ7# | — | |
| 55101-6D720 note |
Panel Sub-assy, Dash
1999-08 → 2001-08
ended
|
HZJ71,74,78 | — | |
| 55133A — Reinforcement, Dash TO Floor, RH | ||||
| 55133-60020 |
Reinforcement, Dash TO Floor, RH
1990-01 → 2001-08
ended
|
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# | — | |
| 55133-60020 |
Reinforcement, Dash TO Floor, RH
1993-05 → 1999-08
ended
|
BJ73,HZJ70,73,KZJ7#,LJ7#,RJ7# | — | |
| 55133-60020 |
Reinforcement, Dash TO Floor, RH
1999-08 → 2001-08
ended
|
HZJ71,74 | — | |
| 55134A — Reinforcement, Dash TO Floor, LH | ||||
| 55134-60010 |
Reinforcement, Dash TO Floor, LH
1990-01 → 2001-08
ended
|
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# | — | |
| 55134-60010 |
Reinforcement, Dash TO Floor, LH
1993-05 → 1999-08
ended
|
BJ73,HZJ70,73,KZJ7#,LJ7#,RJ7# | — | |
| 55134-60010 |
Reinforcement, Dash TO Floor, LH
1999-08 → 2001-08
ended
|
HZJ71,74 | — | |
| 55210 — Insulator Assy, Dash Panel | ||||
| 55210-60030 |
Insulator Assy, Dash Panel
1990-01 → 1993-05
ended
|
LJ70 RHD | — | |
| 55210-60040 |
Insulator Assy, Dash Panel
1990-01 → 2000-12
ended
|
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# LHD | — | |
| 55210-60030 |
Insulator Assy, Dash Panel
1993-05 → 1996-04
ended
|
KZJ70 RHD | — | |
| 55210-60040 |
Insulator Assy, Dash Panel
1993-05 → 1999-08
ended
|
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# LHD | — | |
| 55210-60040 |
Insulator Assy, Dash Panel
1999-08 → 2000-12
ended
|
HZJ7# | — | |
| 55210-60120 |
Insulator Assy, Dash Panel
2000-12 → 2001-08
ended
|
HZJ7# | — | |
| 55223A — Insulator, Dash Panel, Outer | ||||
| 55223-60040 |
Insulator, Dash Panel, Outer
1990-01 → 1992-08
ended
|
LJ7# LHD | — | |
| 55223-60050 |
Insulator, Dash Panel, Outer
1990-01 → 1992-08
ended
|
LJ70 RHD | — | |
| 55223-60070 |
Insulator, Dash Panel, Outer
1990-01 → 1992-08
ended
|
HZJ7#,PZJ7# | — | |
| 55223-60130 |
Insulator, Dash Panel, Outer
1992-08 → 1993-05
ended
|
LJ70 RHD | — | |
| 55223-60140 |
Insulator, Dash Panel, Outer
1992-08 → 1993-05
ended
|
HZJ7# | — | |
| 55223-60150 |
Insulator, Dash Panel, Outer
1992-08 → 1993-05
ended
|
LJ7# LHD | — | |
| 55223-60160 |
Insulator, Dash Panel, Outer
1992-08 → 1993-05
ended
|
RJ7# EFI | — | |
| 55223-60170 |
Insulator, Dash Panel, Outer
1992-08 → 1993-05
ended
|
BJ73 | — | |
| 55223-90K03 |
Insulator, Dash Panel, Outer
1990-01 → 1992-08
ended
|
RJ7# EFI | — | |
| 55223-90K04 |
Insulator, Dash Panel, Outer
1990-01 → 1992-08
ended
|
BJ73 | — | |
| 55223-60131 |
Insulator, Dash Panel, Outer
1993-05 → 1996-04
ended
|
KZJ70 RHD | — | |
| 55223-60141 |
Insulator, Dash Panel, Outer
1993-05 → 1999-08
ended
|
HZJ7# | — | |
| 55223-60151 |
Insulator, Dash Panel, Outer
1993-05 → 1996-04
ended
|
KZJ7#,LJ7# LHD | — | |
| 55223-60161 |
Insulator, Dash Panel, Outer
1993-05 → 1996-04
ended
|
RJ7# | — | |
| 55223-60171 |
Insulator, Dash Panel, Outer
1993-05 → 1994-02
ended
|
BJ73 | — | |
| 55223-60141 |
Insulator, Dash Panel, Outer
1999-08 → 2001-08
ended
|
HZJ7# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
