Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

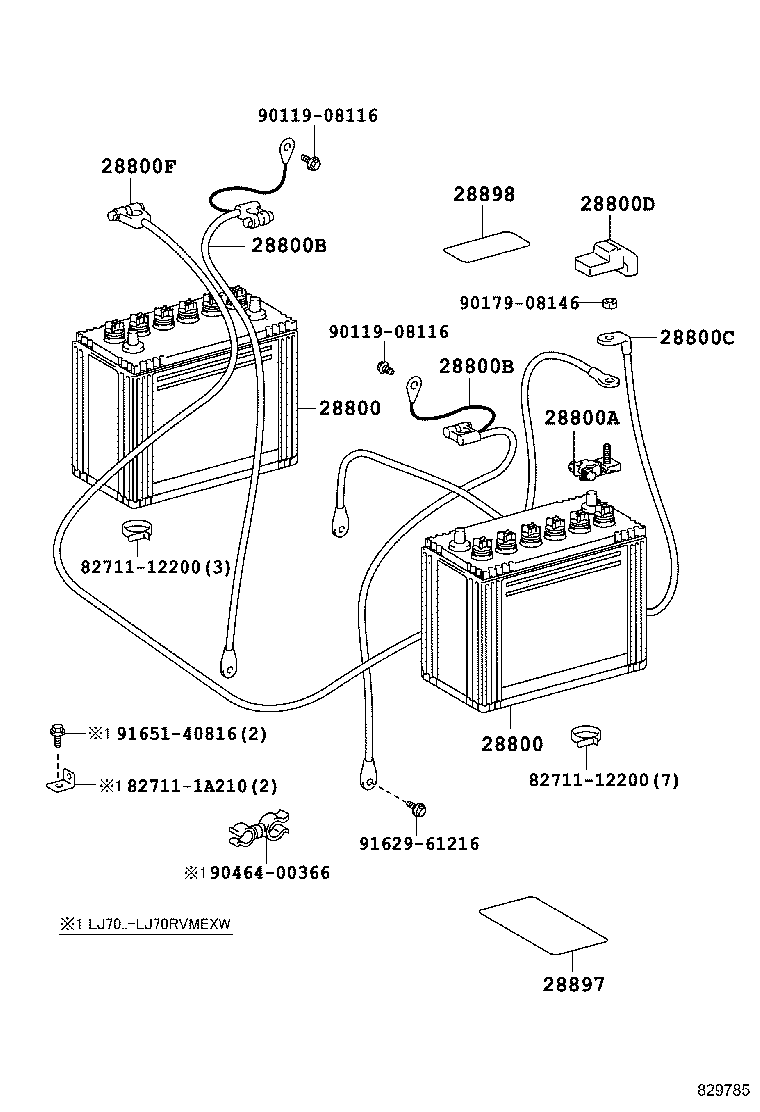

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-14010 note |
Battery
1990-01 → 1993-05
ended
|
1HZ,1PZ HZJ7#,PZJ7# | — | |
| 28800-14010 note |
Battery
1990-01 → 1993-05
ended
|
2LT LJ70 RHD VX | — | |
| 28800-14010 note |
Battery
1990-01 → 1993-05
ended
|
2LT LJ70 RHD LX | — | |
| 28800-42010 note |
Battery
1990-01 → 1993-05
ended
|
2LT LJ70,73 LHD | — | |
| 28800-42010 note |
Battery
1990-01 → 1993-05
ended
|
22R RJ70 | — | |
| 28800-42130 note |
Battery
1991-01 → 1993-05
ended
|
1HZ,1PZ HZJ7#,PZJ7# | — | |
| 28800-45050 note |
Battery
1990-01 → 1991-01
ended
|
1HZ,1PZ HZJ7#,PZJ7# | — | |
| 28800-46012 note |
Battery
1990-01 → 1993-05
ended
|
2LT LJ70 LX,STD;2LT LJ70 +3 | — | |
| 28800-54040 note |
Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-54290 note |
Battery
1990-01 → 1993-05
ended
|
3B BJ73 | — | |
| 28800-54472 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-56040 note |
Battery
1990-01 → 1993-05
ended
|
22R RJ70 | — | |
| 28800-61030 note |
Battery
1990-01 → 1993-05
ended
|
1HZ,1PZ HZJ7#,PZJ7# | — | |
| 28800-64010 note |
Battery
1990-01 → 1993-05
ended
|
1HZ,1PZ HZJ7#,PZJ7# | — | |
| 28800-64170 note |
Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-67030 note |
Battery
1990-01 → 1993-05
ended
|
2LT LJ70 RHD | — | |
| 28800-67030 note |
Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-76080 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-14010 note |
Battery
1993-05 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 28800-42010 note |
Battery
1993-05 → 1993-08
ended
|
2LT LJ7# | — | |
| 28800-42010 note |
Battery
1993-08 → 1995-01
ended
|
2LT LJ7# | — | |
| 28800-42130 note |
Battery
1993-05 → 1995-01
ended
|
1HZ HZJ7# | — | |
| 28800-42131 note |
Battery
1995-01 → 1997-06
ended
|
1HZ HZJ7# | — | |
| 28800-42141 note |
Battery
1997-06 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 28800-42161 note |
Battery
1993-05 → 1995-01
ended
|
1HZ HZJ7# | — | |
| 28800-46050 note |
Battery
1993-05 → 1996-04
ended
|
22RE RJ7# | — | |
| 28800-54290 note |
Battery
1993-05 → 1994-02
ended
|
3B BJ73 | — | |
| 28800-54400 note |
Battery
1993-05 → 1995-01
ended
|
1HZ HZJ7# | — | |
| 28800-61030 note |
Battery
1993-05 → 1995-01
ended
|
1HZ HZJ7# | — | |
| 28800-61031 note |
Battery
1995-01 → 1996-03
ended
|
1HZ HZJ7# | — | |
| 28800-61031 note |
Battery
1997-06 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 28800-64010 note |
Battery
1993-05 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 28800-67030 note |
Battery
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD VX | — | |
| 28800-67030 note |
Battery
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD LX | — | |
| 28800-67030 note |
Battery
1993-08 → 1996-04
ended
|
1KZT KZJ70 RHD LX | — | |
| 28800-67070 note |
Battery
1993-05 → 1996-04
ended
|
1KZT KZJ73,77;1KZT KZJ70 LX,STD;1KZT +3 | — | |
| 28800-67080 note |
Battery
1993-08 → 1996-04
ended
|
1KZT KZJ70,73 LHD | — | |
| 28800-67080 note |
Battery
1993-05 → 1996-04
ended
|
1KZT KZJ70,73 LHD | — | |
| 28800-17111 note |
Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-17121 note |
Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-54232 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-54232 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-58020 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-64062 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-64062 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-64122 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-64131 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-64132 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-64132 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-64151 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-64181 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800-64182 note |
Battery
2001-03 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800-64182 note |
Battery
1999-08 → 2001-03
ended
|
1HZ HZJ7# | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05031 |
Terminal, Battery Positive
1990-01 → 1993-05
ended
|
2LT ,RJ7# LJ70 LX,STD;2LT +4 | — | |
| 90982-05031 note |
Terminal, Battery Positive
1990-01 → 1993-05
ended
|
2LT LJ70 RHD LX | — | |
| 90982-05031 |
Terminal, Battery Positive
1990-01 → 1993-05
ended
|
2LT LJ70 RHD VX | — | |
| 90982-05030 |
Terminal, Battery Positive
1996-08 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 90982-05031 |
Terminal, Battery Positive
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD VX | — | |
| 90982-05031 note |
Terminal, Battery Positive
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD LX | — | |
| 90982-05031 |
Terminal, Battery Positive
1993-05 → 1996-08
ended
|
1KZT ,LJ7#,RJ7# KZJ70 LX,STD;1KZT +4 | — | |
| 82675-60020 |
Terminal, Battery Positive
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800B — Cable, Battery TO Ground | ||||
| 82123-60050 |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
2LT LJ73,77;2LT LJ70 LX,STD;2LT +3 | — | |
| 82123-60050 note |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
2LT LJ70,73 LHD | — | |
| 82123-60070 |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
2LT LJ70 RHD VX | — | |
| 82123-60070 note |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
2LT LJ70 RHD LX | — | |
| 82123-90K00 |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
3B,1HZ,1PZ BJ73,HZJ7#,PZJ7# | — | |
| 82123-90K00 note |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
2LT LJ70,73 LHD | — | |
| 82123-90K06 |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
22R RJ70 | — | |
| 82123-90K09 |
Cable, Battery TO Ground
1990-01 → 1993-05
ended
|
22RE RJ7# | — | |
| 82123-60050 |
Cable, Battery TO Ground
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 82123-60150 |
Cable, Battery TO Ground
1993-05 → 1994-10
ended
|
1KZT KZJ73,77;1KZT KZJ70 LX,STD;1KZT +3 | — | |
| 82123-60151 |
Cable, Battery TO Ground
1994-10 → 1996-04
ended
|
1KZT KZJ73,77;1KZT KZJ70 LX,STD;1KZT +3 | — | |
| 82123-60160 note |
Cable, Battery TO Ground
1993-05 → 1994-10
ended
|
1KZT KZJ70,73 | — | |
| 82123-60161 note |
Cable, Battery TO Ground
1994-10 → 1996-04
ended
|
1KZT KZJ70,73 | — | |
| 82123-60170 note |
Cable, Battery TO Ground
1993-05 → 1996-04
ended
|
1KZT KZJ70,73 LHD | — | |
| 82123-60180 note |
Cable, Battery TO Ground
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD | — | |
| 82123-60200 |
Cable, Battery TO Ground
1996-08 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 82123-90K09 |
Cable, Battery TO Ground
1993-05 → 1996-04
ended
|
22RE RJ7# | — | |
| 82123-60062 note |
Cable, Battery TO Ground
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 82123-60200 note |
Cable, Battery TO Ground
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800C — Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-60070 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1990-01 → 1992-08
ended
|
2LT LJ70 LX,STD;2LT LJ70 +3 | — | |
| 82122-60070 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1992-08 → 1993-05
ended
|
22R RJ70 | — | |
| 82122-60080 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1990-01 → 1992-08
ended
|
3B,1HZ,1PZ BJ73,HZJ7#,PZJ7# | — | |
| 82122-60080 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1990-01 → 1992-08
ended
|
2LT LJ70,73 LHD | — | |
| 82122-60081 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1992-08 → 1993-05
ended
|
3B,1HZ,2LT BJ73,HZJ7#,LJ70,73 LHD | — | |
| 82122-60100 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1990-01 → 1992-08
ended
|
2LT LJ70 RHD | — | |
| 82122-60101 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1992-08 → 1993-05
ended
|
2LT LJ70 RHD | — | |
| 82122-60120 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1990-01 → 1992-08
ended
|
22RE RJ7# | — | |
| 82122-60121 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1992-08 → 1993-05
ended
|
22RE RJ7# | — | |
| 82122-60210 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1992-08 → 1993-05
ended
|
2LT LJ73,77;2LT LJ70 LX,STD;2LT +3 | — | |
| 82122-60081 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1999-08
ended
|
3B,1HZ,2LT BJ73,HZJ7#,LJ7# | — | |
| 82122-60122 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1996-04
ended
|
22RE RJ7# | — | |
| 82122-60210 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 82122-60220 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1996-04
ended
|
1KZT KZJ73,77;1KZT KZJ70 LX,STD;1KZT +3 | — | |
| 82122-60240 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1996-04
ended
|
1KZT KZJ70,73 LHD | — | |
| 82122-60250 note |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD LX | — | |
| 82122-60250 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD VX | — | |
| 82122-60082 |
Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-24010 |
Cover, Connector(FOR BATTERY TERMINAL)
1990-01 → 1993-05
ended
|
2LT LJ70 RHD VX | — | |
| 82821-24010 note |
Cover, Connector(FOR BATTERY TERMINAL)
1990-01 → 1993-05
ended
|
2LT LJ70 RHD LX | — | |
| 82821-24010 |
Cover, Connector(FOR BATTERY TERMINAL)
1990-01 → 2001-08
ended
|
2LT ,RJ7# LJ70 LX,STD;2LT +4 | — | |
| 82821-24010 |
Cover, Connector(FOR BATTERY TERMINAL)
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD VX | — | |
| 82821-24010 note |
Cover, Connector(FOR BATTERY TERMINAL)
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD LX | — | |
| 82821-24010 |
Cover, Connector(FOR BATTERY TERMINAL)
1993-05 → 1999-08
ended
|
1KZT ,LJ7#,RJ7# KZJ70 LX,STD;1KZT +4 | — | |
| 82821-24010 |
Cover, Connector(FOR BATTERY TERMINAL)
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28800F — Cable, Battery TO Battery | ||||
| 82122-60060 |
Cable, Battery TO Battery
1990-01 → 1993-05
ended
|
2LT LJ70 RHD | — | |
| 82122-60090 |
Cable, Battery TO Battery
1990-01 → 1993-05
ended
|
2LT LJ70,73 LHD | — | |
| 82122-60110 |
Cable, Battery TO Battery
1990-01 → 1992-08
ended
|
1HZ,1PZ HZJ7#,PZJ7# | — | |
| 82122-60111 |
Cable, Battery TO Battery
1992-08 → 1993-05
ended
|
1HZ HZJ7# | — | |
| 82122-60090 |
Cable, Battery TO Battery
1993-05 → 1995-01
ended
|
2LT LJ7# | — | |
| 82122-60111 |
Cable, Battery TO Battery
1993-05 → 1996-08
ended
|
1HZ HZJ7# | — | |
| 82122-60112 |
Cable, Battery TO Battery
1996-08 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 82122-60260 |
Cable, Battery TO Battery
1993-05 → 1996-04
ended
|
1KZT KZJ70,73 LHD | — | |
| 82122-60270 |
Cable, Battery TO Battery
1993-05 → 1996-04
ended
|
1KZT KZJ70 RHD | — | |
| 82122-60400 |
Cable, Battery TO Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-54030 |
Plate, Battery Caution
1990-01 → 2001-08
ended
|
1HZ,2LT HZJ71,74,78,79,LJ70,73 | — | |
| 28897-54030 |
Plate, Battery Caution
1993-05 → 1996-04
ended
|
1KZT,2LT KZJ70,73,LJ7# | — | |
| 28897-54030 |
Plate, Battery Caution
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
| 28898 — Plate, Battery | ||||
| 28898-46020 |
Plate, Battery
1994-07 → 1999-08
ended
|
1HZ HZJ7# | — | |
| 28898-50070 note |
Plate, Battery
1993-06 → 1994-04
ended
|
1KZT KZJ73 LX;1KZT KZJ70 +2 | — | |
| 28898-50070 note |
Plate, Battery
1993-06 → 1994-04
ended
|
1KZT KZJ73 LX;1KZT KZJ70 +2 | — | |
| 28898-46020 |
Plate, Battery
1999-08 → 2001-08
ended
|
1HZ HZJ7# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
