Radiator & Water Outlet

58 part groups · 10 illustrations

Illustrations

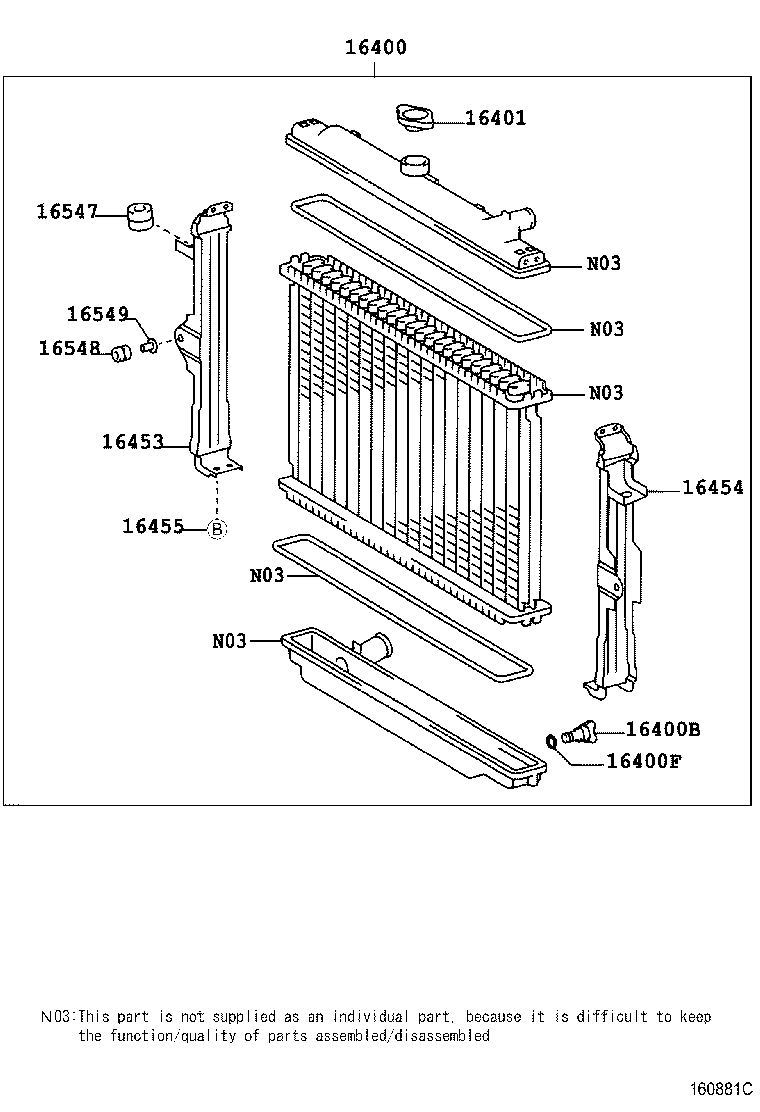

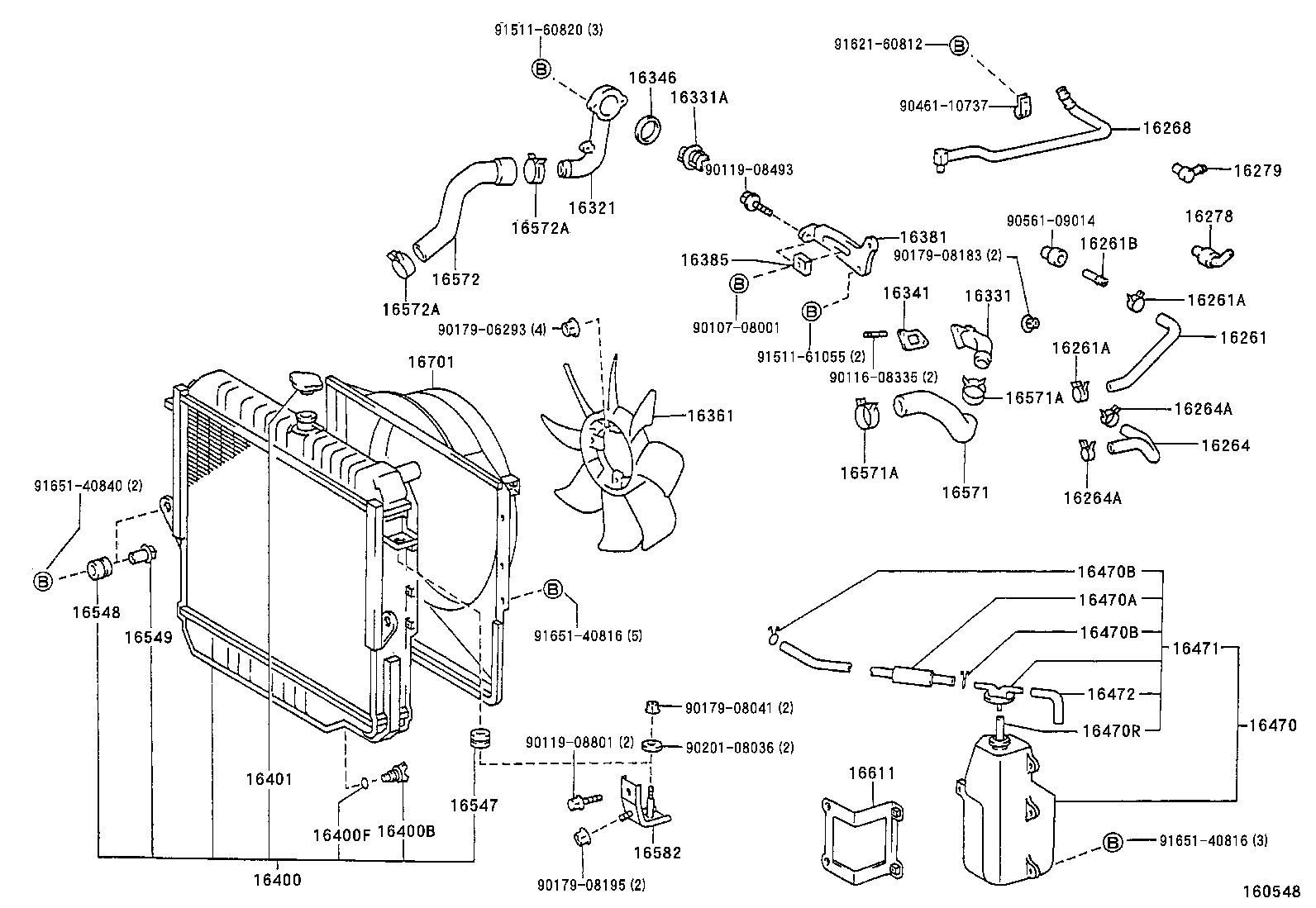

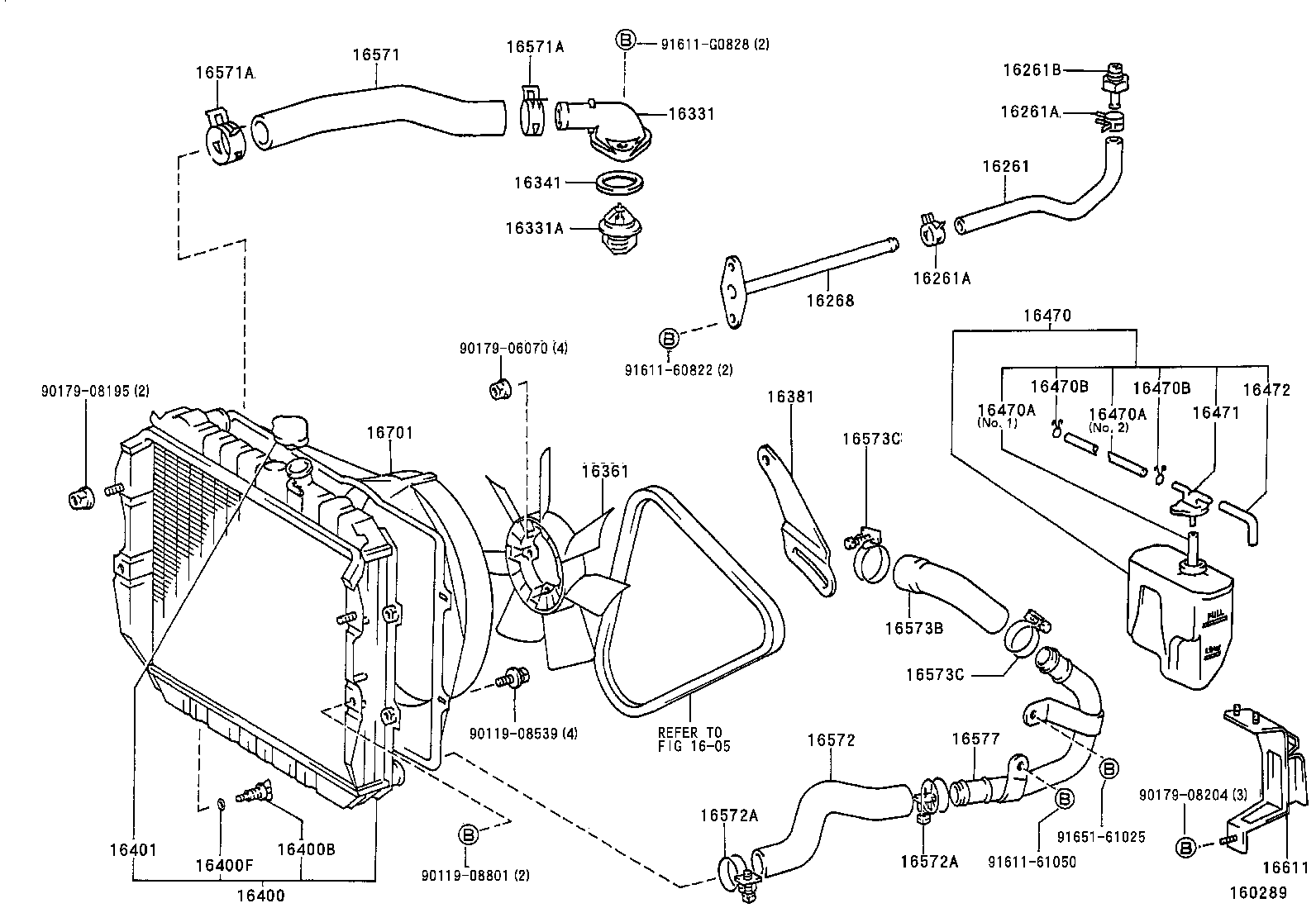

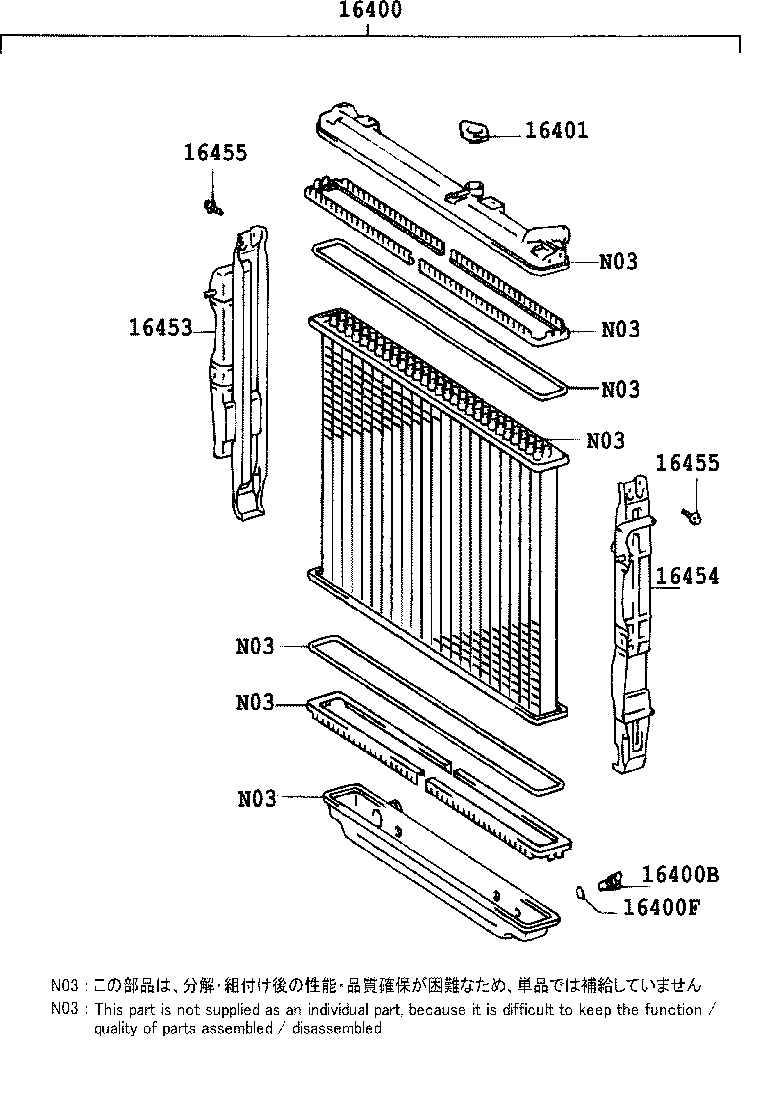

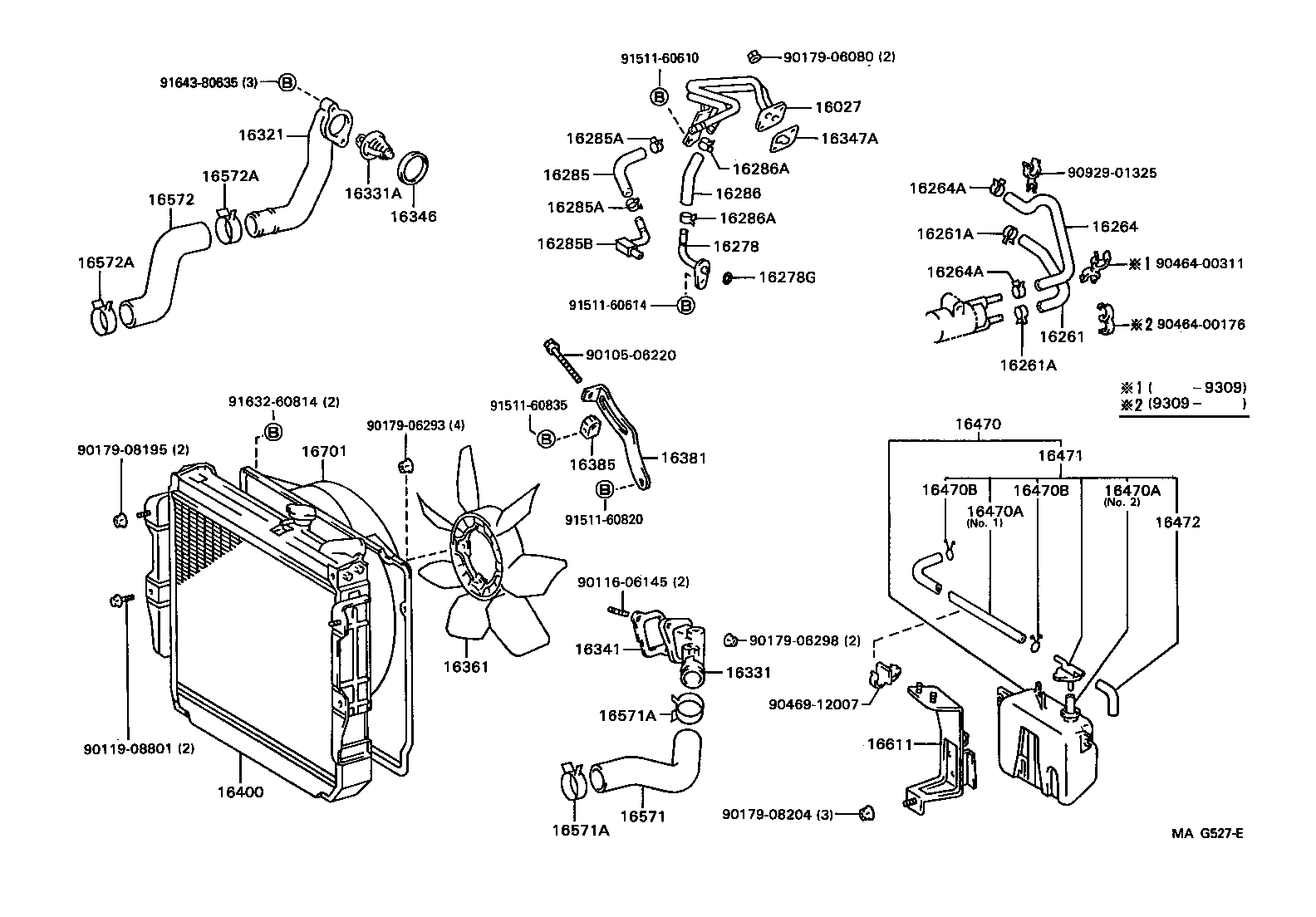

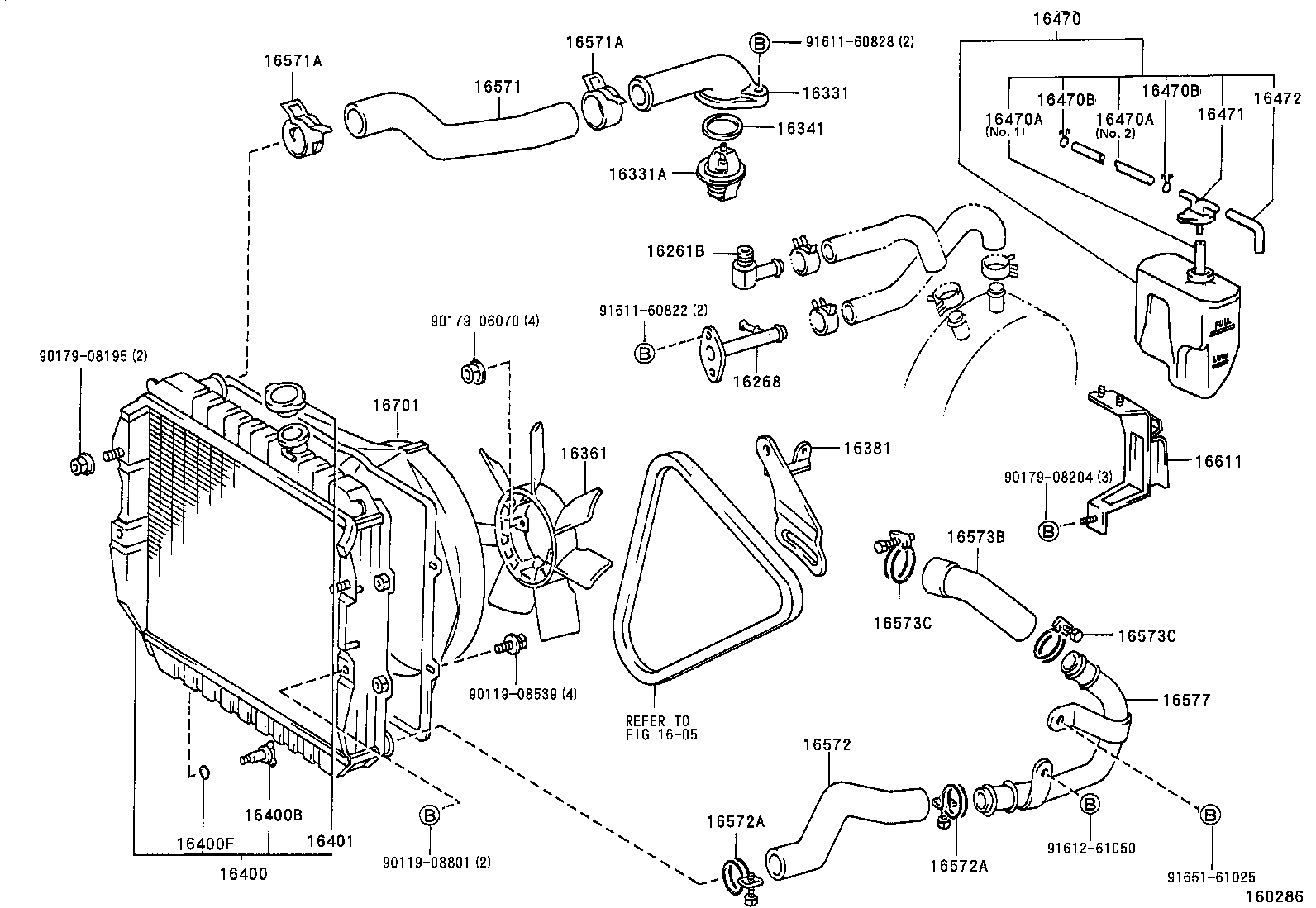

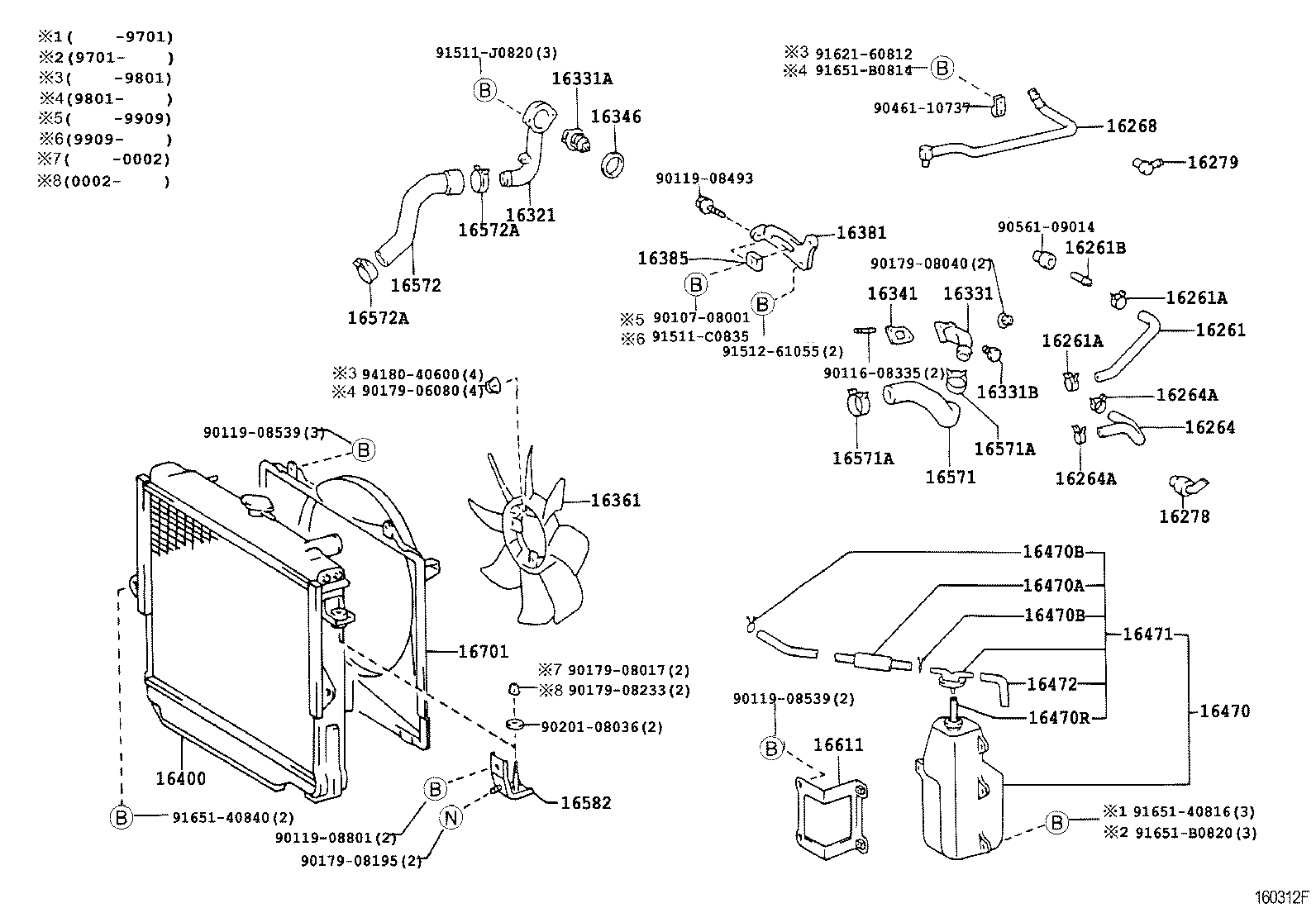

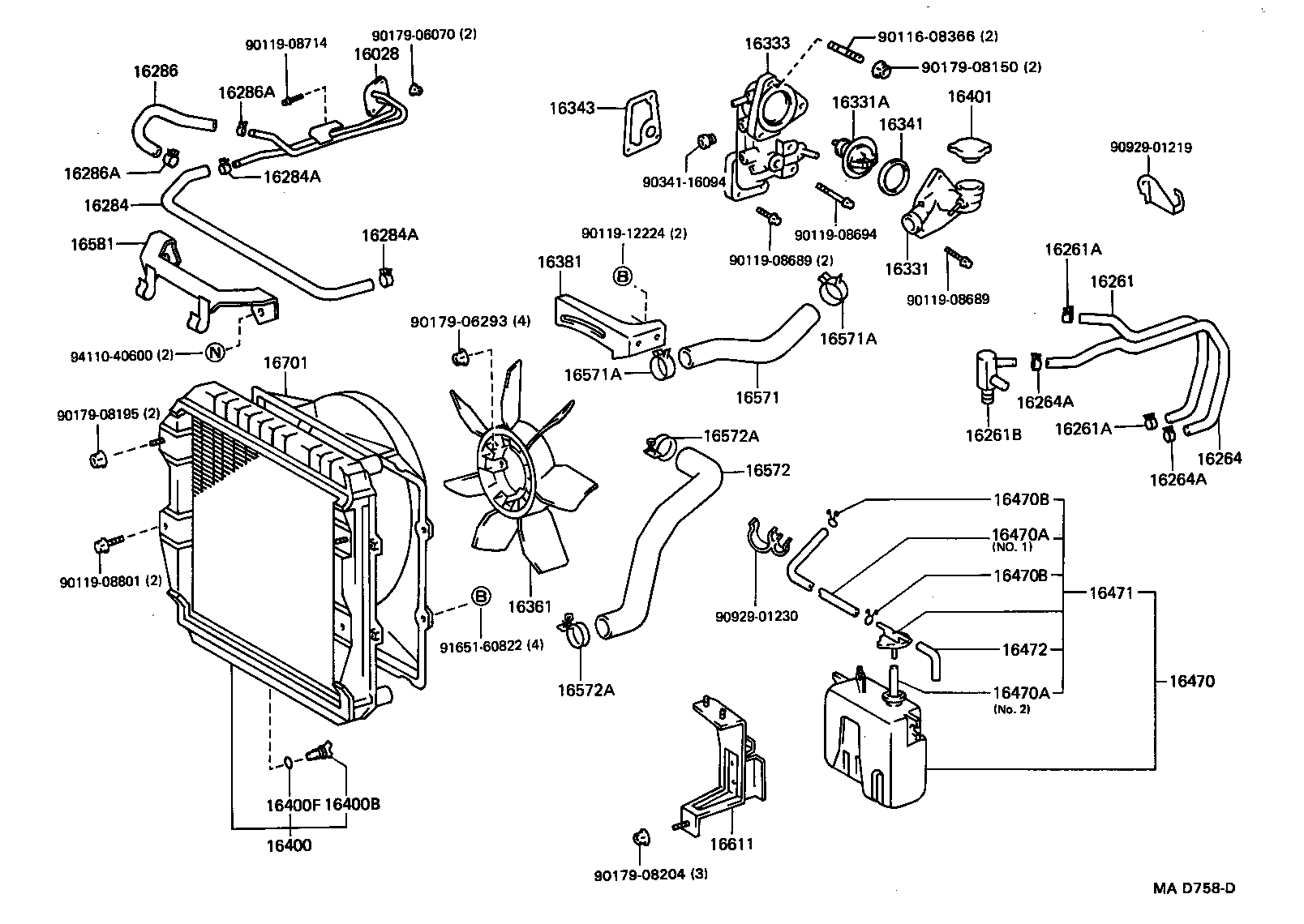

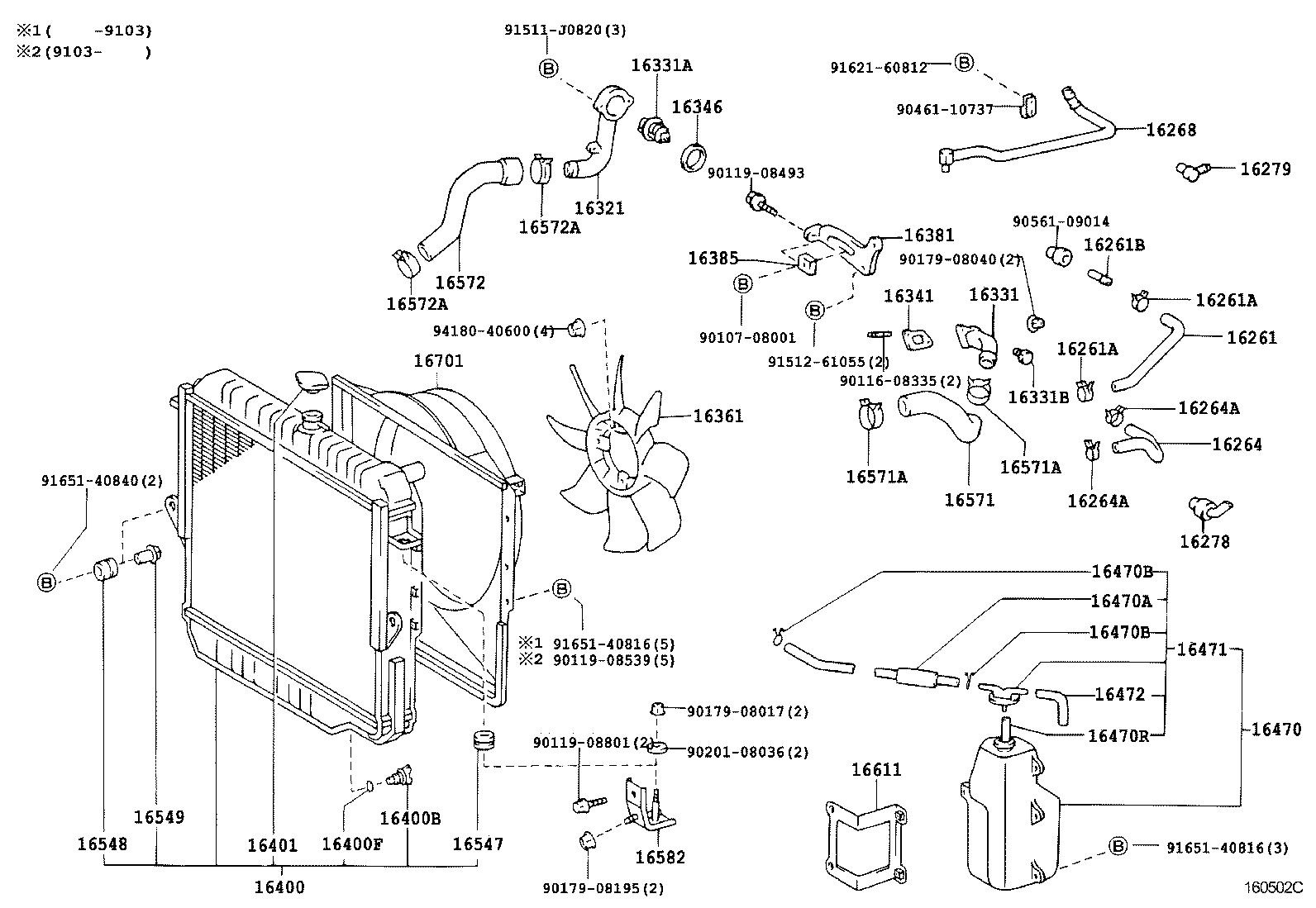

Figure 160349 160349 1990-01 → 1994-02 Figure 160502C 160502C 1990-01 → 1996-08 Figure 160312F 160312F 1996-08 → — Figure 160881C 160881C 1996-08 → — Figure MAG527E MAG527E 1993-05 → 1996-04 Figure 166514 166514 1993-05 → 1996-04 Figure MAD758D MAD758D 1990-01 → 1995-01 Figure 160548 160548 1990-01 → 1992-08 Figure 160289 160289 1990-01 → 1993-05 Figure 160286 160286 1990-01 → 1996-04

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16268 Pipe, Water By-pass, NO.1
16278 Pipe, Water By-pass, NO.2
16278G Ring, O(FOR WATER BY-PASS NO.2 PIPE)
16279 Pipe, Water By-pass, NO.3
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16285B Union(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16321 Inlet, Water
16331 Outlet, Water
16331A Thermostat
16331B Plug(FOR WATER OUTLET)
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16547 Bush, Radiator Support, NO.1
16548 Bush, Radiator Support, NO.2
16549 Collar, Radiator Support, NO.2
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16577 Pipe, Radiator, NO.7
16581 Clamp, Hose(FOR WATER HOSE)
16582 Bracket, Radiator, NO.1
16611 Bracket, Radiator Reserve Tank
16701 Shroud Sub-assy, Fan
