Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

31 part groups · 6 illustrations

Illustrations

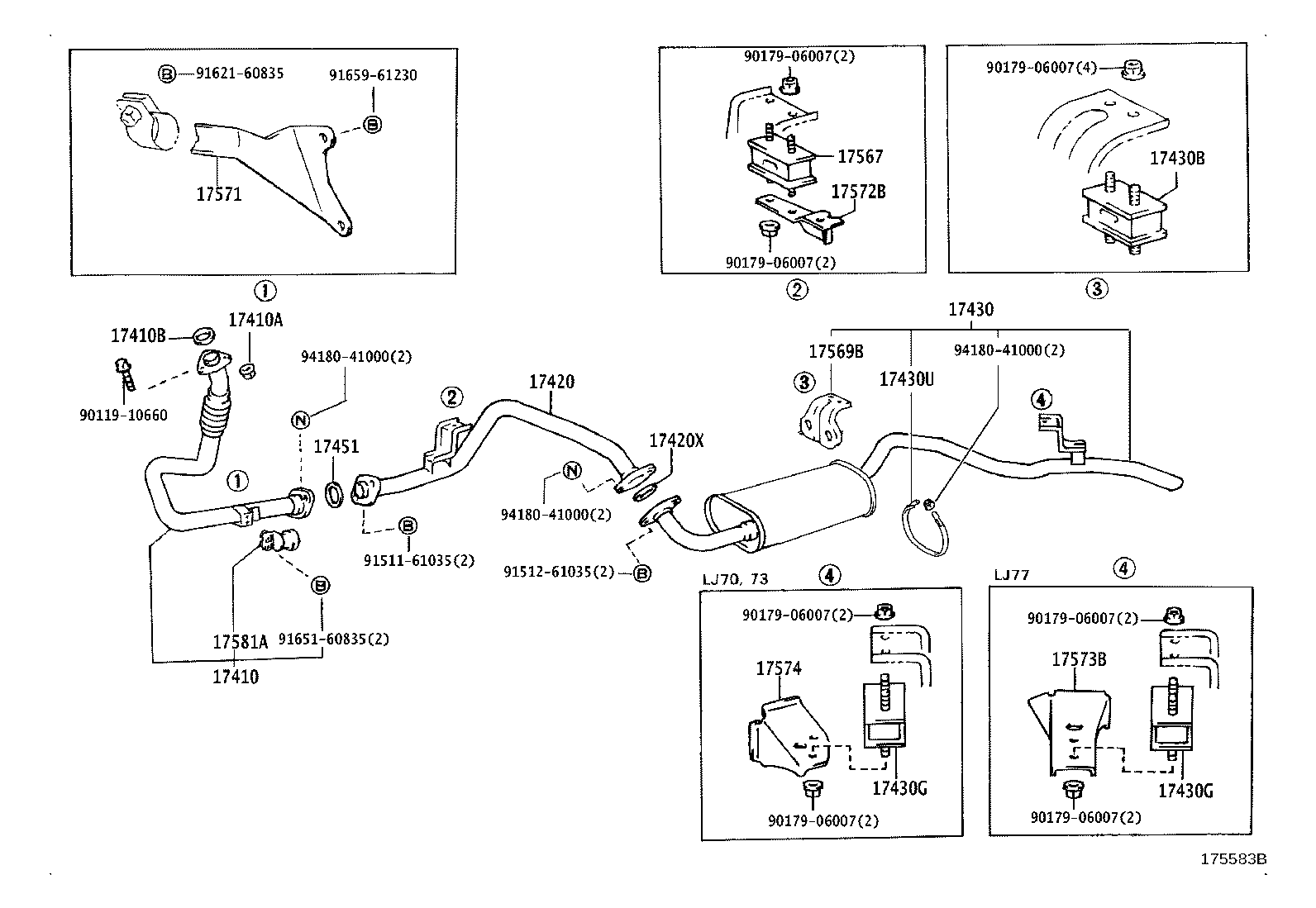

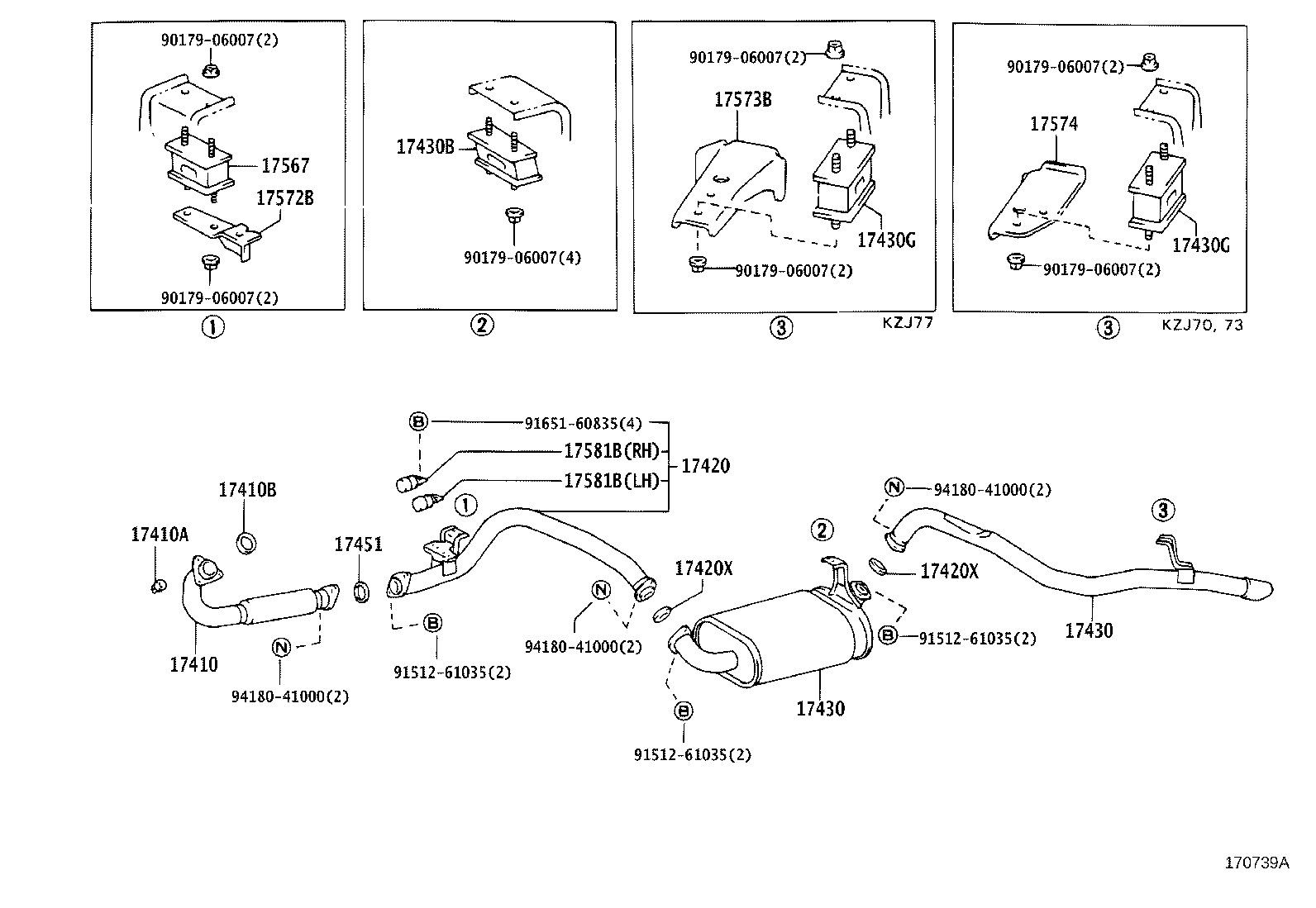

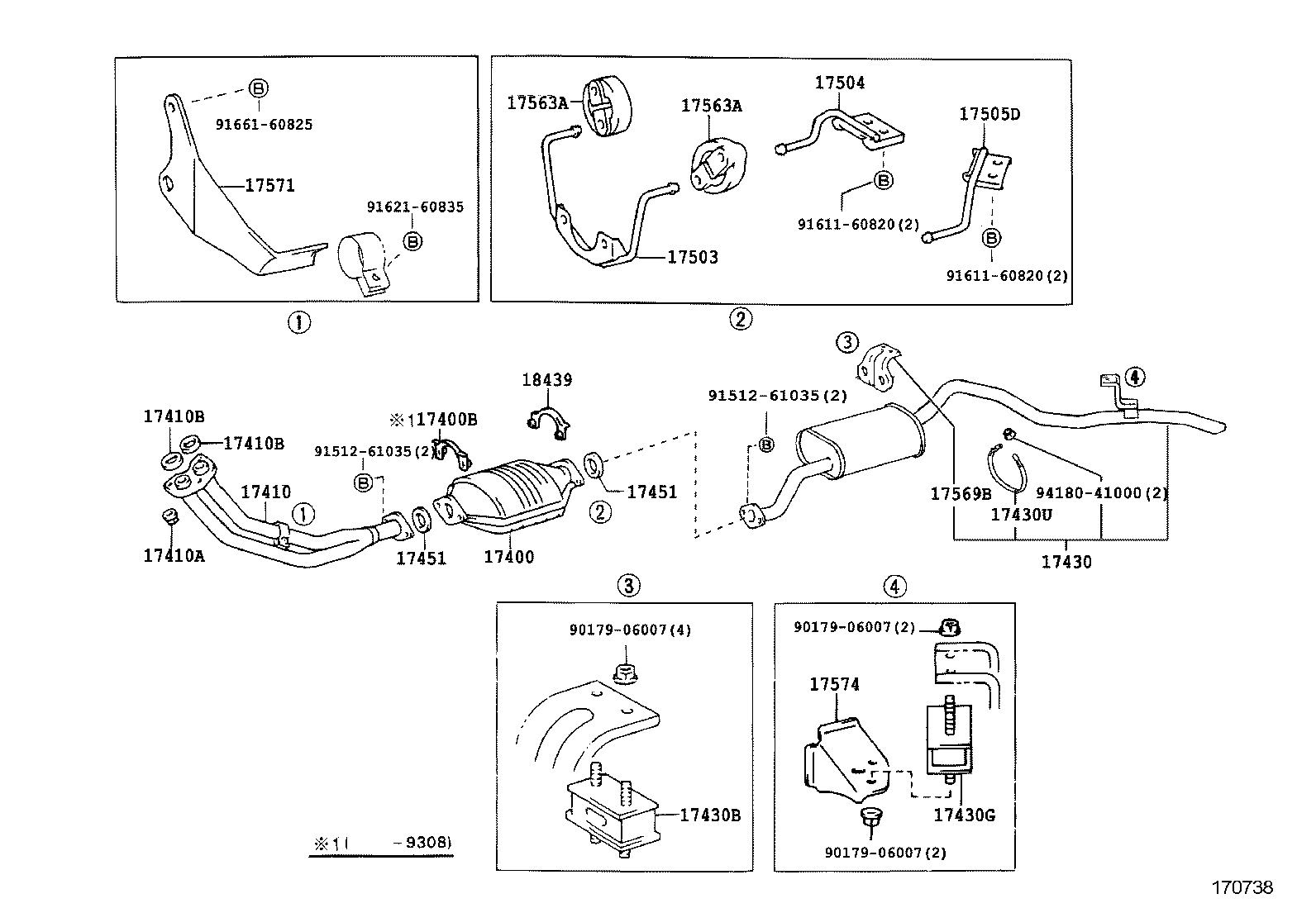

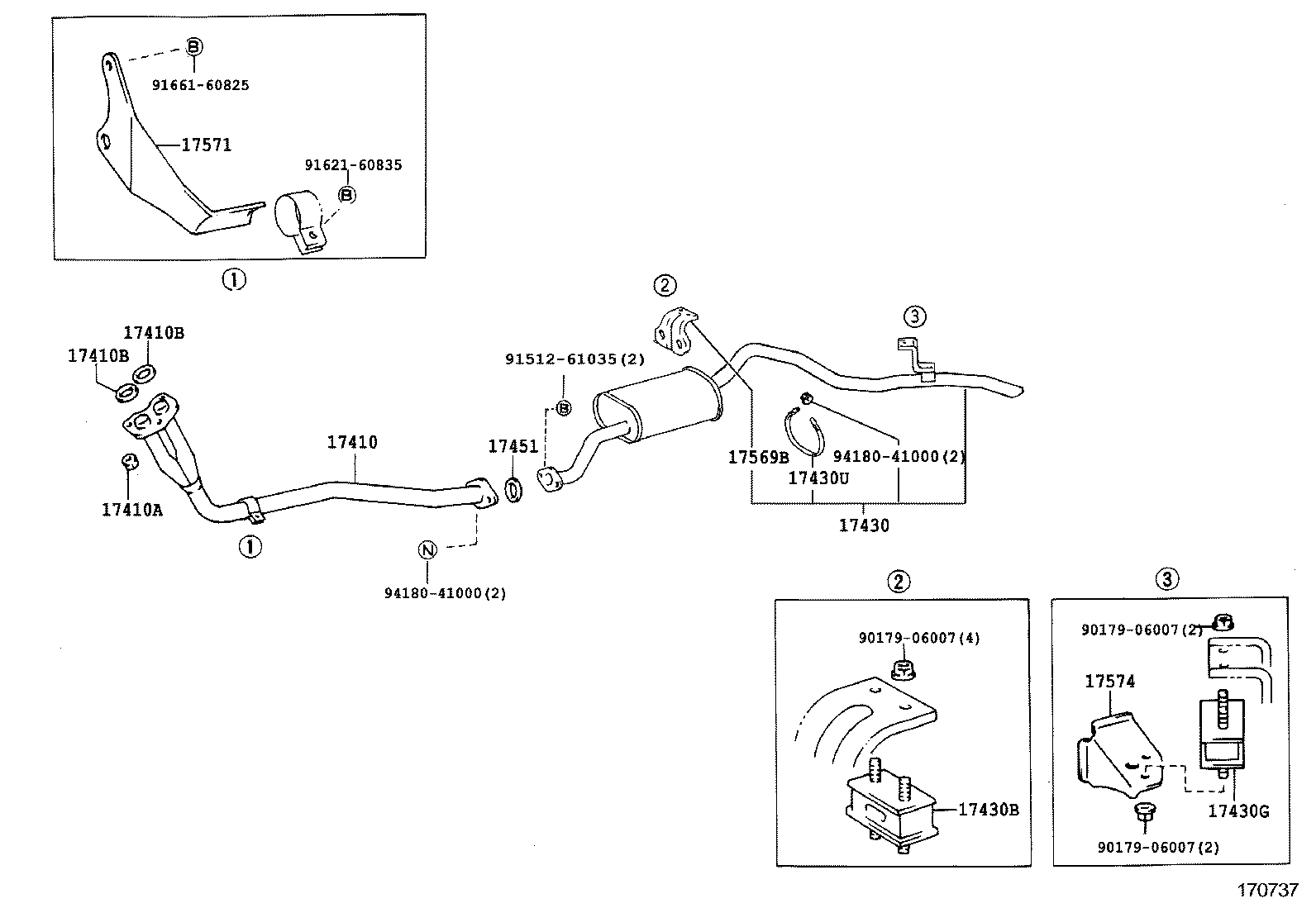

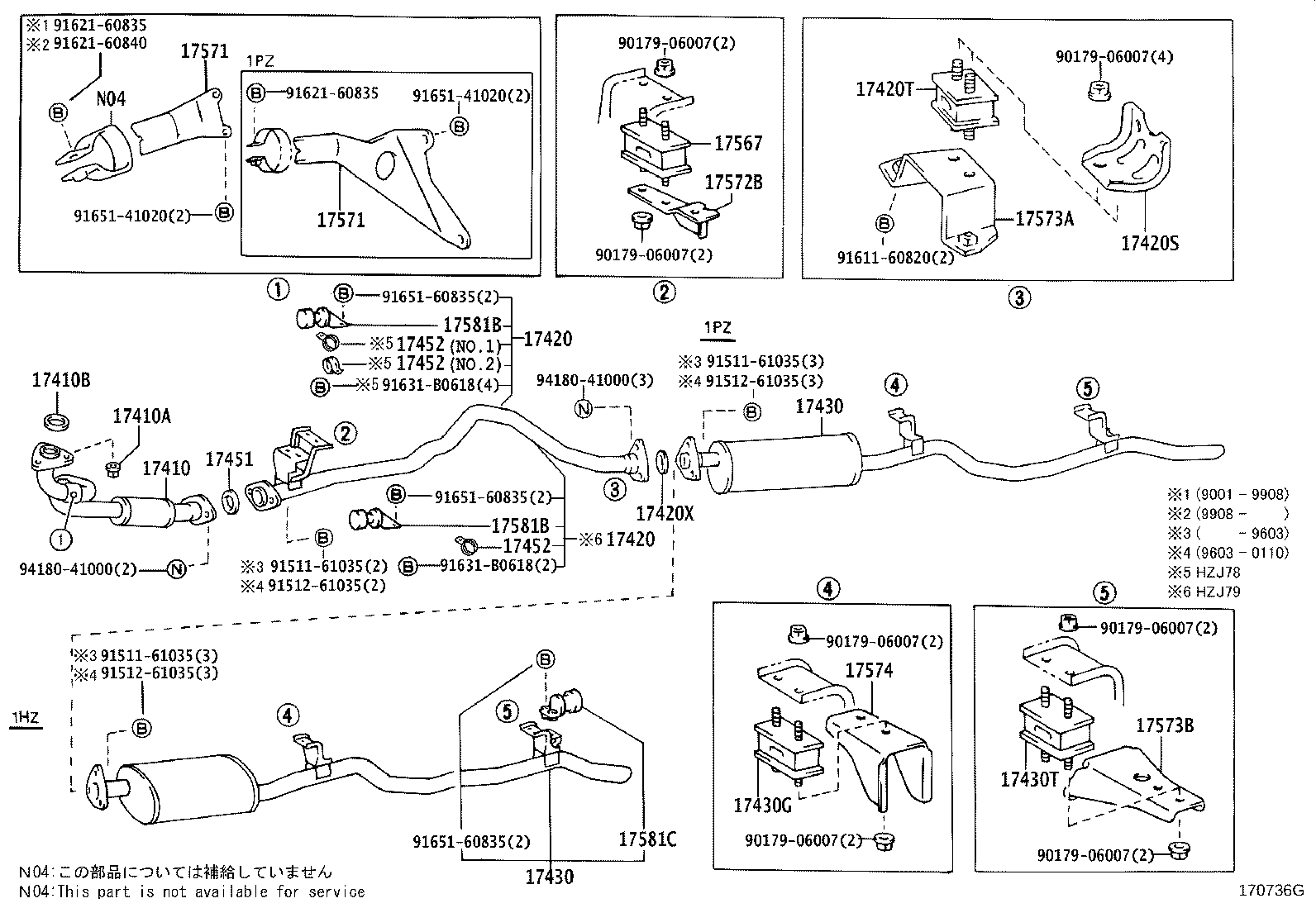

Figure 170735G 170735G 1990-01 → — Figure 170736G 170736G 1990-01 → — Figure 175583B 175583B 1990-01 → 1995-01 Figure 170737B 170737B 1990-01 → 1993-05 Figure 170738B 170738B 1990-01 → 1996-04 Figure 170739A 170739A 1993-05 → 1996-04

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17504 Bracket Sub-assy, Catalytic Converter
17505D Bracket Sub-assy, Converter Support, LH
17563A Support, Exhaust Pipe, NO.3
17567 Cushion, Exhaust Pipe Support
17569B Stay, Exhaust Pipe Support, NO.2
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17574 Bracket, Exhaust Pipe Support, NO.4
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
17581C Damper, Exhaust Pipe, NO.3
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
