Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

27 part groups · 7 illustrations

Illustrations

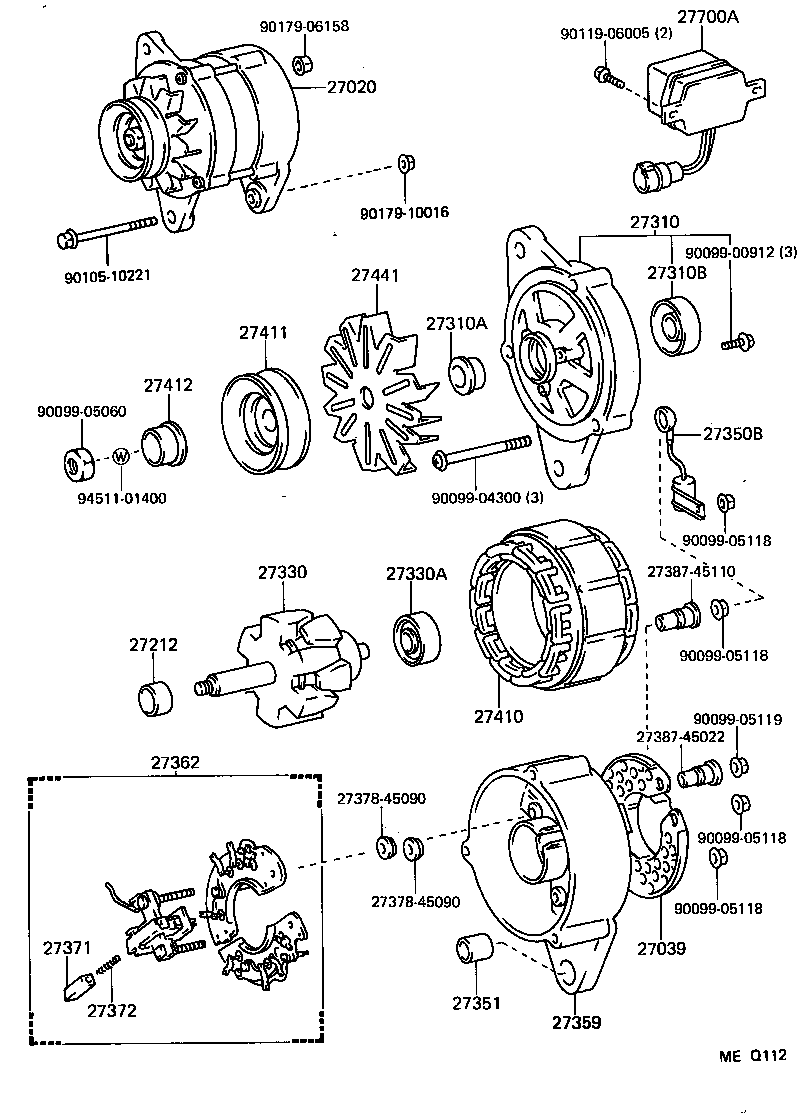

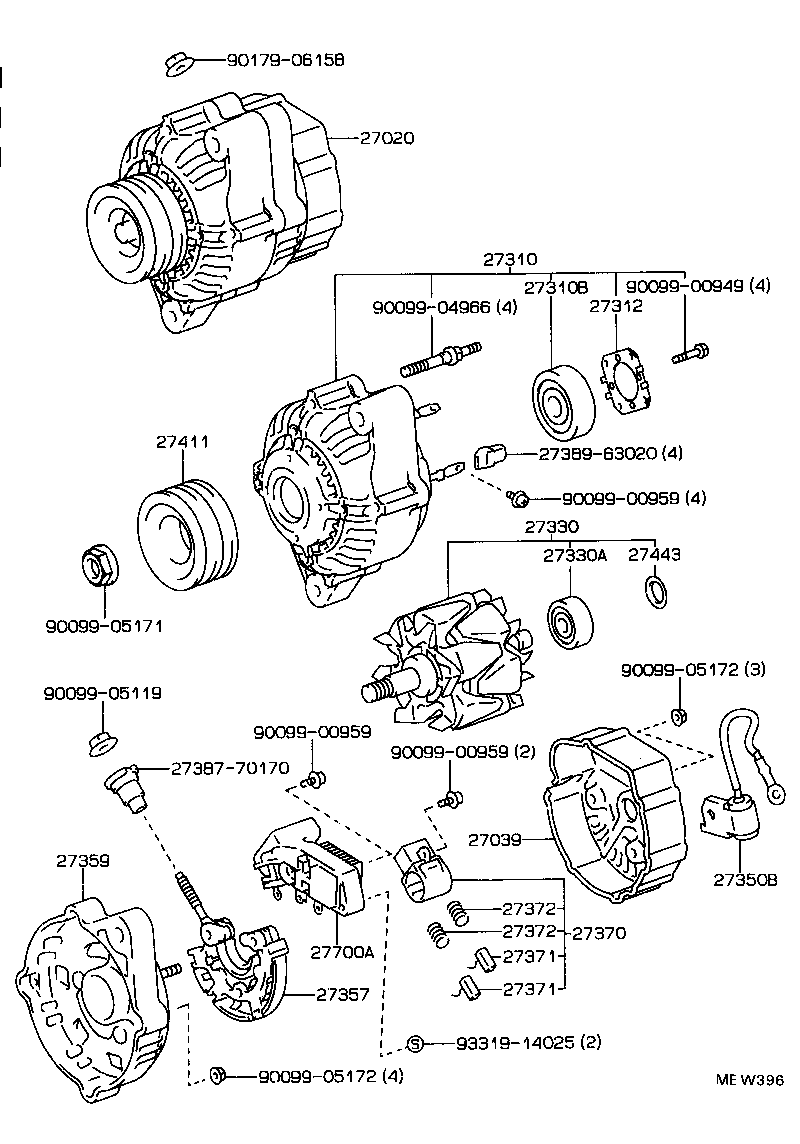

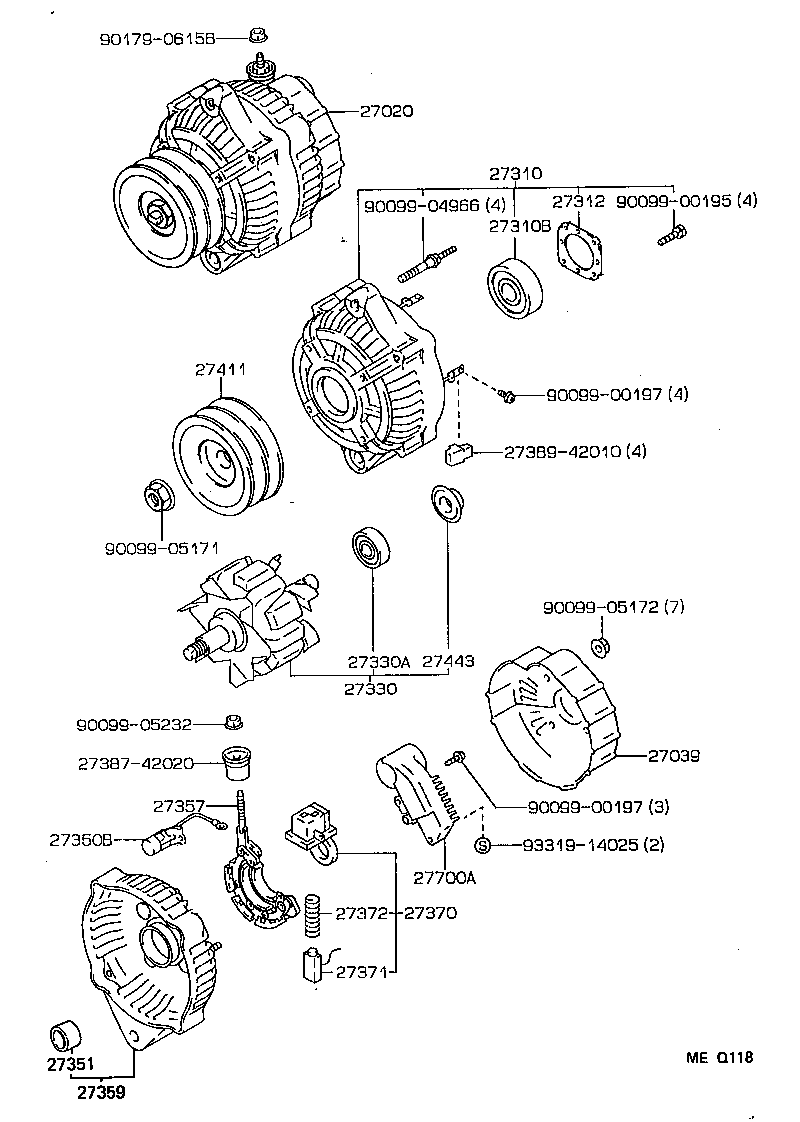

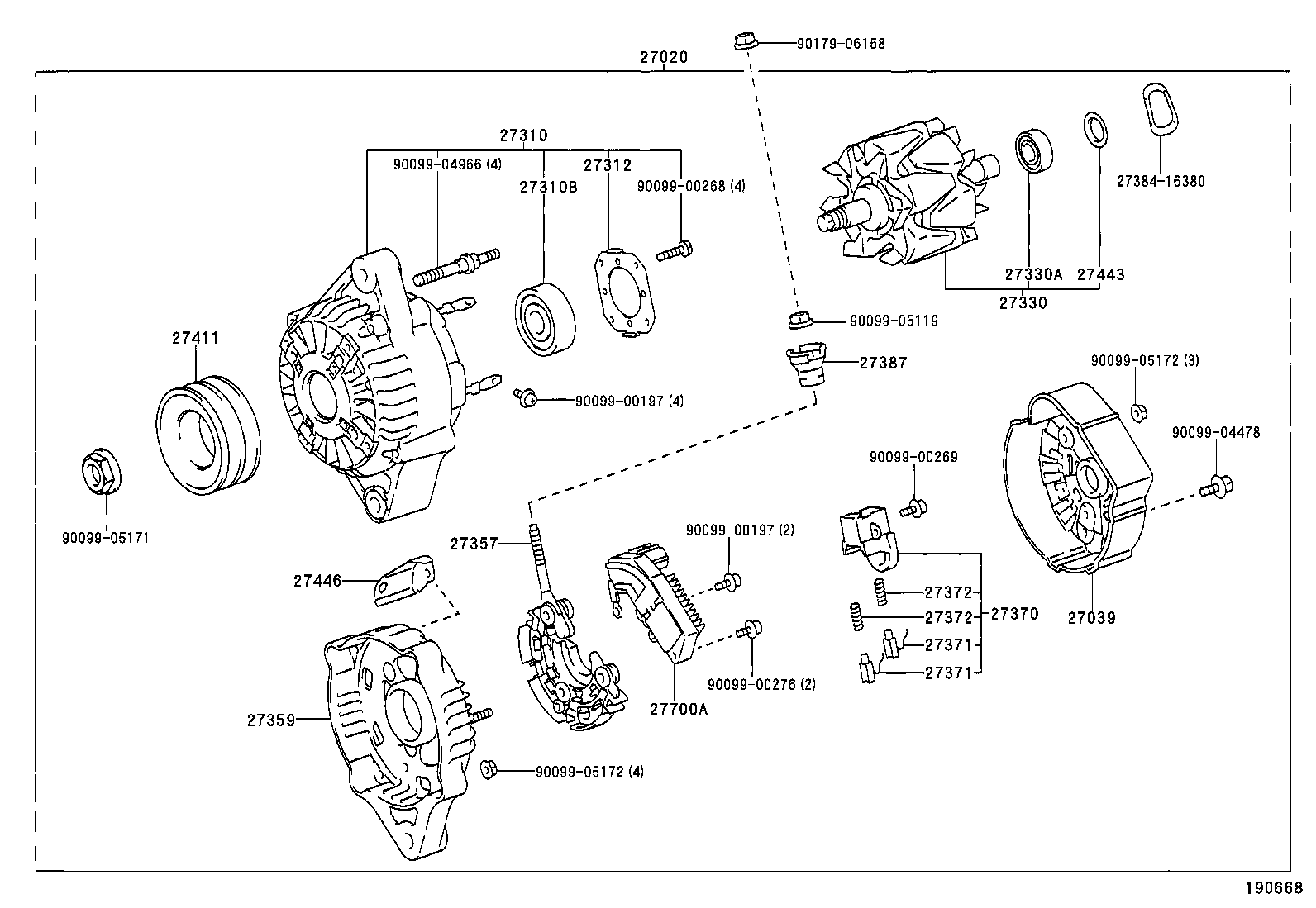

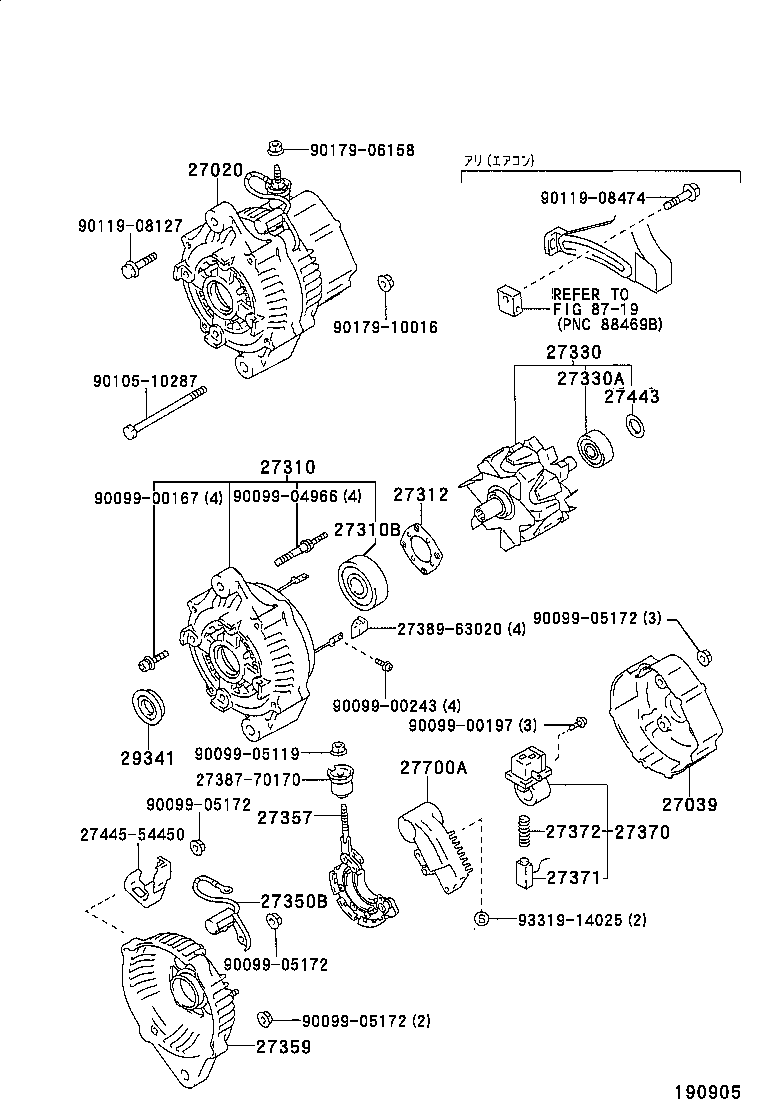

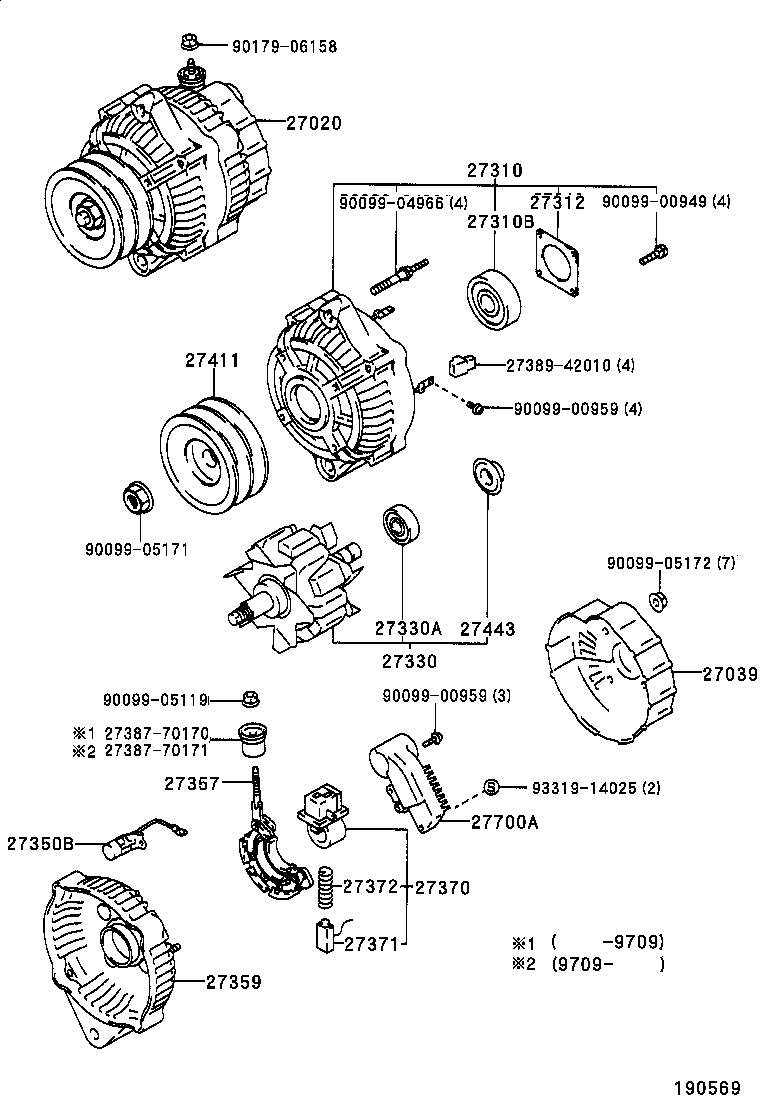

Figure MEQ117 MEQ117 1990-01 → — Figure MEQ112 MEQ112 1990-01 → — Figure 190905 190905 1990-01 → — Figure MEQ118 MEQ118 1990-01 → — Figure MEW396 MEW396 1993-05 → — Figure 190569 190569 1990-01 → 1999-08 Figure 190668 190668 1999-08 → —

Part groups

PNCDescription
27020 Alternator Assy
27039 Cover, Alternator Rear End
27113 Plate, Bearing Retainer, Alternator
27212 Ring, Space(FOR ALTERNATOR ROTOR)
27310 Frame Assy, Drive End, Alternator
27310A Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27350B Condenser, Alternator
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27362 Rectifier Assy, W/Brush
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27387 Insulator, Terminal
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412 Collar, Spacer(FOR ALTERNATOR PULLEY)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27446 Clip, Alternator Cord
27700A Regulator Assy, Generator
29341 Seal, Alternator Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
