Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01
Injection Pump Body
136 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 22019 | Solenoid Assy, Fuel Cut |
| 22101 | Housing Sub-assy, Injection Pump |
| 22101B | Ring, O(FOR INJECTION PUMP HOUSING) |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22108A | Ring Sub-assy, Roller |
| 22119 | Washer, Air Bleeder Nipple |
| 22119A | Washer, Air Bleeder Nipple, NO.2 |
| 22128A | Bolt, Distributive Head |
| 22129 | Plug, Screw |
| 22129A | Washer, Air Bleeder Nipple(FOR SCREW PLUG) |
| 22130 | Camplate Sub-assy, Face |
| 22131 | Holder, Delivery Valve |
| 22140 | Head Sub-assy, Distributive Pump |
| 22143 | Seat, Spring Upper |
| 22143A | Seat, Spring Upper, NO.2 |
| 22144 | Spring, Pump Plunger |
| 22145 | Seat, Spring, Lower |
| 22146D | Key(FOR DRIVE GEAR) |
| 22146E | Seal(FOR DRIVE SHAFT) |
| 22147A | Washer, Drive Shaft |
| 22147B | Ring, Governor Sleeve |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22160 | Screw Sub-assy, Overflow |
| 22160A | Screw Sub-assy, Over Flow, NO.2 |
| 22162 | Plate, Plunger Upper |
| 22163 | Plate, Plunger Lower |
| 22169 | Joint, Rubber |
| 22170 | Shaft Sub-assy, Drive |
| 22170A | Key(FOR DRIVE SHAFT) |
| 22176 | Plug, Distributive Head |
| 22176A | Ring, O(FOR DISTRIBUTIVE HEAD PLUG) |
| 22178B | Bracket(FOR INJECTION PUMP ASSY) |
| 22179 | Shim, Plunger Adjusting |
| 22180 | Valve Sub-assy, Regulator |
| 22182 | Plate, Tappet Adjusting Shim |
| 22190 | Valve Sub-assy, Snubber |
| 22192 | Guide Sub-assy, Plunger Spring |
| 22193 | Ring, O(FOR LEVER CONNECTING PIN) |
| 22193A | Ring, O(FOR ADJUSTING LEVER SHAFT) |
| 22193B | Ring, O(FOR FUEL CUT SOLENOID) |
| 22193C | Ring, O(FOR TIMER COVER STOPPER) |
| 22193D | Ring, O(FOR REVOLUTION DETECTOR) |
| 22193F | Ring, O(FOR FUEL INJECTION PUMP FILTER) |
| 22301 | Rod Sub-assy, Push |
| 22302 | Shaft Sub-assy, Speed Control |
| 22305A | Idle-up Sub-assy |
| 22308B | Lever Sub-assy, Control |
| 22314A | Spring, Lever Support |
| 22316A | Sleeve, Governor |
| 22316B | Bearing, Ball(FOR GOVERNOR SLEEVE) |
| 22317 | Spring, Governor Domper |
| 22321A | Rod, Push |
| 22321B | Rod, Push(FOR ALTITUDE COMPENSATING TIMER ADVANCER) |
| 22322A | Spring, Return |
| 22327A | Spring(FOR BELLOWS) |
| 22328A | Pin, Lever Connecting |
| 22338A | Pin, Lever Connecting |
| 22341C | Gear, Governor Drive |
| 22348A | Bushing, Guide |
| 22348B | Bushing, Guide(FOR LEVER CONNECTING PIN) |
| 22350A | Governor Assy, Torque Control |
| 22354A | Seal, Rod |
| 22355A | Wire, Governor Housing Seal |
| 22369 | Seat, Governor Spring |
| 22378A | Washer, Governor Thrust |
| 22378B | Washer, Drain Screw |
| 22384D | Shaft, Governor |
| 22384E | Ring, O(FOR GOVERNOR MAIN SHAFT) |
| 22390A | Solenoid Assy, Fuel Cut |
| 22504 | Shaft Sub-assy, Adjusting Lever |
| 22505 | Pump Sub-assy, Fuel Feed |
| 22505A | Screw(FOR FUEL FEED PUMP) |
| 22511A | Cover, Feed Pump |
| 22526A | Pin, Lever Support |
| 22540 | Compensator Sub-assy, Boost |
| 22542 | Diaphragm(FOR BOOST COMPENSATOR) |
| 22546 | Spring, Boost Compensator |
| 22547 | Shim, Boost Compensator |
| 22548 | Nipple, Swivel |
| 22549 | Washer, Thrust(FOR BOOST COMPENSATOR DIAPHRAGM) |
| 22550 | Piston Assy, Timer |
| 22568 | Lever, Throttle |
| 22569 | Screw, Overflow |
| 22582 | Piston Assy, Timer |
| 22601 | Bracket Sub-assy, Idle UP |
| 22602 | Filter Sub-assy, Fuel Injection Pump |
| 22602A | Filter Sub-assy, Fuel Injection Pump, NO.2 |
| 22612B | Cover, Timer |
| 22612C | Cover, Timer |
| 22612D | Ring, O(FOR TIMER COVER) |
| 22615A | Spring, Timer Outer |
| 22621A | Washer, Timer Adjusting |
| 22625 | Washer, Timer Sensor Adjusting |
| 22632A | Coupling, Injection Pump |
| 22654 | Piston, Timer |
| 22655A | Pin, Timer Slide |
| 22656 | Clip, Timer |
| 22657 | Clip, Timer |
| 22658 | Stopper, Timer |
| 22658A | Stopper, Timer Slide |
| 22658B | Ring, O(FOR TIMER SLIDE STOPPER) |
| 22659 | Spring, Coupling |

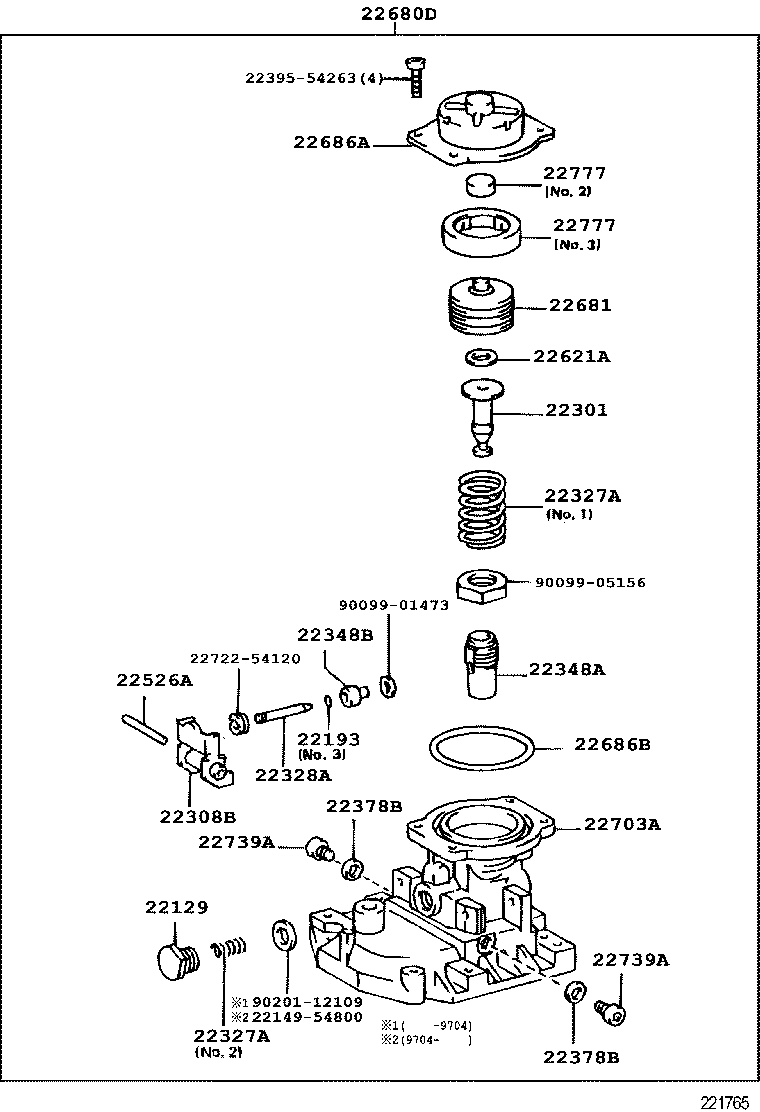

| 22680D | Bellows Assy, Pneumatic |
| 22680E | Washer, Copper Plate |
| 22681 | Bellows Sub-assy, Pneumatic |
| 22686A | Cover, Pneumatic Bellows |
| 22686B | Ring, O(FOR BELLOWS COVER) |
| 22689 | Washer(FOR SWIVEL NIPPLE) |
| 22701 | Lever Sub-assy, Adjusting |
| 22703A | Cover Sub-assy, Governor |
| 22703B | Cover, Governor |
| 22712 | Nut, Rock |
| 22713 | Washer, Governor Gear Adjusting |
| 22722 | Nut, Governor Shaft Rock |
| 22726 | Spring, Speed Control |
| 22728 | Guide, Return Spring |
| 22739 | Bolt, Governor Link Support |
| 22739A | Bolt, Governor Link Support NO.2 |
| 22739B | Washer(FOR GOVERNOR LINK SUPPORT BOLT NO.2) |
| 22740 | Shaft Sub-assy, Governor Adjusting |
| 22740A | Ring, O(FOR GOVERNOR ADJUSTING SHAFT) |
| 22741 | Holder Sub-assy, Flyweight |
| 22745 | Flyweight, Distributive Pump |
| 22749 | Collar, Smoke Set Adjusting |
| 22751 | Wire Sub-assy, Fuel Cut Solenoid |
| 22753A | Washer, Flyweight, NO.1 |
| 22753B | Washer, Flyweight, NO.2 |
| 22774 | Gasket, Governor Cover |
| 22776 | Screw, Smoke Set Adjusting |
| 22776A | Ring, O(FOR SMOKE SET SCREW) |
| 22777 | Cap, Rubber(FOR BELLOWS) |
| 22787 | Plug, Governor Sleeve |
| 22790 | Cover Sub-assy, Timer |
| 22790A | Ring, O(FOR TIMER COVER) |
| 26133A | Actuator Set, Idle-up |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
