Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

10 part groups · 5 illustrations

Illustrations

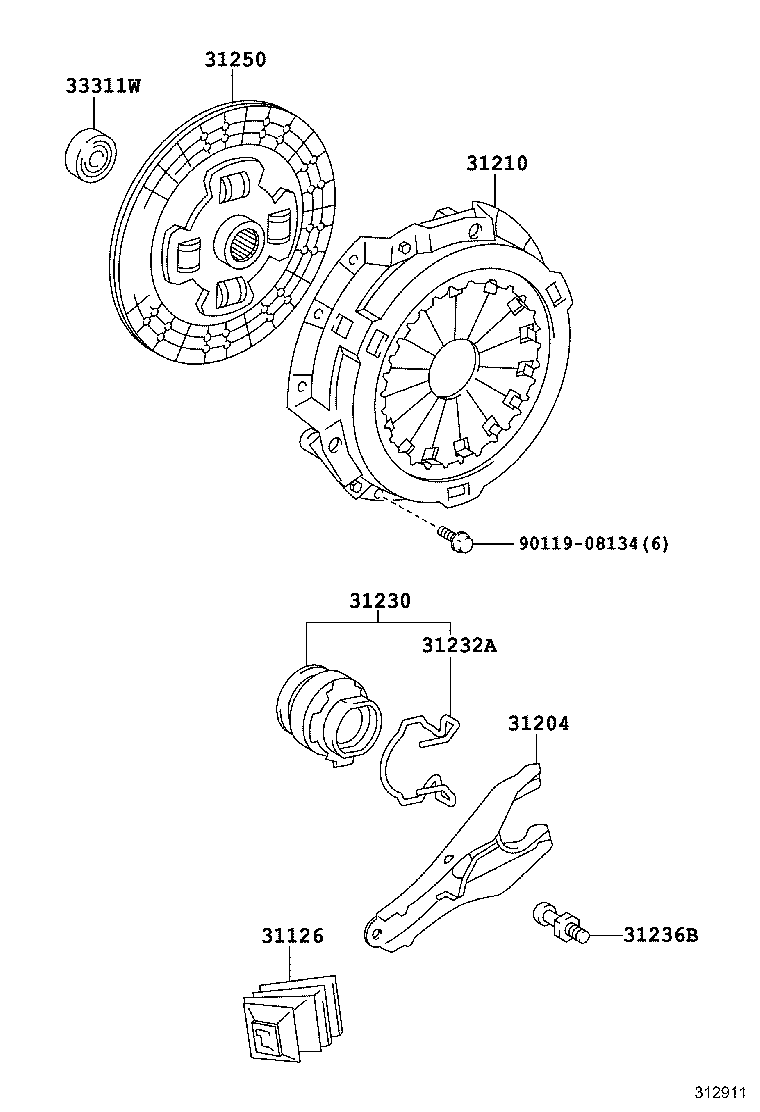

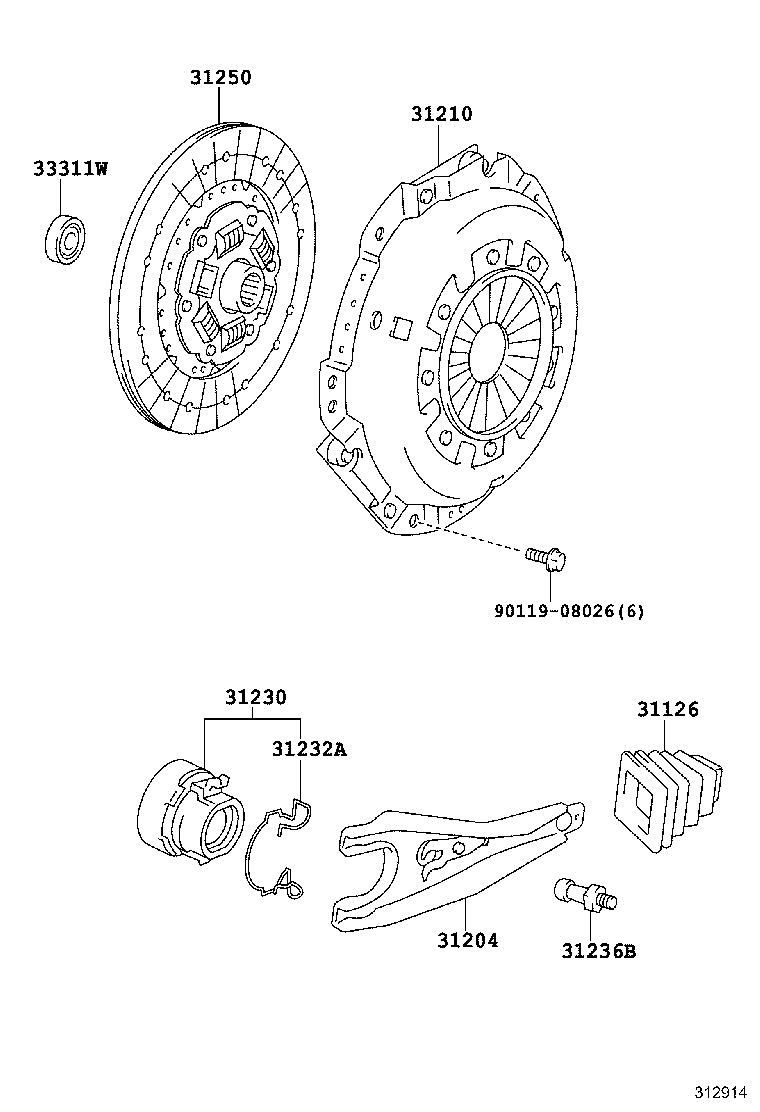

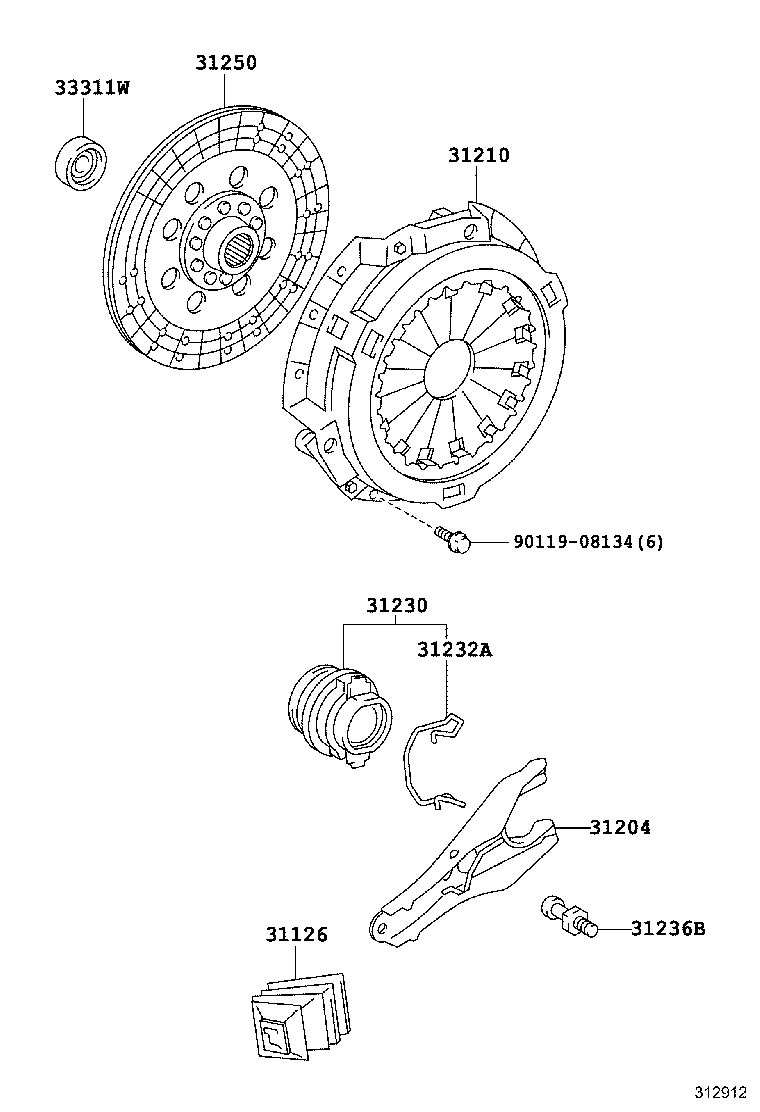

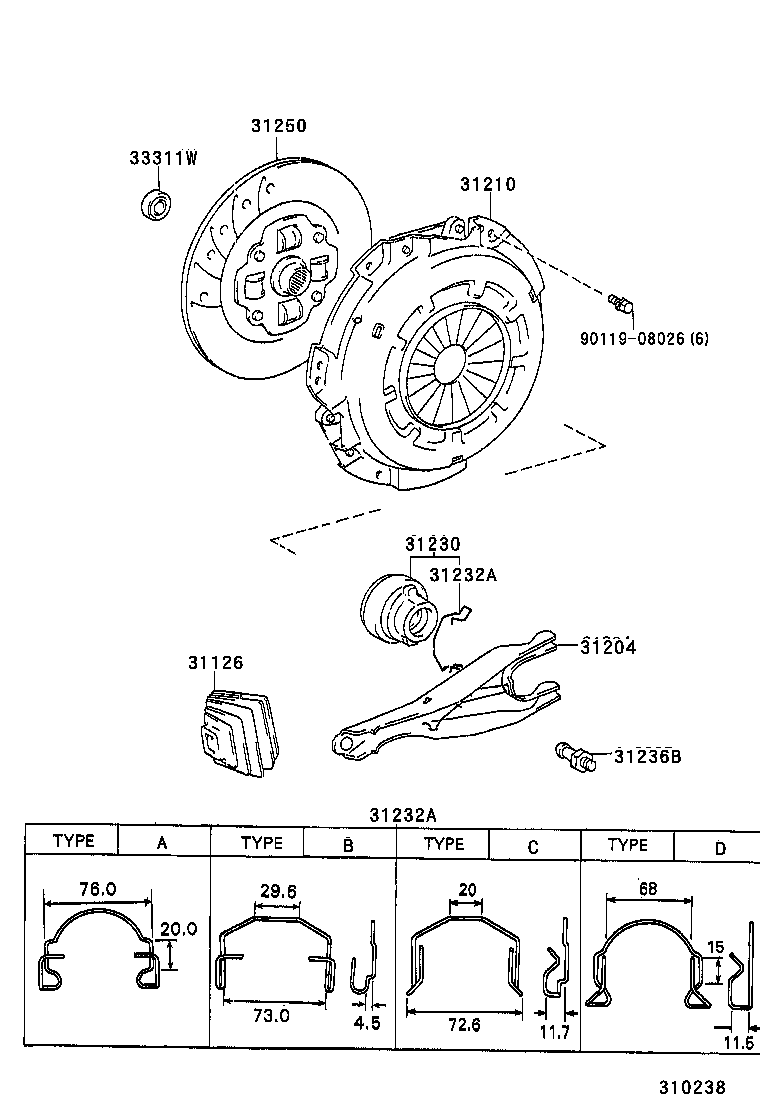

Figure 312913 312913 1990-01 → 1994-02 Figure 312911 312911 1990-01 → — Figure 310238 310238 1990-01 → 1996-04 Figure 312912 312912 1990-01 → 1992-08 Figure 312914 312914 1990-01 → 1996-04

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31231 Hub, Clutch Release Bearing
31231A Bearing, Ball(FOR CLUTCH RELEASE HUB)
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
