Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

23 part groups · 9 illustrations

Illustrations

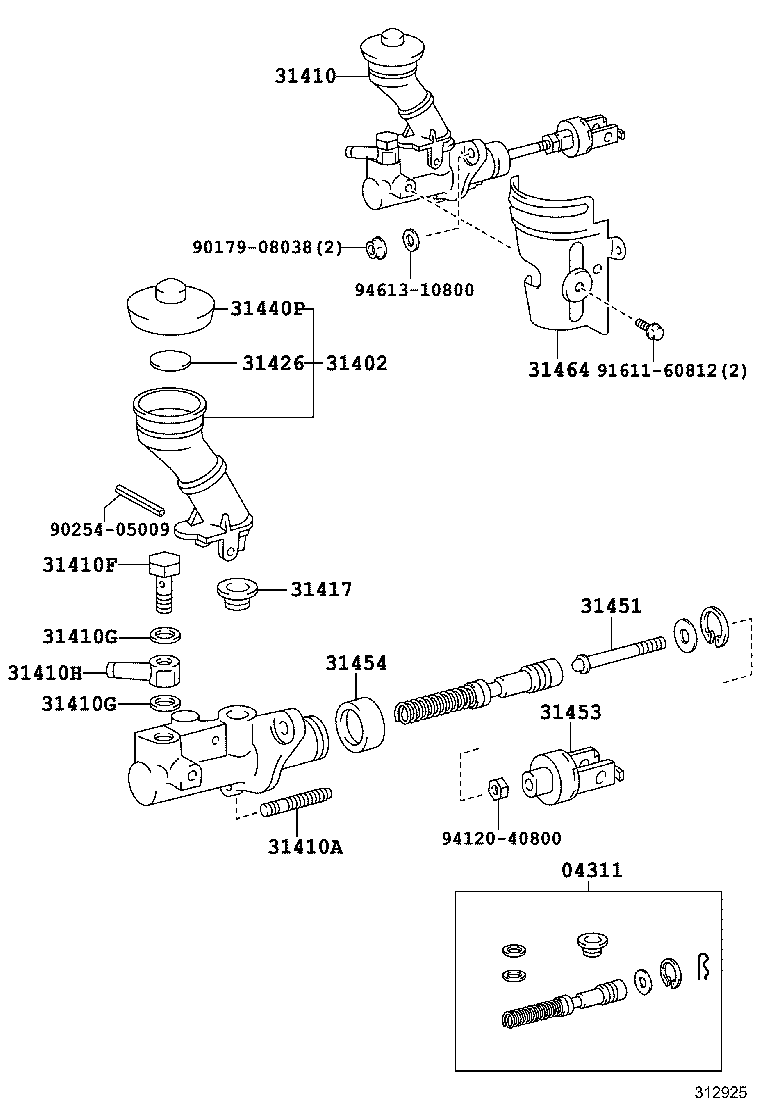

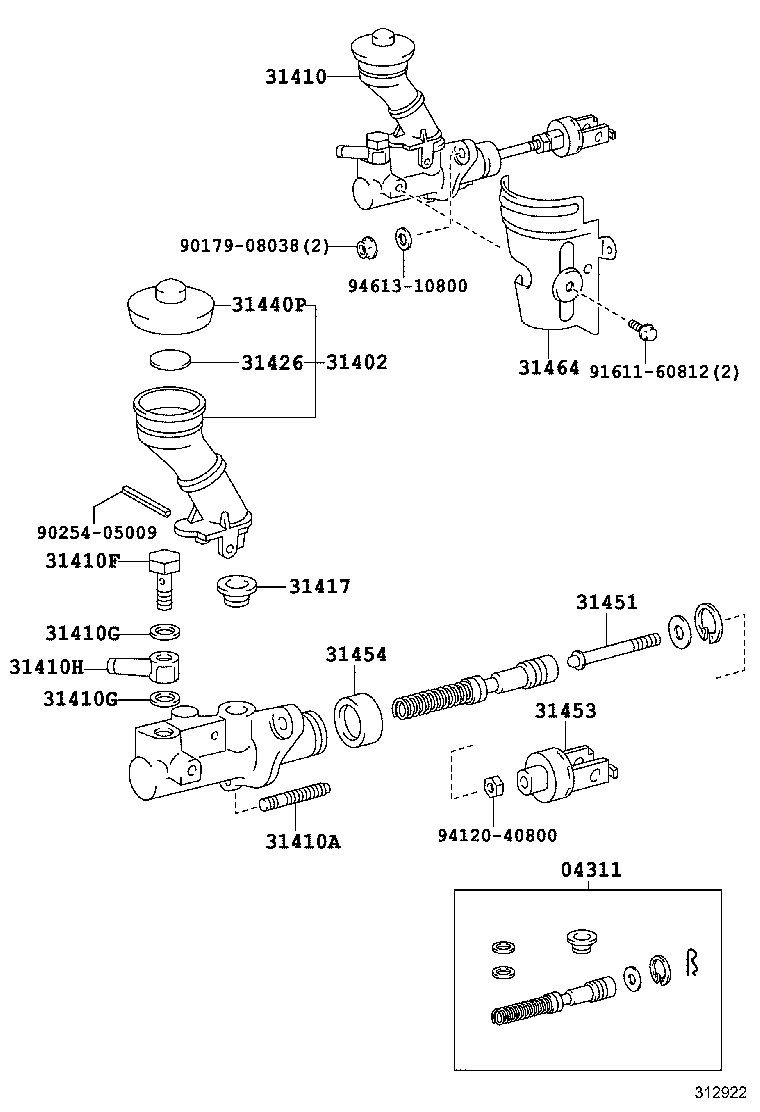

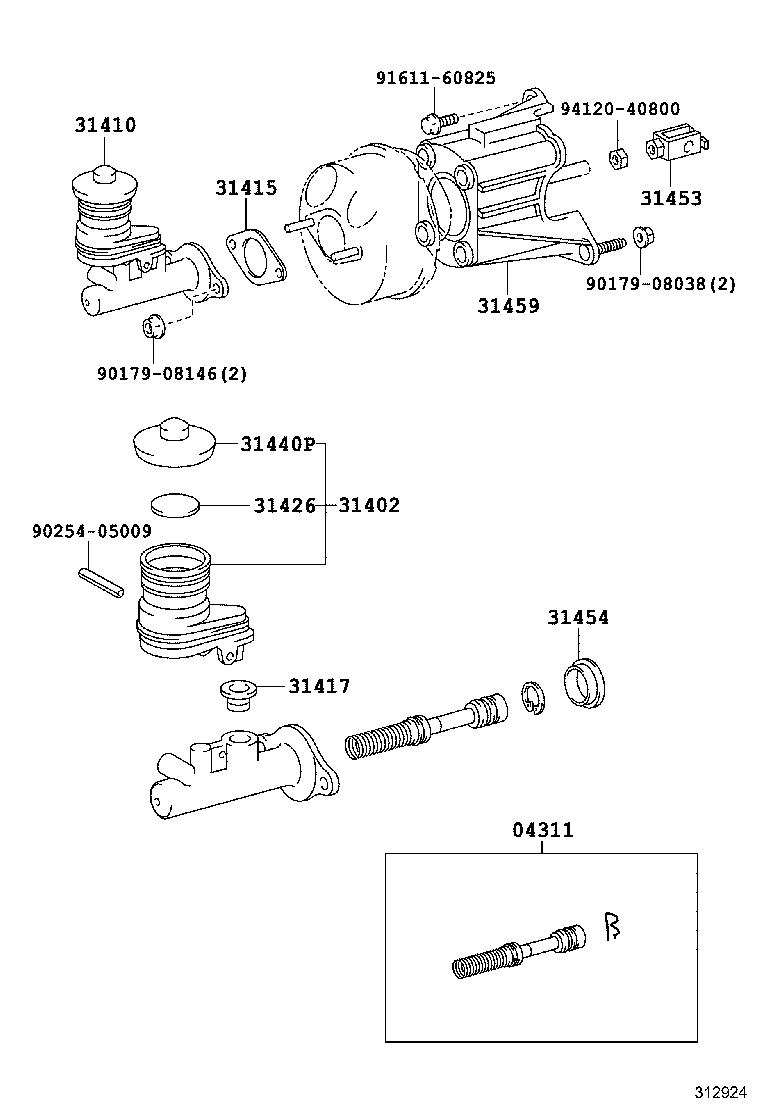

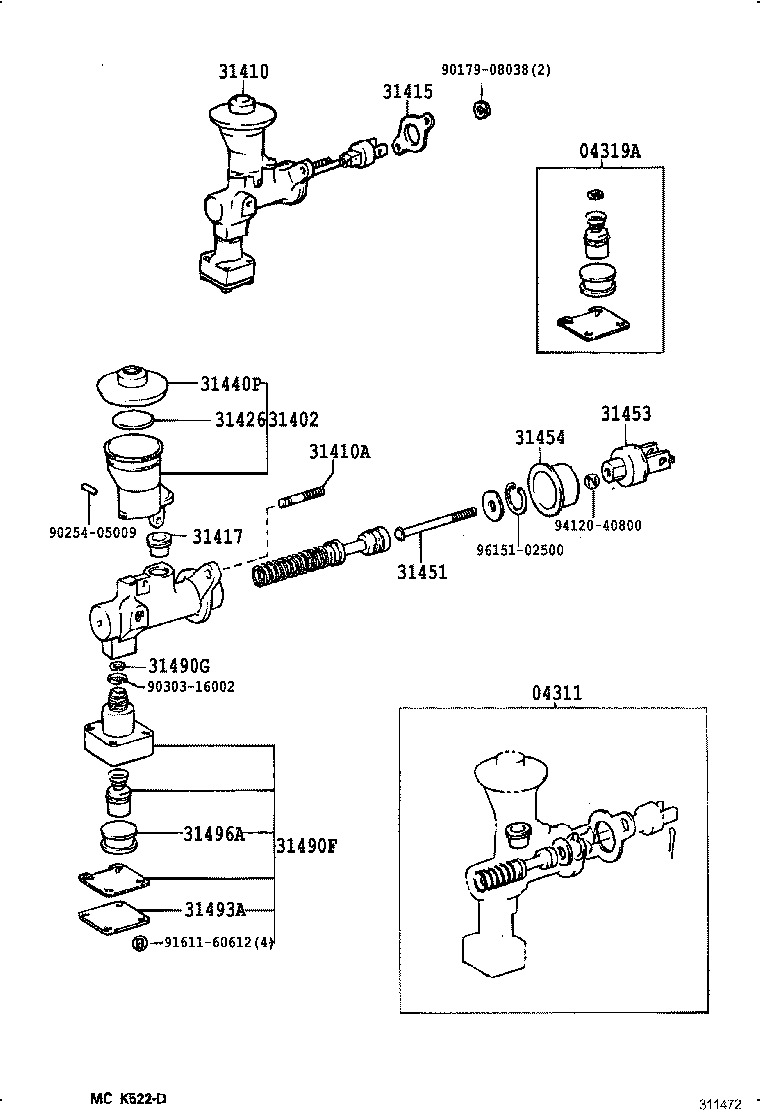

Figure 312923 312923 1990-01 → 1994-02 Figure 311472 311472 1990-01 → 1994-05 Figure 310261A 310261A 1994-05 → — Figure 310264 310264 1994-05 → 1995-01 Figure 312924 312924 1990-01 → 1995-01 Figure 312921 312921 1990-01 → 1995-01 Figure 312922 312922 1990-01 → 1993-05 Figure 312925 312925 1990-01 → 1996-04 Figure 310634 310634 1993-05 → 1996-04

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
04319A Cylinder Kit, Clutch Accumulator
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31410F Bolt, Union(FOR CLUTCH MASTER CYLINDER)
31410G Gasket(FOR CLUTCH MASTER CYLINDER UNION)
31410H Union(FOR CLUTCH MASTER CYLINDER)
31415 Gasket, Clutch Master Cylinder
31417 Grommet, Clutch Reservoir
31426 Float, Clutch Master Cylinder Reservoir
31431 Bolt, Clutch Master Cylinder Reservoir Set
31432 Washer, Clutch Reservoir Set Bolt
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31459 Bracket, Clutch Master Cylinder
31464 Insulator, Clutch Master Cylinder Heat
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
31493A Bracket, Clutch Accumulator
31496A Cushion, Clutch Accumulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
