Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

10 part groups · 2 illustrations

Illustrations

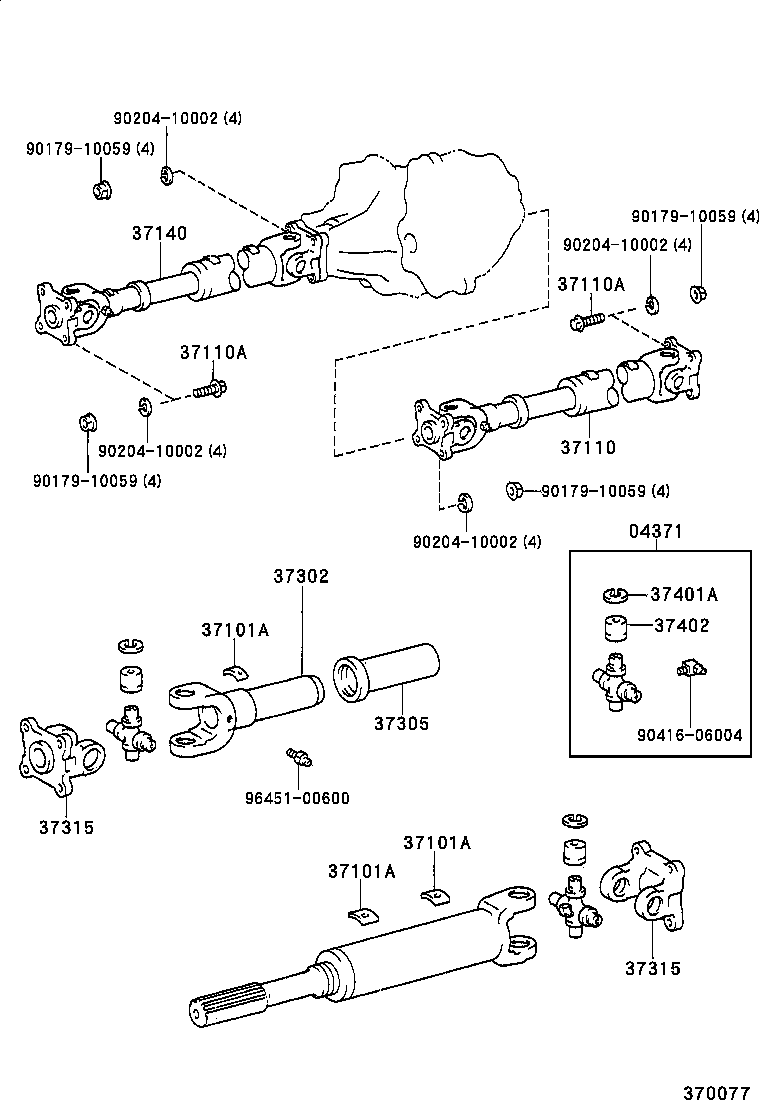

Figure 370018B 370018B 1990-01 → — Figure 370077 370077 1990-01 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37140 Shaft Assy, Propeller, Front
37302 Yoke Sub-assy, Universal Joint Sleeve
37305 Cover Sub-assy, Sliding Shaft Dust
37315 Yoke, Universal Joint Flange
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
