Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 8 illustrations

Illustrations

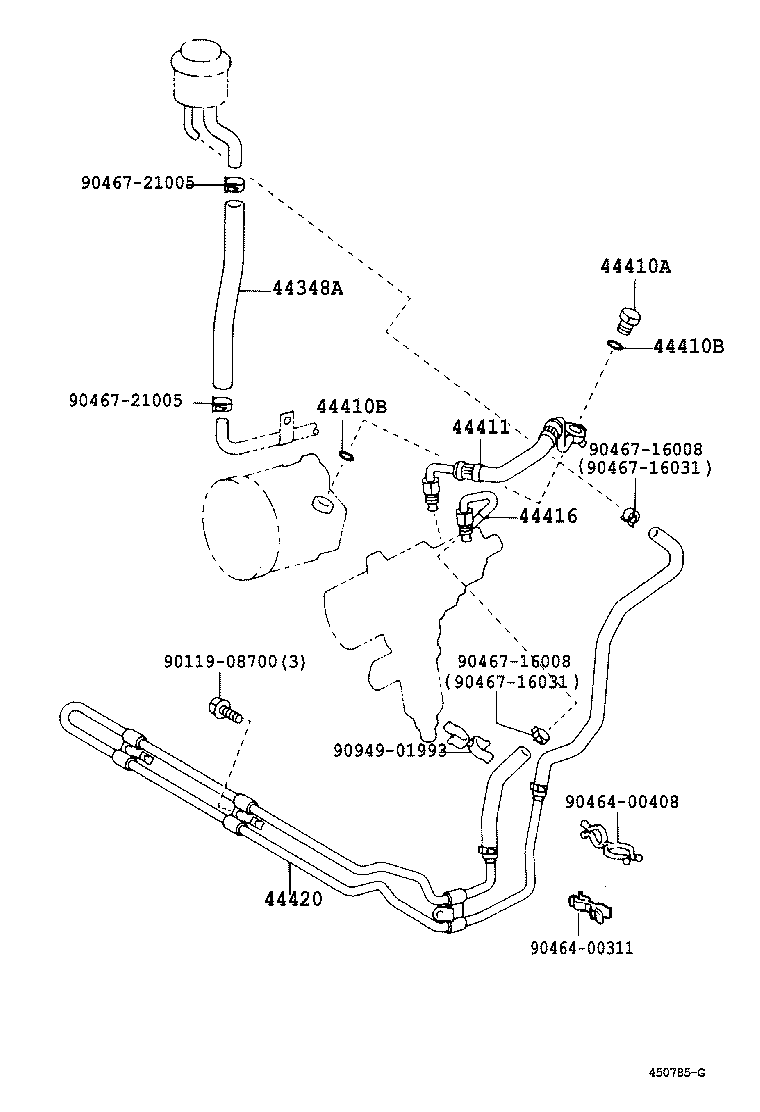

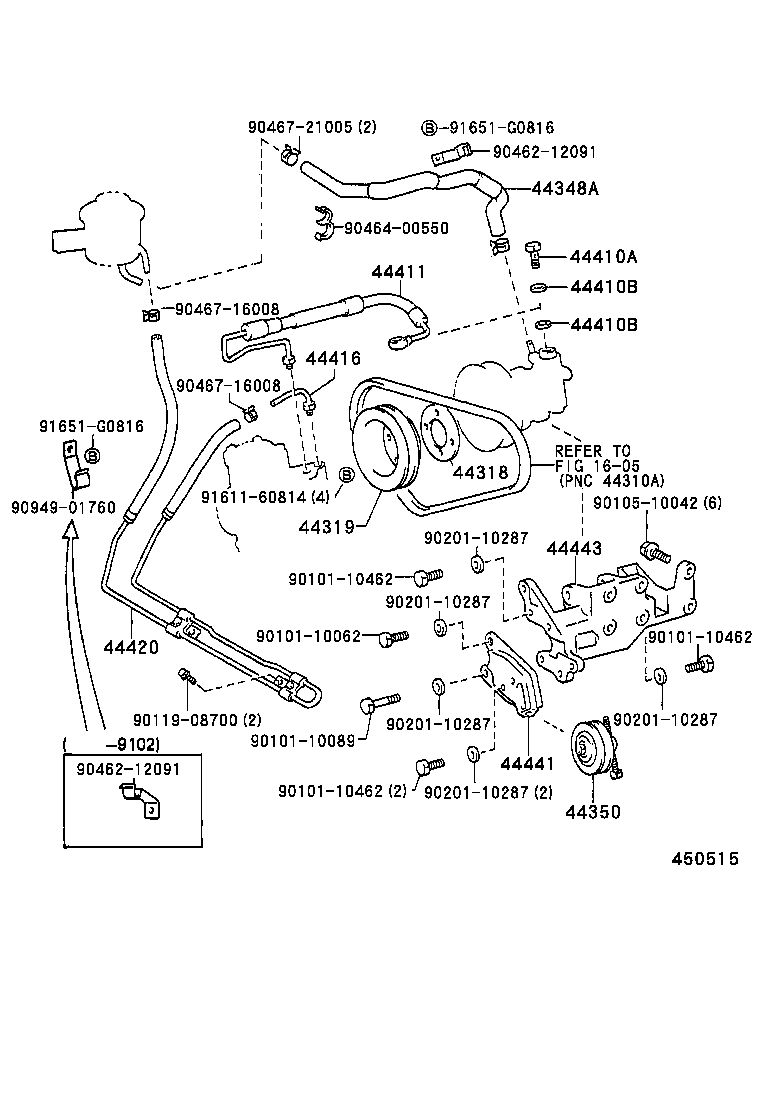

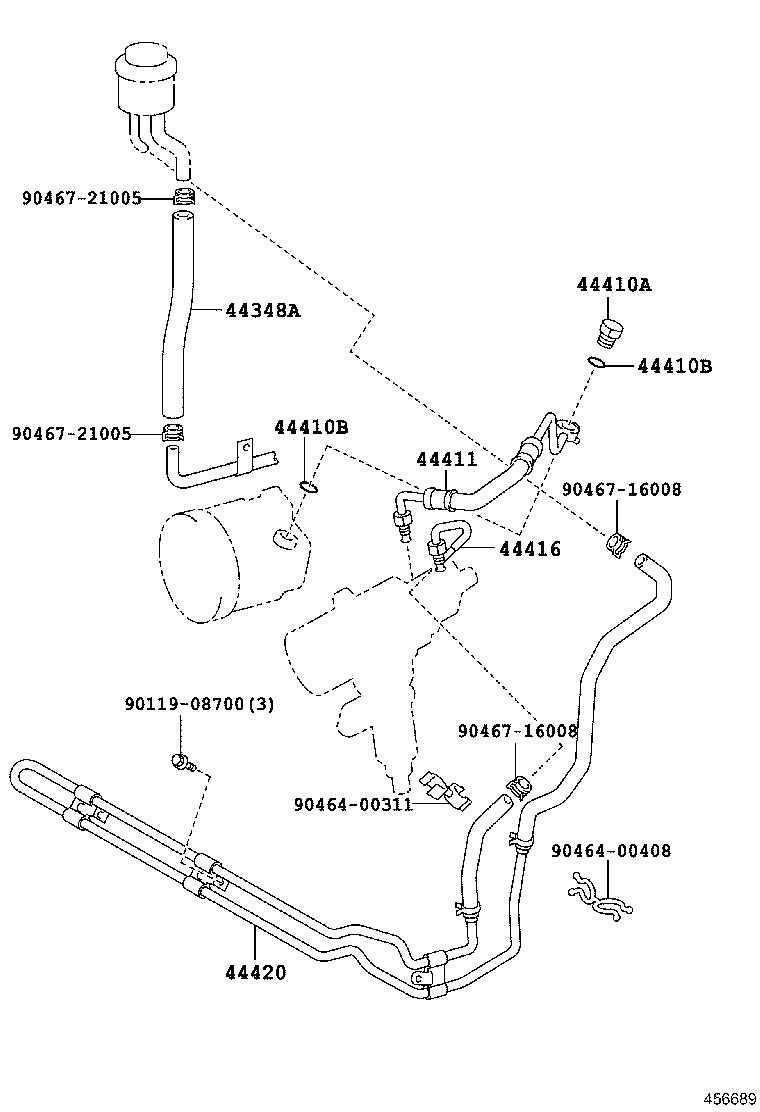

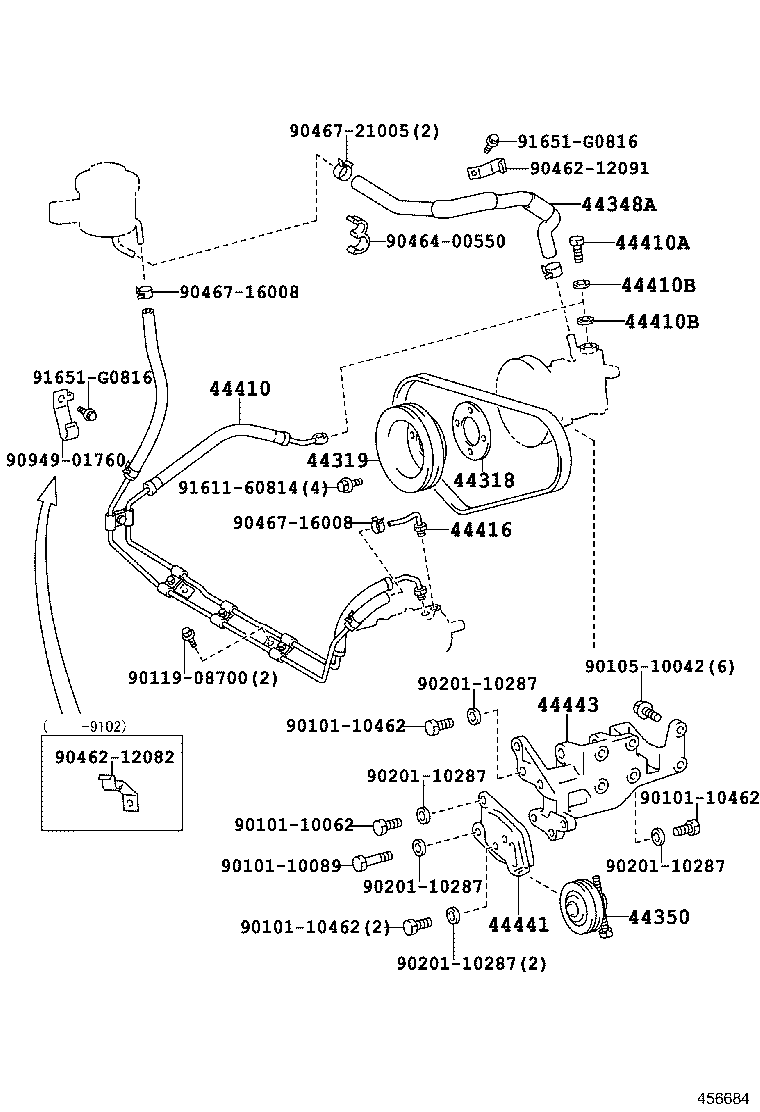

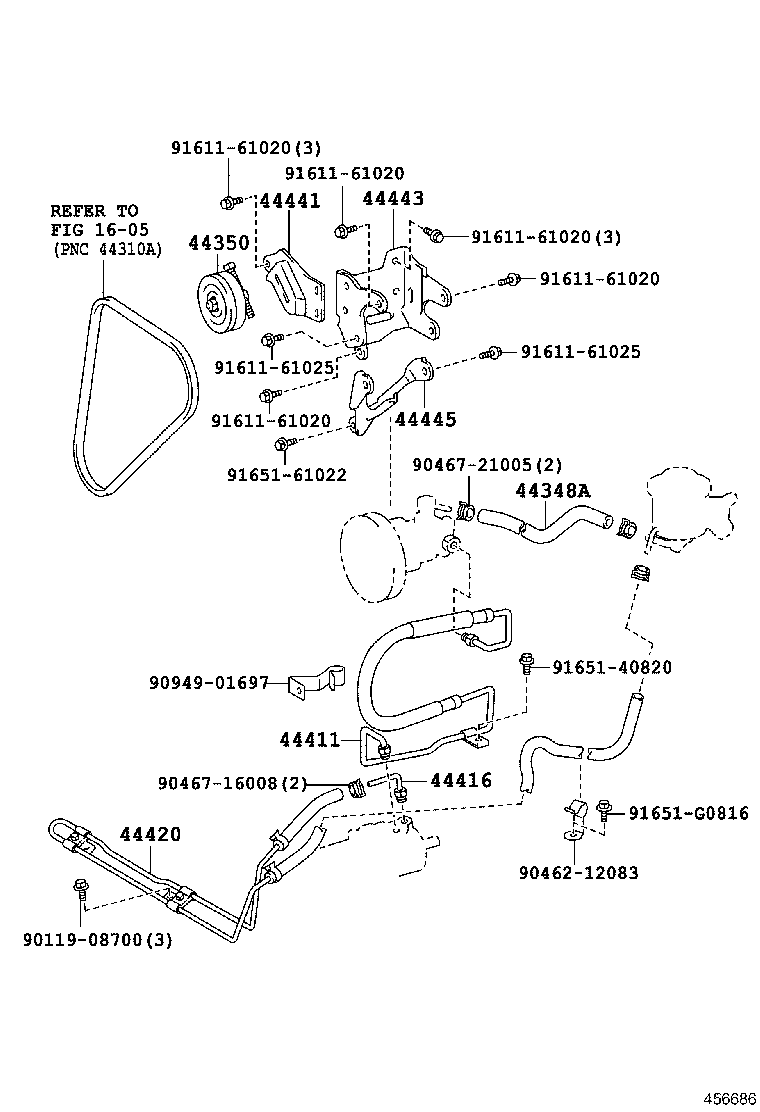

Figure 452192 452192 1990-01 → 1994-02 Figure 450785G 450785G 1990-01 → — Figure 456689 456689 1990-01 → 1992-08 Figure 450515 450515 1990-01 → 1993-05 Figure 456684 456684 1990-01 → 1995-01 Figure 456686 456686 1990-01 → 1996-04 Figure 456687 456687 1993-05 → 1996-04 Figure 456688 456688 1993-05 → 1996-04

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412 Hose, Return
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44445 Bracket, Pump, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
