Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

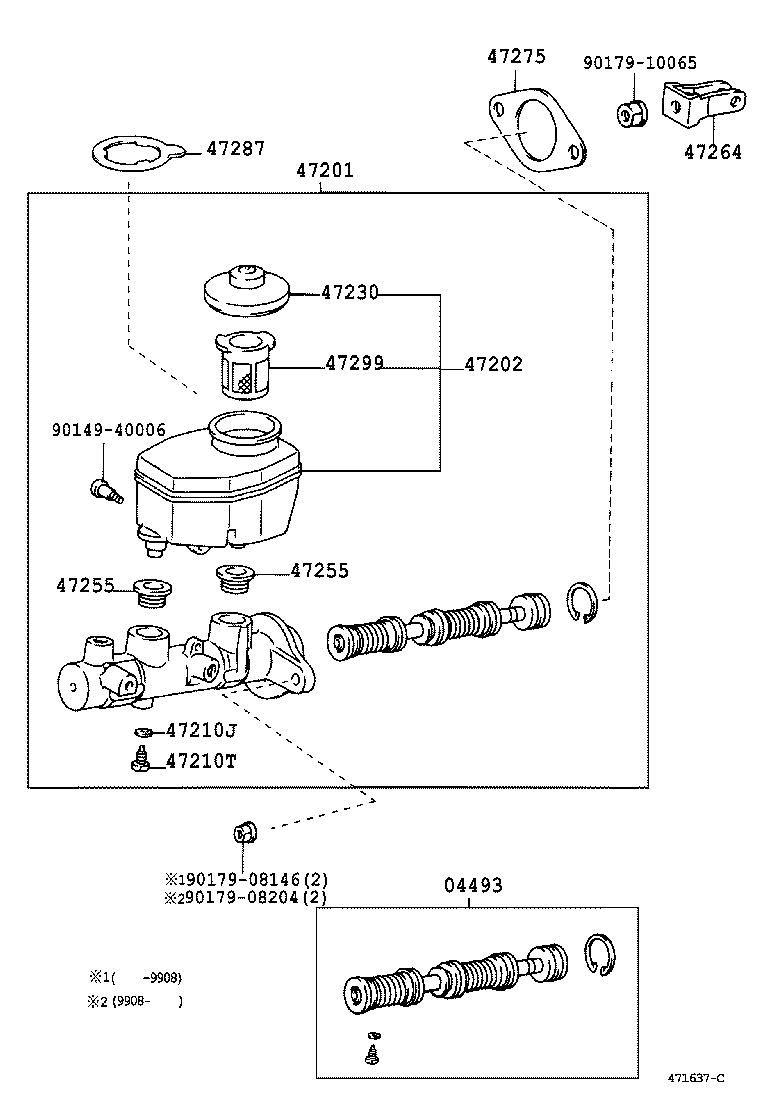

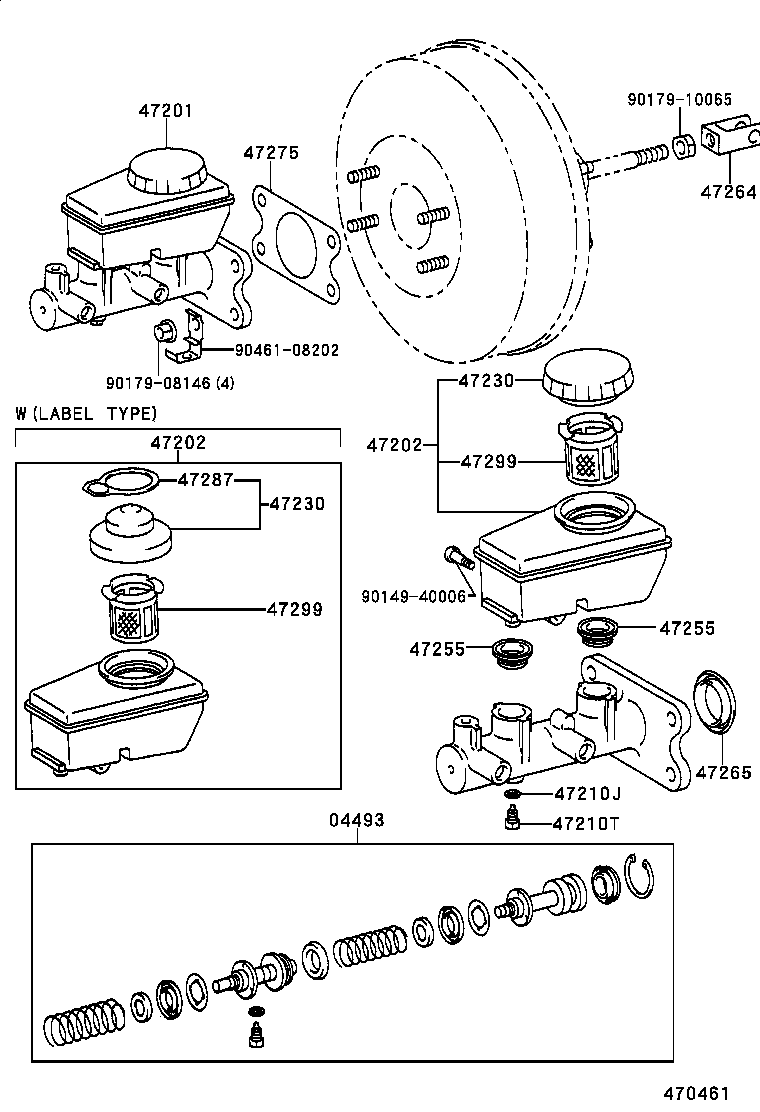

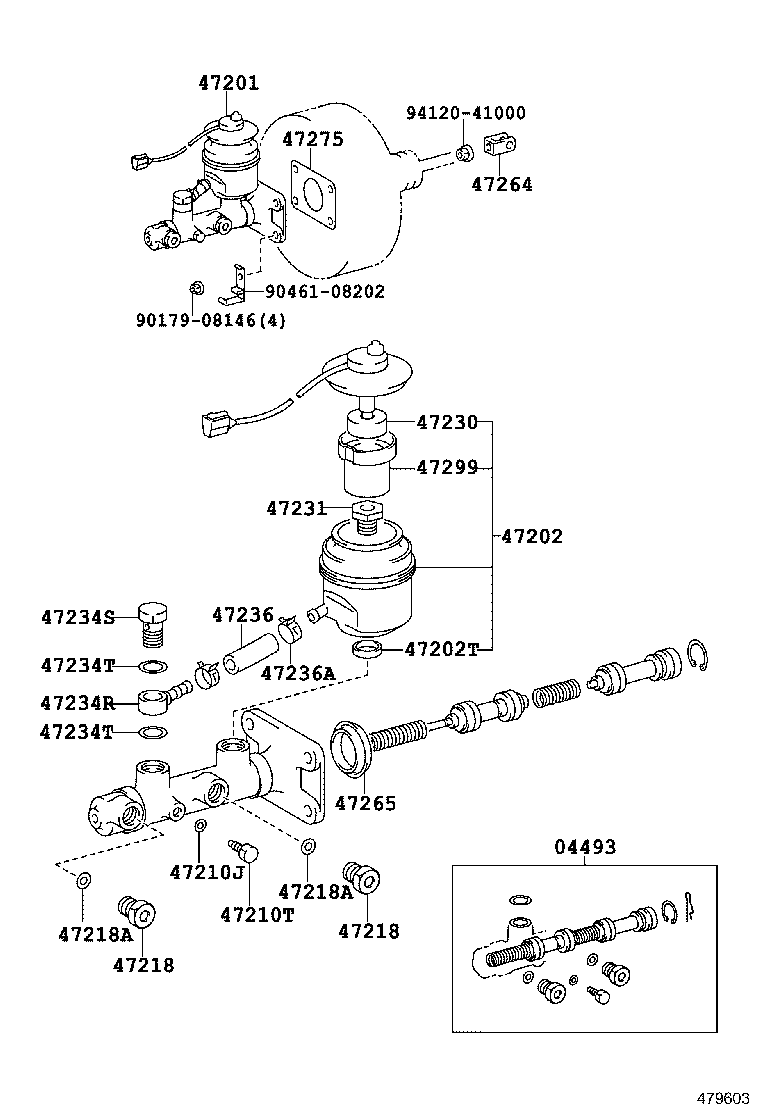

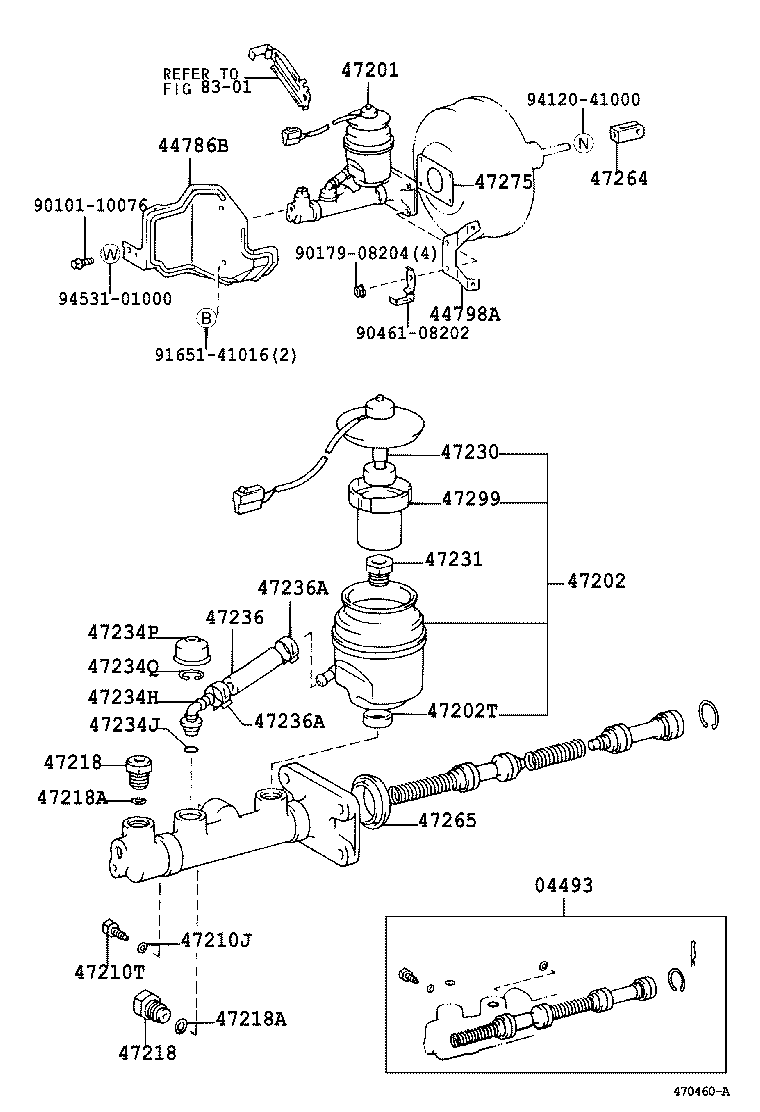

Brake Master Cylinder
27 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 44786B | Insulator, Brake Master Cylinder Heat |
| 44798A | Bracket, Heat Insulator(FOR BRAKE MASTER CYLINDER) |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202T | Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47234H | Elbow(FOR RESERVOIR TUBE) |
| 47234J | Ring, O(FOR RESERVOIR TUBE) |
| 47234P | Boot(FOR RESERVOIR TUBE) |
| 47234Q | Ring, Snap(FOR RESERVOIR TUBE) |
| 47234R | Union(FOR RESERVOIR TUBE) |
| 47234S | Bolt, Union(FOR RESERVOIR TUBE) |
| 47234T | Gasket(FOR RESERVOIR TUBE UNION) |
| 47236 | Tube, Reservoir Brake |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47287 | Label, Brake Fluid Information |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
