Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

22 part groups · 6 illustrations

Illustrations

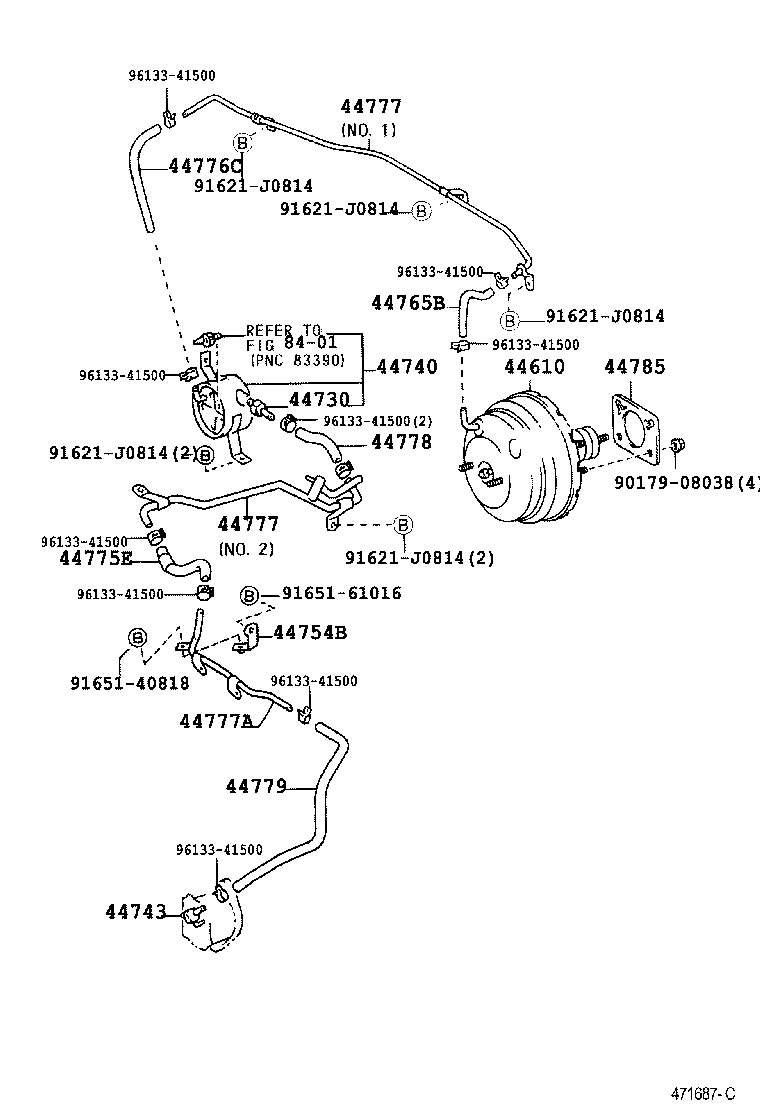

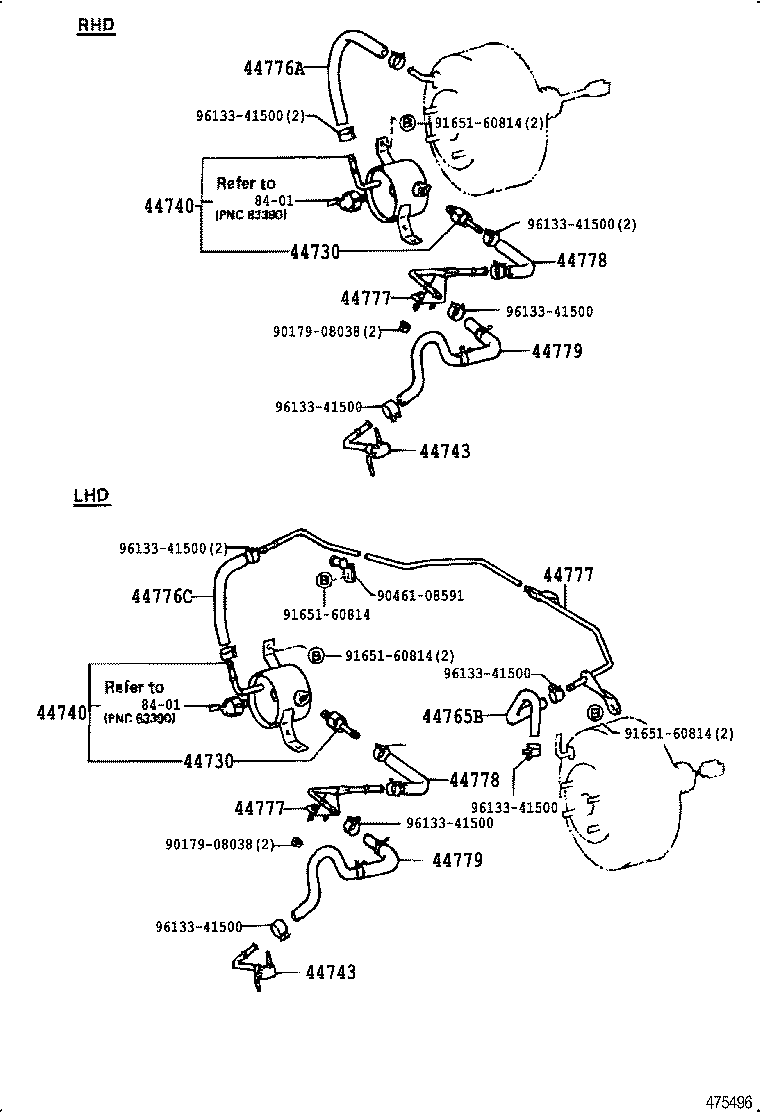

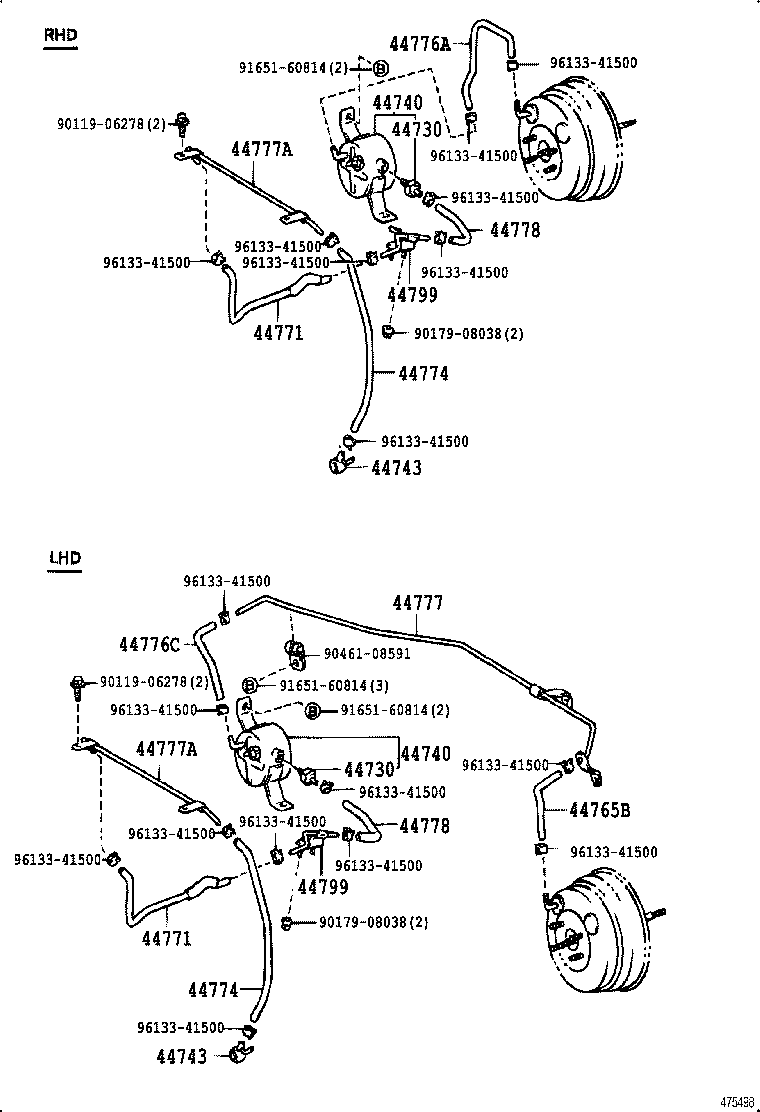

Figure 479604 479604 1990-01 → 1999-08 Figure 471711D 471711D 1990-01 → 1999-08 Figure 475496 475496 1990-01 → — Figure 475497 475497 1990-01 → — Figure 475498 475498 1993-05 → 1996-04 Figure 471687C 471687C 1999-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44740 Reservoir Assy, Vacuum
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44758 Bracket, Vacuum Check Valve
44765B Hose, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44775E Hose, Way TO Connector
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44777 Connector, Vacuum Hose, NO.1
44777A Connector, Vacuum Hose, NO.2
44778 Hose, Connector TO Check Valve
44779 Hose, Union TO Connector
44785 Gasket, Brake Booster
44799 Way, Brake Vacuum Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
