Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

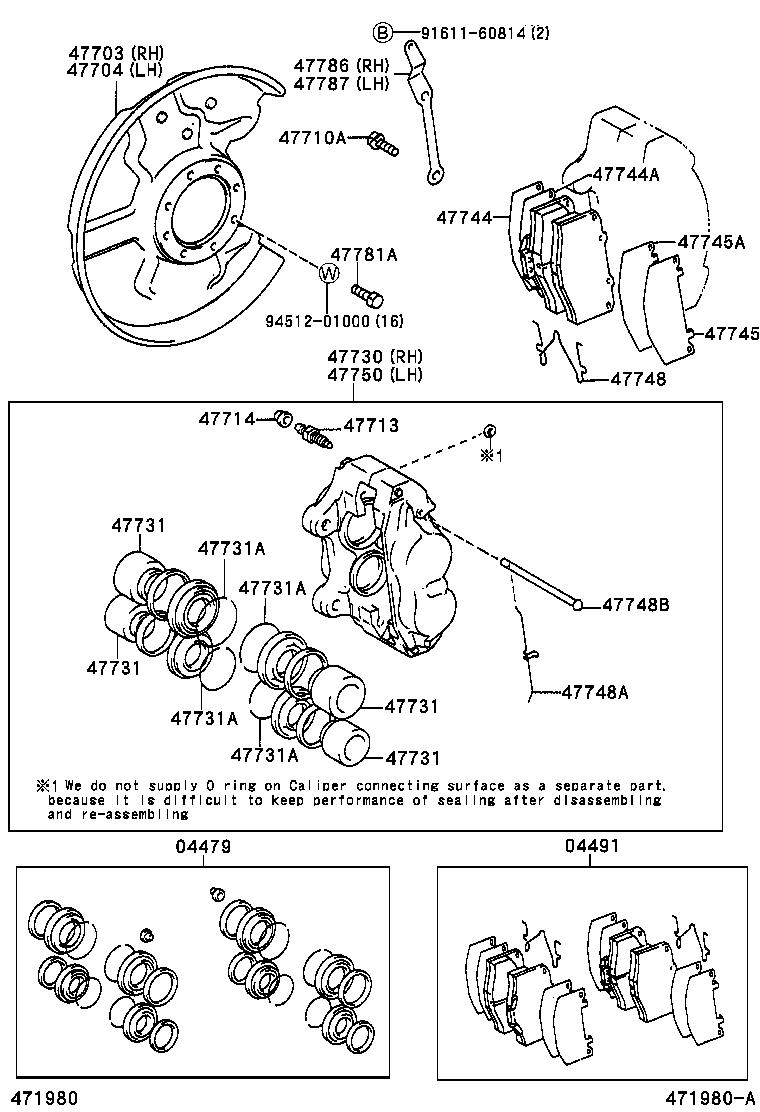

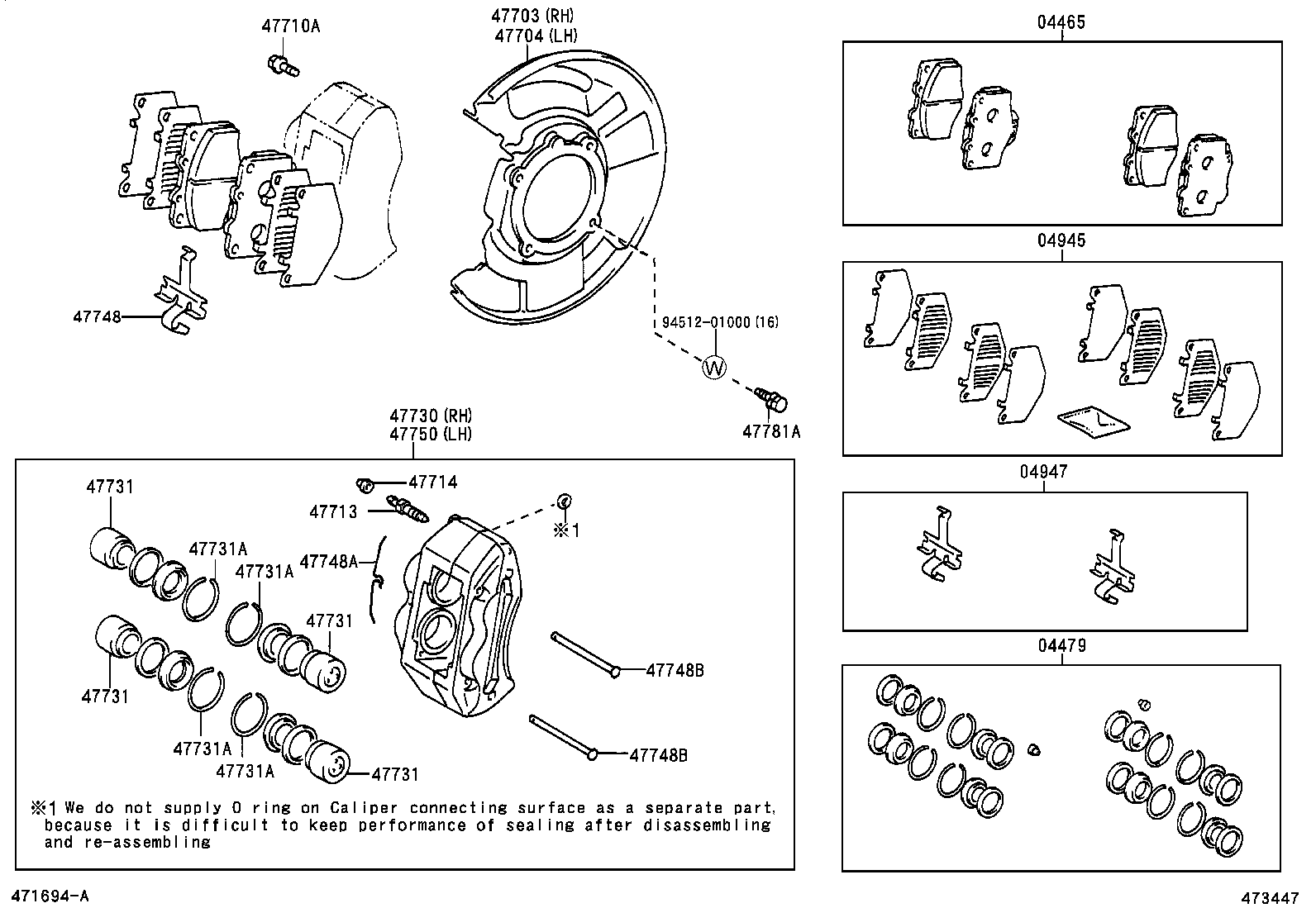

Front Disc Brake Caliper & Dust Cover
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04491 | Pad Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 47703 | Cover Sub-assy, Disc Brake Dust, Front RH |
| 47704 | Cover Sub-assy, Disc Brake Dust, Front LH |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47713 | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47714 | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47731A | Ring, Set(FOR FRONT DISC BRAKE PISTON) |
| 47744 | Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE) |
| 47744A | Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE) |
| 47745 | Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE) |
| 47745A | Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE) |
| 47748 | Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) |
| 47748A | Clip(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47748B | Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47781A | Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) |
| 47786 | Reinforcement, Dust Cover, RH |
| 47787 | Reinforcement, Dust Cover, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
