Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

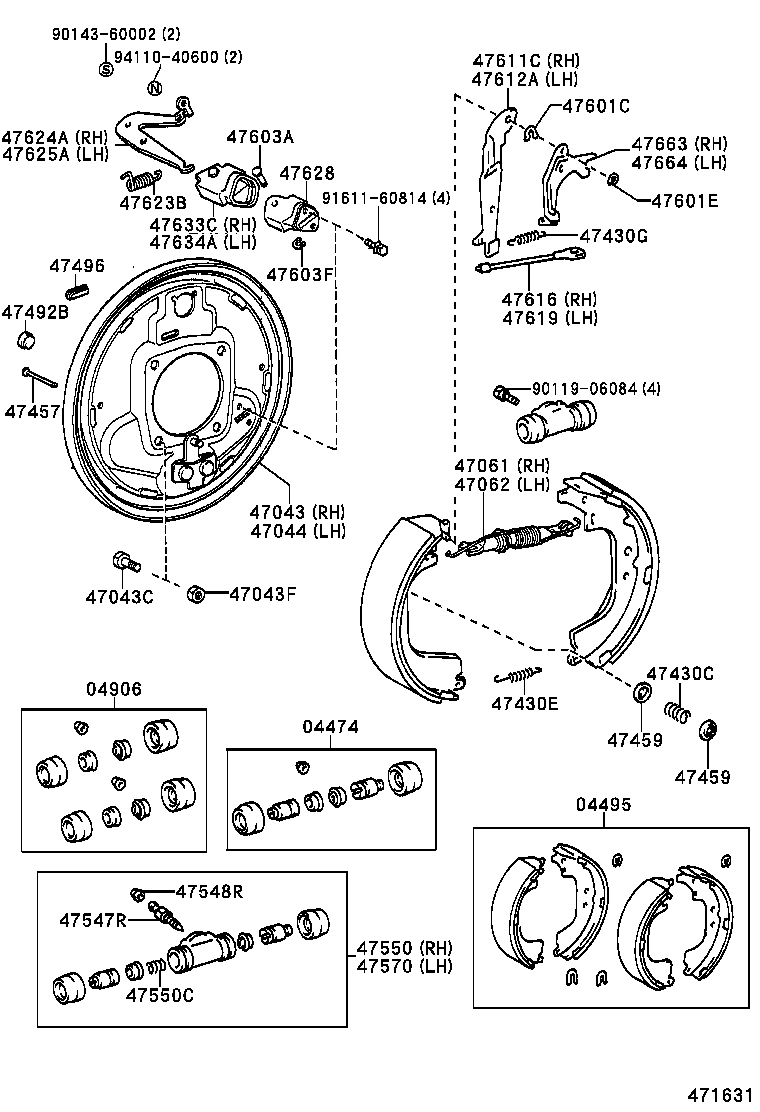

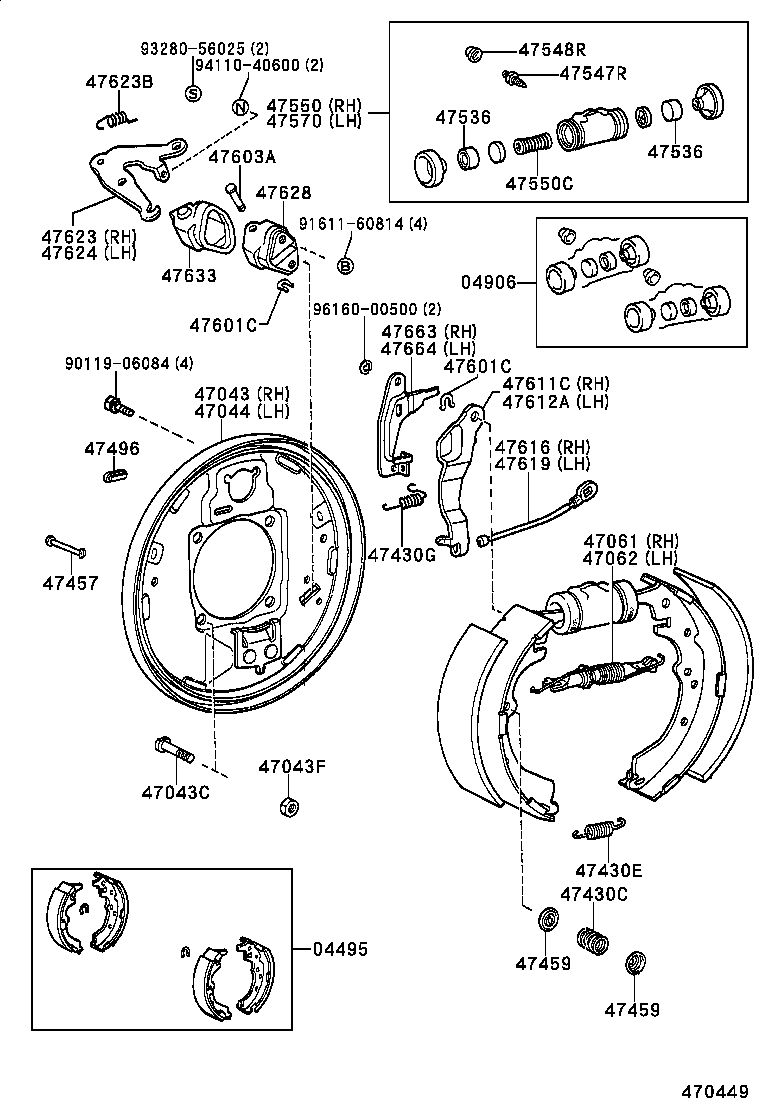

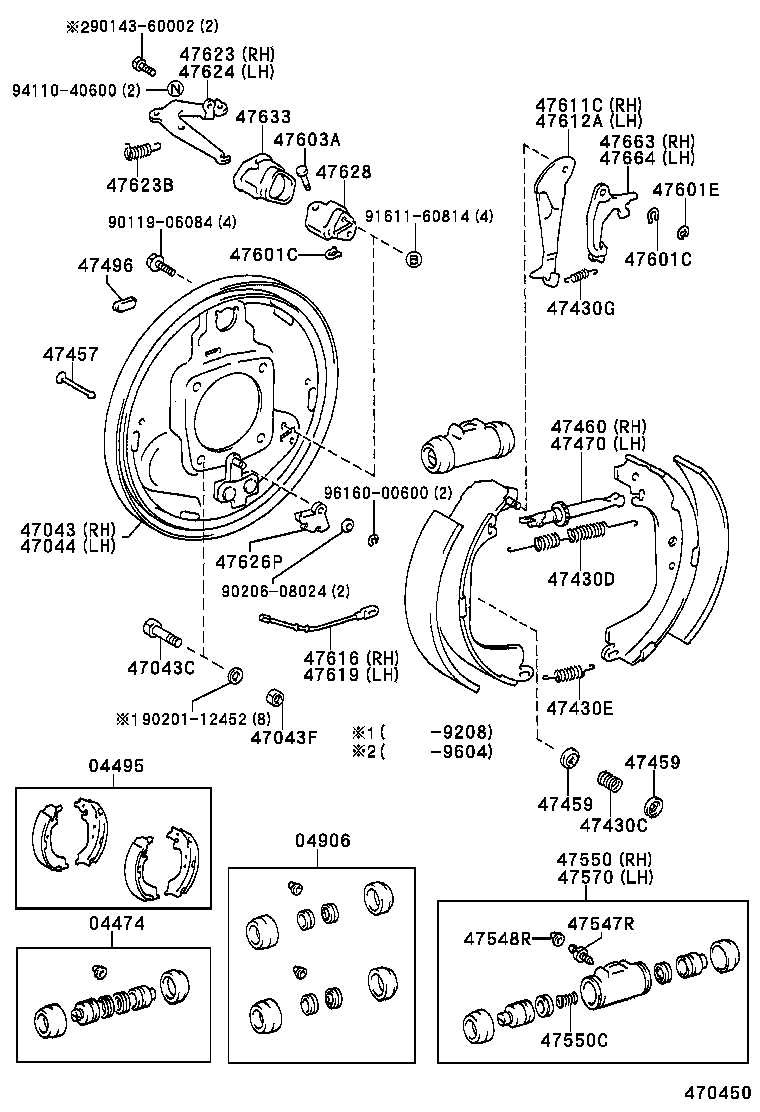

Rear Drum Brake Wheel Cylinder & Backing Plate
45 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47061 | Strut Set, Parking Brake Shoe, RH |
| 47062 | Strut Set, Parking Brake Shoe, LH |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430G | Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459 | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47492B | Plug, Shoe Inspection(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47601E | Ring, E(FOR REAR BRAKE) |
| 47603A | Pin, W/Hole(FOR REAR BRAKE) |
| 47603F | Washer, Type C(FOR PARKING BRAKE BELL CRANK) |
| 47611C | Lever, Parking Brake Shoe, RH |
| 47612A | Lever, Parking Brake Shoe, LH |
| 47616 | Wire, Parking Brake, RH |
| 47619 | Wire, Parking Brake, LH |
| 47623 | Crank, Parking Brake Bell, NO.1 |
| 47623B | Spring, Tension(FOR PARKING BRAKE BELL CRANK RETURN) |
| 47624 | Crank, Parking Brake Bell, NO.2 |
| 47624A | Crank, Parking Brake Bell, RH |
| 47625A | Crank, Parking Brake Bell, LH |
| 47626P | Pulley, Parking Brake Segmental |
| 47628 | Bracket, Rear Brake Bellcrank |
| 47633 | Boot, Parking Brake Bellcrank |
| 47633C | Boot, Rear Brake Bellcrank, RH |
| 47634A | Boot, Rear Brake Bellcrank, LH |
| 47663 | Lever, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47664 | Lever, Automatic Adjust, LH(FOR REAR BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
