Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

23 part groups · 6 illustrations

Illustrations

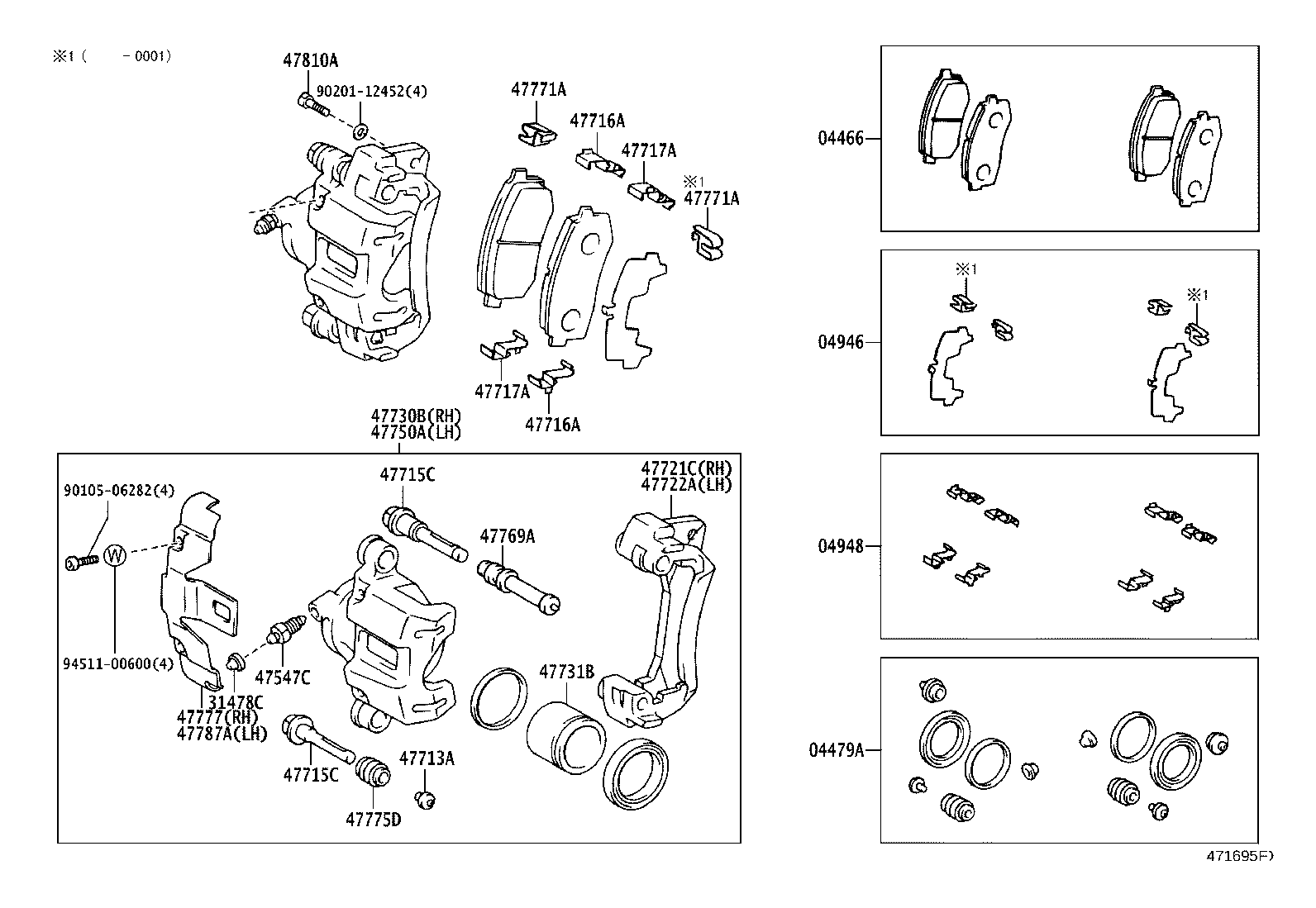

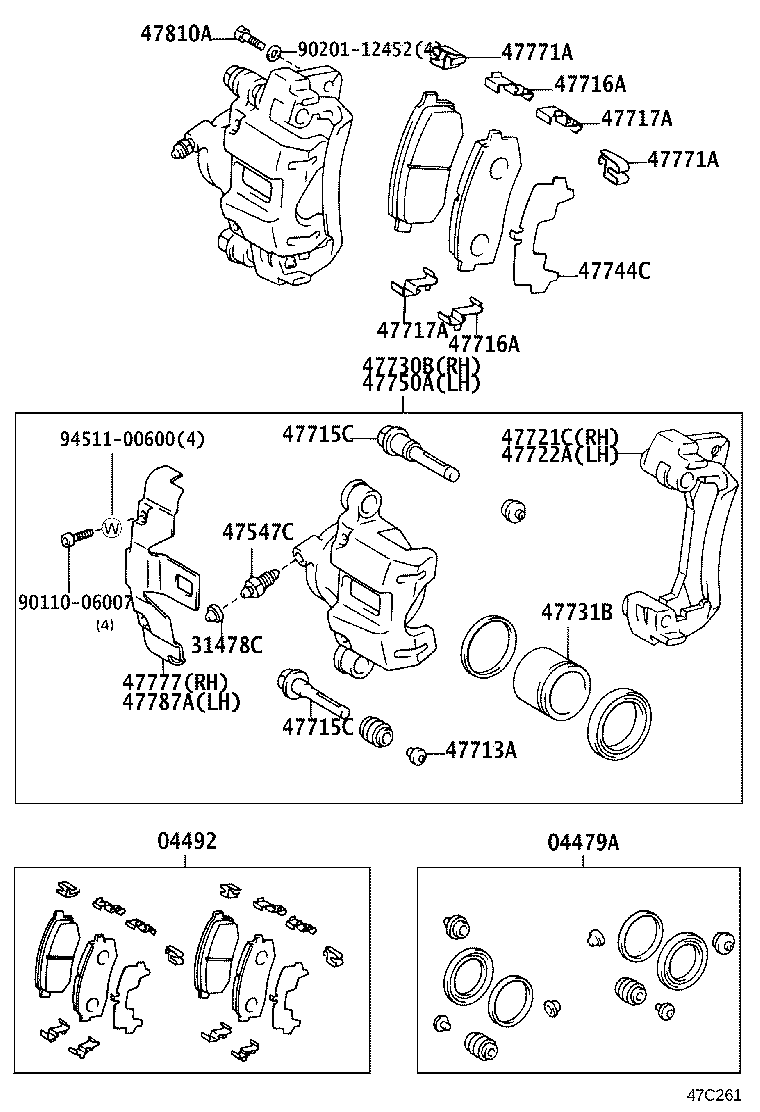

Figure 471462 471462 1990-01 → 1991-08 Figure 471462 471462 1990-01 → 1992-10 Figure 47C261 47C261 1992-10 → 1999-08 Figure 471695F 471695F 1999-08 → — Figure 479607 479607 1990-01 → 1991-08 Figure 479607 479607 1990-01 → 1999-08

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04492 Pad Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47713A Plug, Hole(FOR REAR DISC BRAKE CYLINDER)
47715C Pin, Cylinder Slide(FOR REAR DISC BRAKE)
47716A Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47717A Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47721C Mounting, Rear Disc Brake Cylinder, RH
47722A Mounting, Rear Disc Brake Cylinder, LH
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47744C Shim, Anti-squeal, NO.1(FOR REAR DISC BRAKE)
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47771A Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47777 Protector, Dust Boot, RH
47787A Protector, Dust Boot, LH
47810A Bolt, Hexagon(FOR REAR CALIPER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
