Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

53 part groups · 12 illustrations

Illustrations

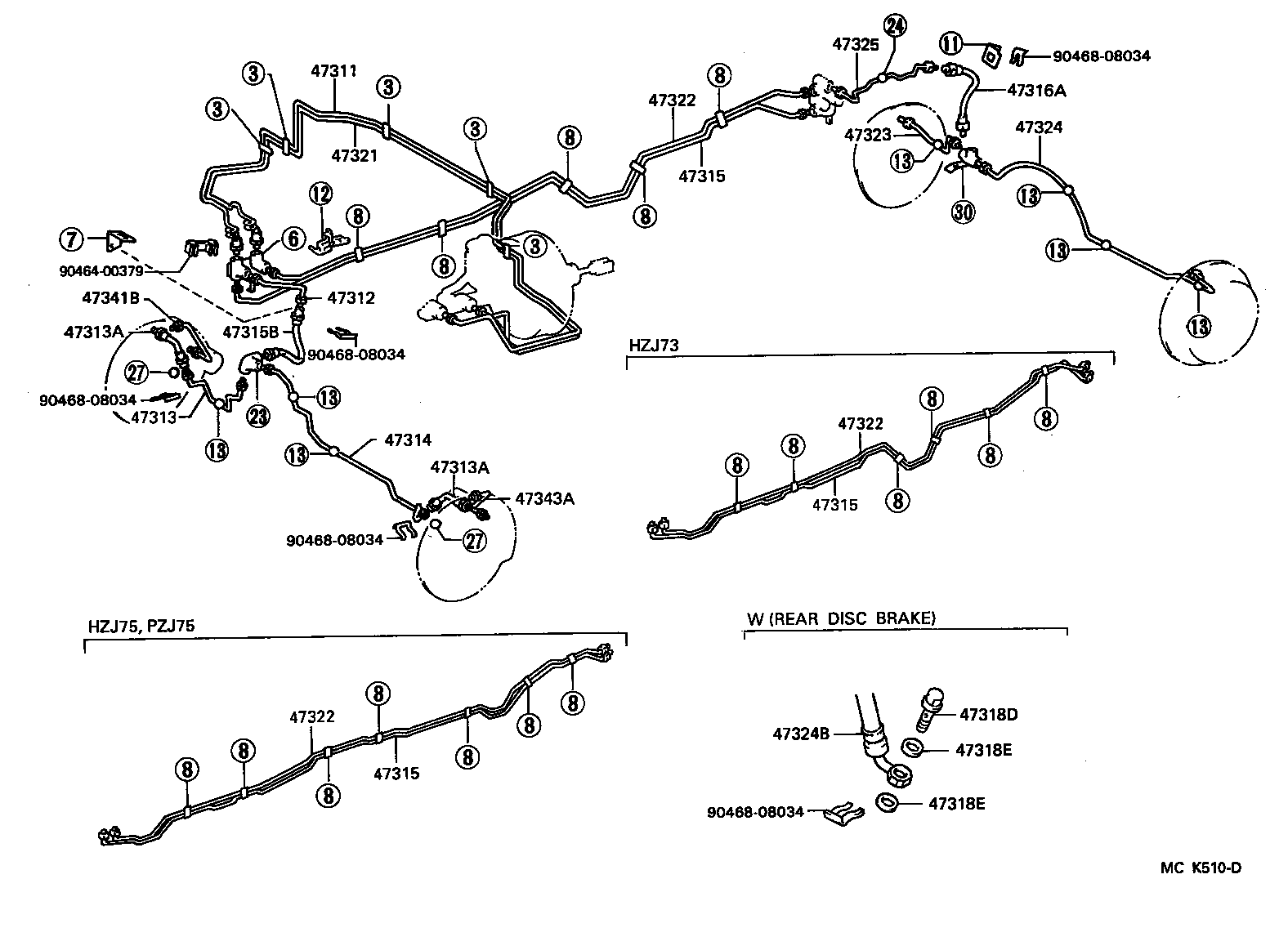

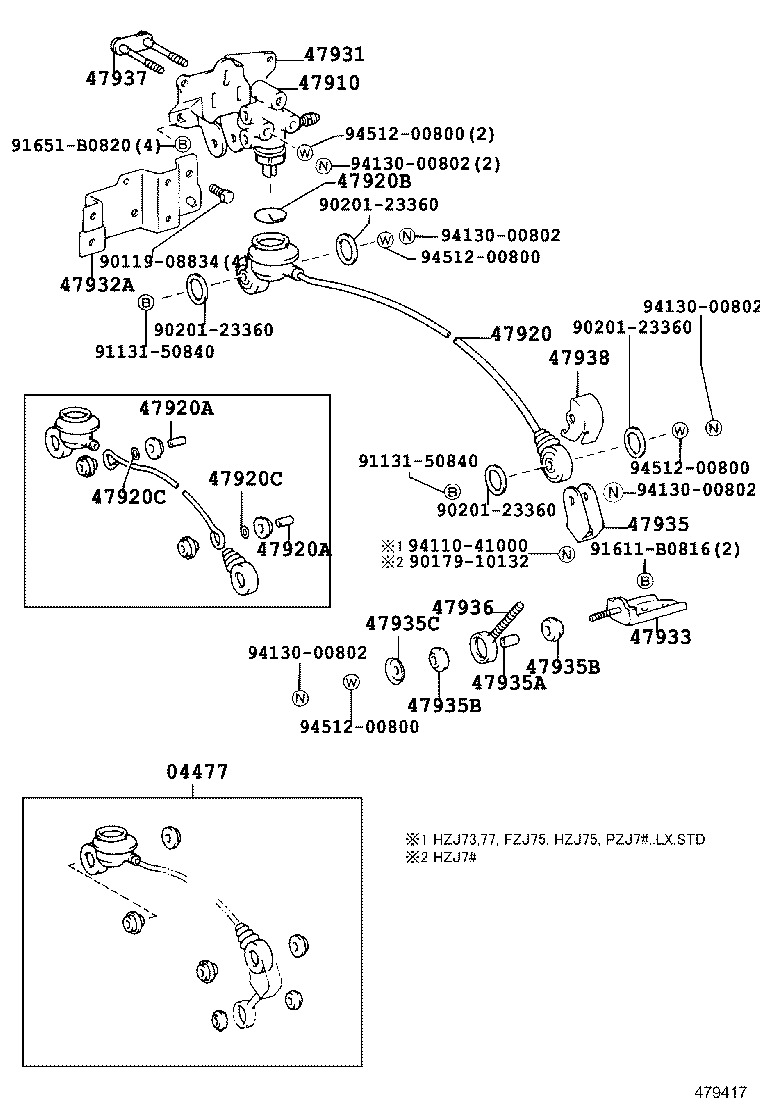

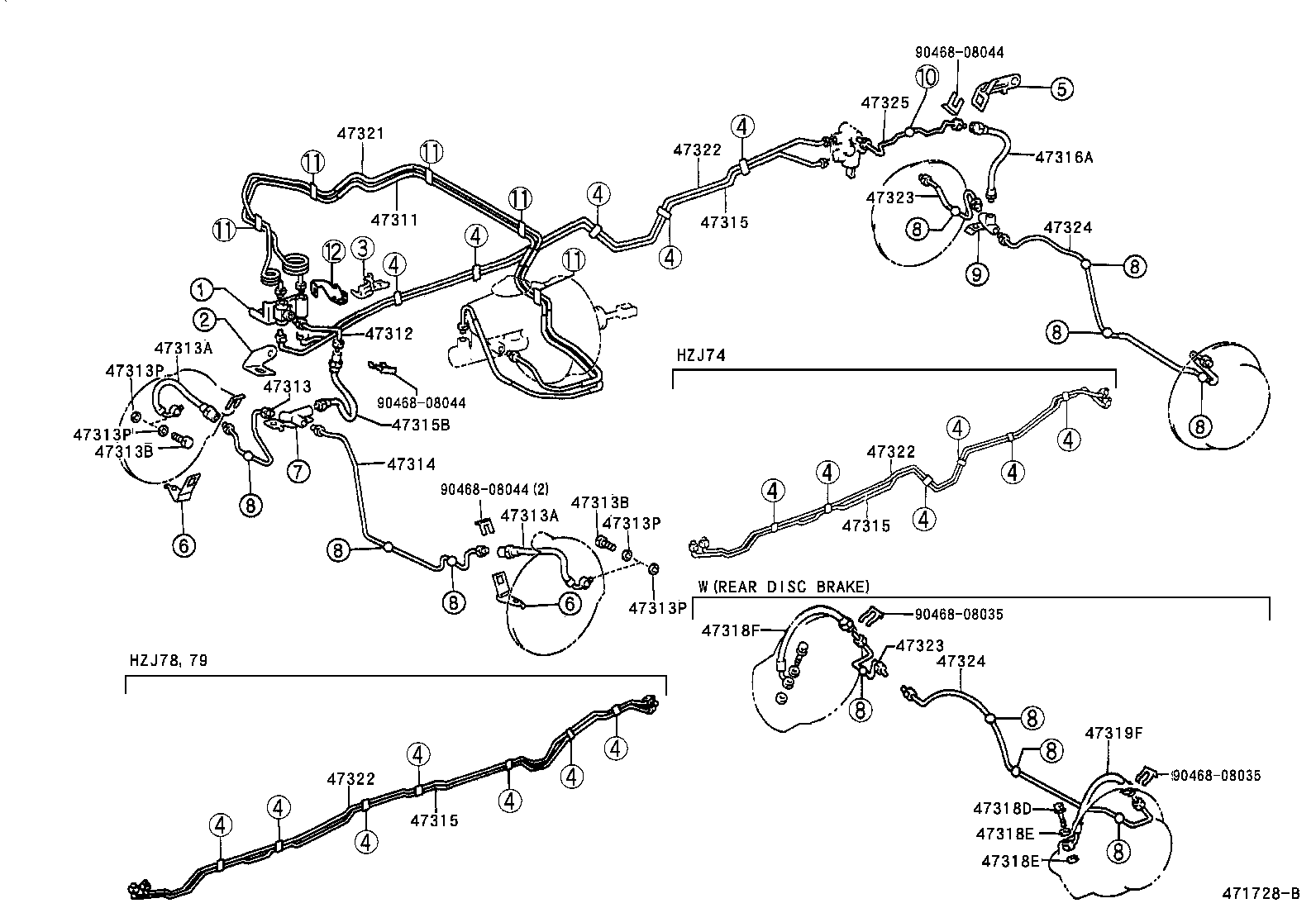

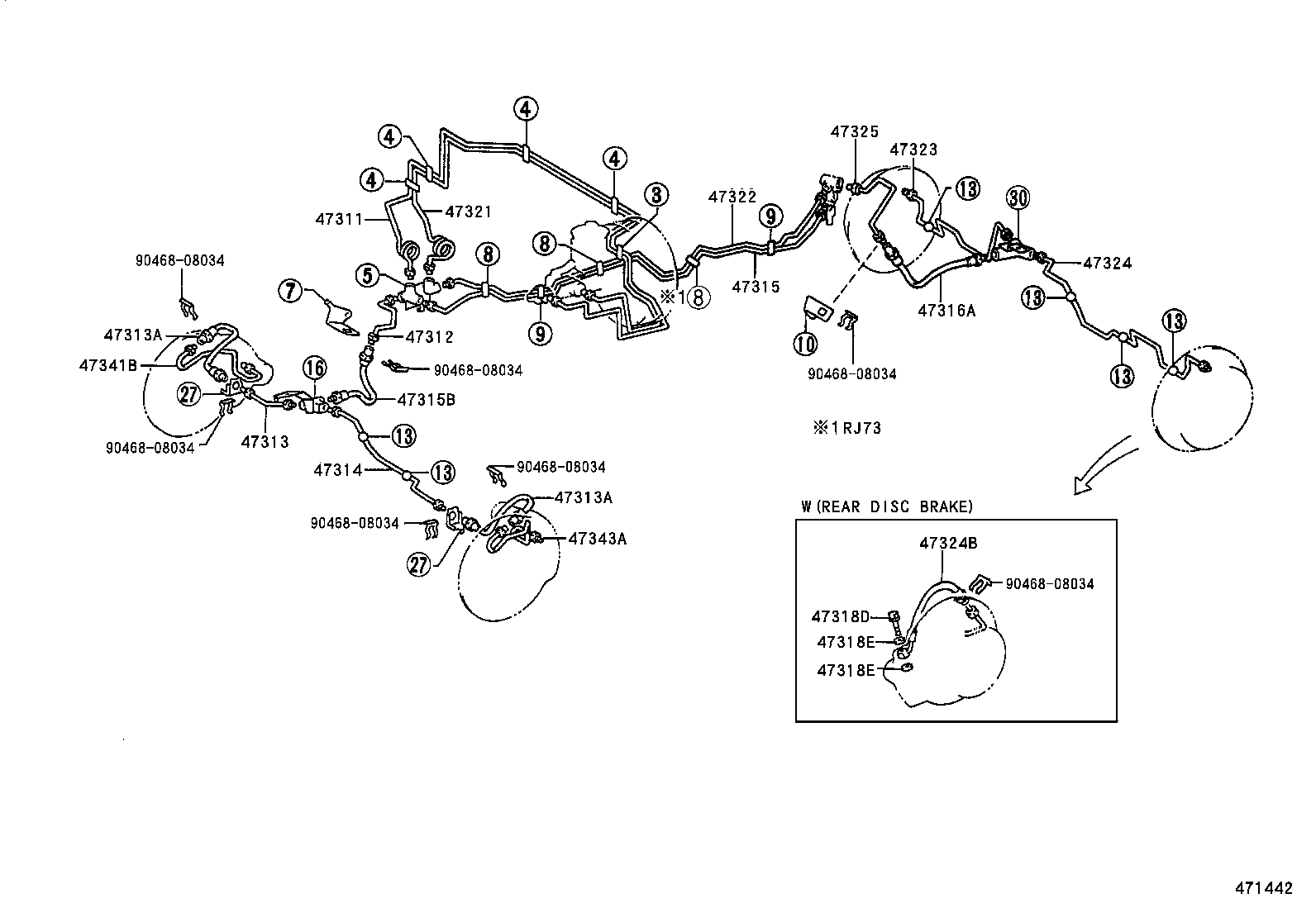

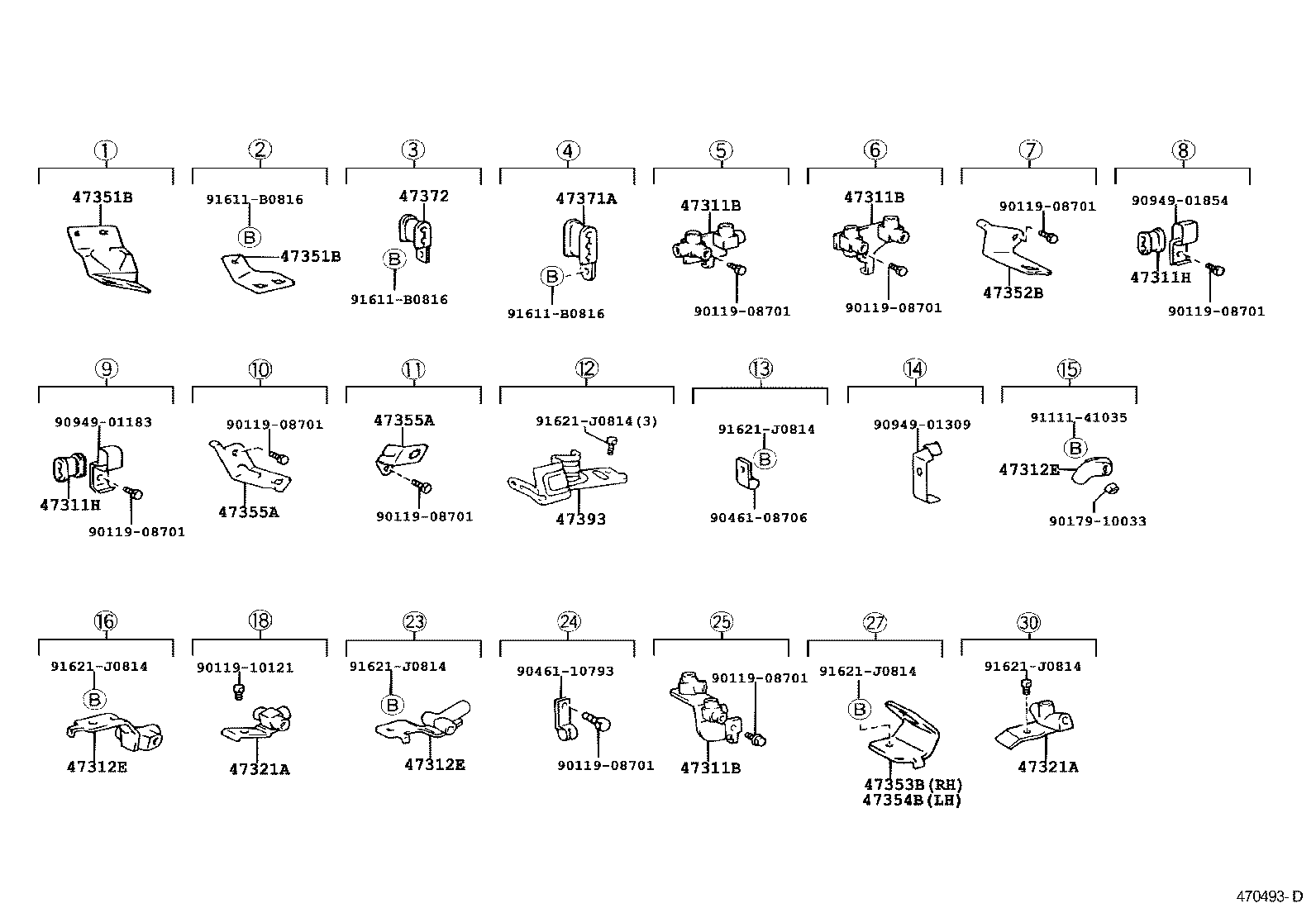

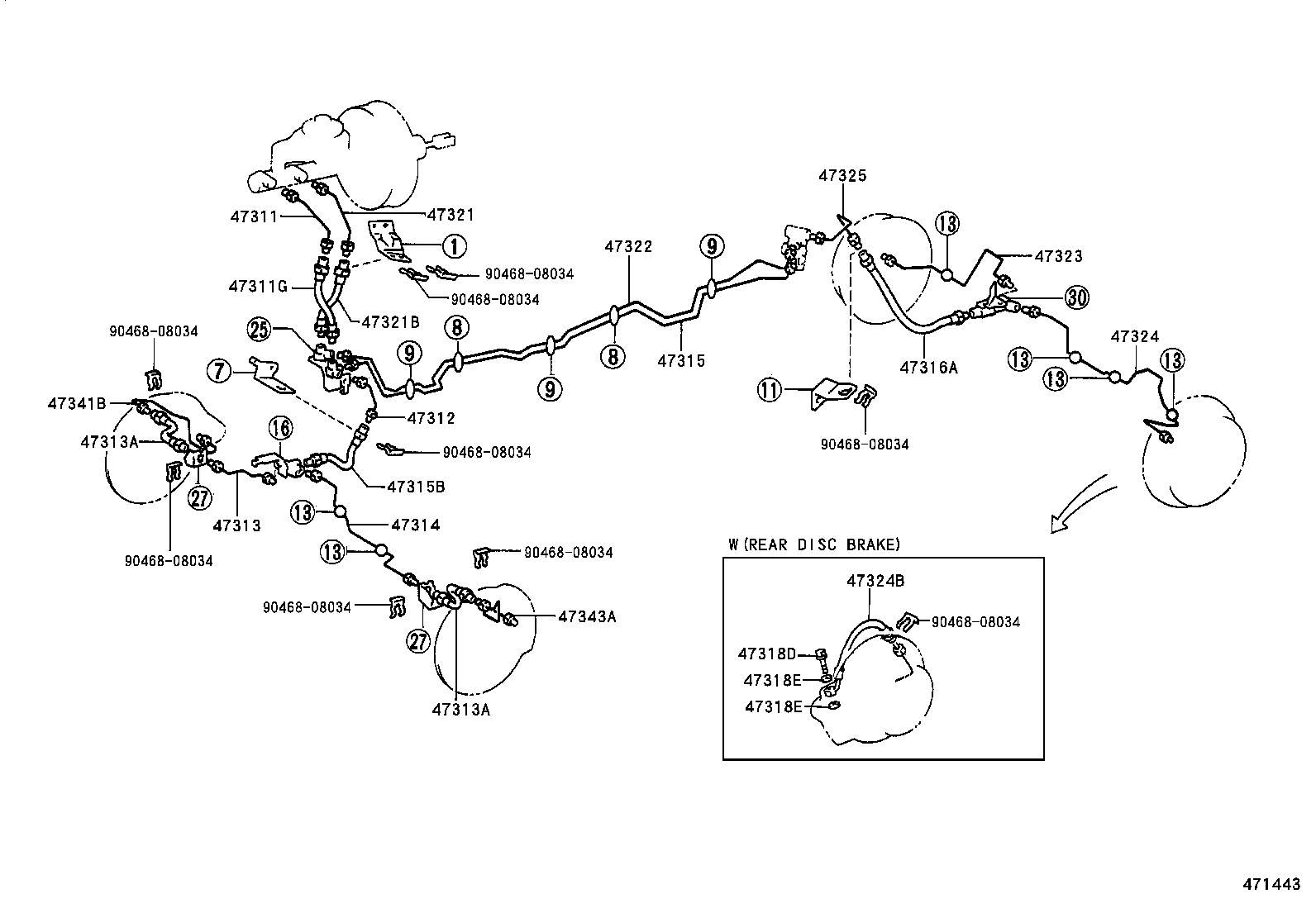

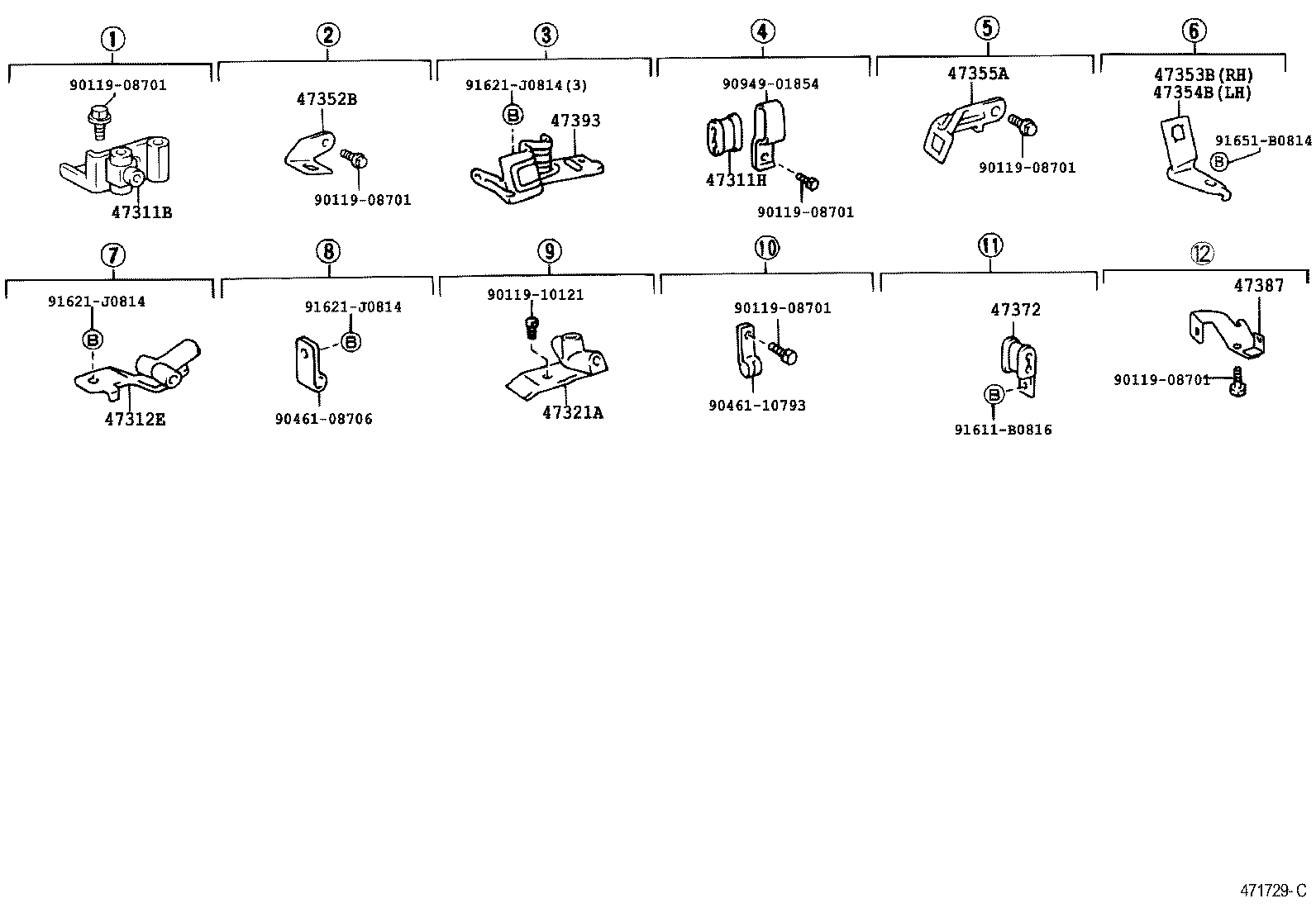

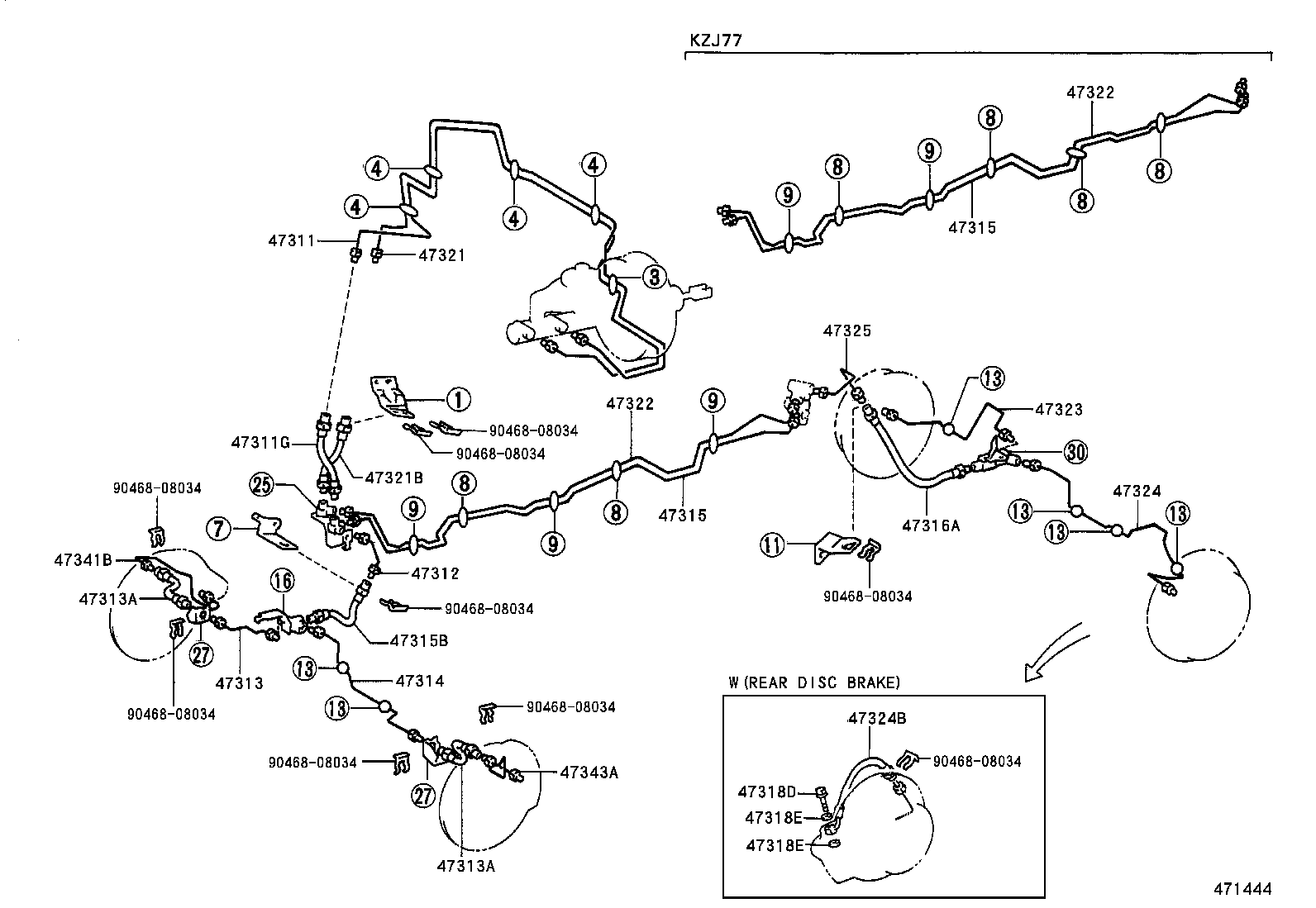

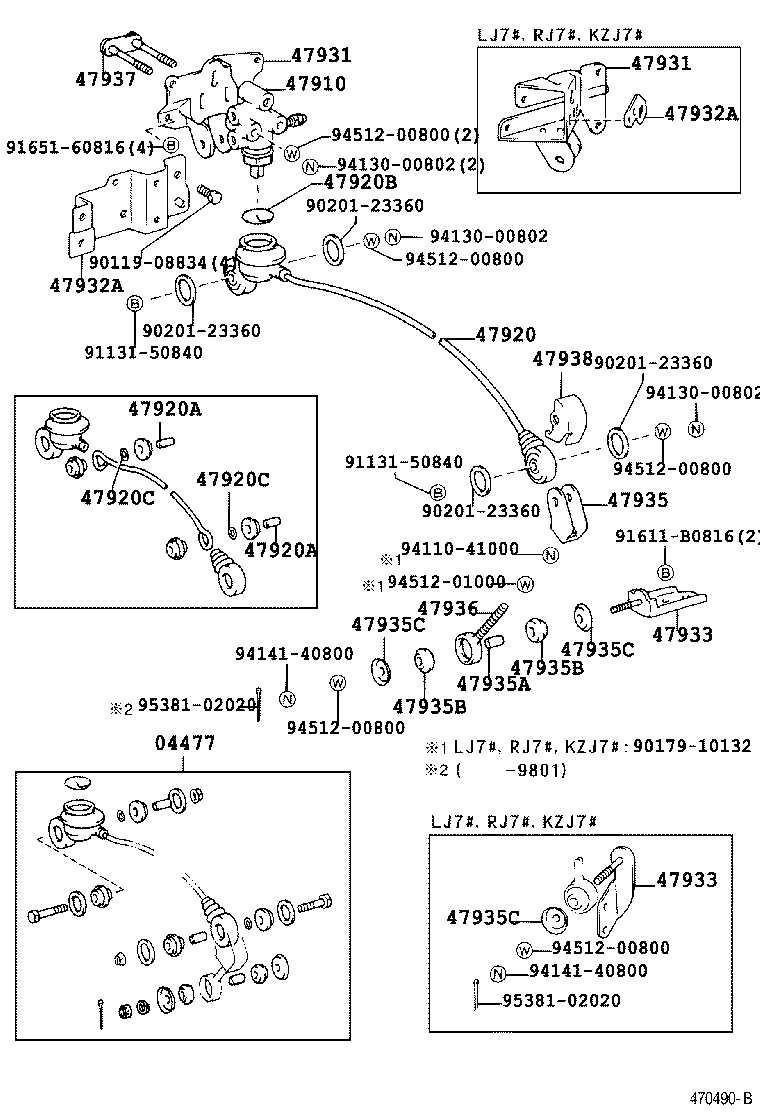

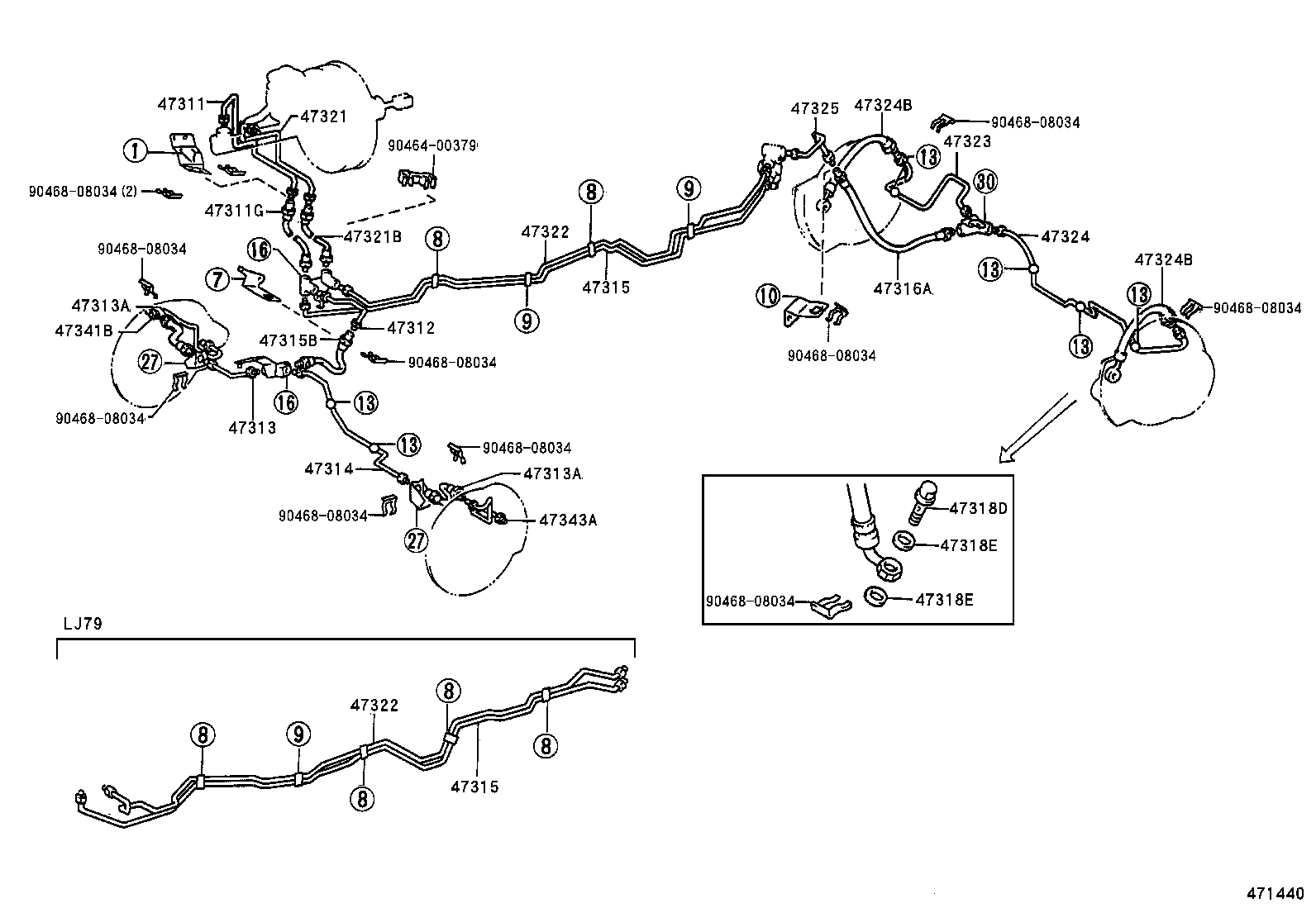

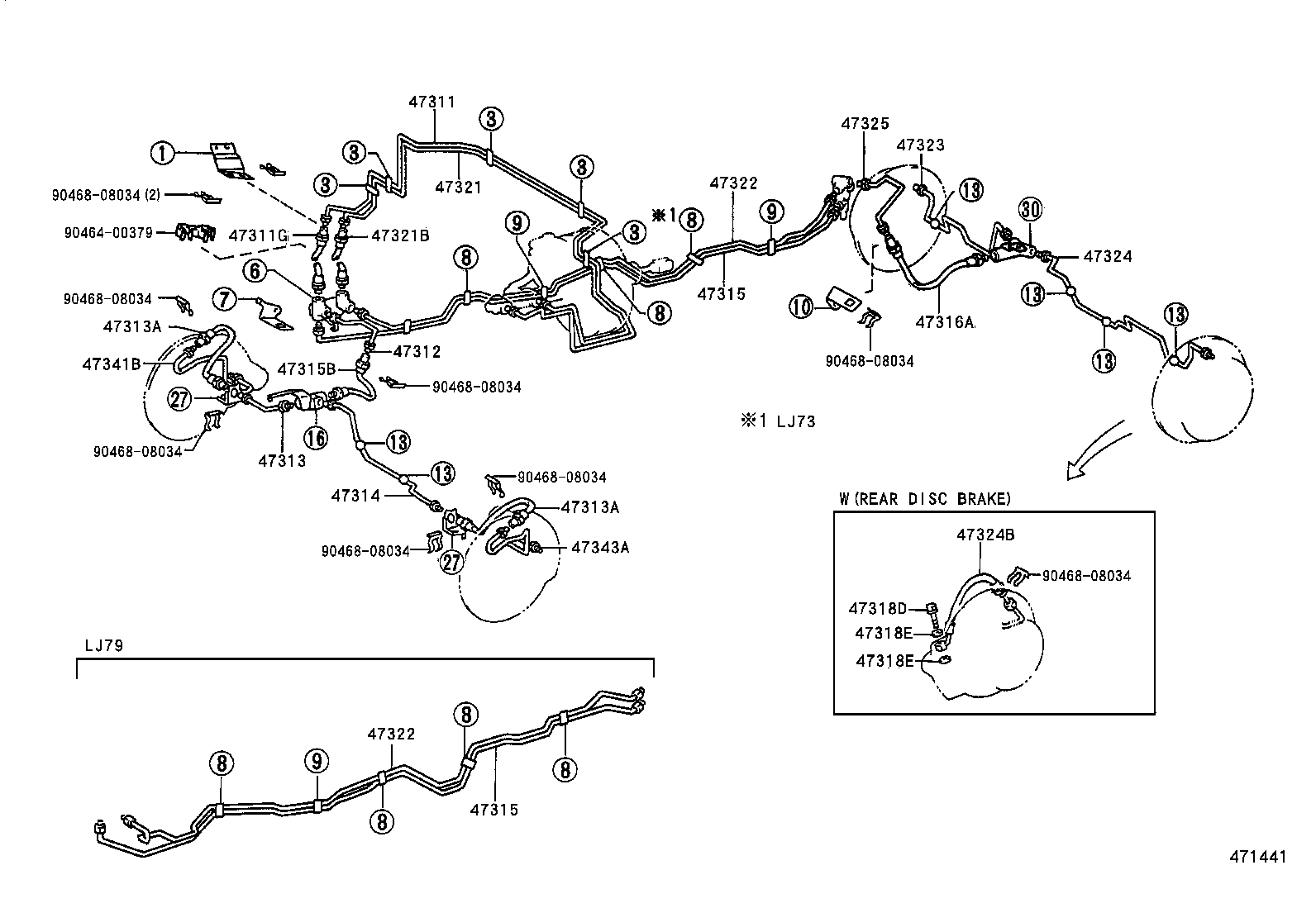

Figure MCK509B MCK509B 1990-01 → 1994-02 Figure MCK510D MCK510D 1990-01 → 1999-08 Figure 471440 471440 1990-01 → 1993-05 Figure 471441 471441 1990-01 → 1995-01 Figure 471442 471442 1990-01 → 1996-04 Figure 471443 471443 1993-05 → 1996-04 Figure 471444 471444 1993-05 → 1996-04 Figure 471728B 471728B 1999-08 → — Figure 470493D 470493D 1990-01 → 1999-08 Figure 471729C 471729C 1999-08 → — Figure 470490B 470490B 1990-01 → 1999-08 Figure 479417 479417 1999-08 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47311H Grommet(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315B Hose, Flexible(FOR BRAKE TUBE)
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47324B Hose, Flexible(FOR REAR BRAKE TUBE, NO.2)
47325 Tube, Rear Brake, NO.5
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47387 Bracket, Brake Tube Heat Insulator
47393 Insulator, Brake Tube Heat
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47932A Bracket, Load Sensing Valve Union
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
47938 Insulator, Load Sensing Spring Shackle Haet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
