Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

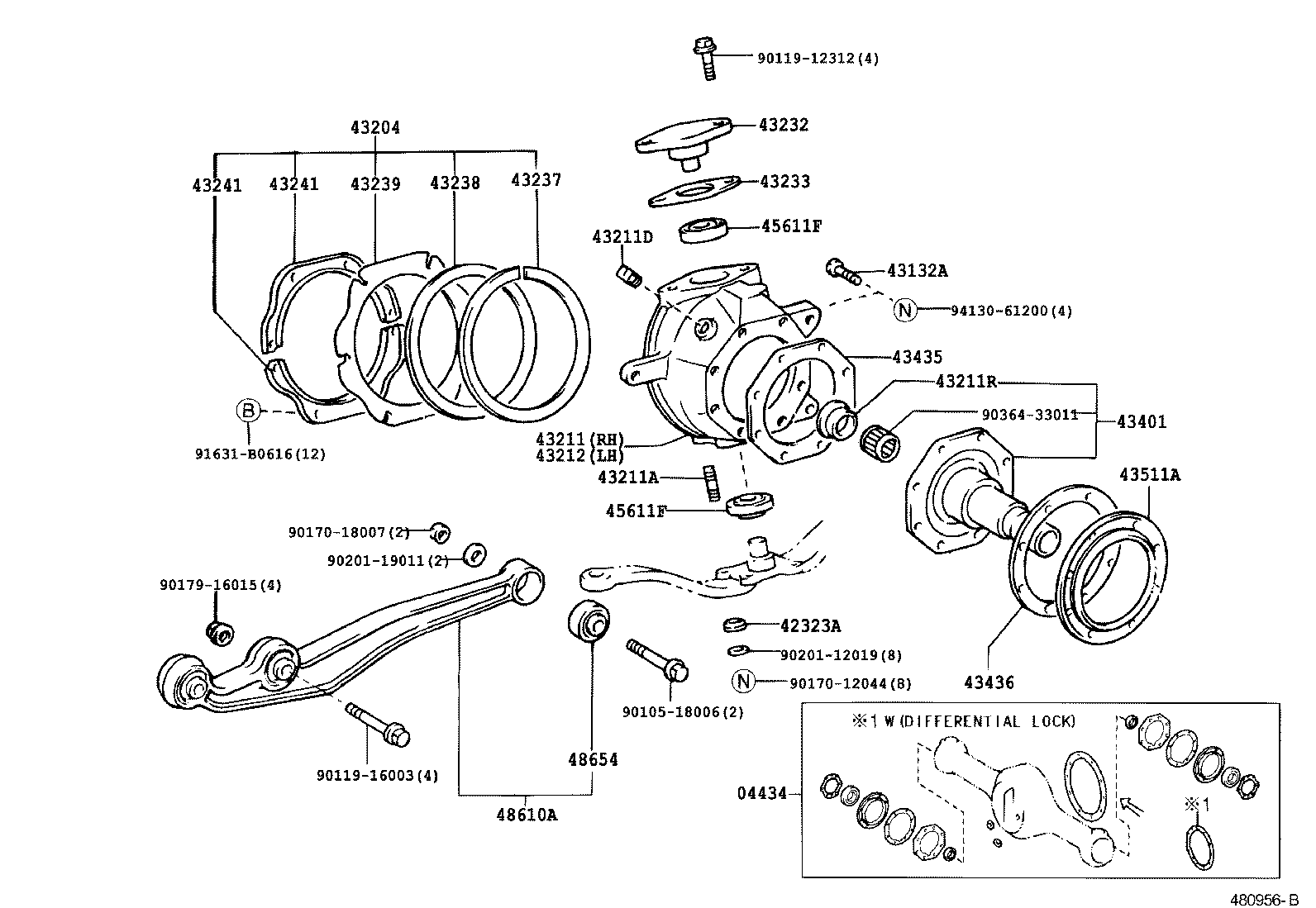

Front Axle Arm & Steering Knuckle
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04434 | Gasket Kit, Front Axle Overhaul |
| 42323A | Washer, Cone (FOR STEERING KNUCKLE ARM) |
| 43132A | Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT) |
| 43204 | Seal Sub-assy, Steering Knuckle Oil |
| 43211 | Knuckle, Steering, RH |
| 43211A | Bolt, Stud (FOR STEERING SET) |
| 43211D | Plug (FOR STEERING KNUCKLE) |
| 43211H | Bolt, Round Hexagon |
| 43211P | Washer, Cone (FOR STEERING KNUCKLE) |
| 43211R | Bush (FOR STEERING KNUCKLE) |
| 43212 | Knuckle, Steering, LH |
| 43232 | Cap, Steering Knuckle Bearing |
| 43233 | Shim, Steering Knuckle Adjust, NO.1 |
| 43237 | Ring, Steering Knuckle Oil Seal, Inner |
| 43238 | Seal, Steering Knuckle Oil, Inner |
| 43239 | Seal, Steering Knuckle Oil, Outer |
| 43241 | Cover, Steering Kunckle Oil Seal |
| 43401 | Spindle Sub-assy, Steering Knuckle |
| 43401C | Seal, Type S Oil(FOR STEERING KNUCKLE SPINDLE) |
| 43413A | Bush, Solid (FOR DRIVE SHAFT) |
| 43435 | Gasket, Knuckle Spindle |
| 43436 | Gasket, Knuckle Spindle Oil Retainer |
| 43511A | Seal, Dust (FOR FRONT AXLE HUB) |
| 45611F | Bearing(FOR STEERING KNUCKLE ARM) |
| 48061 | Bush Sub-assy, Leading Arm, NO.2 |
| 48610A | Arm Assy, Leading, Front |
| 48610B | Bolt(FOR FRONT LEADING ARM) |
| 48654 | Bush, Lower Arm |
| 48702A | Bush Sub-assy, Leading Arm, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
