Rear Spring & Shock Absorber

63 part groups · 10 illustrations

Illustrations

481116A 1990-01 → 1996-04

481118 1990-04 → 1996-04

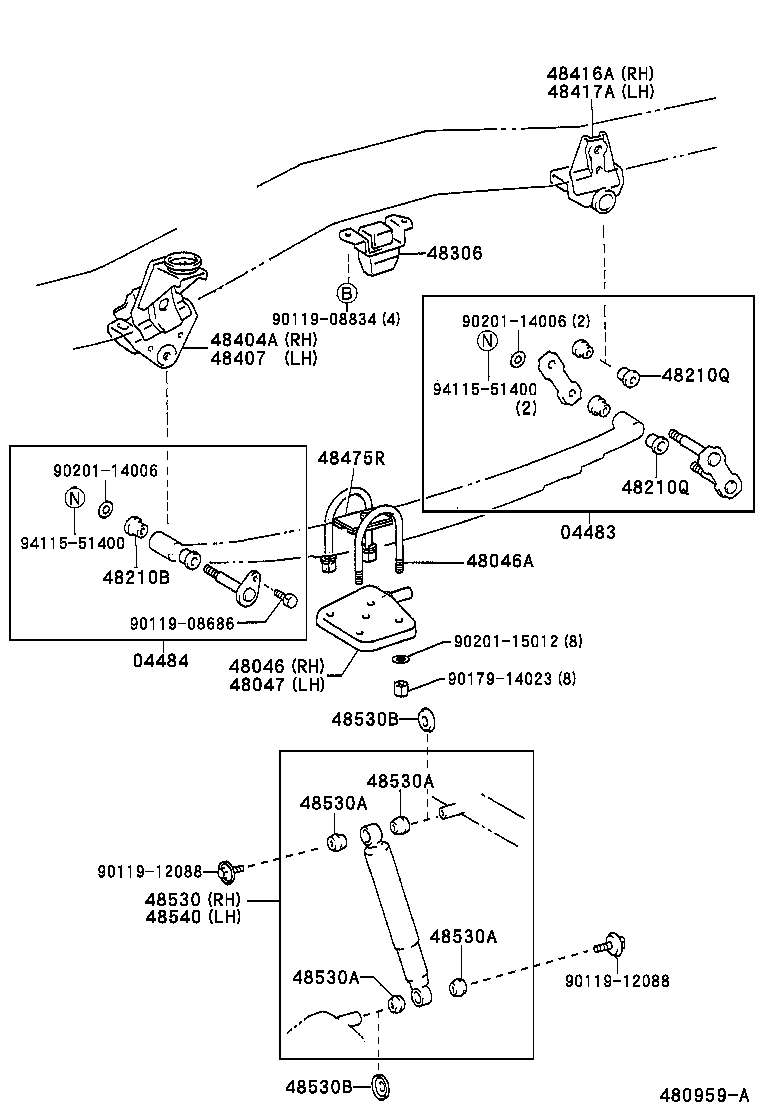

480959A 1990-01 → 1996-07

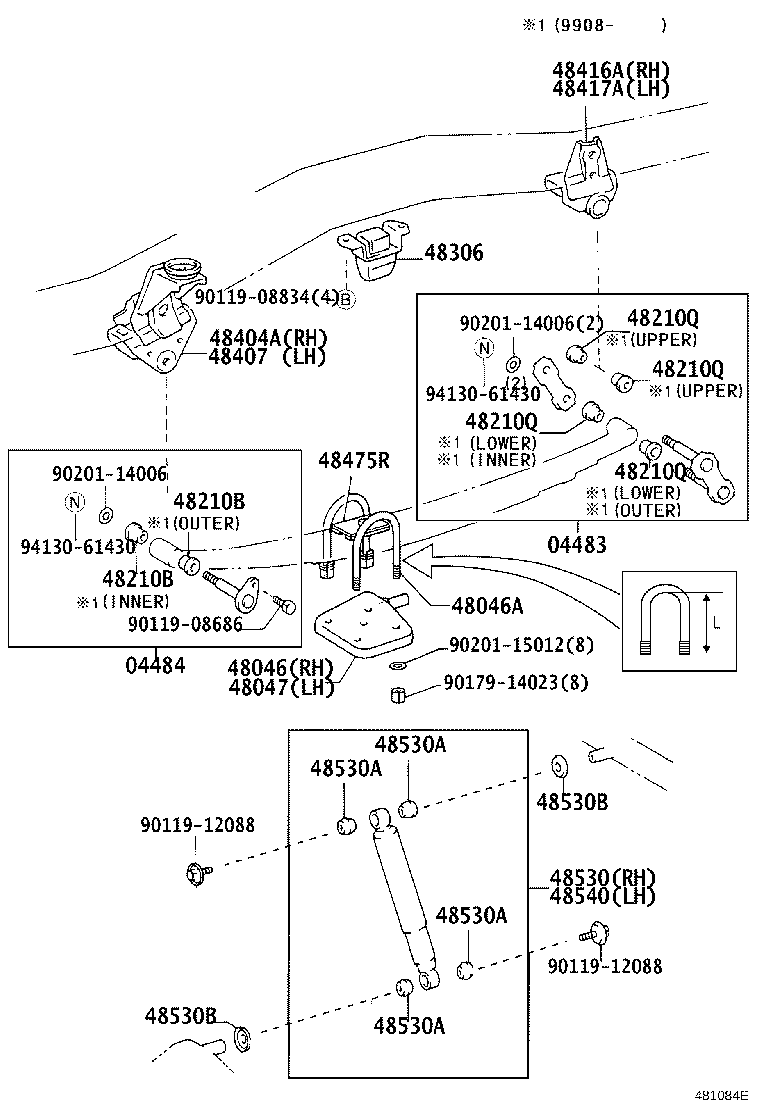

481084E 1996-07 → —

481117 1990-01 → —

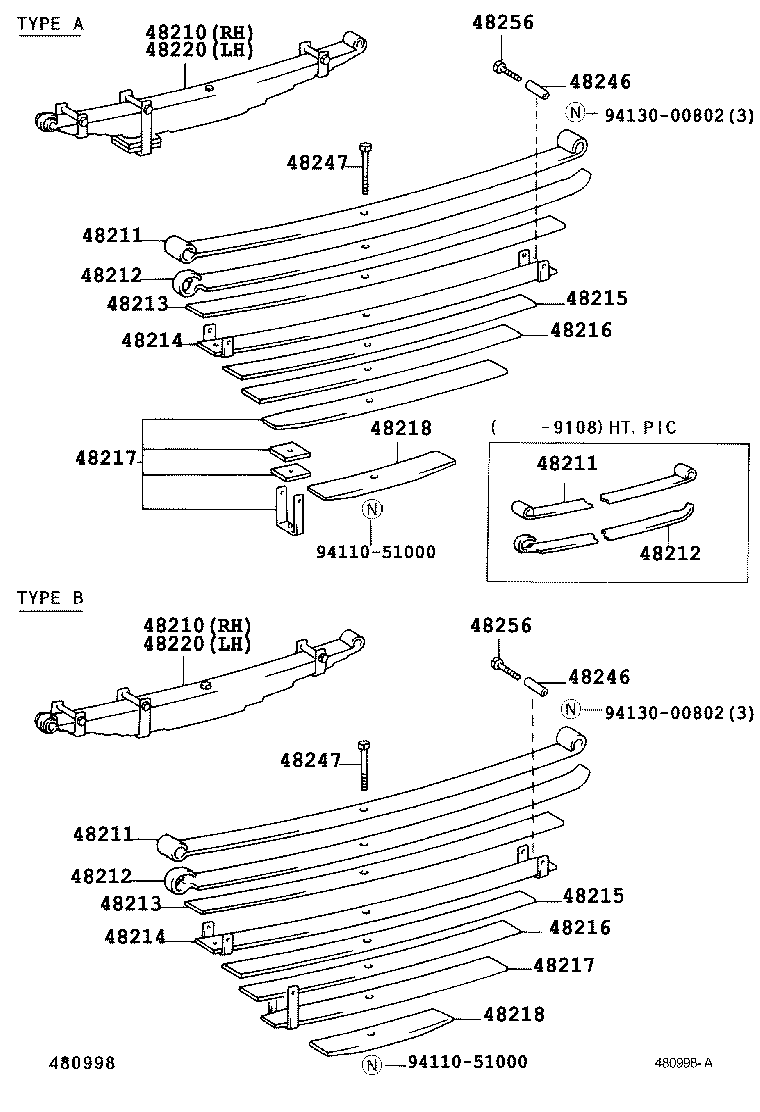

480998A 1990-01 → 1999-08

Part groups

PNC	Description
04483	Shackle Kit, Rear Spring
04484	Pin Kit, Rear Spring
48046	Seat Sub-assy, Spring U Bolt, RH
48046A	Bolt, U(FOR REAR SPRING)
48047	Seat Sub-assy, Spring U Bolt, LH
48061A	Bush Sub-assy, Trailing Arm, NO.2
48210	Spring Assy, Rear RH
48210B	Bush(FOR REAR SPRING PIN)
48210Q	Bush(FOR REAR SPRING SHACKLE)

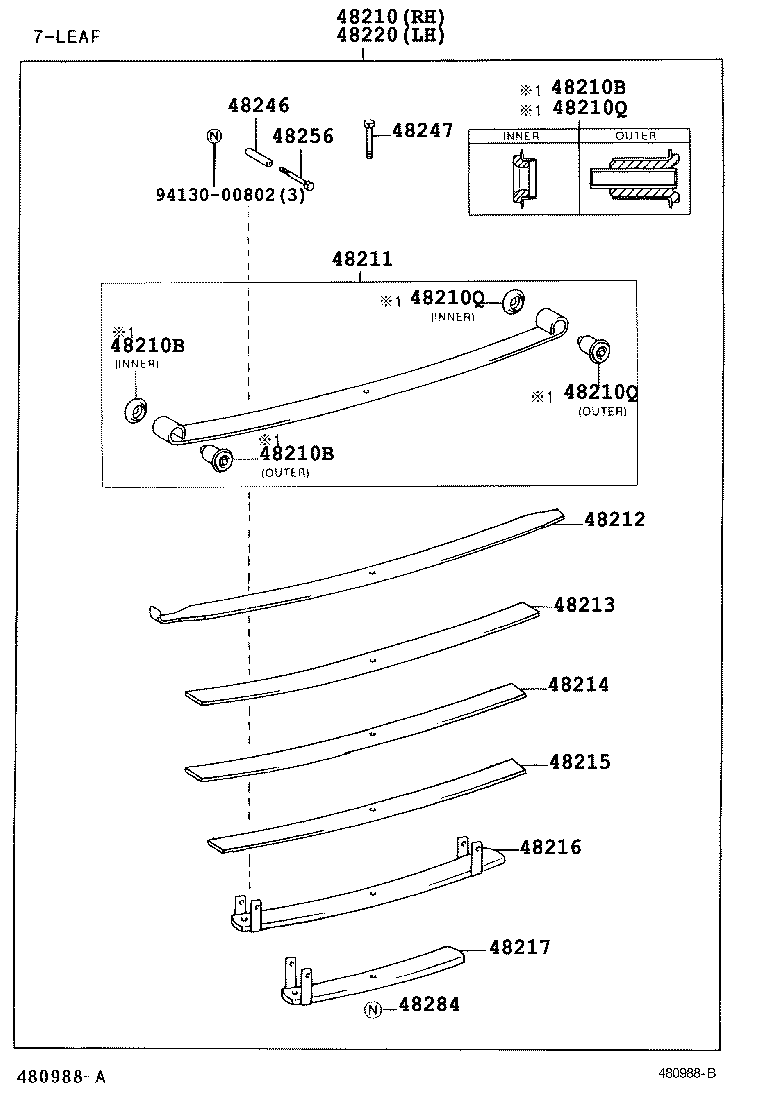

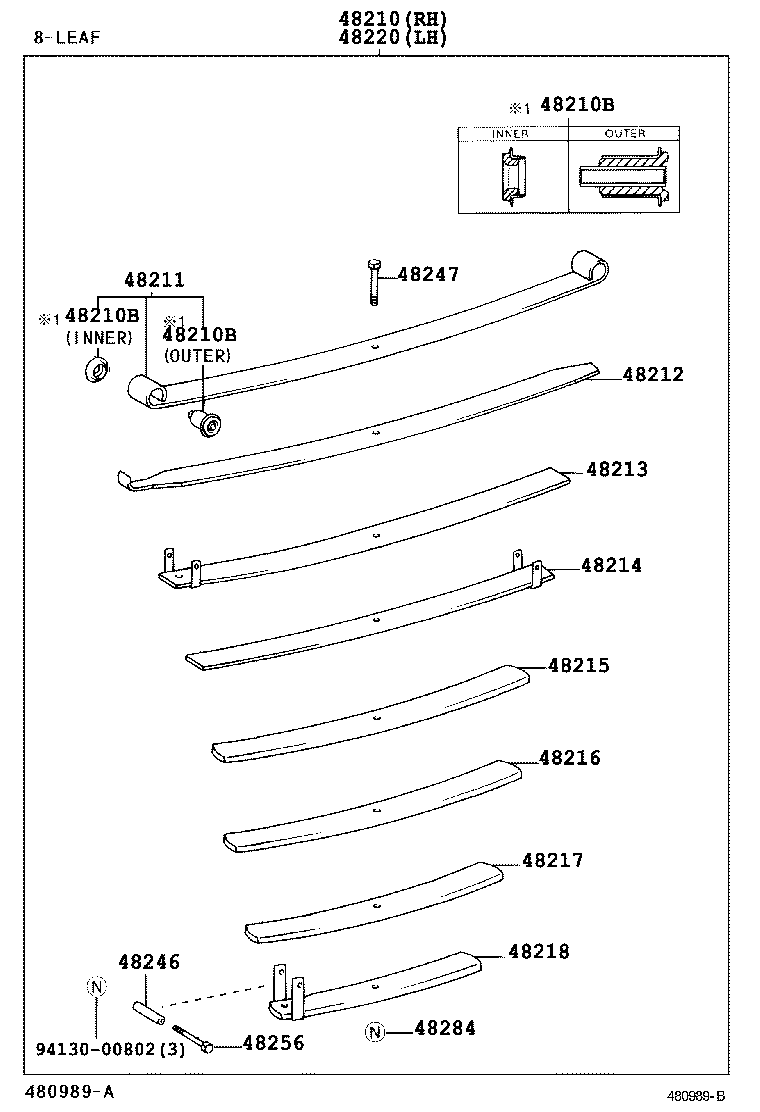

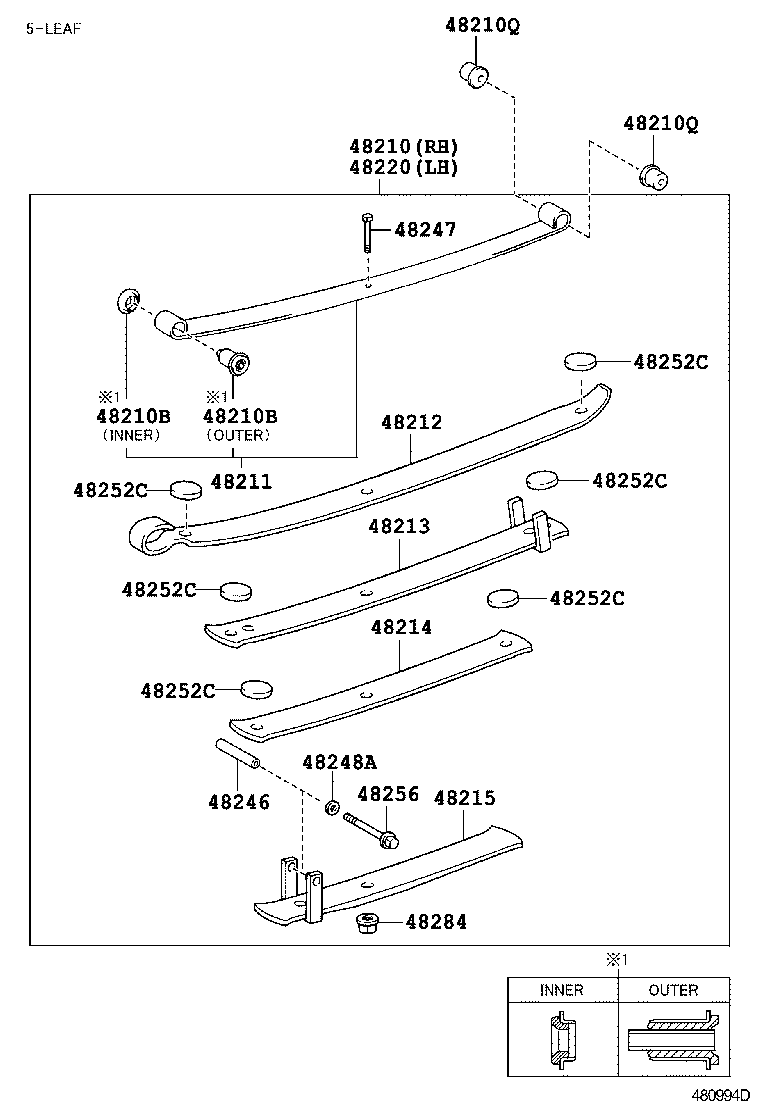

48211	Leaf, Rear Spring, NO.1
48212	Leaf, Rear Spring, NO.2
48213	Leaf, Rear Spring, NO.3
48214	Leaf, Rear Spring, NO.4
48215	Leaf, Rear Spring, NO.5
48216	Leaf, Rear Spring, NO.6
48217	Leaf, Rear Spring, NO.7
48218	Leaf, Rear Spring, NO.8
48220	Spring Assy, Rear LH
48231	Spring, Coil, Rear
48246	Case, Rear Spring Clip Bolt
48247	Bolt, Rear Spring, Center
48248A	Washer(FOR REAR SPRING CLIP BOLT)
48252B	Silencer, Rear Spring, NO.1
48252C	Silencer, Rear Spring, NO.2
48256	Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48257A	Insulator, Rear Coil Spring, Lower
48257B	Insulator, Rear Coil Spring, Upper
48284	Nut, Rear Spring Center Bolt
48302	Spring Sub-assy, Hollow
48306	Bumper Sub-assy, Rear Spring
48404A	Bracket Sub-assy, Spring, NO.3 RH
48407	Bracket Sub-assy, Spring, NO.3 LH
48416A	Bracket, Spring, NO.4 RH
48417A	Bracket, Spring, NO.4 LH
48475R	Plate, Distance(FOR REAR)
48530	Absorber Assy, Shock, Rear RH
48530A	Bush(FOR REAR SHOCK ABSORBER)
48530B	Washer, Rear Shock Absorber Cushion, NO.1
48530G	Cushion, Rear Shock Absorber, NO.1
48530J	Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530P	Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
48540	Absorber Assy, Shock, Rear LH
48702B	Bush Sub-assy, Trailing Arm, NO.1
48710B	Arm Assy, Trailing, Rear
48710F	Bolt(FOR REAR TRAILING ARM)
48740	Rod Assy, Rear Lateral Control
48745	Bush, Lateral Control Rod
48802	Link Sub-assy, Stabilizer
48802D	Bush, Stabilizer Link
48802E	Spacer(FOR REAR STABILIZER BAR)
48812	Bar, Stabilizer, Rear
48815R	Bush, Stabilizer(FOR REAR)
48817R	Cushion, Stabilizer(FOR REAR)
48817S	Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817V	Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR)
48823R	Cover, Stabilizer Link(FOR REAR)
48824R	Bracket, Stabilizer(FOR REAR)
48825A	Bracket, Rear Stabilizer End
48826B	Protector, Rear Stabilizer Bar
48827A	Bracket, Rear Stabilizer Bar, NO.2
48830	Link Assy, Rear Stabilizer
48830A	Nut(FOR REAR STABILIZER LINK)
48832A	Bracket, Rear Stabilizer Bar, NO.1
