Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

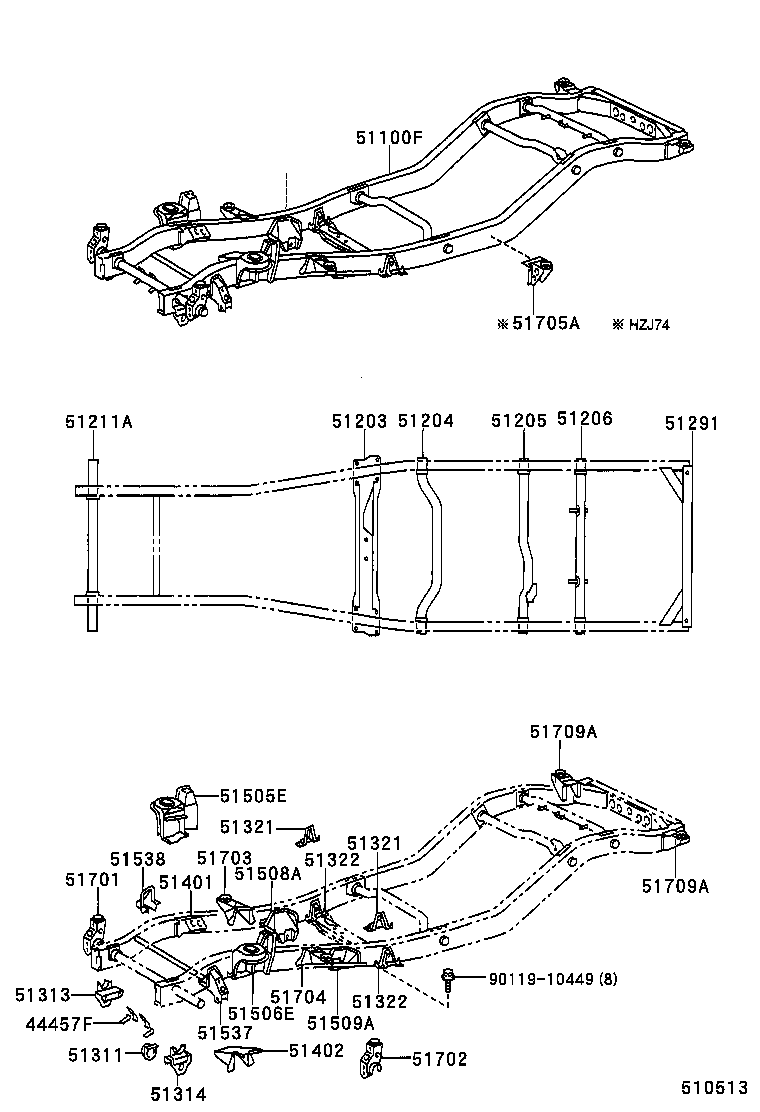

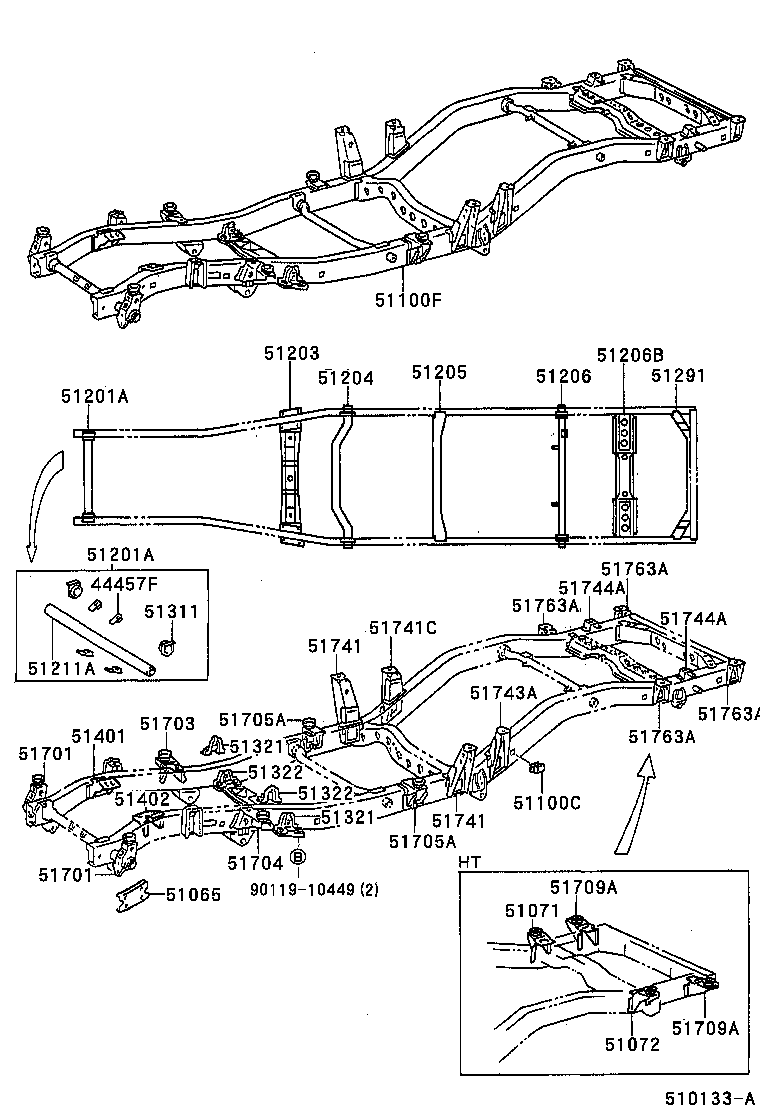

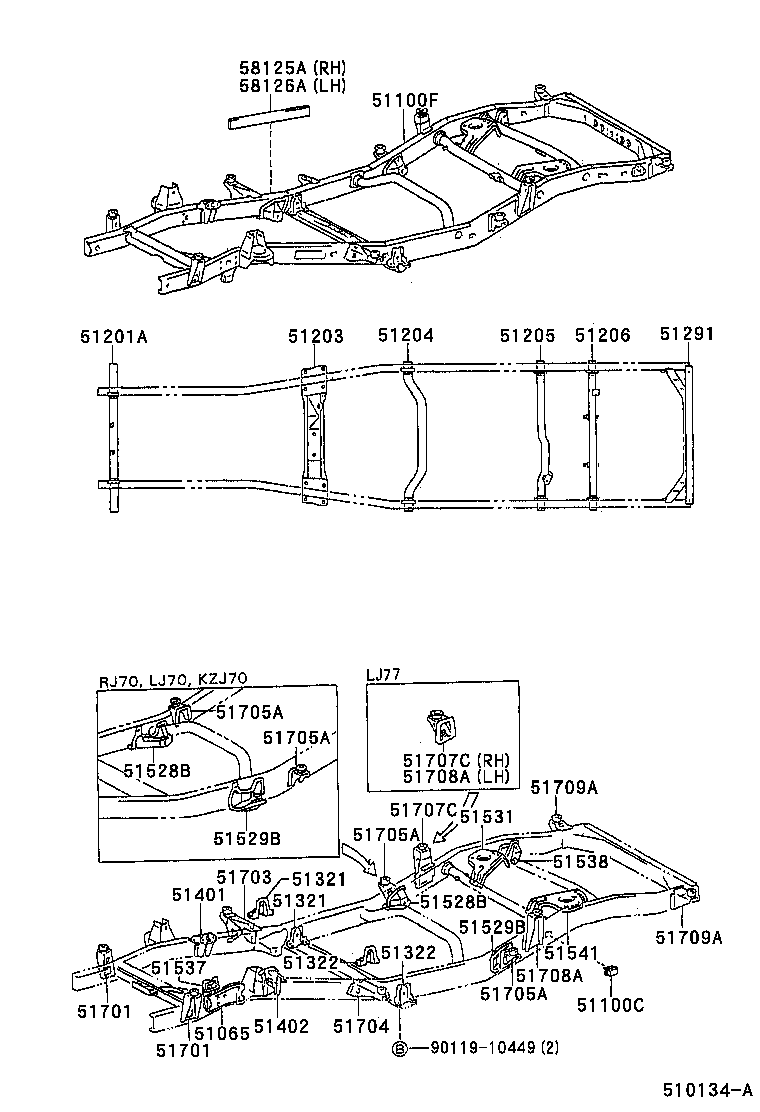

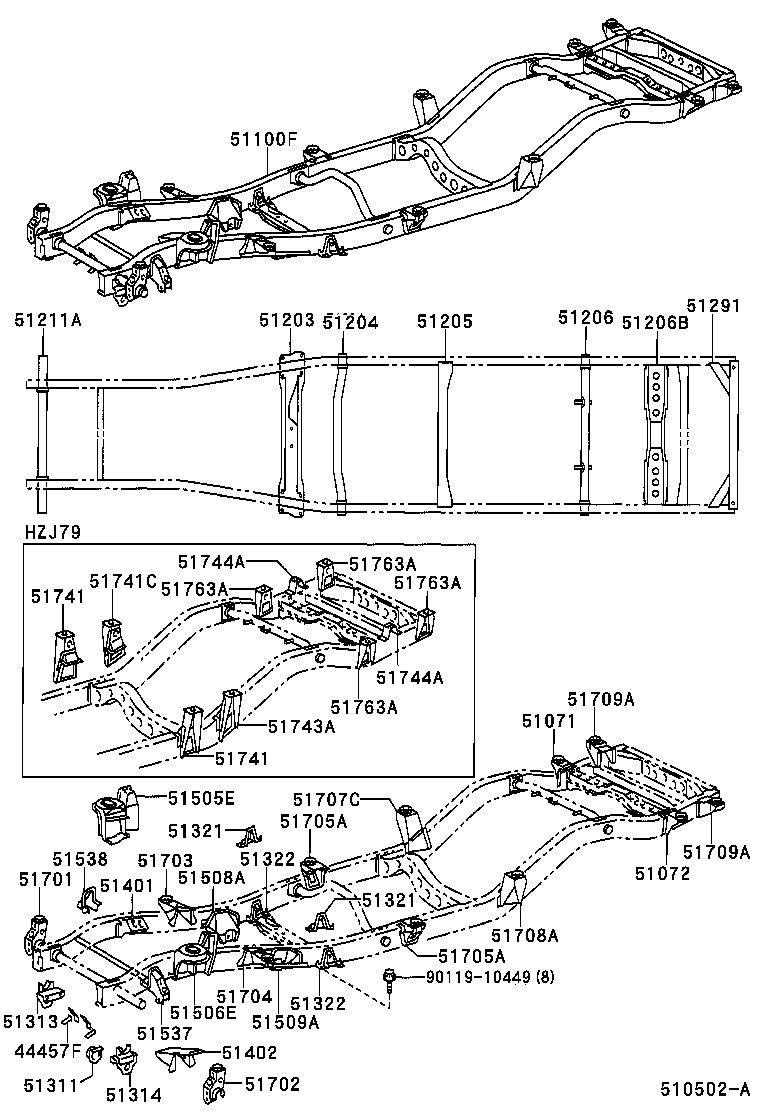

Frame
46 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44457F | Bracket, Tube Support |
| 51065 | Support Sub-assy, Steering Gear Box |
| 51071 | Bracket Sub-assy, Rear Body Mounting, NO.1 RH |
| 51072 | Bracket Sub-assy, Rear Body Mounting, NO.1 LH |
| 51100C | Plug, Hole(FOR FRAME) |
| 51100F | Frame Sub-assy |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51206 | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51211A | Crossmember, Frame, Front |
| 51291 | Crossmember, Frame, Rear |
| 51311 | Gusset, Frame Front Crossmember |
| 51313 | Gusset, Front Frame, Lower RH |
| 51314 | Gusset, Front Frame, Lower LH |
| 51321 | Gusset, Crossmember, NO.2 RH |
| 51322 | Gusset, Crossmember, NO.2 LH |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51505E | Bracket Sub-assy, Front Spring Support, RH |
| 51506E | Bracket Sub-assy, Front Spring Support, LH |
| 51508A | Bracket Sub-assy, Lower Arm, RH |
| 51509A | Bracket Sub-assy, Lower Arm, LH |
| 51528B | Bracket, Lower Arm Support, Rear RH |
| 51529B | Bracket, Lower Arm Support, Rear LH |
| 51531 | Bracket, Rear Spring Support, RH |
| 51537 | Bracket, Lateral Rod Support |
| 51538 | Stay, Lateral Rod Support |
| 51541 | Bracket, Rear Spring Support, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51705A | Bracket Sub-assy, Cab Mounting, NO.3 |
| 51707C | Bracket Sub-assy, Cab Mounting, NO.4 RH |
| 51708A | Bracket Sub-assy, Cab Mounting, NO.4 LH |
| 51709A | Bracket Sub-assy, Body Rear End Mounting |
| 51741 | Bracket, Rear Body Mounting, NO.1 |
| 51741C | Bracket, Rear Body Mounting, NO.2 RH |
| 51743A | Bracket, Rear Body Mounting, NO.2 LH |
| 51744A | Bracket, Rear Body Mounting, NO.4 |
| 51763A | Bracket, Body Support, NO.6 RH |
| 58125A | Seal, Front Floor TO Frame, RH |
| 58126A | Seal, Front Floor TO Frame, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
