Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

14 part groups · 4 illustrations

Illustrations

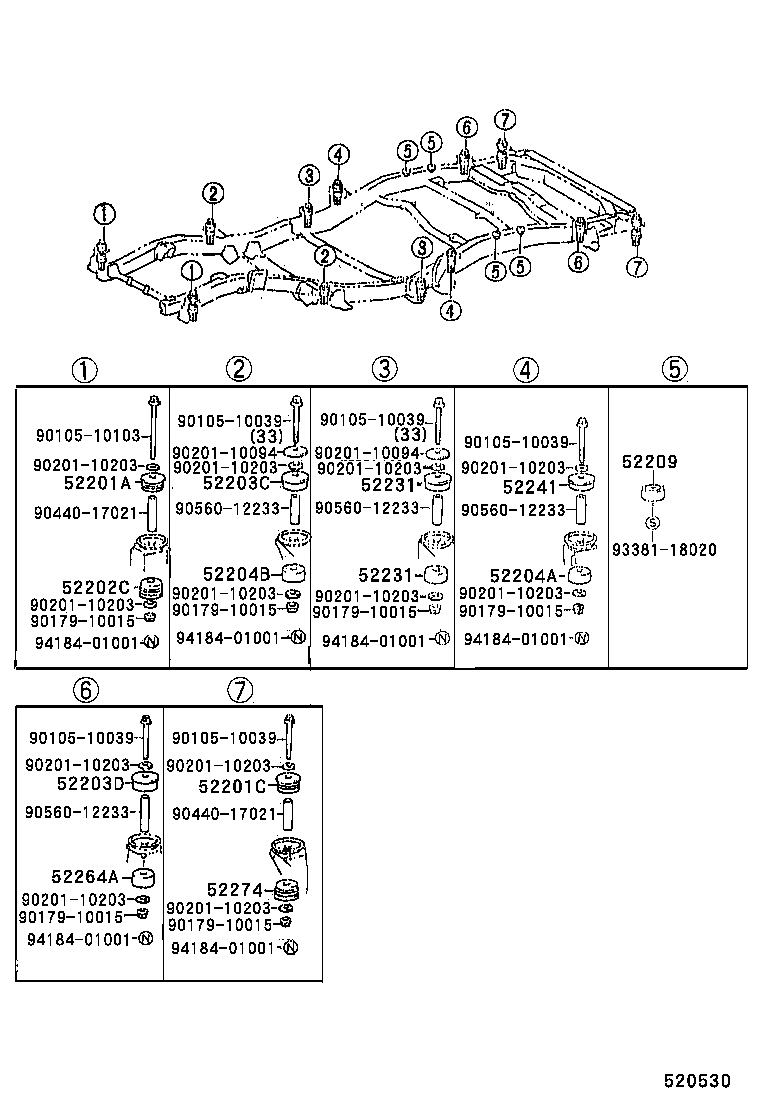

Figure 520531 520531 1990-01 → 1999-08 Figure 520531 520531 1999-08 → — Figure 520530 520530 1990-01 → 1999-08 Figure 520530 520530 1999-08 → —

Part groups

PNCDescription
51204D Damper Sub-assy, Engine Rear Support Member
52201A Cushion Sub-assy, Cab Front Mounting
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202C Cushion Sub-assy, Cab Front Mounting, Lower
52203C Cushion Sub-assy, Cab Mounting, NO.2 Upper
52203D Cushion Sub-assy, Cab Mounting, NO.2 Upper
52204A Cushion Sub-assy, Body Mounting, Rear Lower
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52209 Cushion Sub-assy, Rear End Body Mounting, Upper
52231 Cushion, Body Mount, NO.3 Upper
52241 Cushion, Body Mount, NO.4 Upper
52254 Cushion, Body Mount, NO.5 Lower
52264A Cushion, Body Mount, NO.6 Lower
52274 Cushion, Body Mount, NO.7 Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
