Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

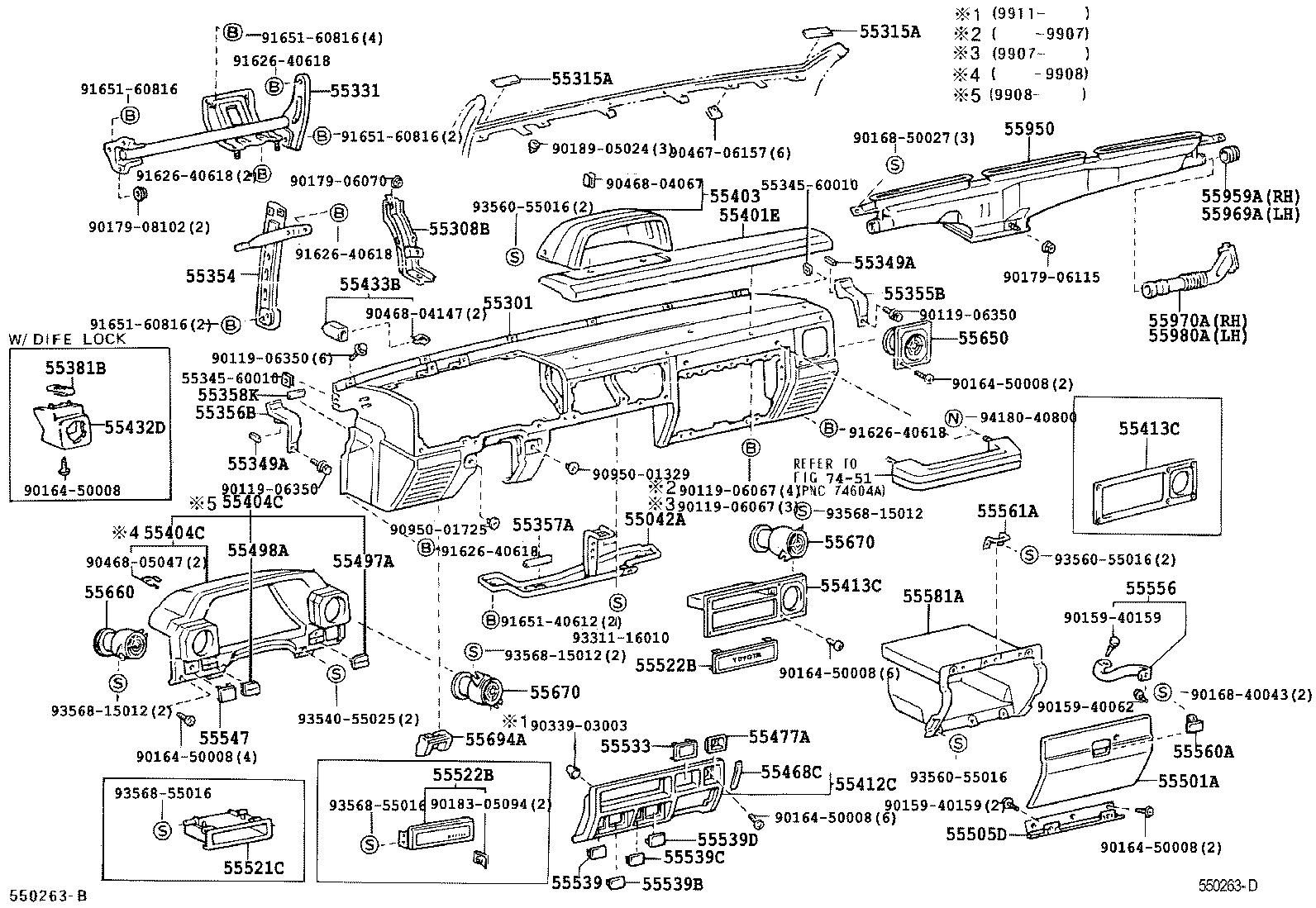

Instrument Panel & Glove Compartment
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55042A | Reinforcement Sub-assy, Cluster Finish Panel |
| 55301 | Panel Sub-assy, Instrument |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55354 | Brace, Instrument Panel TO Floor |
| 55355B | Plate, Instrument Panel, RH |
| 55356B | Plate, Instrument Panel, LH |
| 55357A | Protector, Edge, NO.1 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55403 | Hood Sub-assy, Meter |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55413C | Panel, Instrument Cluster Finish, Center NO.2 |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55497A | Reflector, Warning Lamp, RH |
| 55498A | Reflector, Warning Lamp, LH |
| 55501A | Door Sub-assy, Glove Compartment |
| 55505D | Hinge Sub-assy, Glove Compartment Door |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55581A | Compartment, Glove |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55693 | Protector, Control Knob, NO.1 |
| 55694A | Protector, Control Knob, NO.2 |
| 55950 | Nozzle Assy, Defroster |
| 55959A | Cover, Defroster Nozzle Opening, NO.1 |
| 55969A | Cover, Defroster Nozzle Opening, NO.2 |
| 55970A | Duct Assy, Side Defroster, RH |
| 55980A | Duct Assy, Side Defroster, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
