Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

87 part groups · 4 illustrations

Illustrations

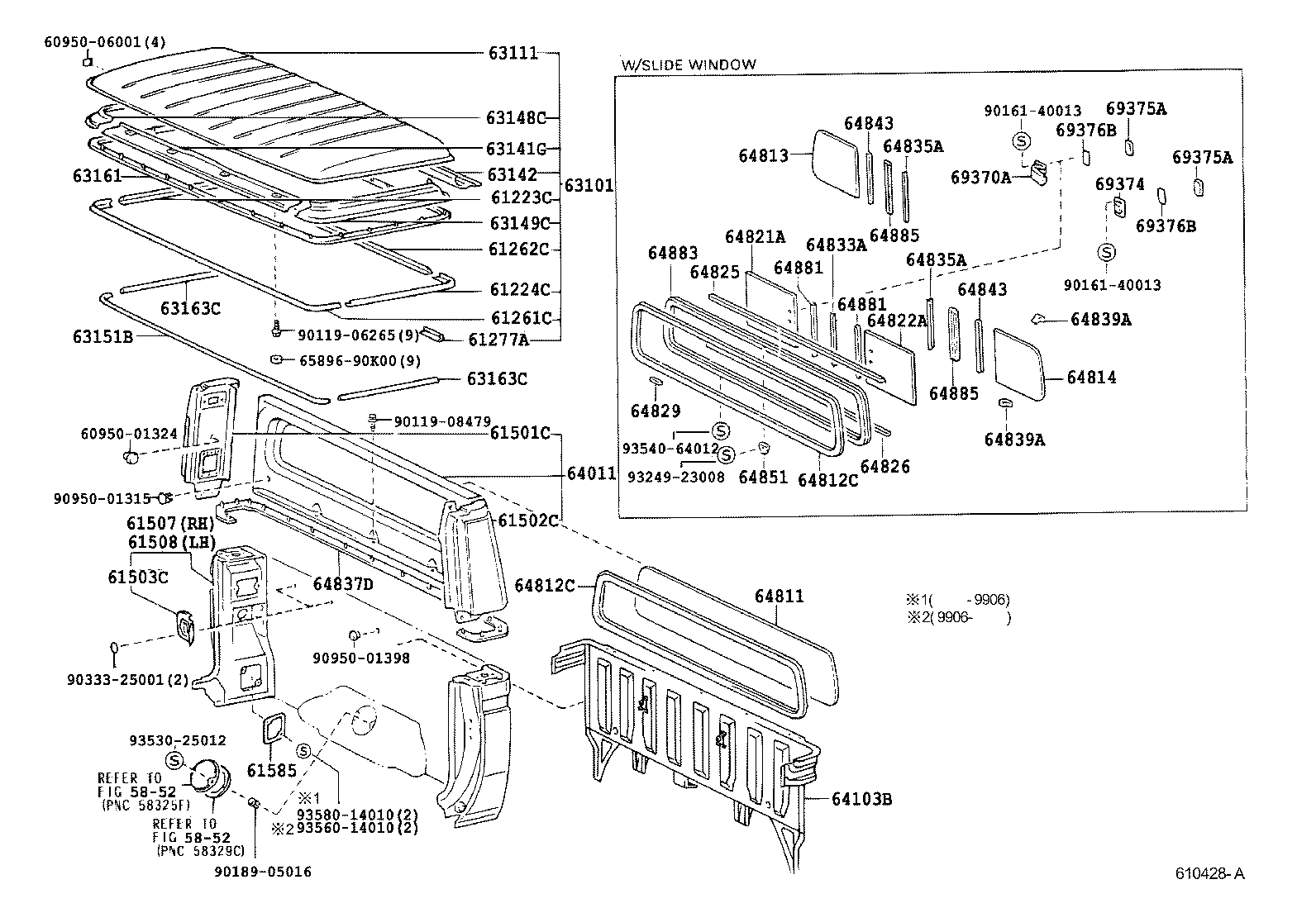

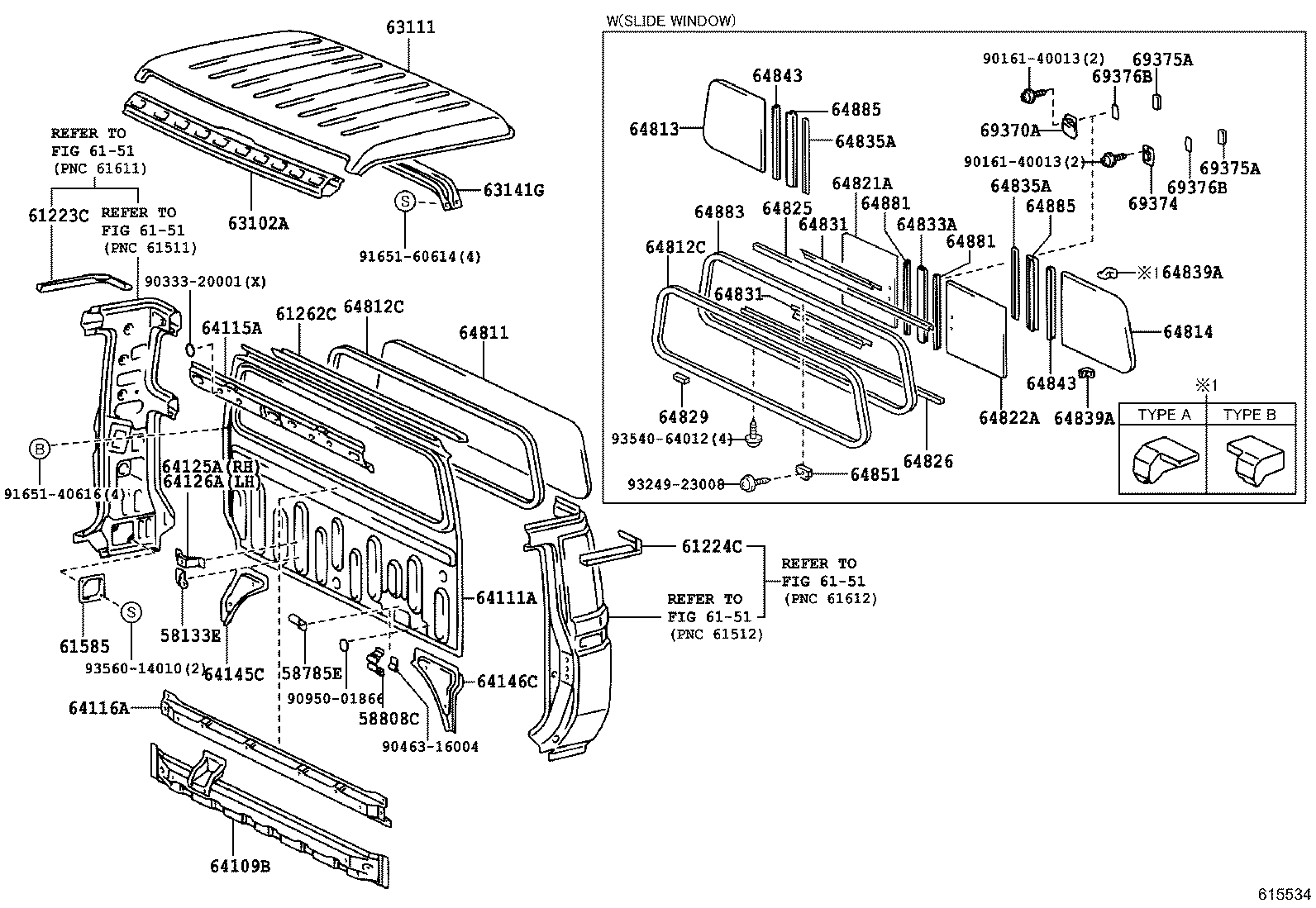

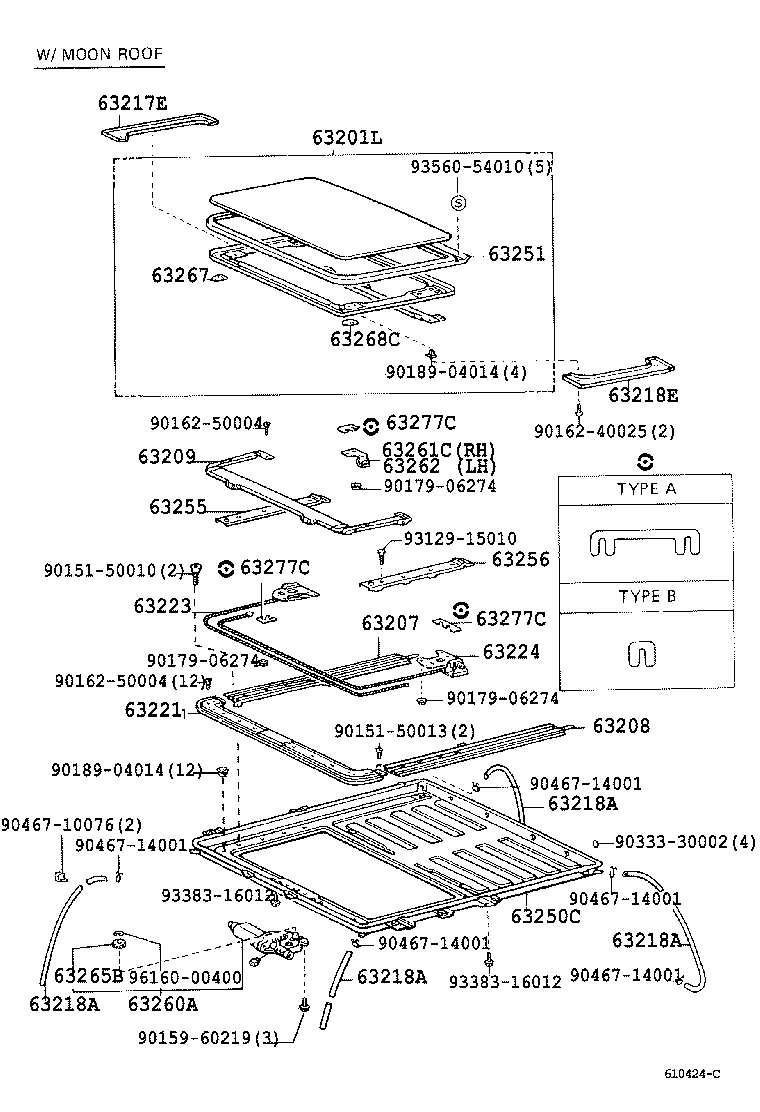

Figure 611016A 611016A 1990-01 → — Figure 610424C 610424C 1990-01 → — Figure 610428A 610428A 1990-01 → — Figure 615534 615534 1999-08 → —

Part groups

PNCDescription
58133E Bracket, Front Floor Heat Insulator, NO.3
58785E Bracket, Tool Bag Band
58808C Spring Sub-assy, Juck Handle
61223C Channel, Roof Drip Side, RH
61224C Channel, Roof Drip Side, LH
61261C Channel, Roof Drip, Front
61262C Channel, Roof Drip, Rear
61277A Joint, Roof Drip Channel
61501C Pillar Sub-assy, Cab Rear, Upper RH
61502C Pillar Sub-assy, Cab Rear, Upper LH
61503C Reinforcement Sub-assy, Quarter Lock Pillar, RH
61507 Pillar Sub-assy, Cab Rear, Lower RH
61508 Pillar Sub-assy, Cab Rear, Lower LH
61585 Lid, Quarter Hole, NO.1
63101 Panel Sub-assy, Roof
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63123D Reinforcement, Roof Panel, Front RH
63124B Reinforcement, Roof Panel, Front LH
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63148C Reinforcement, Roof Panel Side, RH
63149C Reinforcement, Roof Panel Side, LH
63150 Reinforcement Assy, Roof Panel
63151B Seal, Roof Panel Reinforcement
63161 Weatherstrip, Roof
63163C Seal, Roof Panel Reinforcement, Side
63201L Glass Sub-assy, Removable Roof
63207 Rail Sub-assy, Sliding Roof Guide, RH
63208 Rail Sub-assy, Sliding Roof Guide, LH
63209 Panel Sub-assy, Roof Wind Deflector
63217E Garnish, Sliding Roof, Front RH
63218A Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63218E Garnish, Sliding Roof, Front LH
63221 Casing, Sliding Roof Cable Guide
63223 Cable, Sliding Roof Drive, RH
63224 Cable, Sliding Roof Drive, LH
63250C Housing Assy, Sliding Roof
63251 Weatherstrip, Sliding Roof Panel OR Removable Roof
63255 Cover, Sliding Roof Guide Rail, RH
63256 Cover, Sliding Roof Guide Rail, LH
63260A Gear Sub-assy, Sliding Roof Drive
63261C Shoe, Sliding Roof, Front RH
63262 Shoe, Sliding Roof, Front LH
63265B Gear, Sliding Roof Drive
63267 Protector, Sliding Roof Weatherstrip
63268C Protector, Sliding Roof Weatherstrip, LH
63277C Shim, Sliding Roof Panel
63351B Pad, Roof Headlining
63399C Clip, Roof Headlining
64011 Panel, Upper Back, Outer
64103B Panel Sub-assy, Cab Back, Lower
64109B Reinforcement Sub-assy, Cab Back, Lower
64111A Panel, Back
64115A Reinforcement, Back, Upper
64116A Reinforcement, Back, Lower
64125A Bracket, Upper Back Panel, RH
64126A Bracket, Upper Back Panel, LH
64145C Gusset, Back Panel, RH
64146C Gusset, Back Panel, LH
64811 Glass, Back Window
64812C Weatherstrip, Back Window Glass
64813 Glass, Back Window Corner, RH
64814 Glass, Back Window Corner, LH
64821A Glass, Back Window Slide, RH
64822A Glass, Back Window Slide, LH
64825 Run, Back Window Channel, Upper
64826 Run, Back Window Channel, Lower
64829 Film, Back Window Frame
64831 Weatherstrip, Back Window Glass
64833A Weatherstrip, Back Window Center Channel
64835A Weatherstrip, Back Window Glass, Center
64837D Weatherstrip, Cab Back Panel, Center
64839A Packing, Back Window
64843 Weatherstrip, Back Window Channel
64851 Stop, Back Window Slide Glass
64881 Channel, Back Window Glass
64883 Frame, Back Window
64885 Frame, Back Window Vertical
69370A Lock Assy, Back Window
69374 Catch, Back Window Lock
69375A Retainer, Back Window Lock
69376B Packing, Back Window Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
