Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

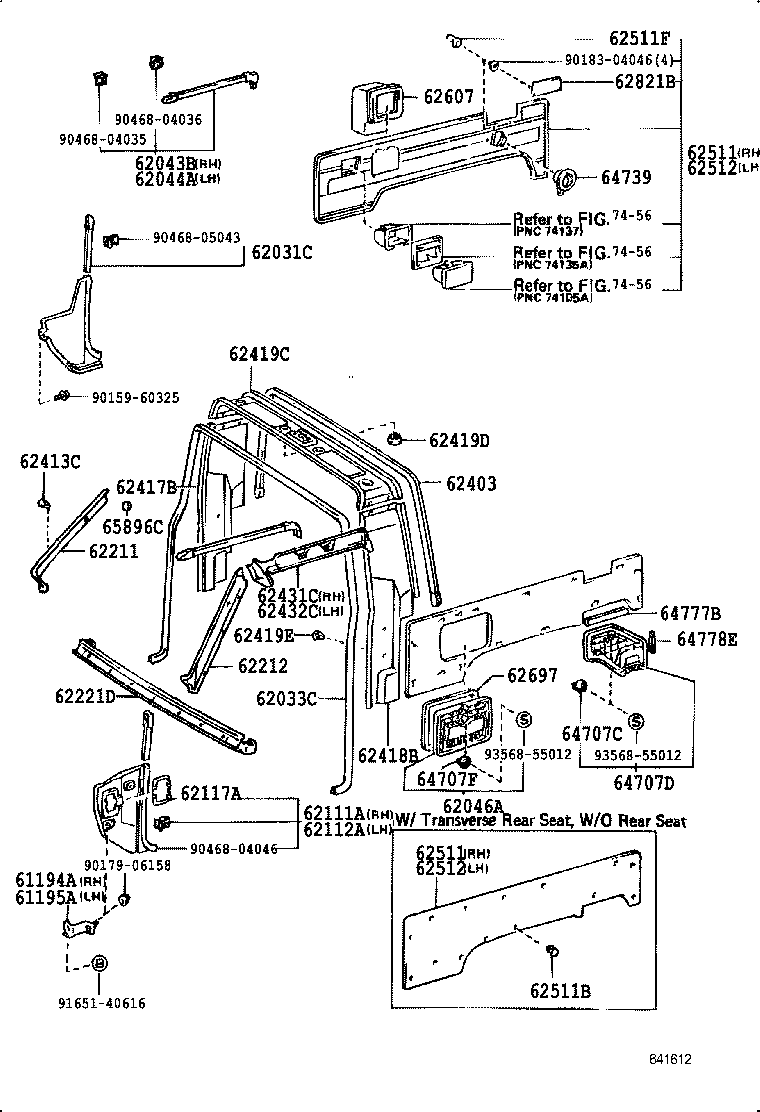

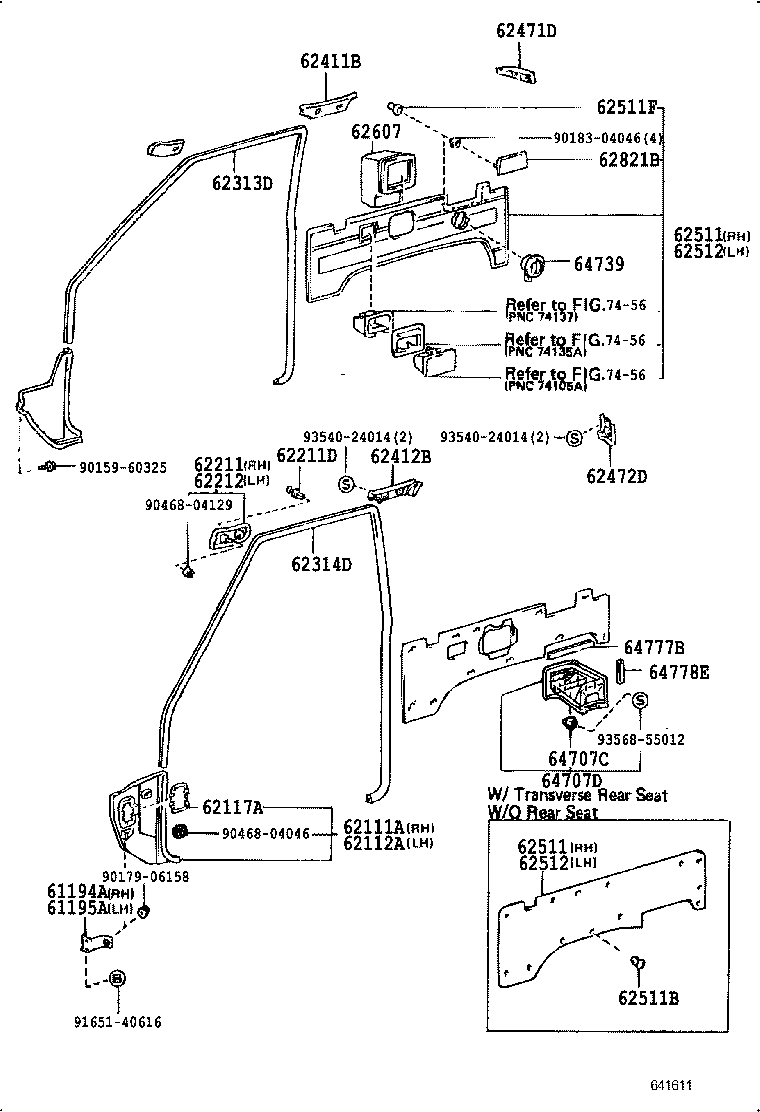

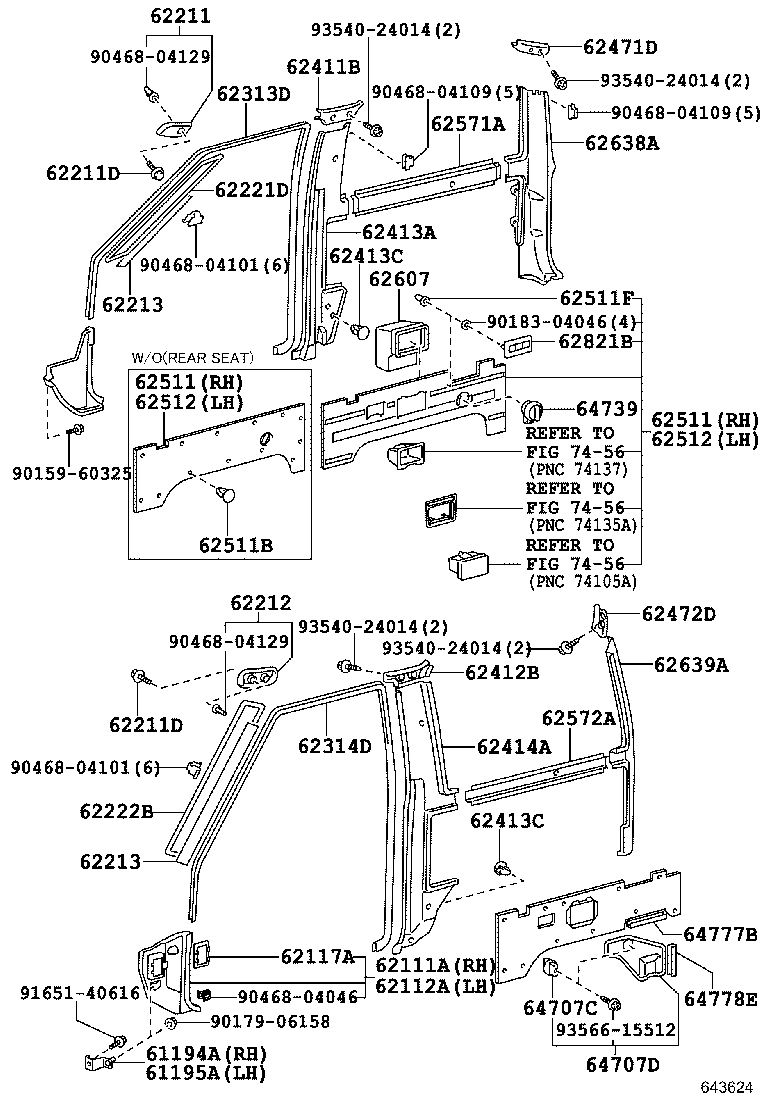

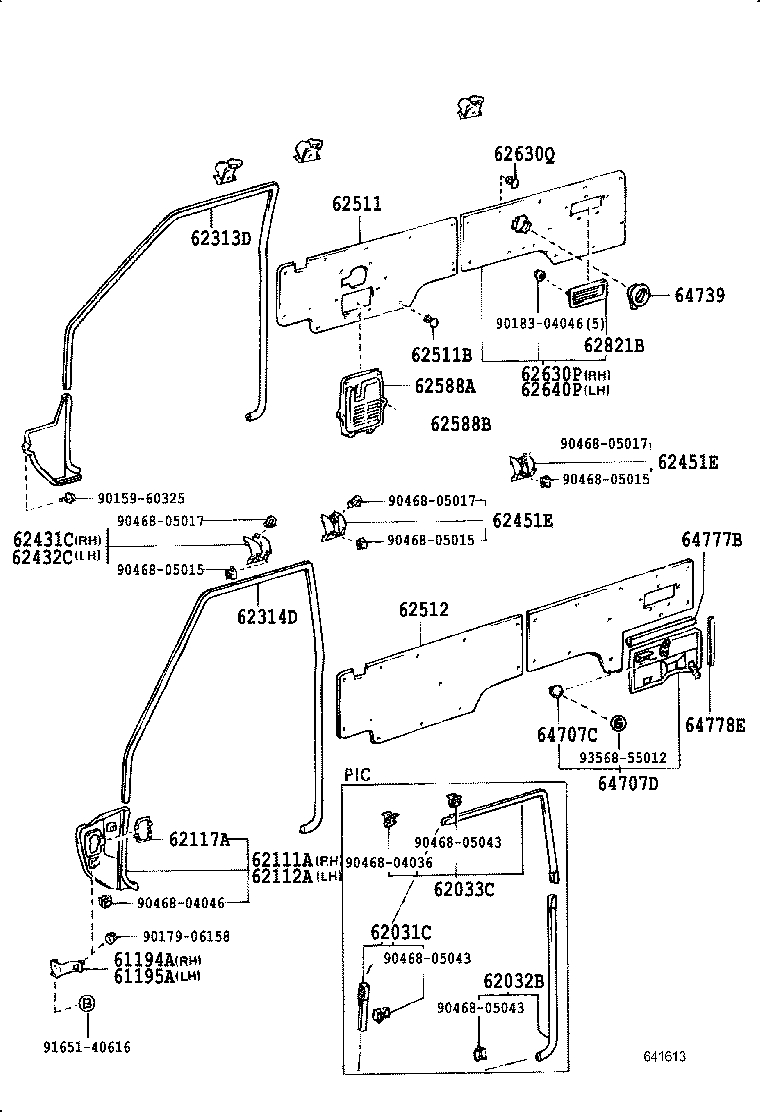

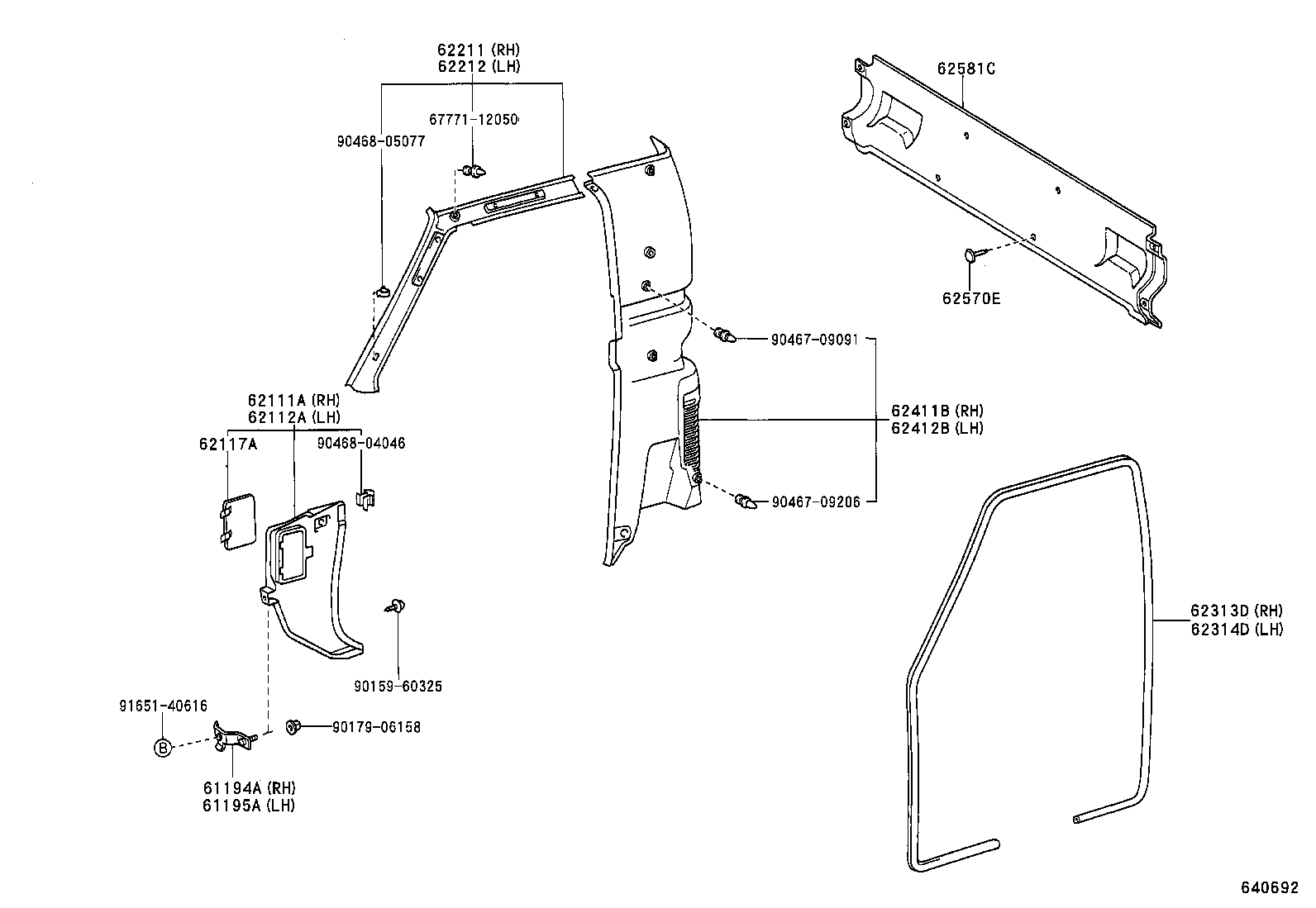

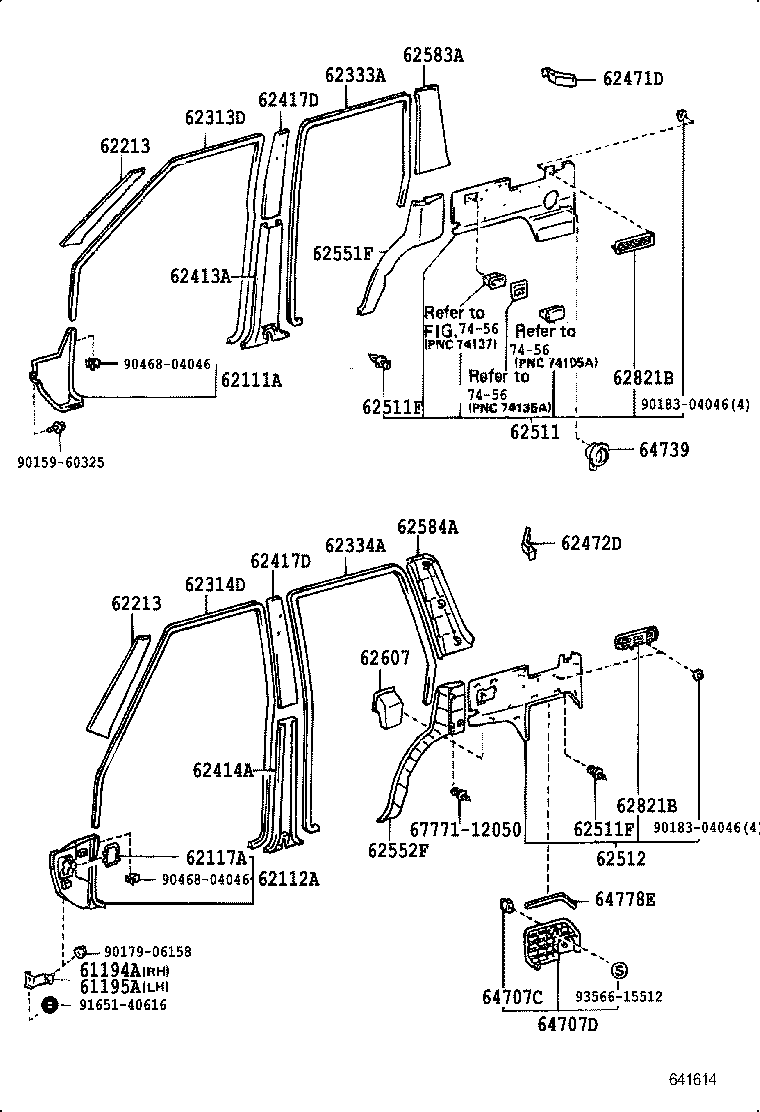

Inside Trim Board
67 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 61194A | Bracket, Cowl Side Trim, RH |
| 61195A | Bracket, Cowl Side Trim, LH |
| 62031C | Trim Sub-assy, Front Door Opening, NO.1 |
| 62032B | Trim Sub-assy, Front Door Opening, NO.2 |
| 62033C | Trim Sub-assy, Front Door Opening, NO.3 |
| 62043B | Trim Sub-assy, Front Door Opening, NO.3 RH |
| 62044A | Trim Sub-assy, Front Door Opening, NO.3 LH |
| 62046A | Cover Sub-assy, Quarter Trim Lid, LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62213 | Pad, Front Pillar Garnish |
| 62221D | Cover, Front Pillar Garnish, RH |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62403 | Trim Sub-assy, Roll Over Panel |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62417B | Garnish, Roll Over, Side, RH |
| 62417D | Pad, Center Pillar Garnish |
| 62418B | Garnish, Roll Over, Side, LH |
| 62419C | Garnish, Roll Over, Center |
| 62419D | Plug (FOR ROLL OVER GARNISH) |
| 62419E | Clip (FOR ROLL OVER GARNISH) |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62451E | Garnish, Roof Side Rail, Rear |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62570E | Clip, Rear Window Side Garnish |
| 62571A | Garnish, Roof Side, Inner Lower RH |
| 62572A | Garnish, Roof Side Inner Lower LH |
| 62581C | Garnish, Rear Window Side, RH |
| 62583A | Cover, Quarter Pillar, Upper RH |
| 62584A | Cover, Quarter Pillar, Upper LH |
| 62588A | Cover, Side Heater, Lower |
| 62588B | Clip (FOR SIDE HEATER COVER) |
| 62607 | Pocket Sub-assy, Quarter Trim |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62697 | Moulding, Quarter Trim Lid |
| 62821B | Glille, Room Ventilation |
| 64707C | Knob, Jack Cover |
| 64707D | Cover Sub-assy, Quarter Trim Jack |
| 64707F | Knob, Jack Cover |
| 64739 | Cover, Deck Trim Side Washer |
| 64777B | Protector, Quarter, Inner |
| 64778E | Protecter, Quarter Inner, NO.1 |
| 65896C | Cap, Cover Top Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
