Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

18 part groups · 15 illustrations

Illustrations

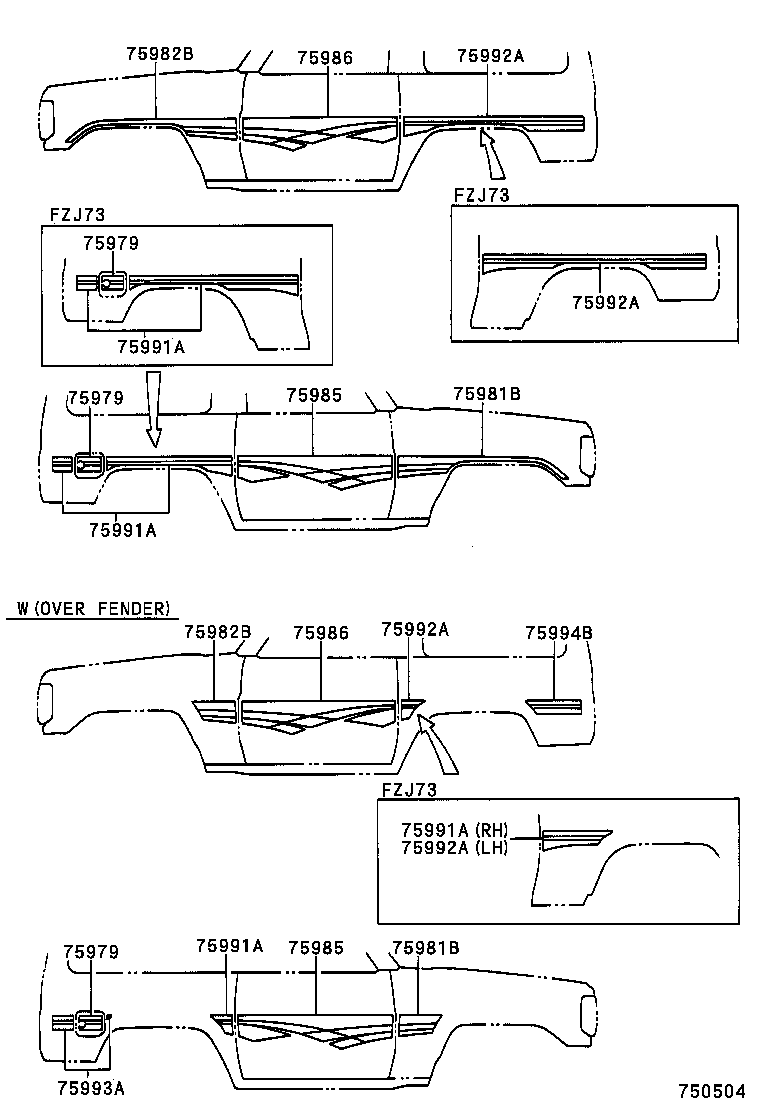

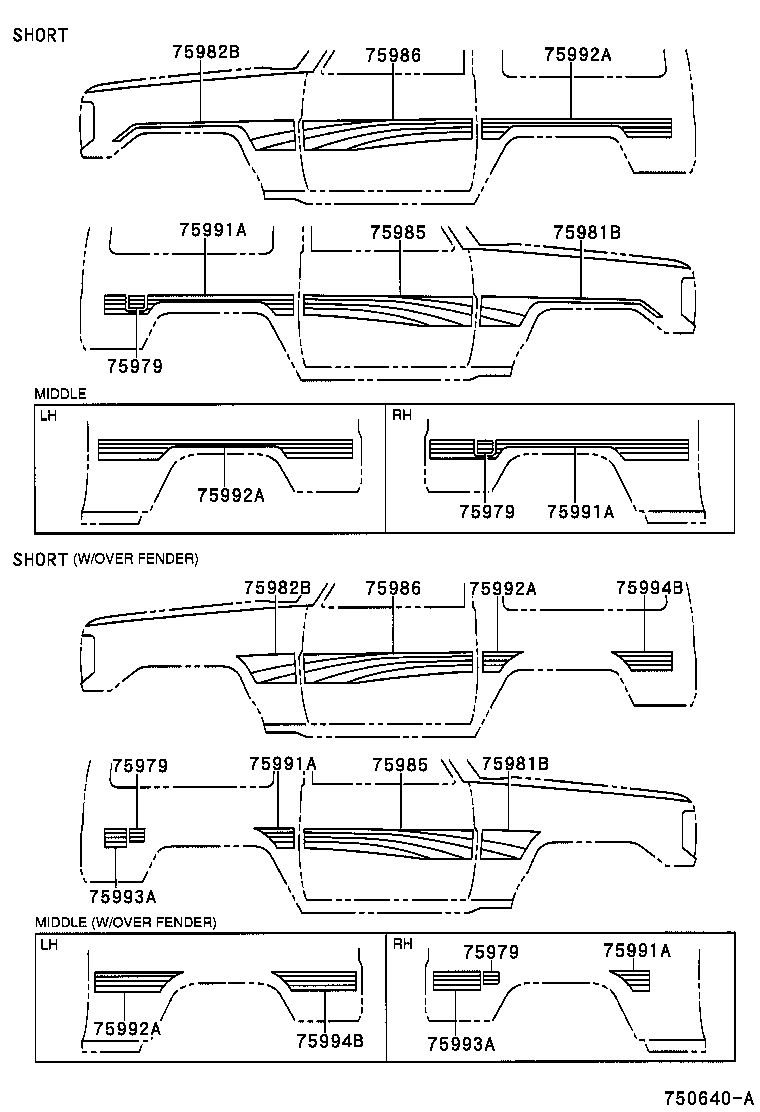

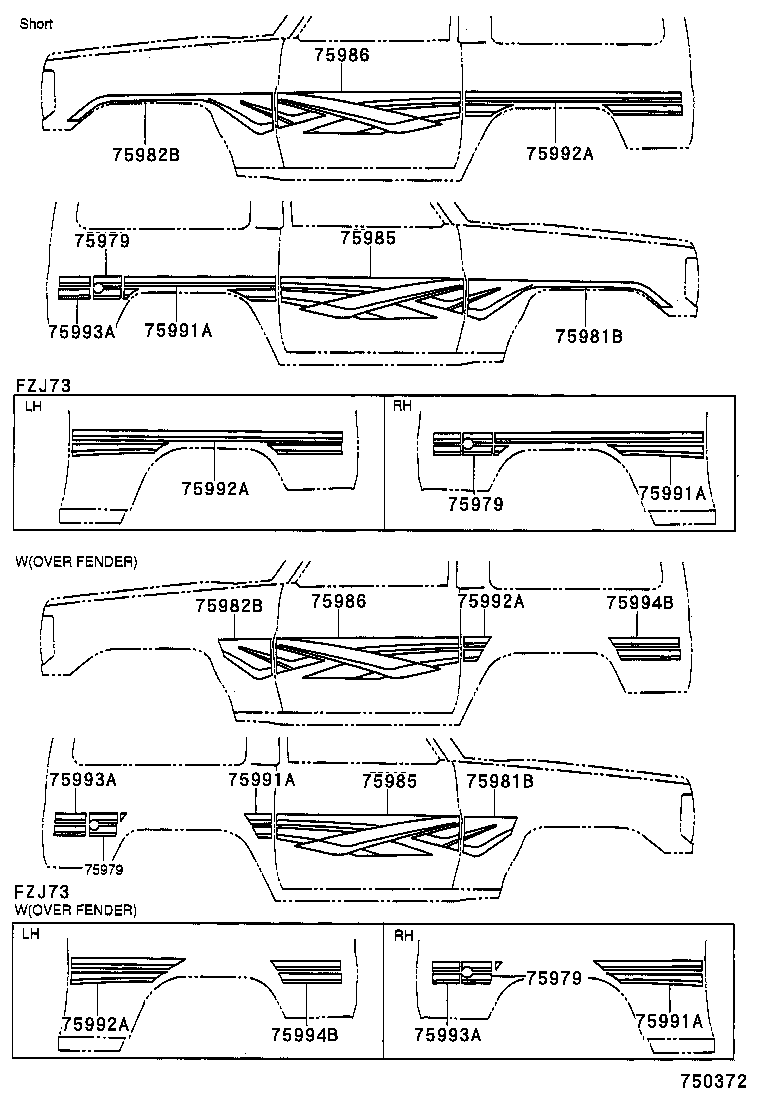

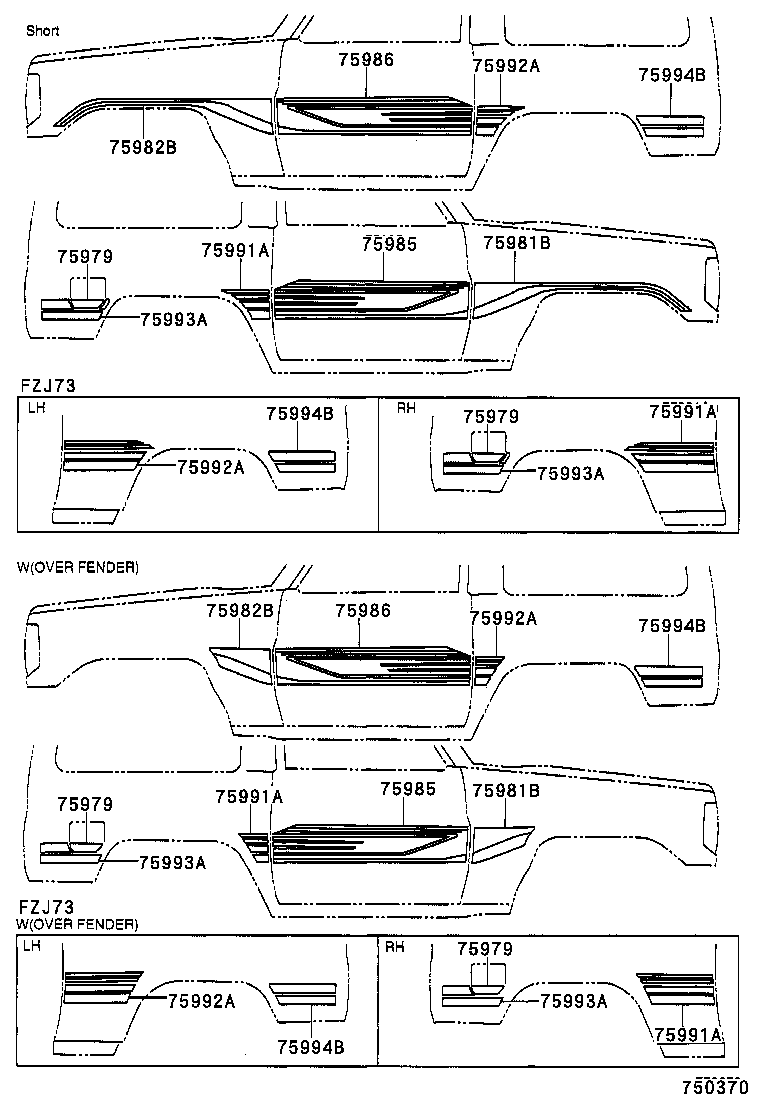

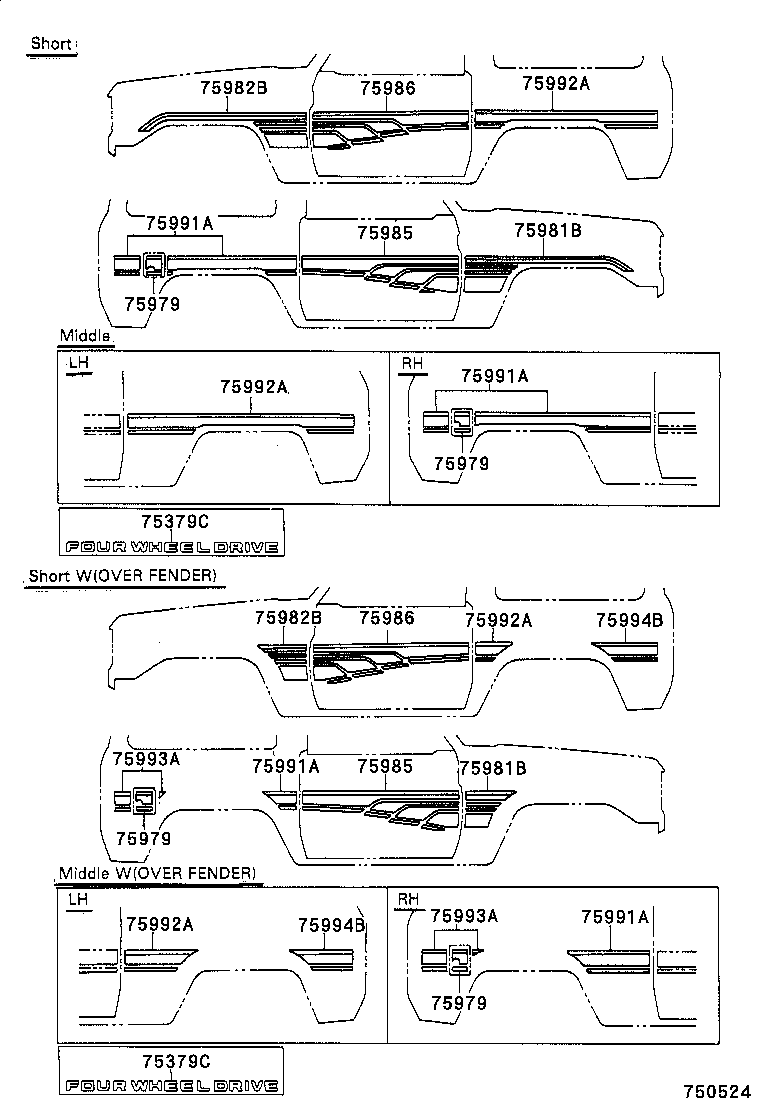

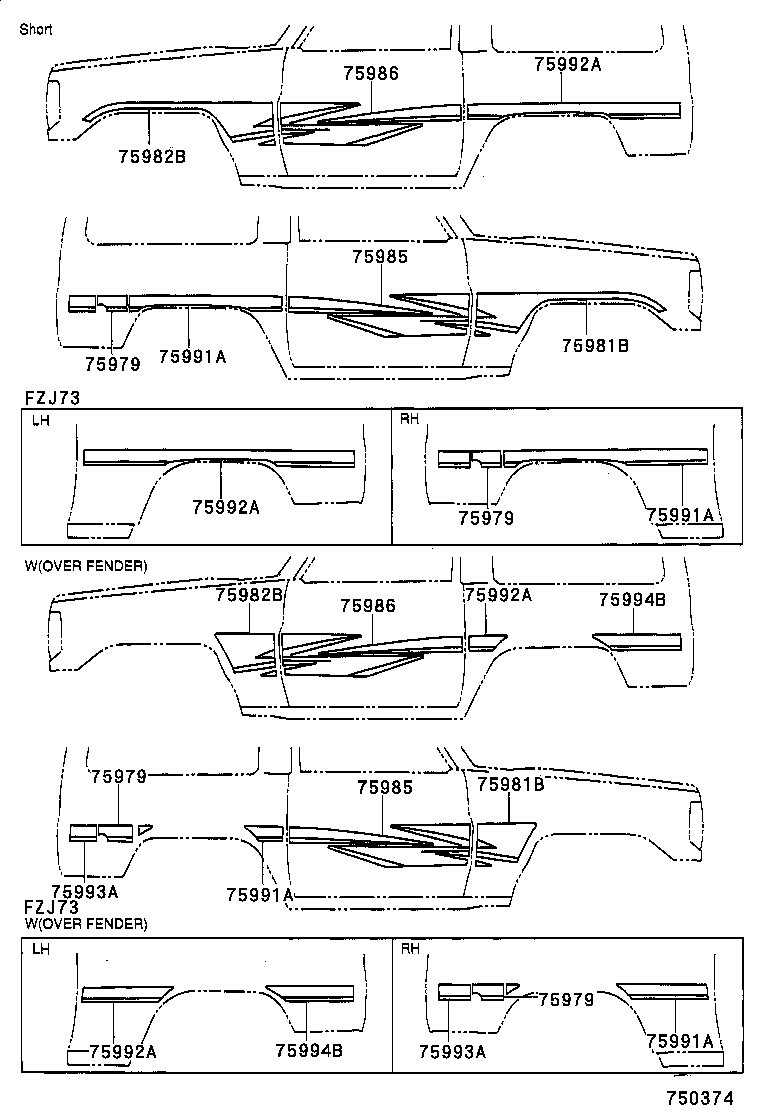

Figure MBU252B MBU252B 1990-01 → 1999-08 Figure MBU256A MBU256A 1990-01 → 1999-08 Figure MBU673B MBU673B 1990-04 → 1999-08 Figure 750524 750524 1993-08 → 1999-08 Figure MBX931A MBX931A 1993-08 → 1999-08 Figure 750378 750378 1995-01 → 1996-08 Figure 750374 750374 1995-01 → 1996-08 Figure 750377 750377 1996-08 → 1997-08 Figure 750372 750372 1996-08 → 1997-08 Figure 750376 750376 1997-08 → 1998-07 Figure 750370 750370 1997-08 → 1998-07 Figure 750506 750506 1998-07 → 1999-08 Figure 750504 750504 1998-07 → 1999-08 Figure 750640A 750640A 1999-08 → — Figure 750641 750641 1999-08 → —

Part groups

PNCDescription
75379C Mark, Side Panel
75941 Stripe, Center Pillar, RH
75942 Stripe, Center Pillar, NO.2
75979 Stripe, Fuel Filler Opening Lid
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987D Stripe, Rear Door, Outside, RH
75988B Stripe, Rear Deck, Front RH
75988D Stripe, Rear Door Outside, LH
75989 Stripe, Rear Deck, Front LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
75998C Stripe, Rear Deck, Rear RH
75999C Stripe, Rear Deck, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
