Fuel Tank & Tube

78 part groups · 12 illustrations

Illustrations

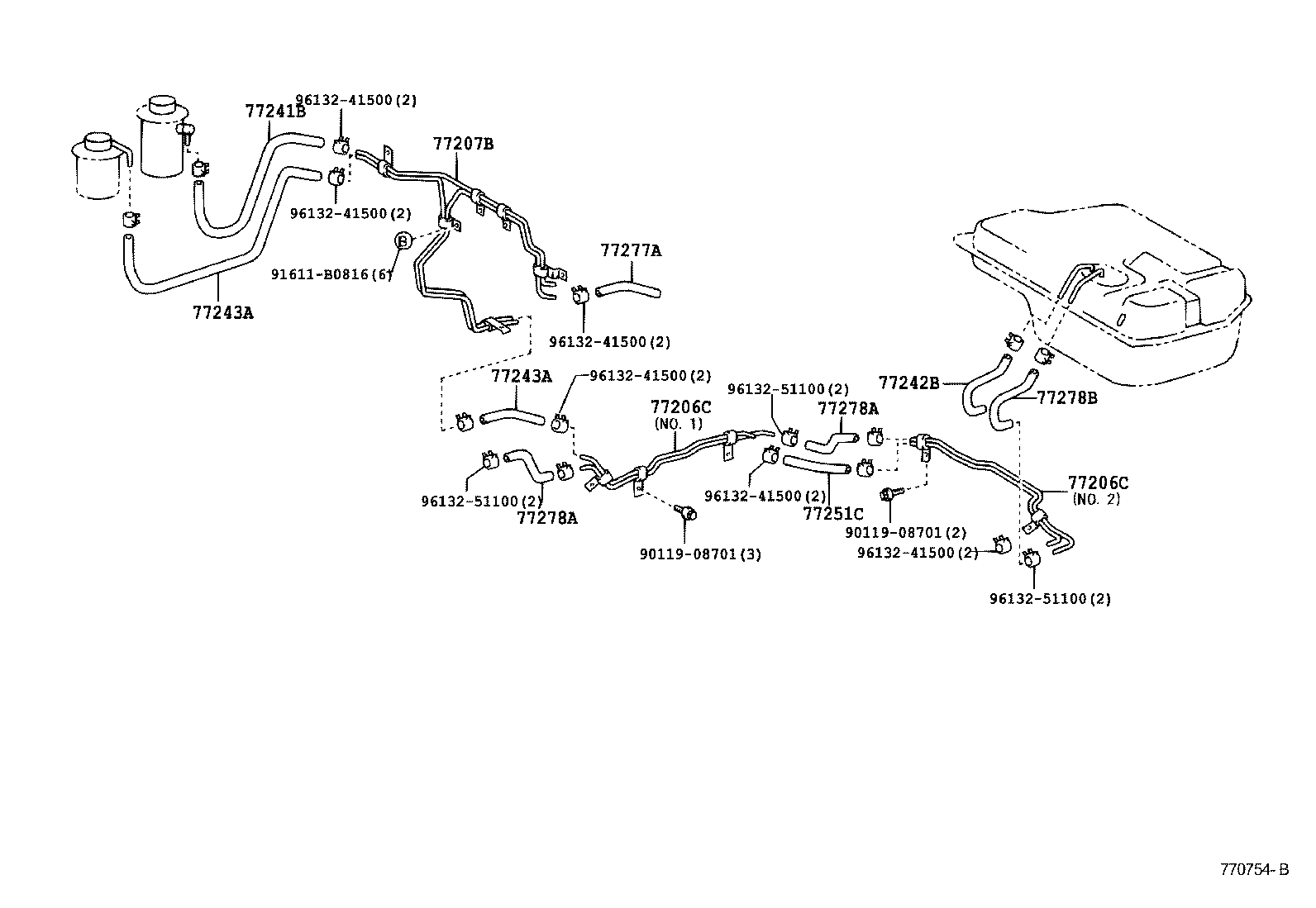

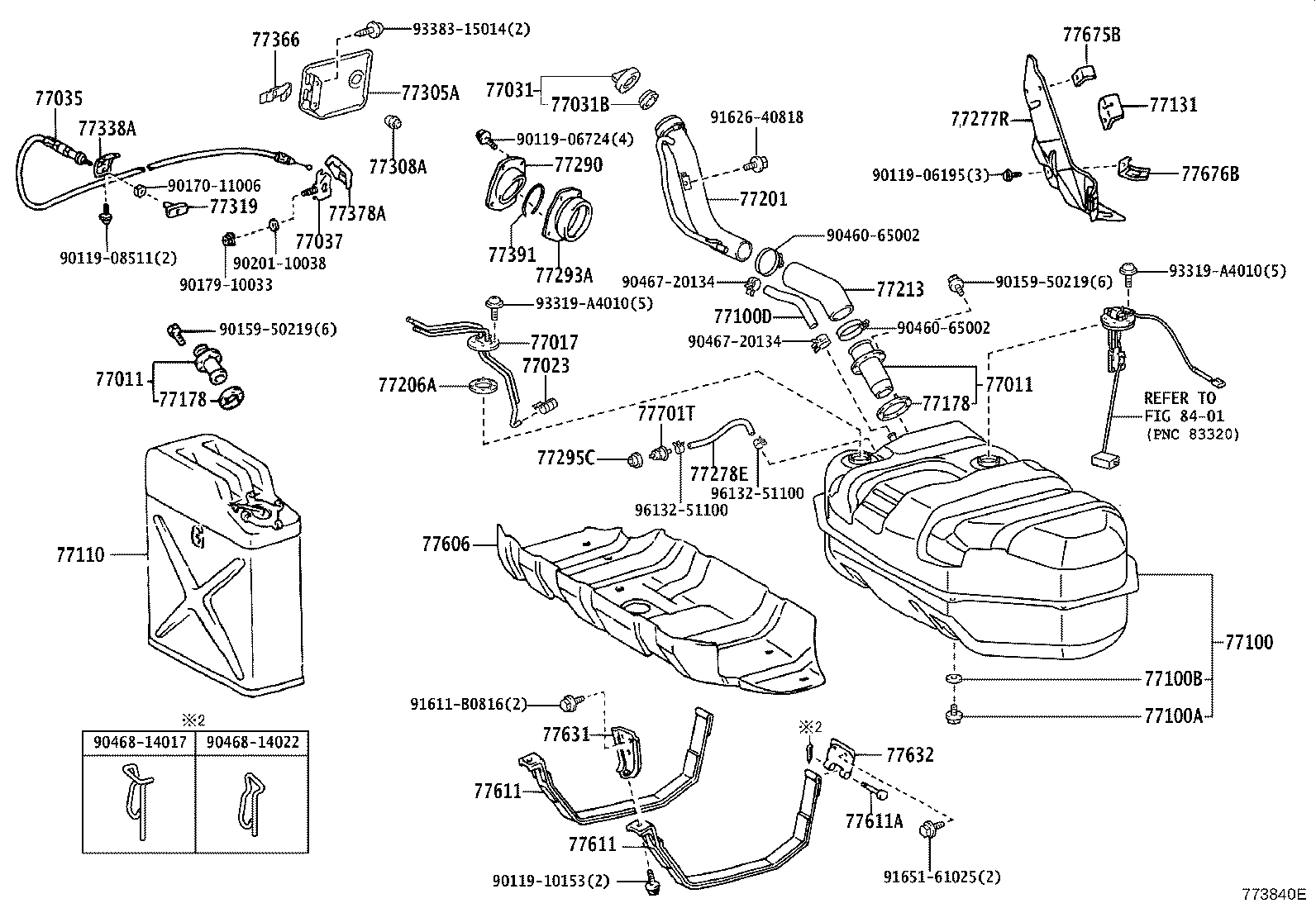

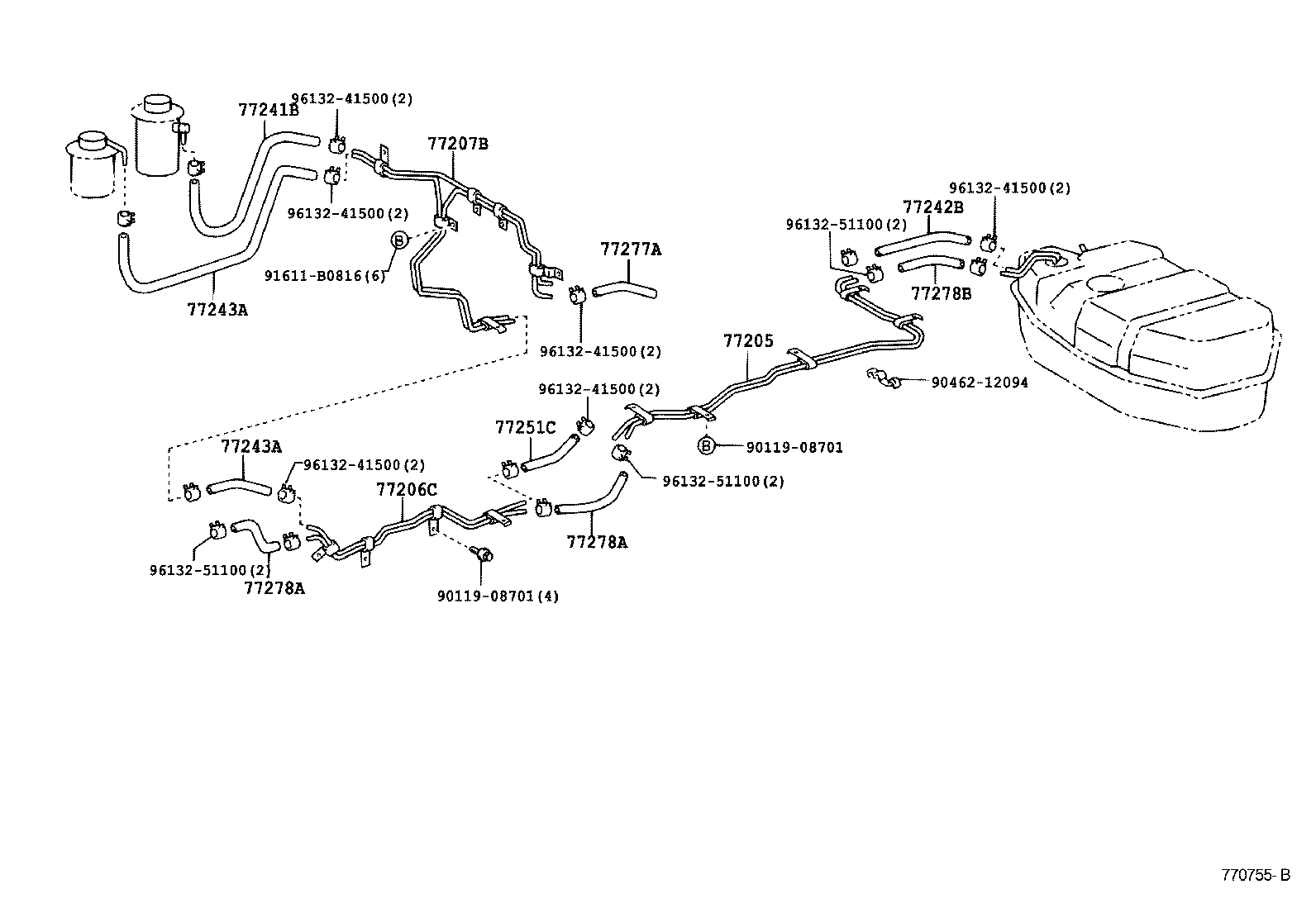

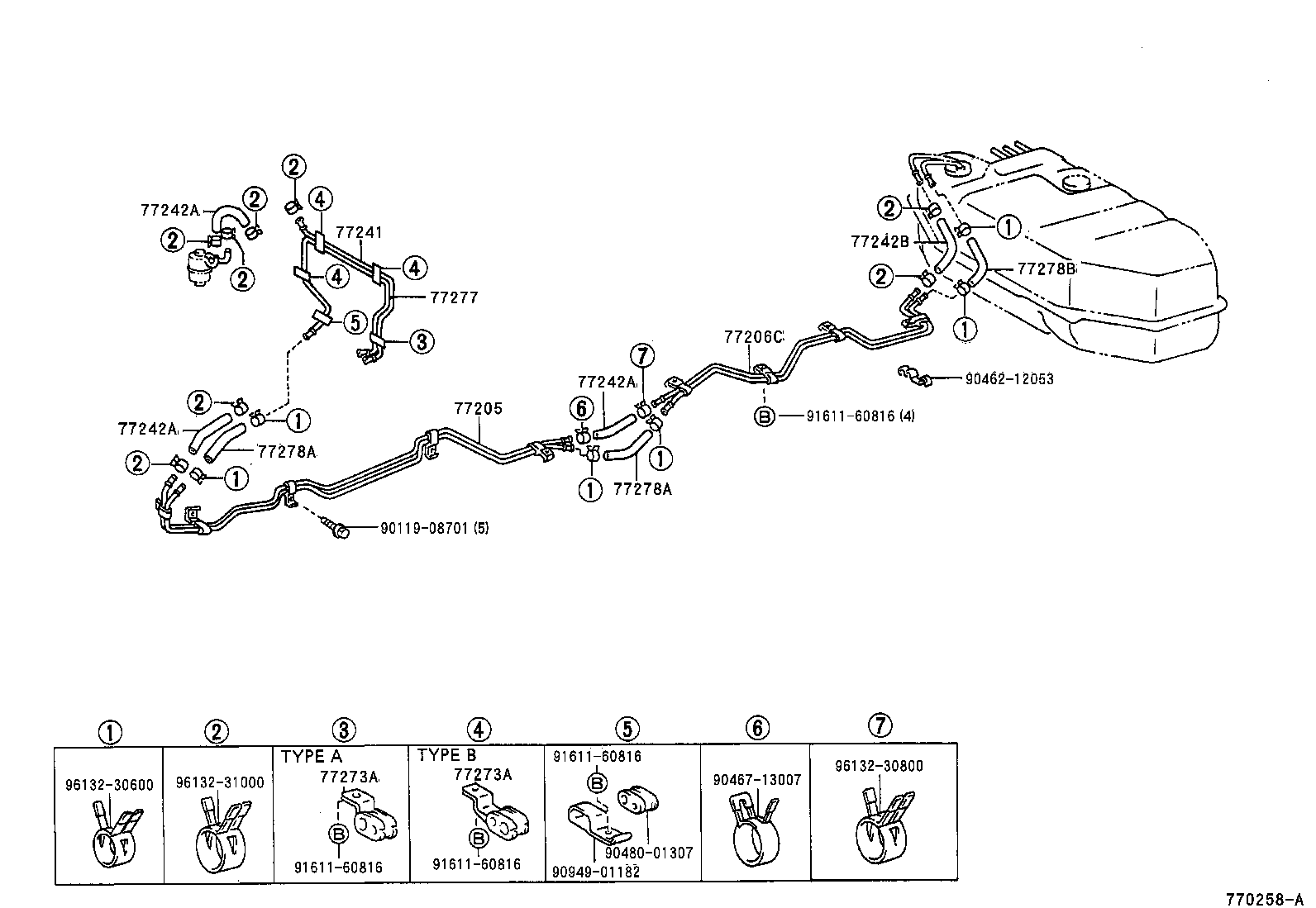

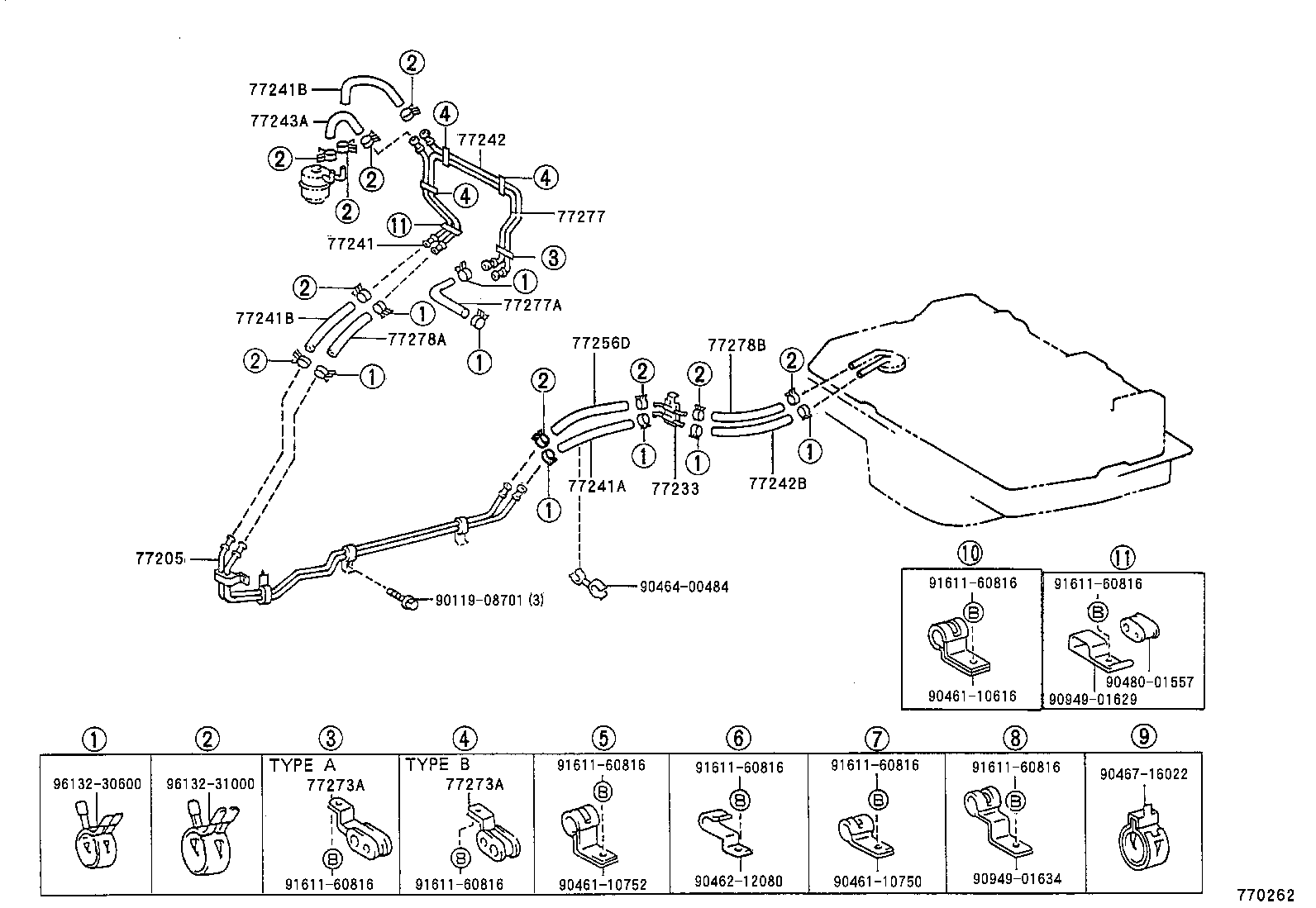

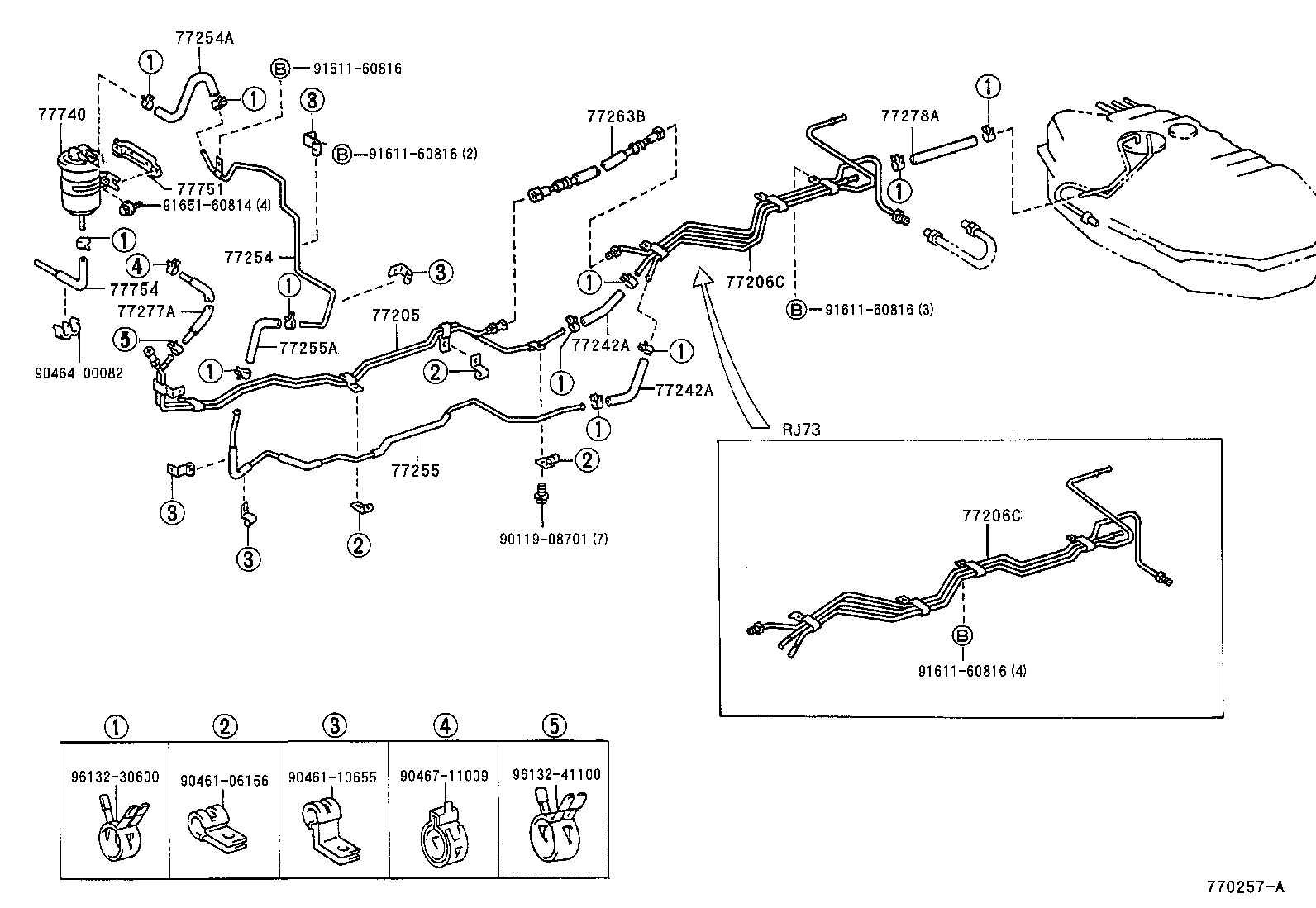

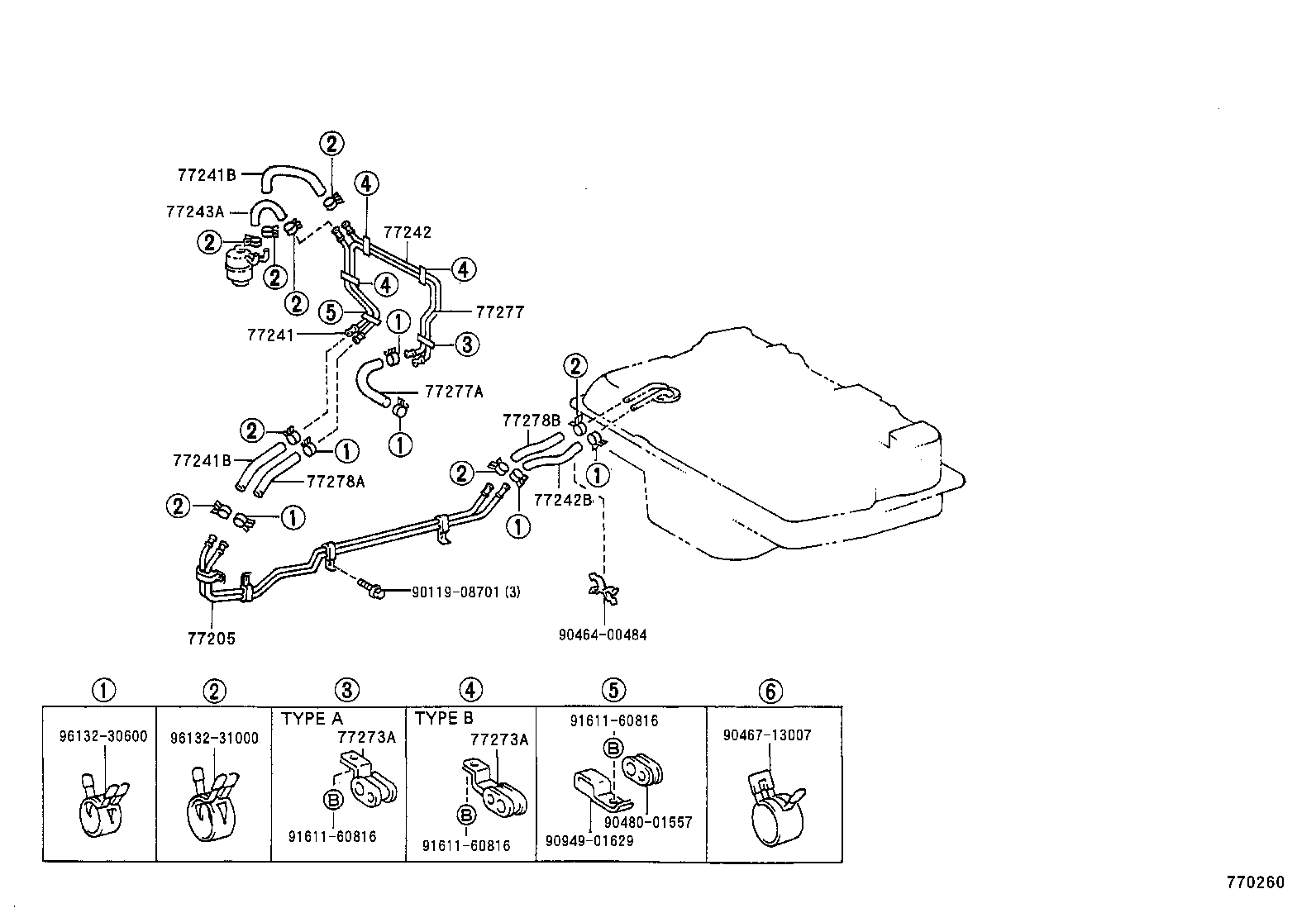

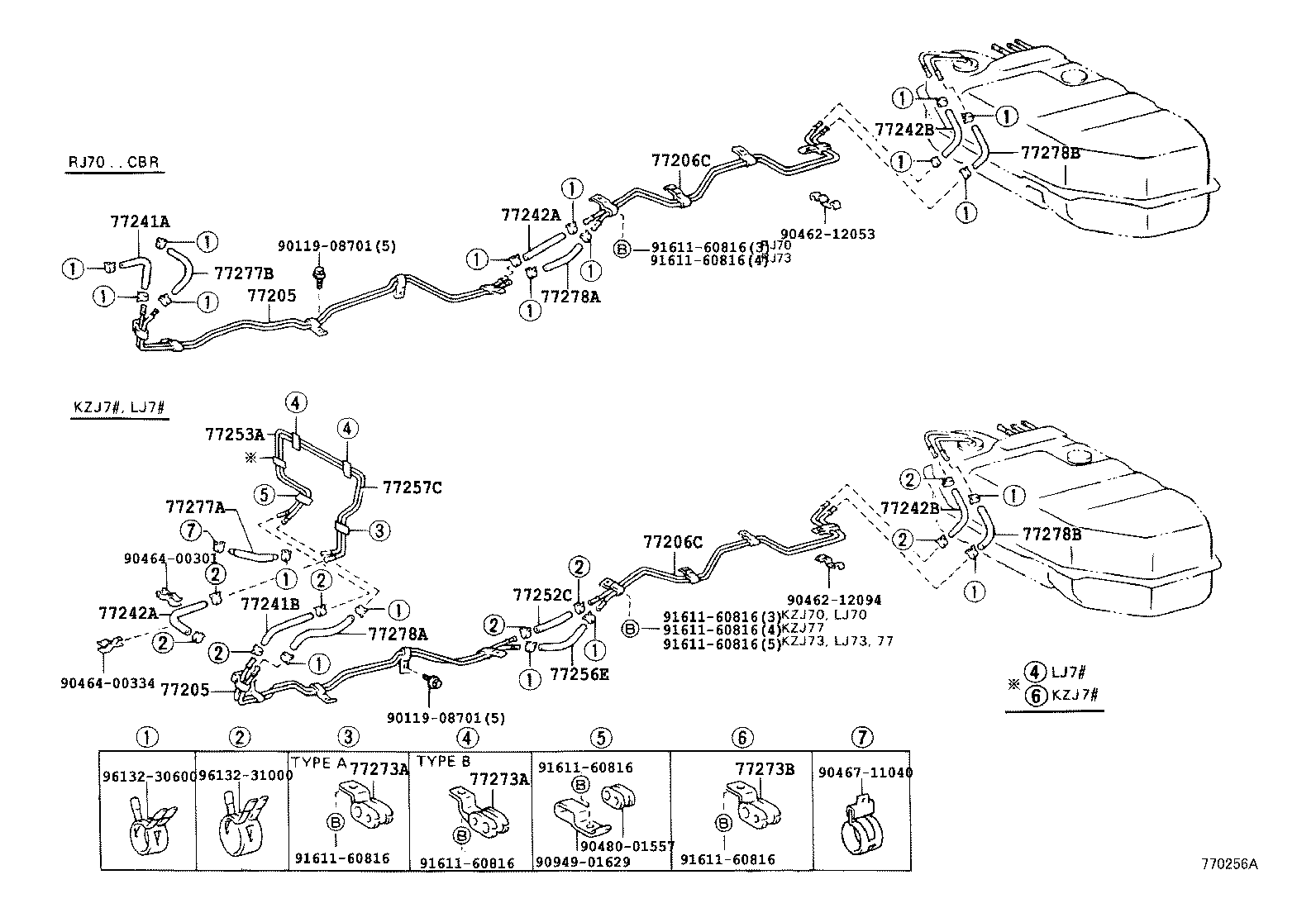

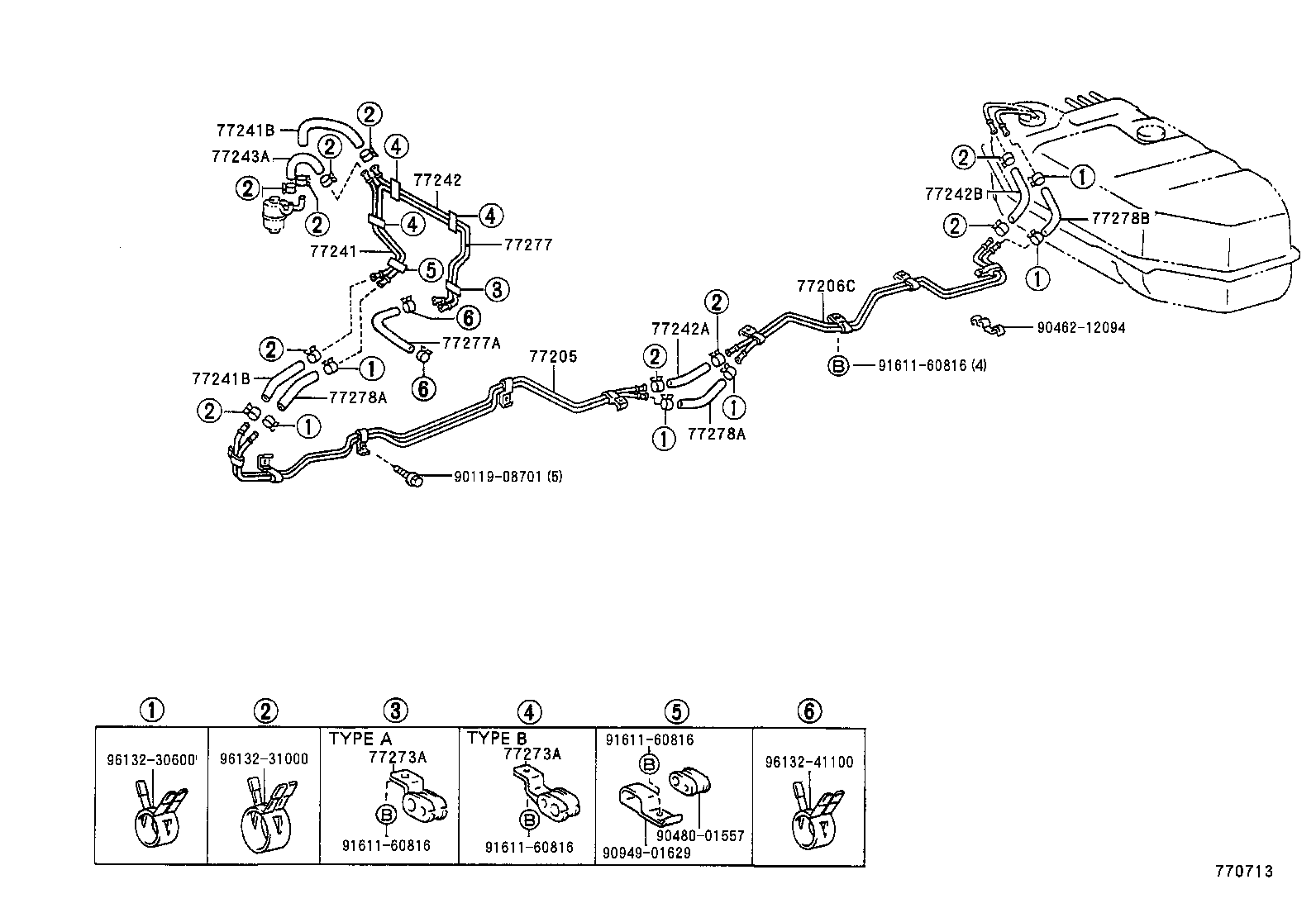

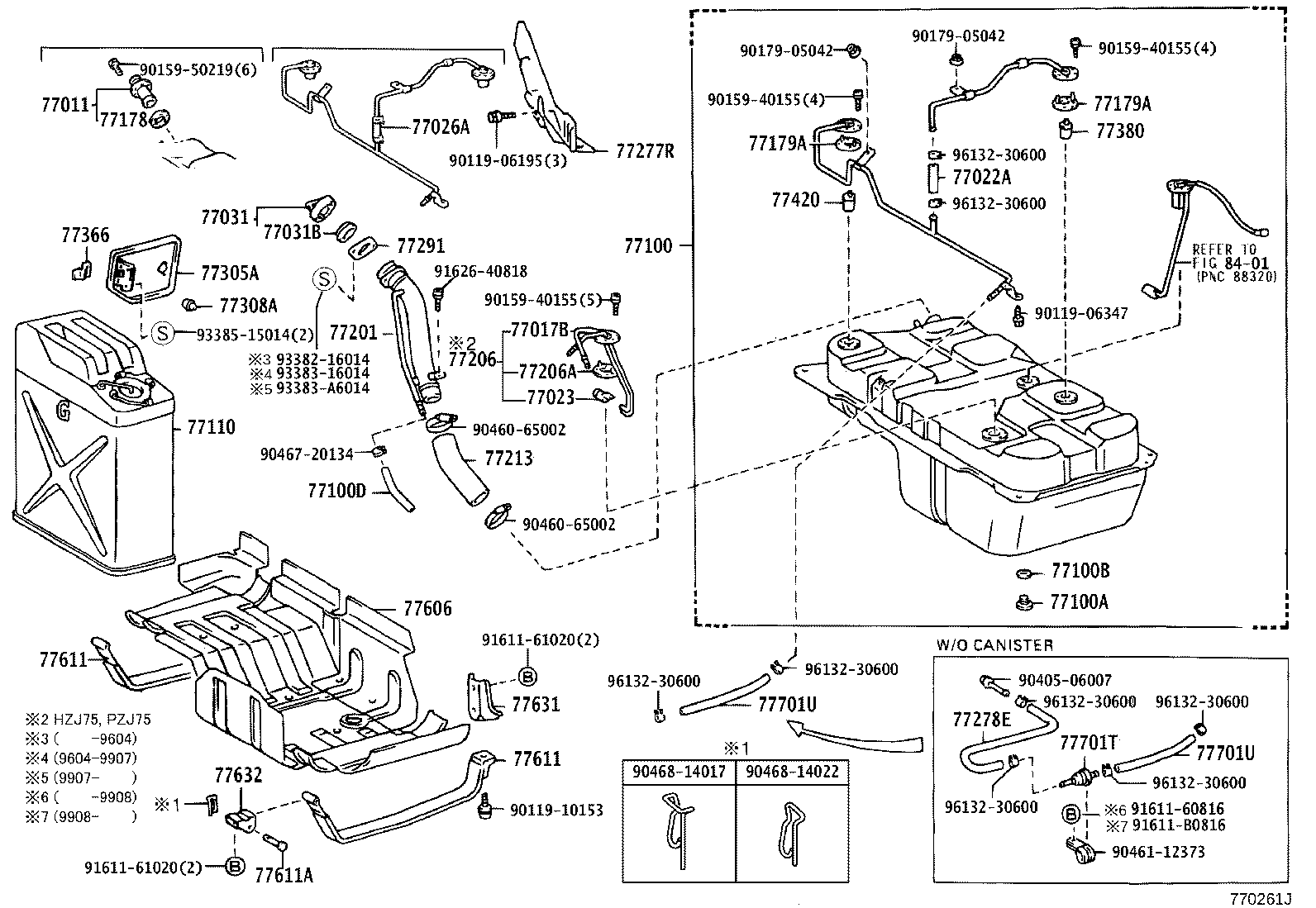

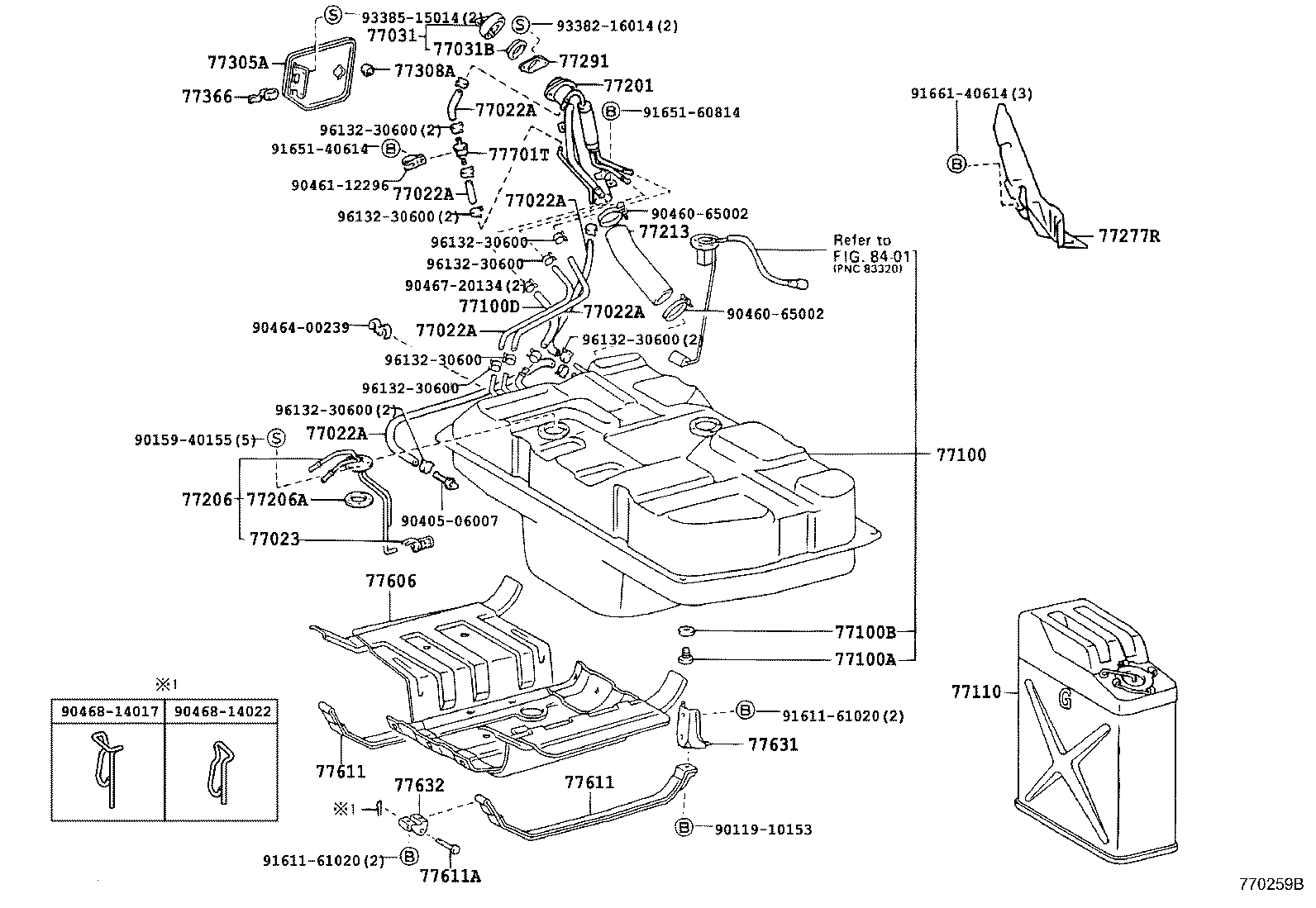

Figure 770255D 770255D 1990-01 → — Figure 770259B 770259B 1990-01 → 1992-01 Figure 770261J 770261J 1992-01 → — Figure 773840E 773840E 1999-08 → — Figure 770256A 770256A 1990-01 → 1999-08 Figure 770257A 770257A 1990-01 → 1999-08 Figure 770713 770713 1990-01 → 1999-08 Figure 770258A 770258A 1990-01 → 1999-08 Figure 770260 770260 1990-01 → 1992-01 Figure 770262 770262 1992-01 → 1999-08 Figure 770754B 770754B 1999-08 → — Figure 770755B 770755B 1999-08 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017B Tube Sub-assy, Fuel Tank Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77110 Tank Assy, Auxiliary Fuel
77131 Bracket, Fuel Tank Filler Pipe Support
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206C Tube Sub-assy, Fuel Main, NO.2
77207B Tube Sub-assy, Fuel Main, NO.3
77213 Hose, Fuel Tank Sub Inlet
77233 Joint, Fuel Hose
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77253A Tube, Fuel Main, NO.3
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77256D Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77256E Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE)
77257C Tube, Fuel Return, NO.3
77263B Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
77273A Clamp, Fuel Tube W/Grommet, NO.6
77273B Clamp, Fuel Tube W/Grommet, NO.6
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77277R Protector, Fuel Tank Filler Pipe
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77278E Hose, Fuel
77290 Shield Assy, Fuel Tank Filler Pipe
77291 Packing, Fuel Tank Support, Upper
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295C Grommet, Fuel Tube
77305A Lid Sub-assy, Fuel Filler Opening
77308A Cushion(FOR FUEL INLET BOX COVER)
77319 Knob, Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77366 Spring, Fuel Filler Opening Lid Hinge
77378A Cover, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77420 Valve Assy, Fuel Cut Off, NO.2
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77675B Bracket, Fuel Tank Filler Pipe Protector, NO.1
77676B Bracket, Fuel Tank Filler Pipe Protector, NO.2
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
