Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

39 part groups · 13 illustrations

Illustrations

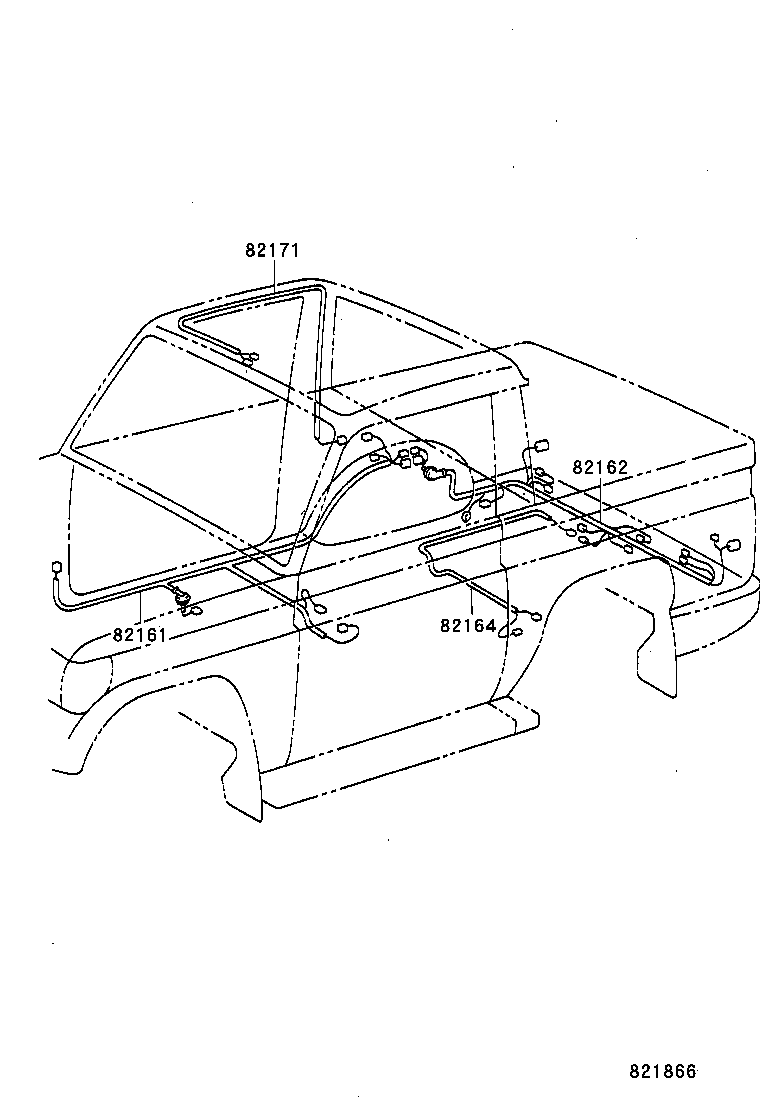

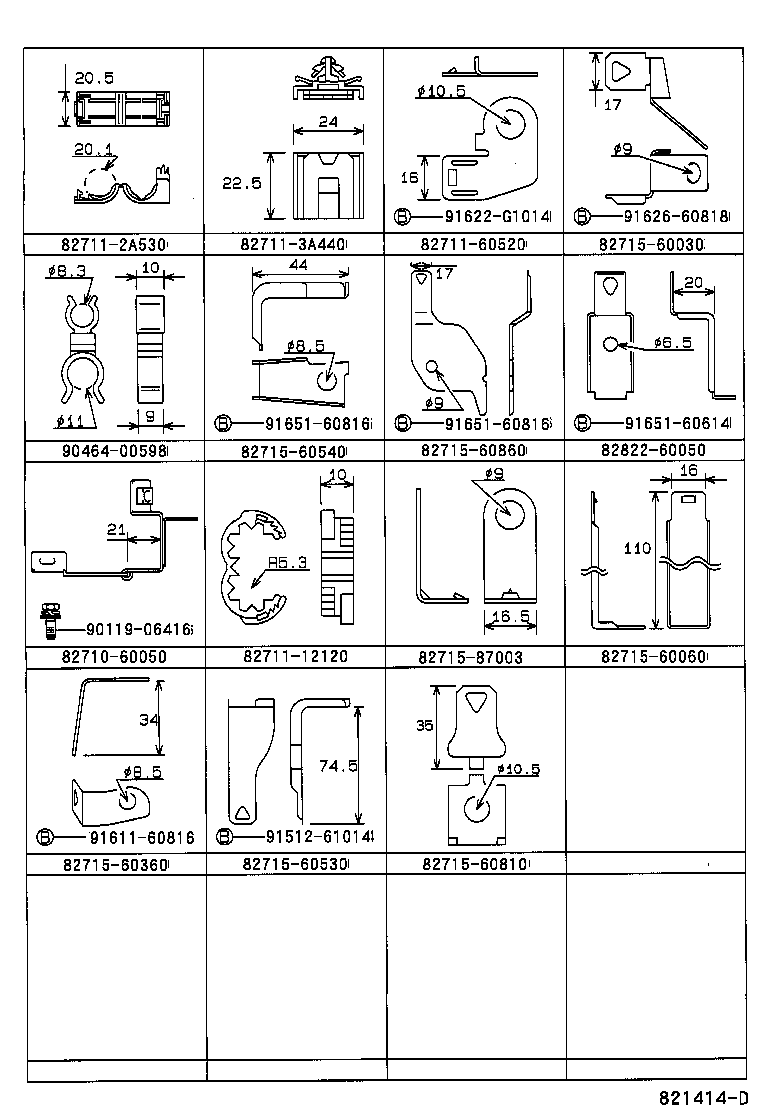

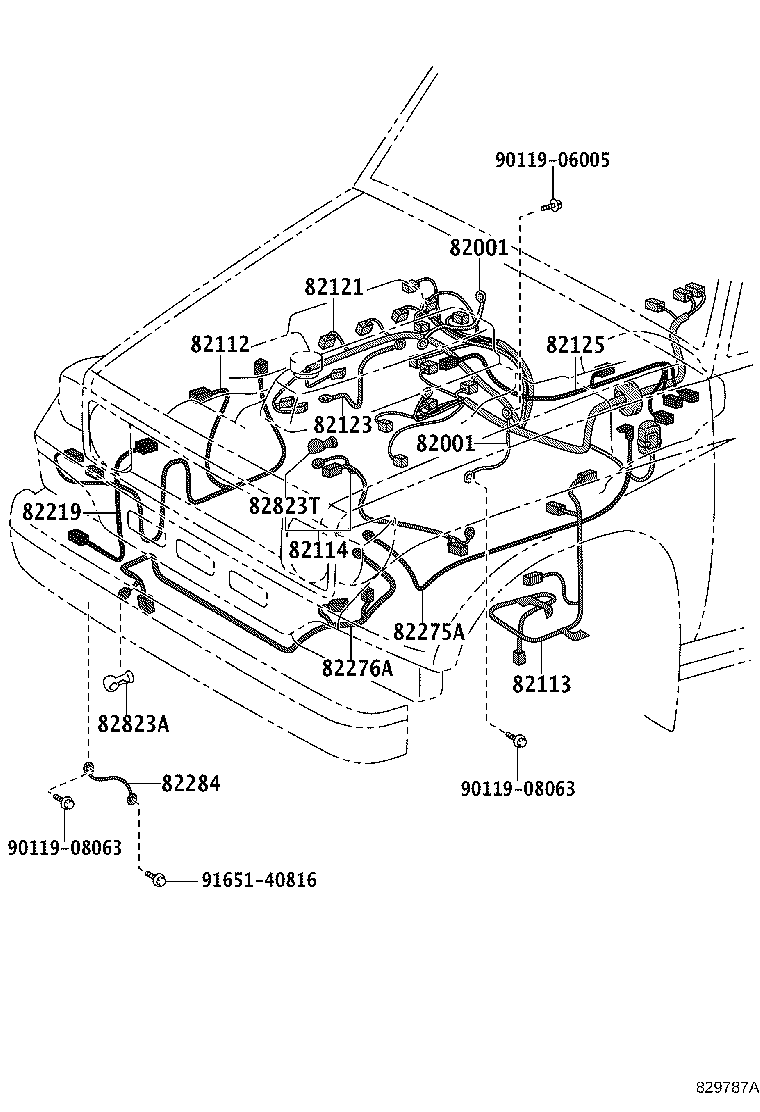

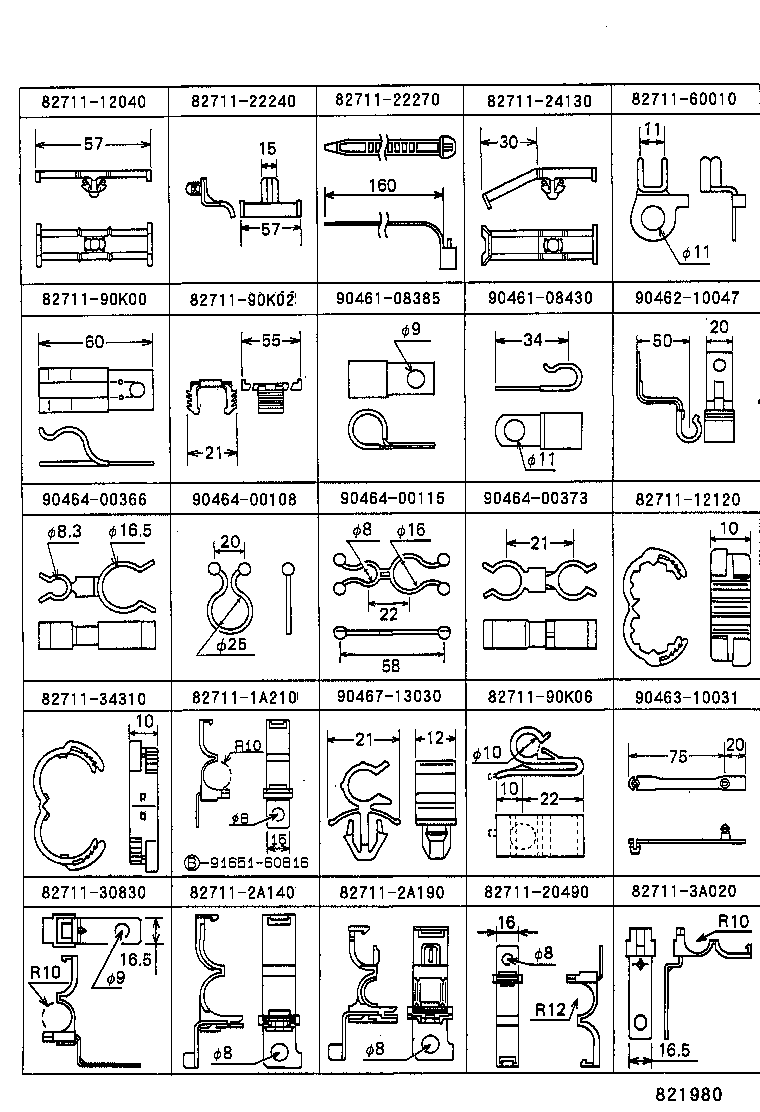

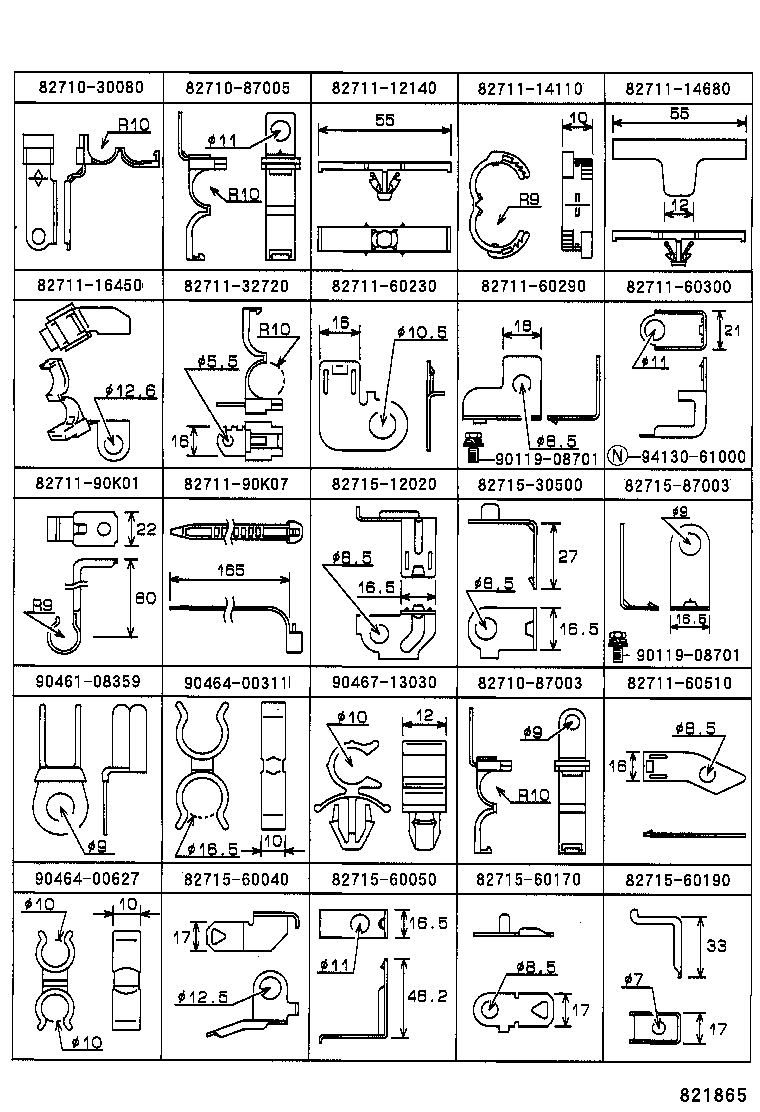

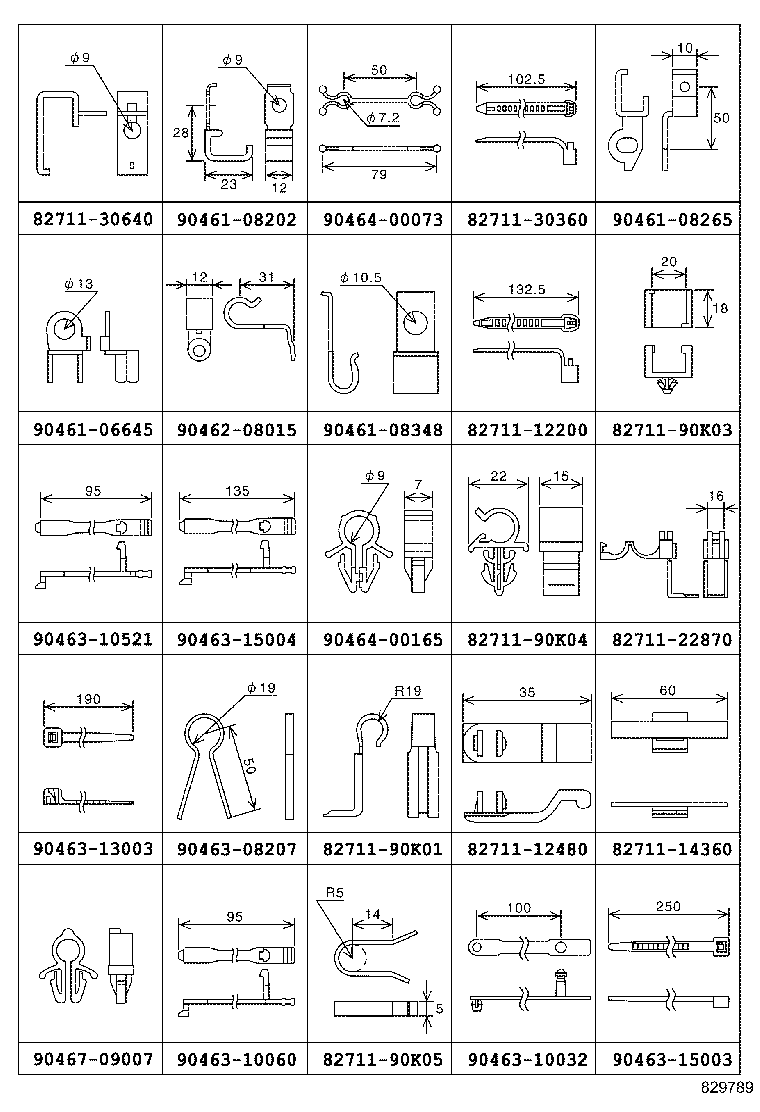

Figure 829786A 829786A 1990-01 → 1993-05 Figure 829787A 829787A 1990-01 → — Figure 829788B 829788B 1990-01 → — Figure 821476B 821476B 1990-01 → — Figure 821859A 821859A 1990-01 → — Figure 821870A 821870A 1990-01 → — Figure 821867 821867 1990-01 → 1993-05 Figure 821866 821866 1990-01 → — Figure 829789 829789 1990-01 → — Figure 821980 821980 1990-01 → — Figure 821414D 821414D 1990-01 → — Figure 821865 821865 1990-01 → — Figure 821849A 821849A 1990-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1

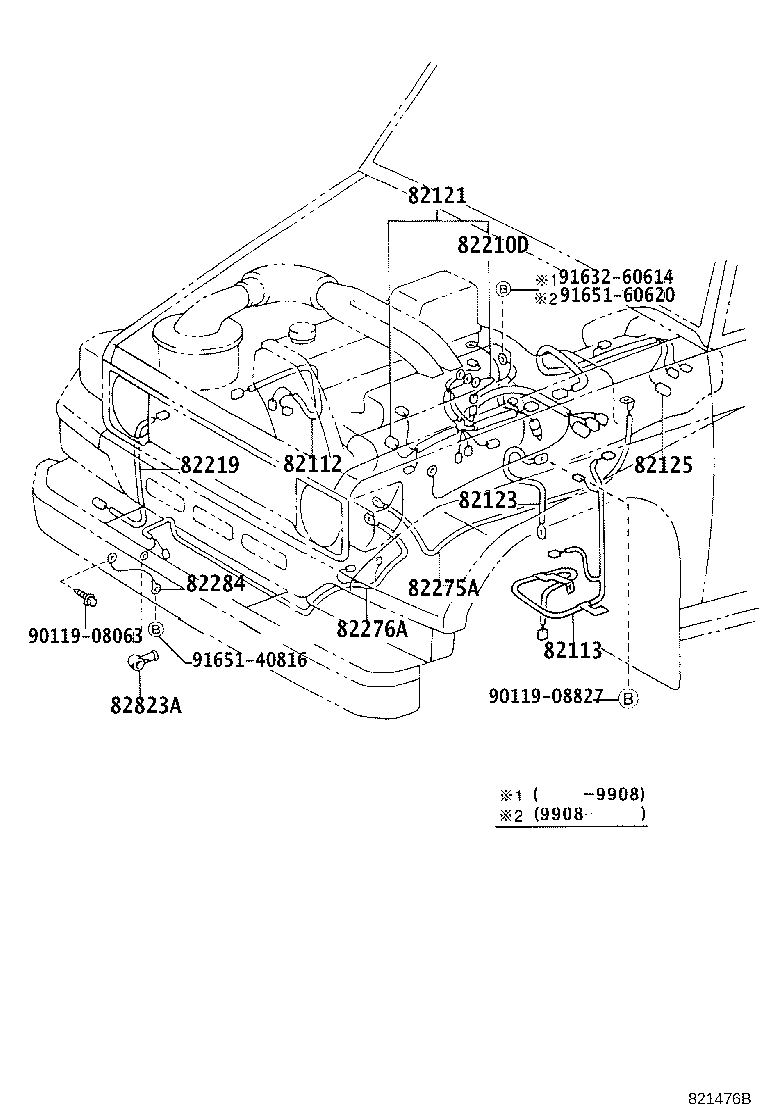

82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4

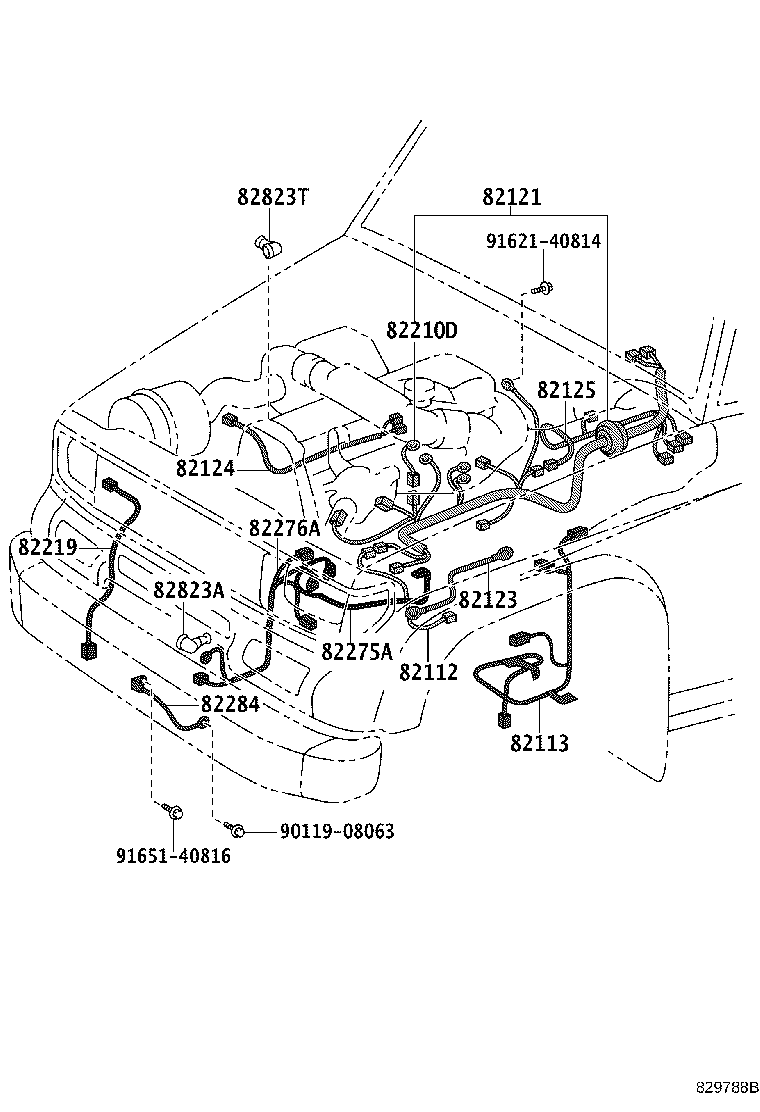

82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3

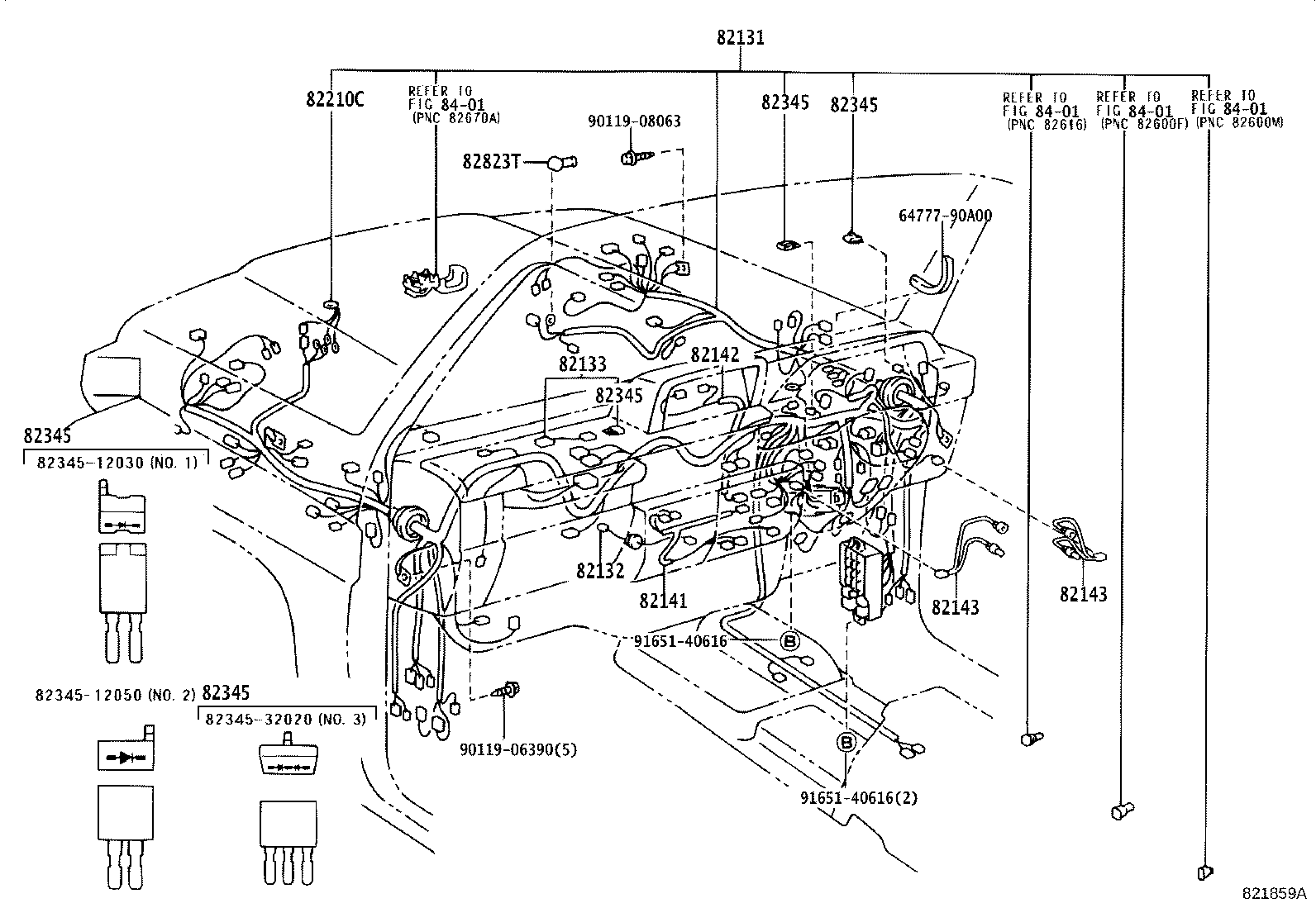

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

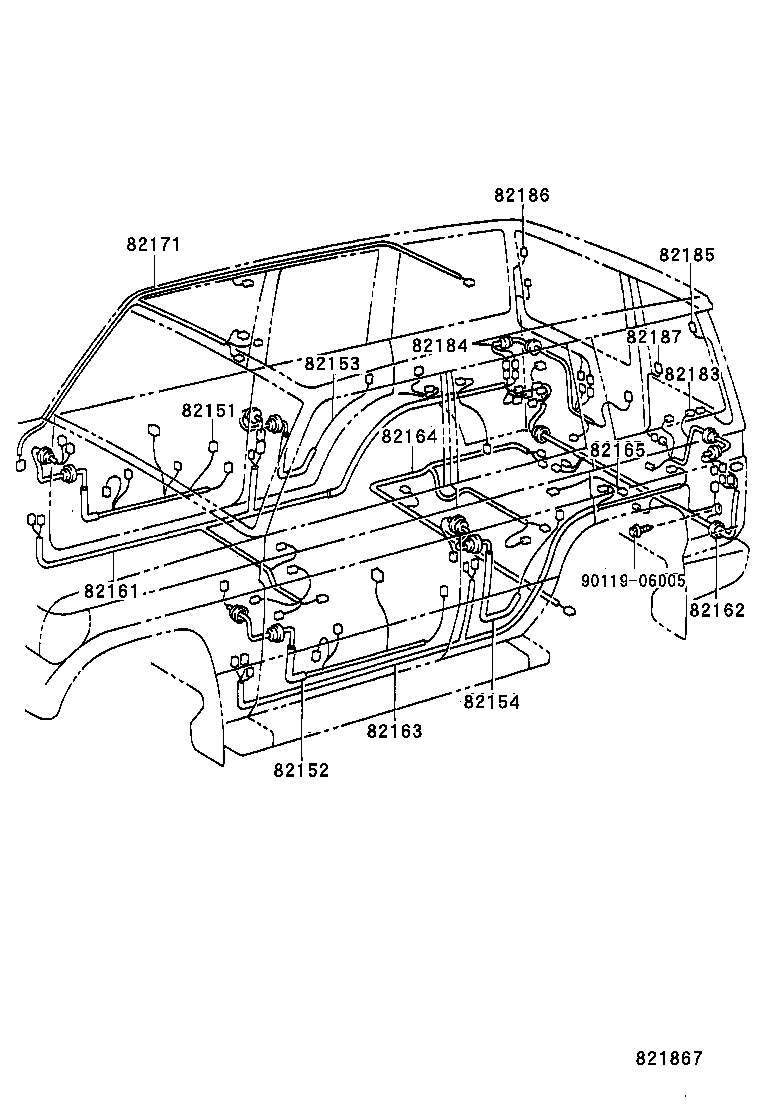

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2

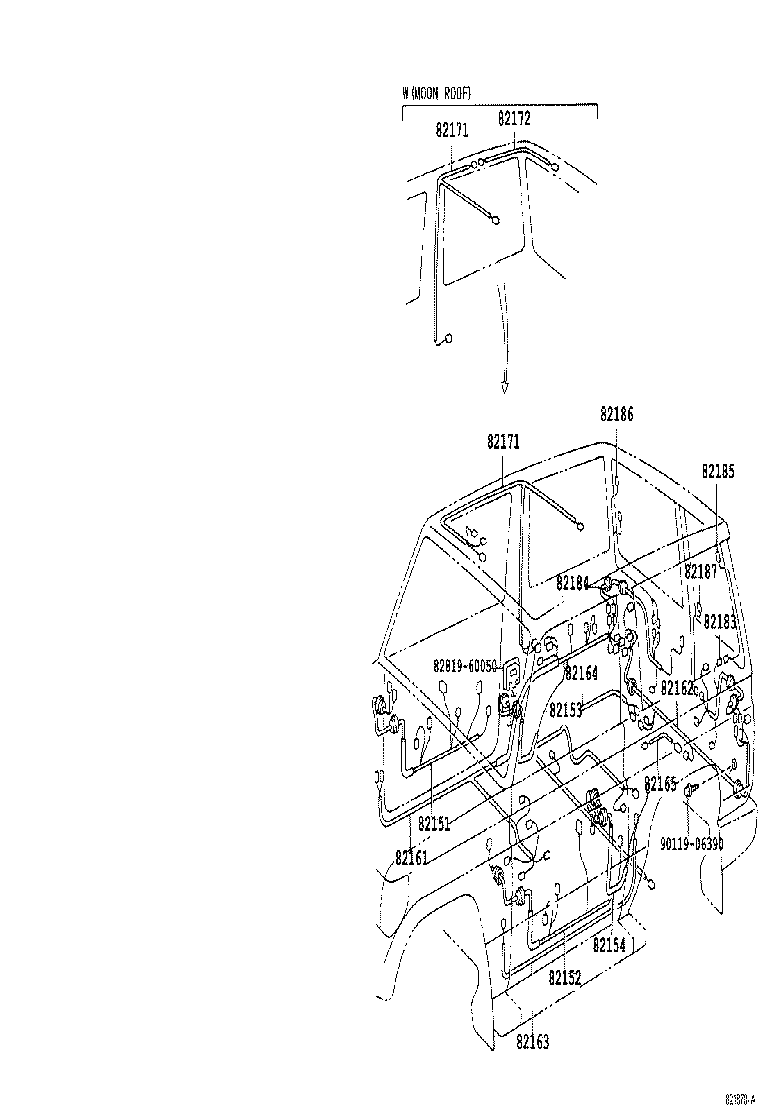

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82210D Fusible Link
82219 Wire, Thermo Sensor
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82284 Wire, Earth
82345 Diode

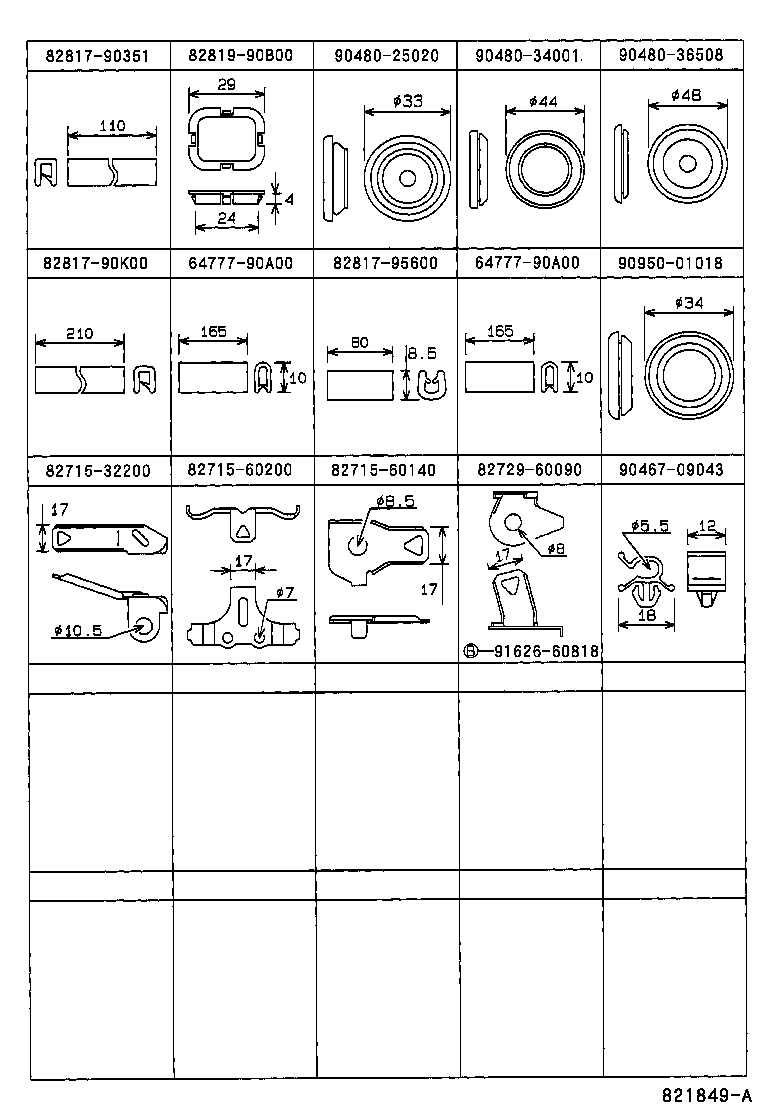

82823A Cap, Terminal, NO.2
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
