Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

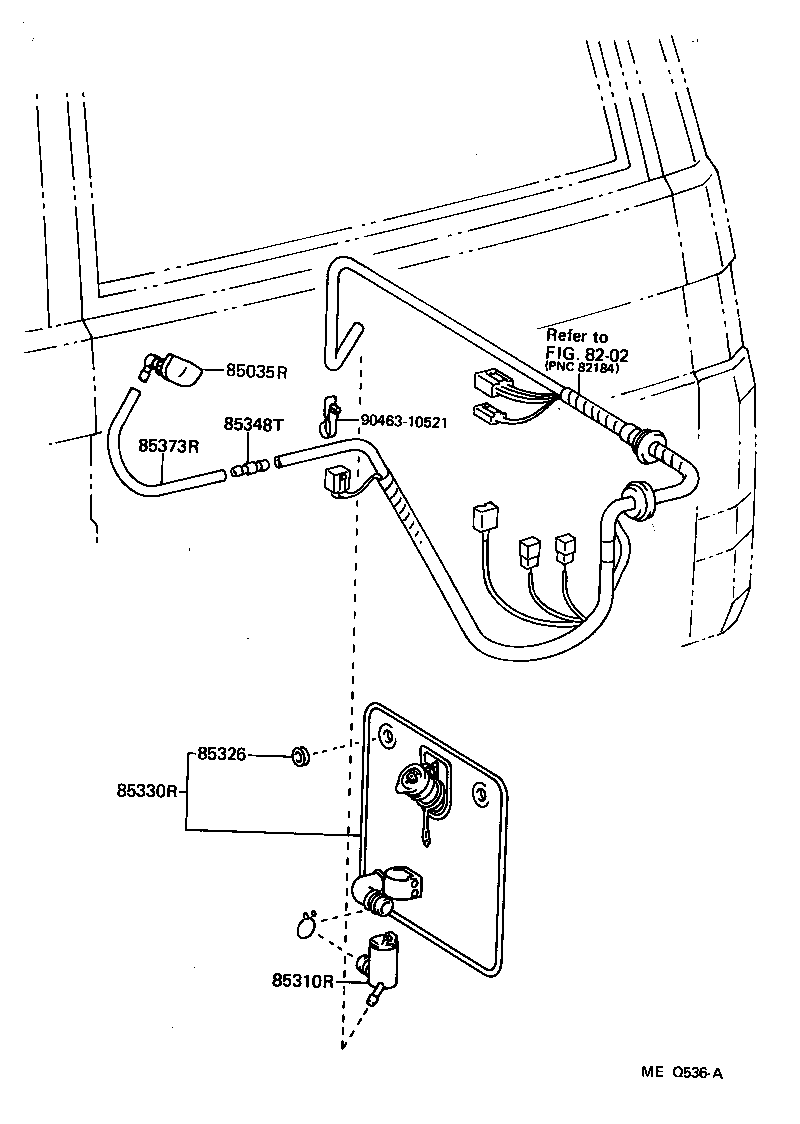

Rear Washer
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85033R | Cap Assy, Rear Washer |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85316R | Support, Rear Washer Motor |
| 85326 | Packing, Washer |
| 85330R | Jar Assy, Rear Washer |
| 85330S | Bush, Rear Washer Jar |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85360R | Bracket Assy, Rear Washer |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372R | Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
