Toyota Land Cruiser
1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe
Discontinued model
Data version 2002-01

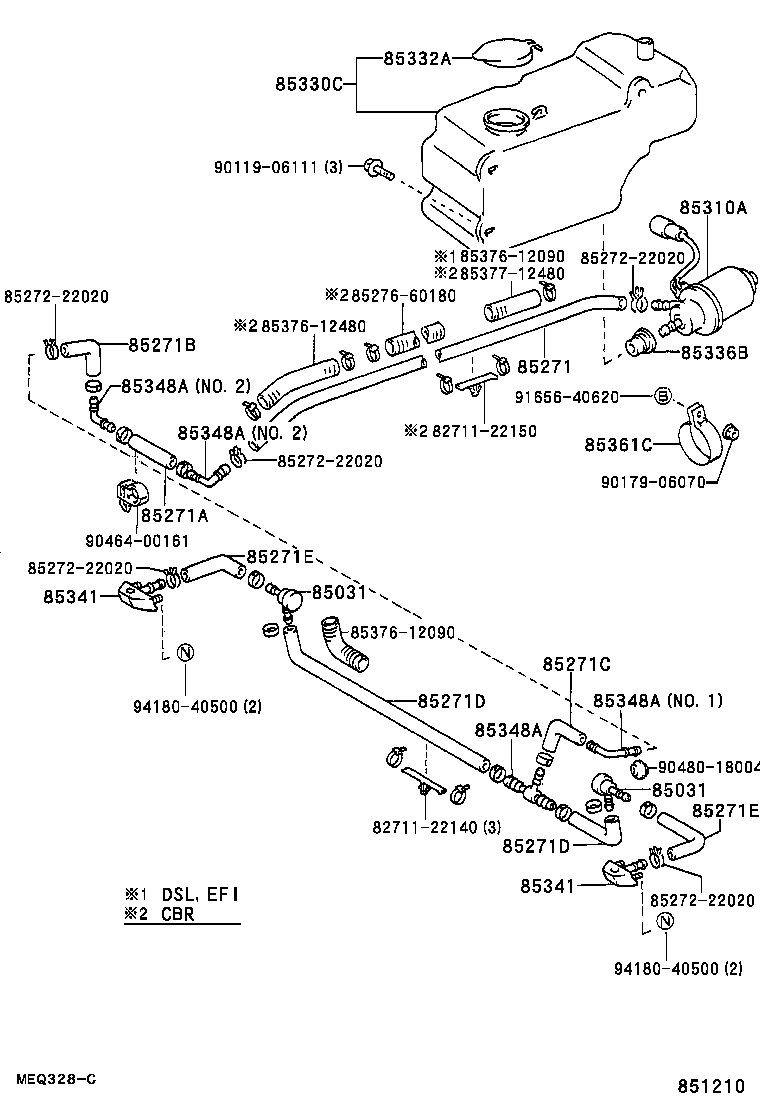

Headlamp Cleaner
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031 | Valve, Headlamp Cleaner Washer Hose |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85271D | Hose, Headlamp Cleaner, NO.5 |
| 85271E | Hose, Headlamp Cleaner, NO.6 |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85330C | Jar Assy, Headlamp Cleaner Washer |
| 85332A | Cap, Headlamp Cleaner Washer Jar |
| 85336B | Packing, Headlamp Cleaner Washer |
| 85341 | Nozzle, Headlamp Cleaner Washer |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85361C | Bracket, Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
