Toyota Land Cruiser

1990-01 → 2001-08 · chassis BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# · catalogue 781530 · Europe

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

19 part groups · 11 illustrations

Illustrations

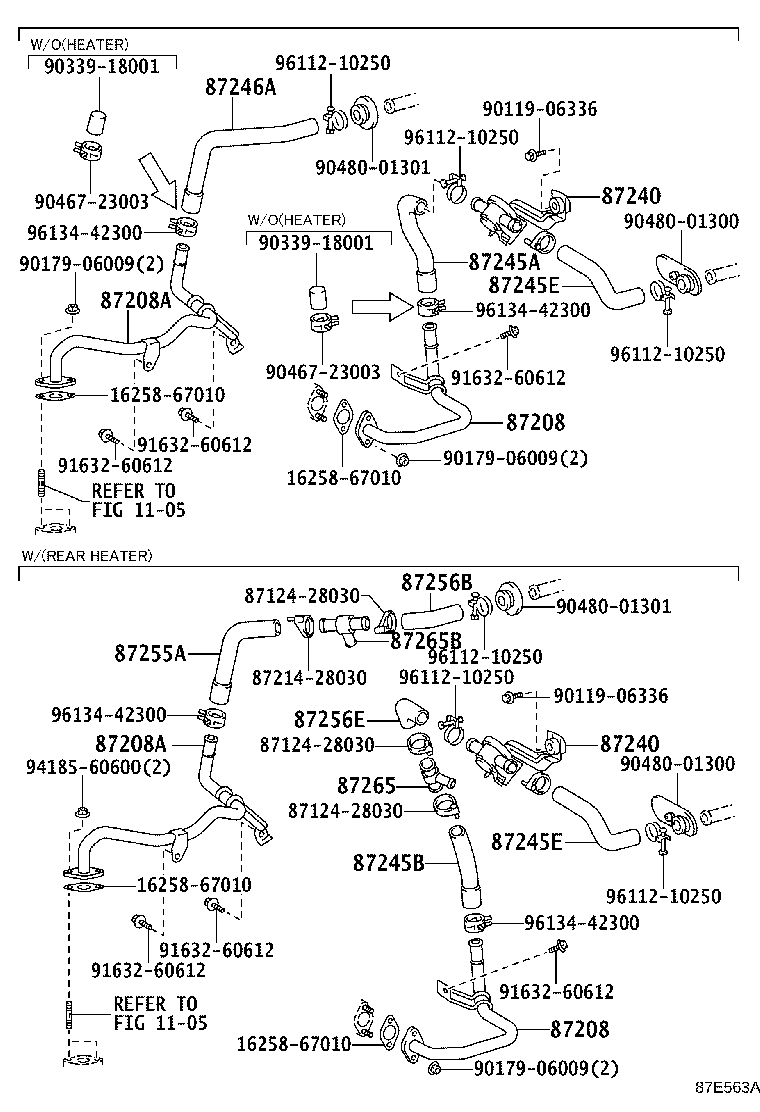

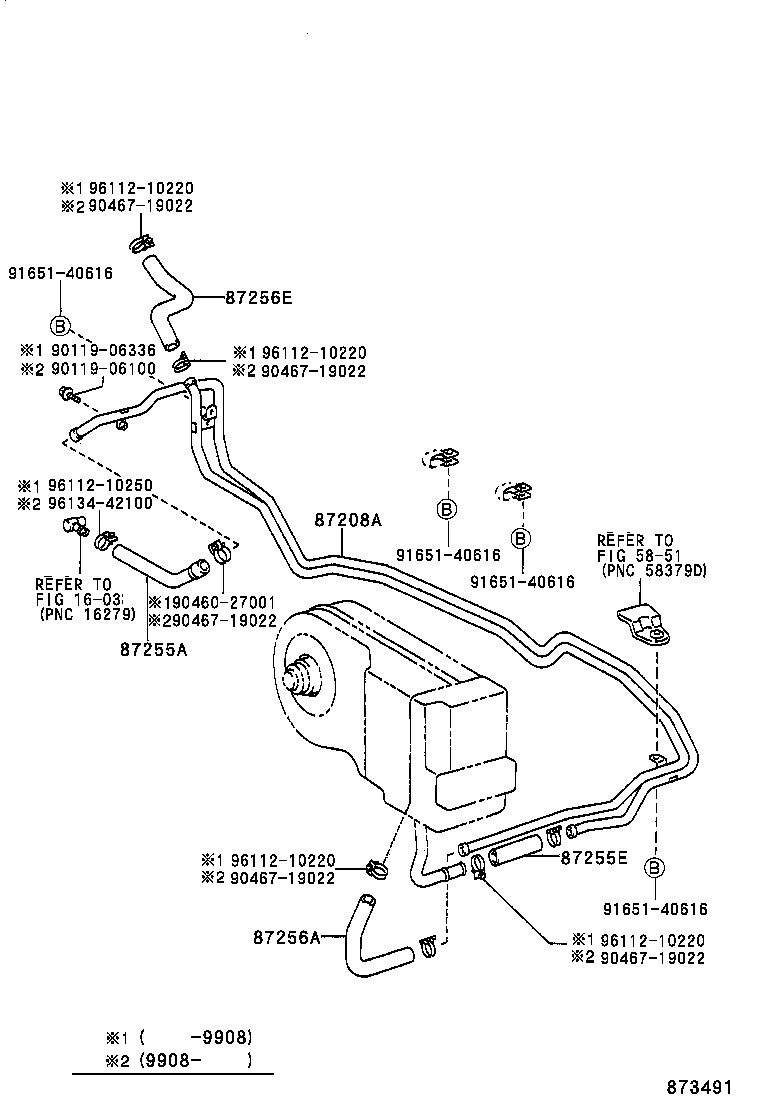

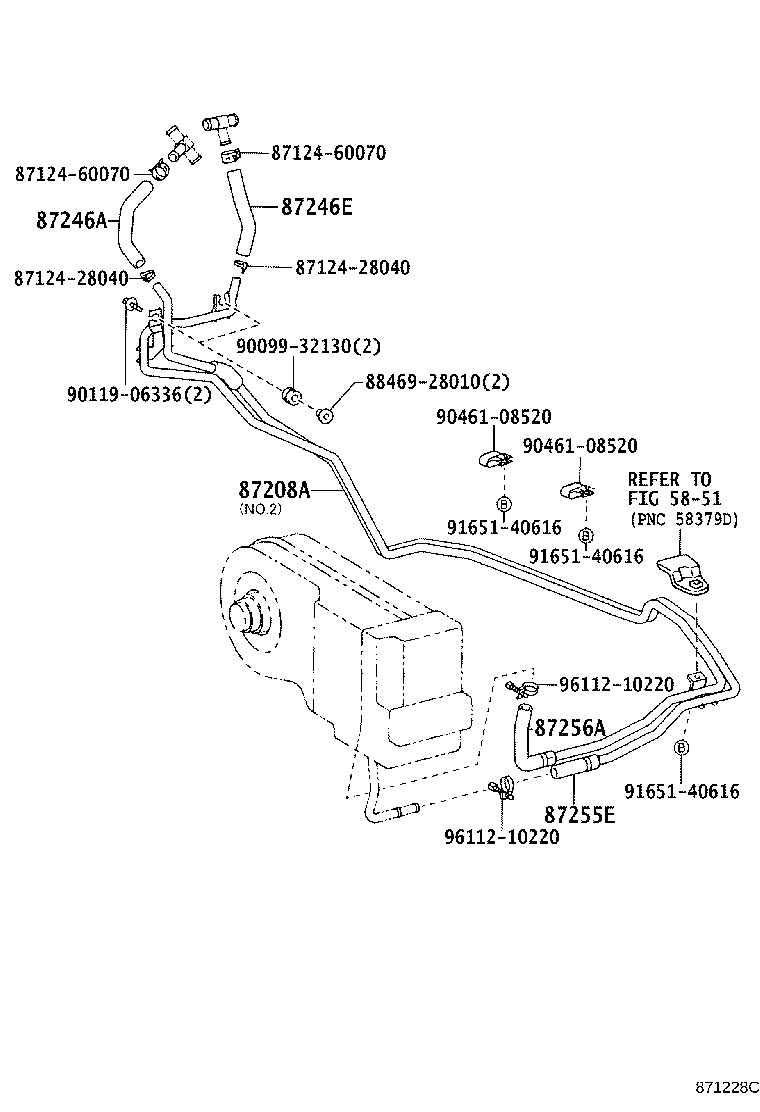

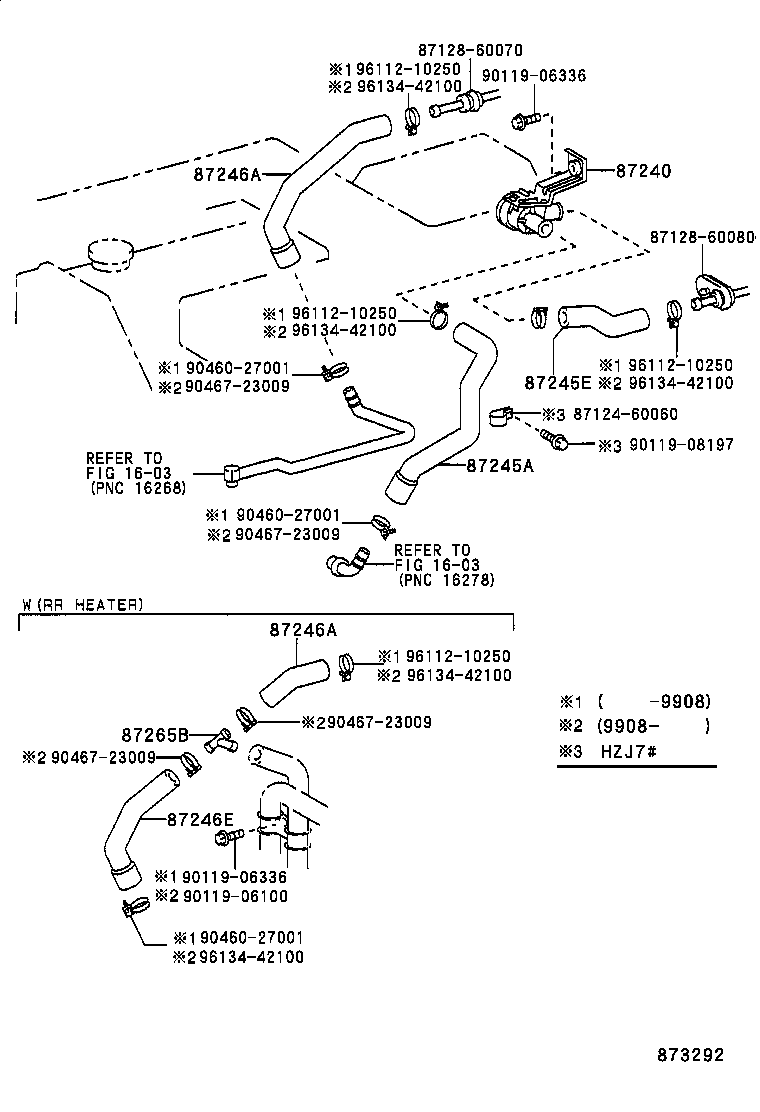

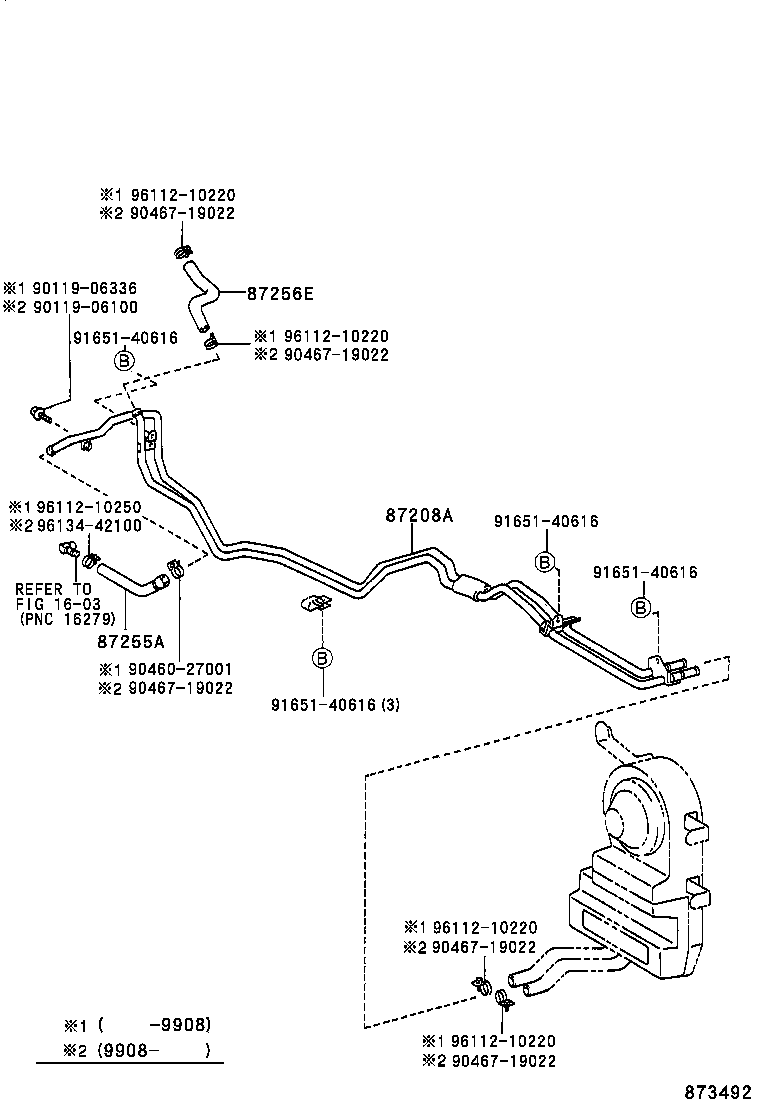

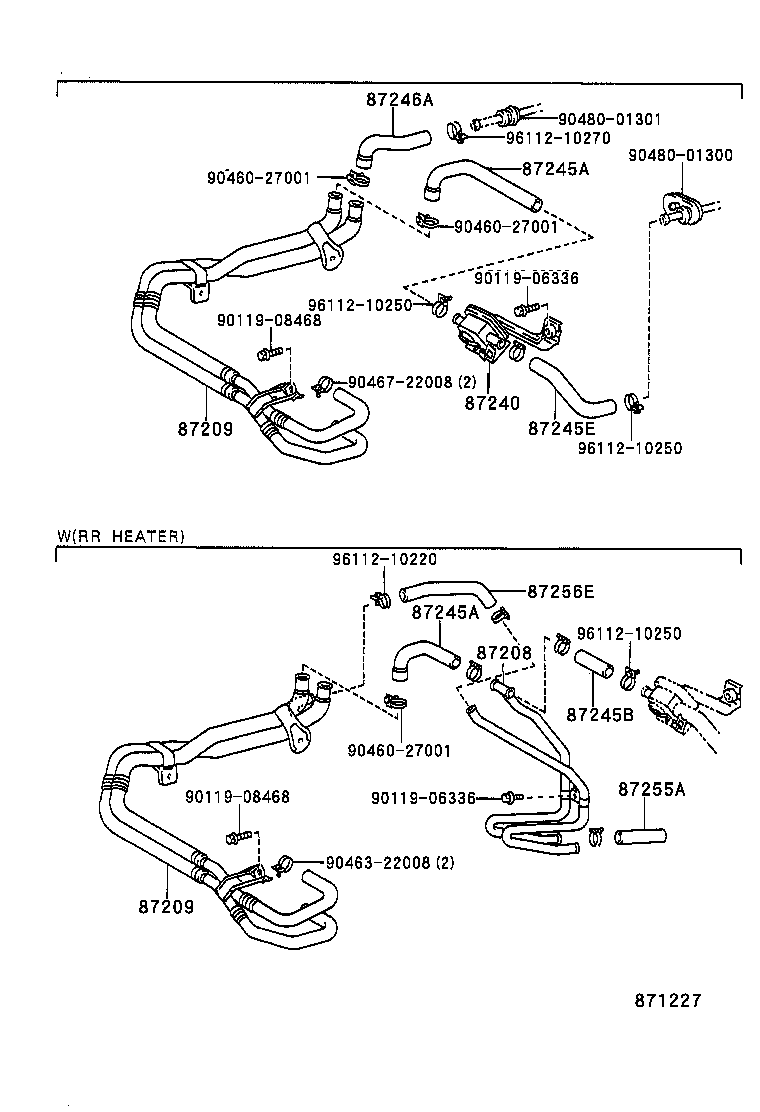

Figure 87E562 87E562 1990-01 → — Figure 871227 871227 1990-01 → 1993-05 Figure 871227 871227 1993-05 → — Figure 87E566 87E566 1990-01 → — Figure 873292A 873292A 1990-01 → — Figure 87E563A 87E563A 1993-05 → — Figure 87E564 87E564 1990-01 → — Figure 873491 873491 1990-01 → — Figure 873492 873492 1990-01 → 1992-08 Figure 873492 873492 1999-08 → — Figure 871228C 871228C 1993-05 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87249A Pipe, Heater Water Outlet, A
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87263 Bracket, Heater Water Pipe, NO.1
87265 Connector, Heater Water Hose
87265B Connector, Heater Water Hose, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
