Heating & Air Conditioning - Cooler Piping

26 part groups · 8 illustrations

Illustrations

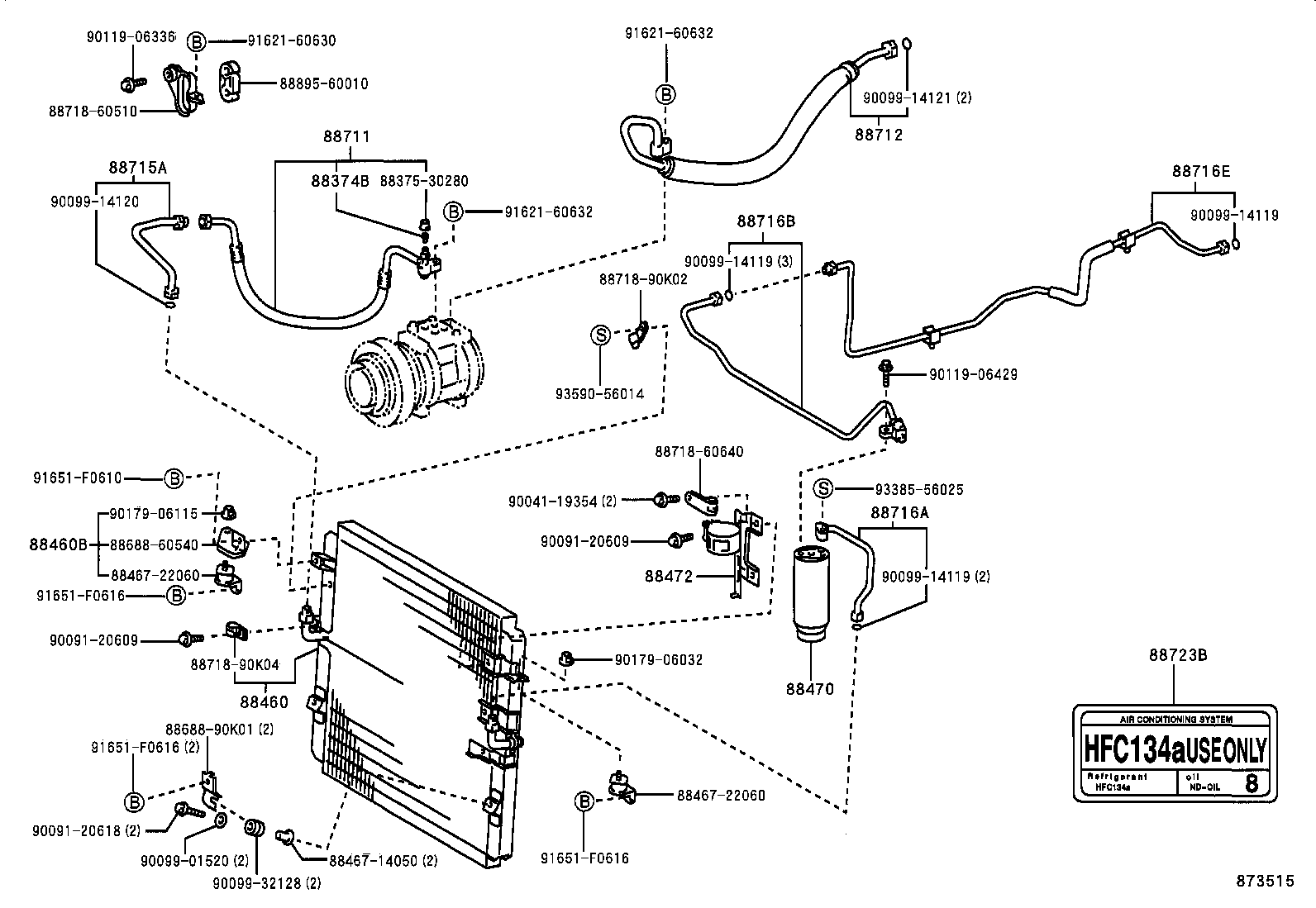

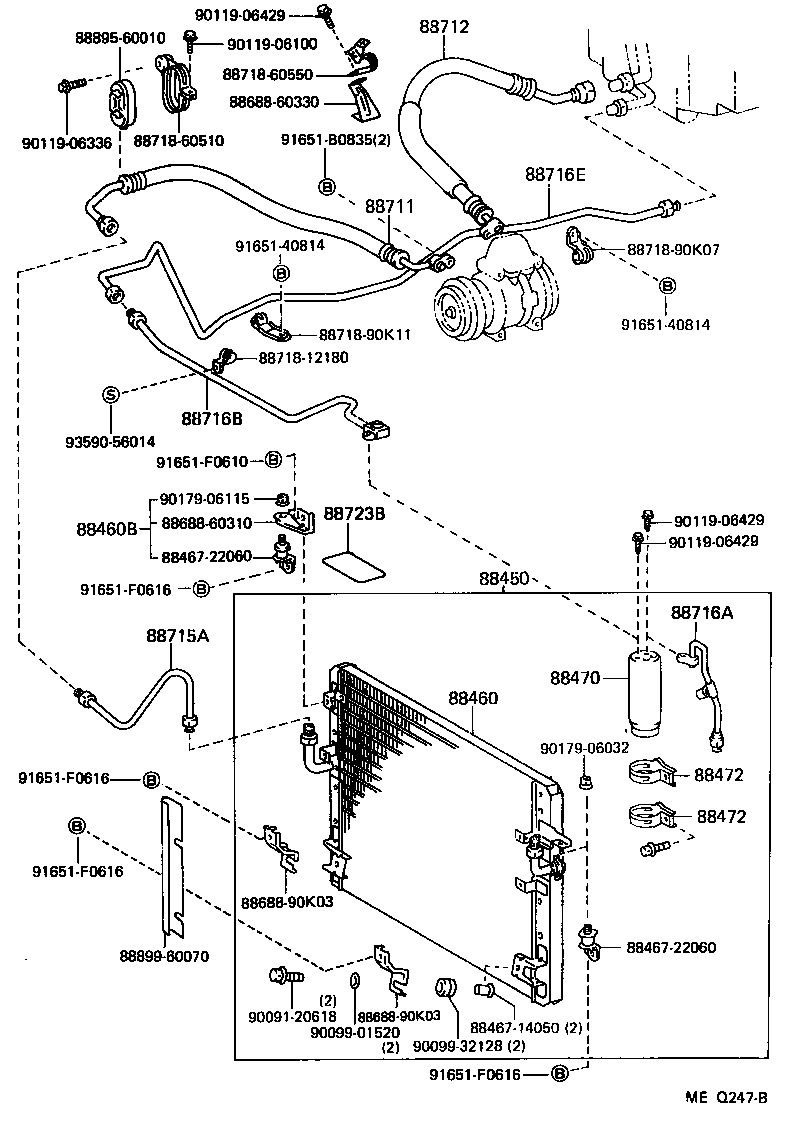

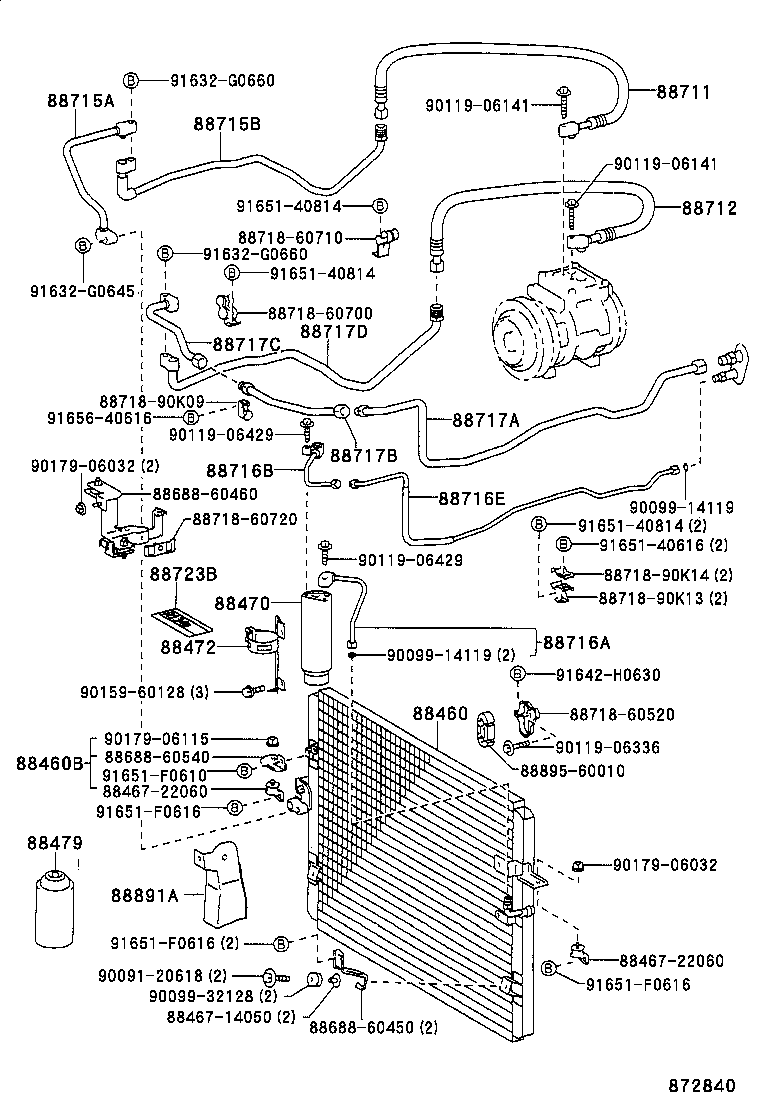

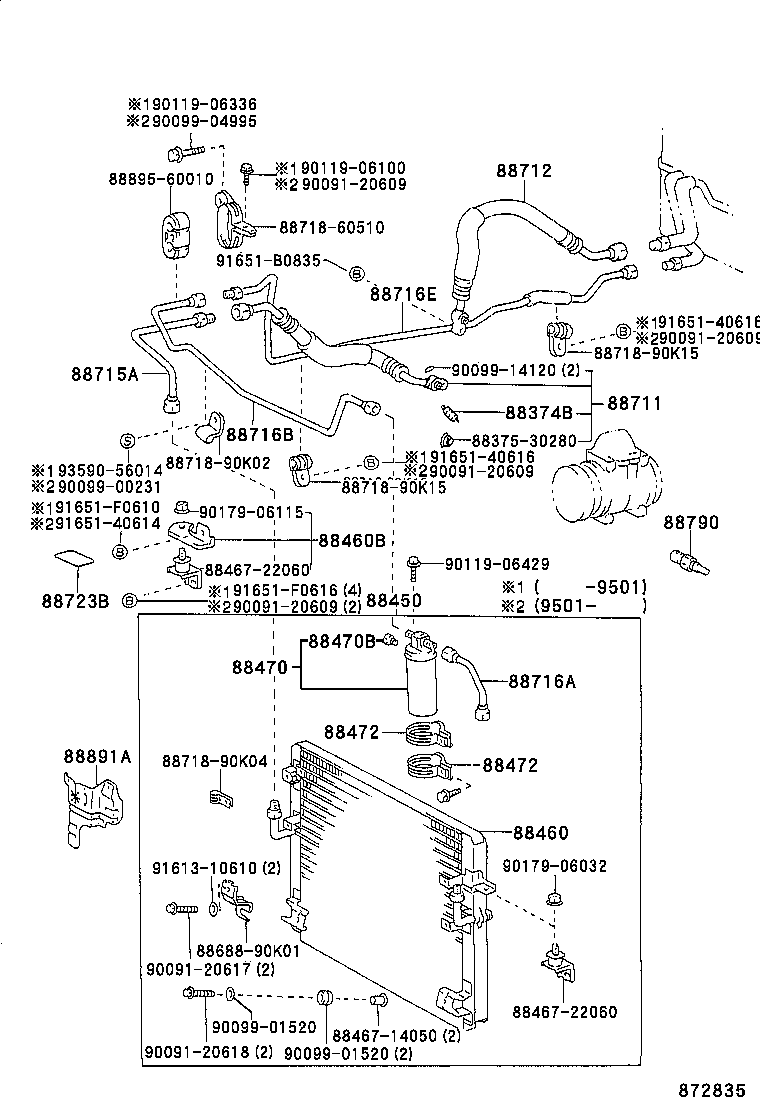

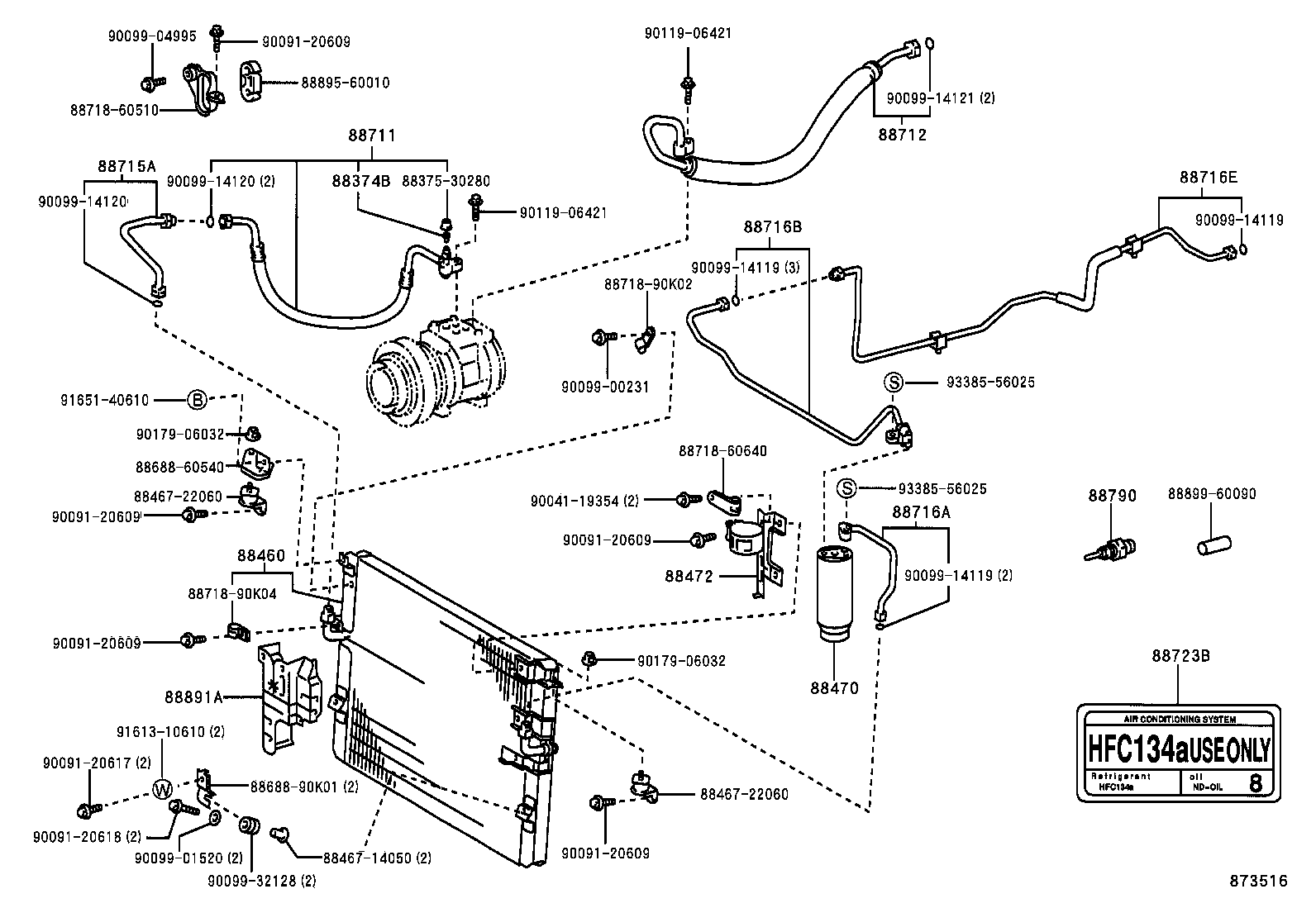

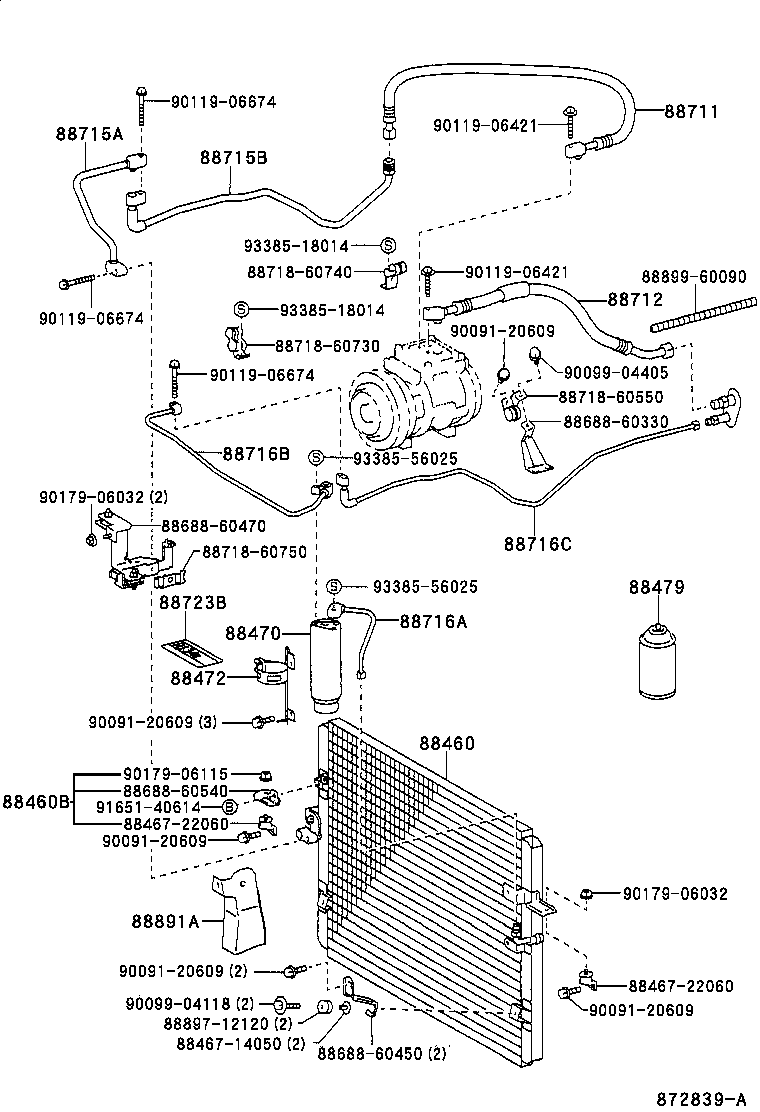

Figure MEQ253A MEQ253A 1990-01 → 1994-02 Figure MEQ247B MEQ247B 1990-01 → 1995-01 Figure 872835 872835 1990-01 → 1999-08 Figure 872839A 872839A 1993-05 → 1996-04 Figure 872840 872840 1993-05 → 1996-04 Figure 873515 873515 1999-08 → — Figure 873516 873516 1999-08 → — Figure 871295B 871295B 1990-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717E Pipe, Cooler Refrigerant Suction, E
88723B Label, Cooler Service Caution
88790 Valve Assy, Magnet
88891A Packing A (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
