Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

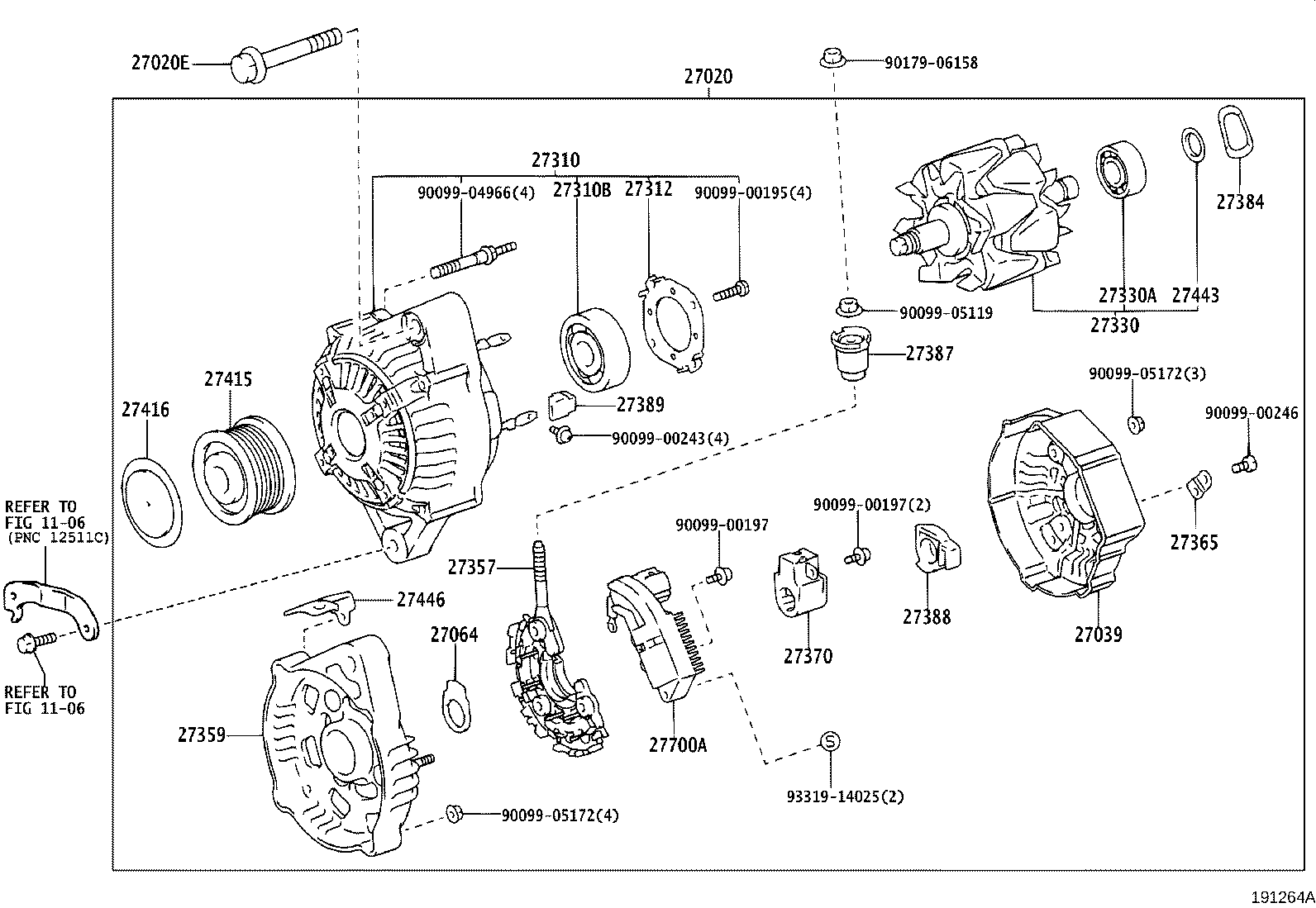

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-62140 note |
Alternator Assy
1996-04 → 1998-12
ended
|
5VZFE VZJ9# | — | |
| 27060-62190 note |
Alternator Assy
1998-12 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 27060-67070 note |
Alternator Assy
1996-04 → 1998-12
ended
|
1KZTE KZJ9# | — | |
| 27060-67110 note |
Alternator Assy
1998-12 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 27060-30010 note |
Alternator Assy
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27060-62190 note |
Alternator Assy
1999-06 → 2002-09
ended
|
5VZFE VZJ9# | — | |
| 27060-67110 note |
Alternator Assy
1999-06 → 2002-09
ended
|
1KZTE KZJ9# | — | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 90105-10092 |
Bolt(FOR ALTERNATOR)
1996-04 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 90105-10101 |
Bolt(FOR ALTERNATOR)
1996-04 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 90105-10092 |
Bolt(FOR ALTERNATOR)
1999-06 → 2000-08
ended
|
1KZTE KZJ90 RHD;1KZTE KZJ90 +1 | — | |
| 90105-10092 |
Bolt(FOR ALTERNATOR)
1999-06 → 2002-09
ended
|
1K# KDJ9#,KZJ95;1KZTE KZJ90 LHD +1 | — | |
| 90105-10101 |
Bolt(FOR ALTERNATOR)
1999-06 → 2002-09
ended
|
5VZFE VZJ9# | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-16380 |
Cover, Alternator Rear End
1997-01 → 1998-12
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27039-67100 |
Cover, Alternator Rear End
1998-12 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27039-73020 |
Cover, Alternator Rear End
1996-04 → 1997-01
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27039-30020 |
Cover, Alternator Rear End
2001-04 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27039-67100 |
Cover, Alternator Rear End
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27039-74700 |
Cover, Alternator Rear End
2000-08 → 2001-04
ended
|
1KDFTV KDJ9# | — | |
| 27064 — Seal, Alternator Plate | ||||
| 27064-42010 |
Seal, Alternator Plate
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-62130 |
Frame Assy, Drive End, Alternator
1996-04 → 1998-12
ended
|
5VZFE VZJ9# | — | |
| 27310-62160 |
Frame Assy, Drive End, Alternator
1998-12 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 27310-67070 |
Frame Assy, Drive End, Alternator
1996-04 → 1998-12
ended
|
1KZTE KZJ9# | — | |
| 27310-67100 |
Frame Assy, Drive End, Alternator
1998-12 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 27310-30020 |
Frame Assy, Drive End, Alternator
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27310-62160 |
Frame Assy, Drive End, Alternator
1999-06 → 2002-09
ended
|
5VZFE VZJ9# | — | |
| 27310-67100 |
Frame Assy, Drive End, Alternator
1999-06 → 2002-09
ended
|
1KZTE KZJ9# | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1996-04 → 1998-12
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 90099-10199 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1998-12 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 90099-10199 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 90099-10219 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27312 — Plate, Retainer | ||||
| 27312-70200 |
Plate, Retainer
1996-04 → 1998-12
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27312-72100 |
Plate, Retainer
1998-12 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27312-42010 |
Plate, Retainer
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27312-72100 |
Plate, Retainer
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-64570 |
Rotor Assy, Alternator
1997-01 → 1998-12
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27330-67100 |
Rotor Assy, Alternator
1998-12 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27330-72101 |
Rotor Assy, Alternator
1996-04 → 1997-01
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27330-67100 |
Rotor Assy, Alternator
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27330-74550 |
Rotor Assy, Alternator
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
Bearing(FOR ALTERNATOR ROTOR)
1996-04 → 1998-12
ended
|
1KZTE KZJ9# | — | |
| 90099-10140 |
Bearing(FOR ALTERNATOR ROTOR)
1996-04 → 1998-12
ended
|
5VZFE VZJ9# | — | |
| 90099-10216 |
Bearing(FOR ALTERNATOR ROTOR)
1998-12 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 90099-10140 |
Bearing(FOR ALTERNATOR ROTOR)
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 90099-10216 |
Bearing(FOR ALTERNATOR ROTOR)
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27357 — Holder, Alternator, W/Rectifier | ||||
| 27357-16380 |
Holder, Alternator, W/Rectifier
1997-01 → 1998-12
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27357-63020 |
Holder, Alternator, W/Rectifier
1996-04 → 1997-01
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27357-67100 |
Holder, Alternator, W/Rectifier
1998-12 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27357-55080 |
Holder, Alternator, W/Rectifier
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27357-67100 |
Holder, Alternator, W/Rectifier
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27359 — Frame, Alternator Rectifier End | ||||
| 27359-62160 |
Frame, Alternator Rectifier End
1998-12 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 27359-65011 |
Frame, Alternator Rectifier End
1996-04 → 1997-01
ended
|
5VZFE VZJ9# | — | |
| 27359-65012 |
Frame, Alternator Rectifier End
1997-01 → 1998-12
ended
|
5VZFE VZJ9# | — | |
| 27359-67021 |
Frame, Alternator Rectifier End
1996-04 → 1997-01
ended
|
1KZTE KZJ9# | — | |
| 27359-67022 |
Frame, Alternator Rectifier End
1997-01 → 1998-12
ended
|
1KZTE KZJ9# | — | |
| 27359-67100 |
Frame, Alternator Rectifier End
1998-12 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 27359-30020 |
Frame, Alternator Rectifier End
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27359-62160 |
Frame, Alternator Rectifier End
1999-06 → 2002-09
ended
|
5VZFE VZJ9# | — | |
| 27359-67100 |
Frame, Alternator Rectifier End
1999-06 → 2002-09
ended
|
1KZTE KZJ9# | — | |
| 27365 — Plate, Terminal | ||||
| 27365-55080 |
Plate, Terminal
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-35060 |
Holder Assy, Alternator Brush
1996-04 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 27370-58320 |
Holder Assy, Alternator Brush
1996-04 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 27370-35060 |
Holder Assy, Alternator Brush
1999-06 → 2002-09
ended
|
5VZFE VZJ9# | — | |
| 27370-58320 |
Holder Assy, Alternator Brush
1999-06 → 2002-09
ended
|
1KZTE KZJ9# | — | |
| 27370-75060 |
Holder Assy, Alternator Brush
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27384 — Washer | ||||
| 27384-16380 |
Washer
1996-04 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27384-16380 |
Washer
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27384-50030 |
Washer
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27387 — Insulator, Terminal | ||||
| 27387-70170 |
Insulator, Terminal
1996-04 → 1997-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27387-70171 |
Insulator, Terminal
1997-09 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27387-42021 |
Insulator, Terminal
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27387-70171 |
Insulator, Terminal
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27388 — Cover, Alternator Brush | ||||
| 27388-42010 |
Cover, Alternator Brush
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27389 — Insulator, Terminal | ||||
| 27389-63020 |
Insulator, Terminal
1996-04 → 1998-12
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27389-63020 |
Insulator, Terminal
1998-12 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 27389-42010 |
Insulator, Terminal
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-30010 |
Pulley, Alternator W/Clutch
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-30010 |
Cap, Alternator Pulley
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27443 — Cover, Alternator Bearing | ||||
| 27443-63020 |
Cover, Alternator Bearing
1996-04 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 27443-63020 |
Cover, Alternator Bearing
1996-04 → 1999-06
ended
|
5VZFE VZJ9# | — | |
| 27443-63020 |
Cover, Alternator Bearing
1999-06 → 2002-09
ended
|
1K#,5VZFE KDJ9#,KZJ9#,VZJ9# | — | |
| 27446 — Clip, Alternator Cord | ||||
| 27446-46230 |
Clip, Alternator Cord
1996-04 → 1999-06
ended
|
1KZTE KZJ9# | — | |
| 27446-46230 |
Clip, Alternator Cord
1999-06 → 2002-09
ended
|
1K# KDJ9#,KZJ9# | — | |
| 27700A — Regulator Assy, Generator | ||||
| 27700-50030 |
Regulator Assy, Generator
1996-04 → 1996-08
ended
|
5VZFE VZJ9# | — | |
| 27700-50030 |
Regulator Assy, Generator
1996-08 → 1999-06
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
| 27700-54060 |
Regulator Assy, Generator
1996-04 → 1996-08
ended
|
1KZTE KZJ9# | — | |
| 27700-30070 |
Regulator Assy, Generator
2000-08 → 2002-09
ended
|
1KDFTV KDJ9# | — | |
| 27700-50030 |
Regulator Assy, Generator
1999-06 → 2002-09
ended
|
1KZTE,5VZFE KZJ9#,VZJ9# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
