Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

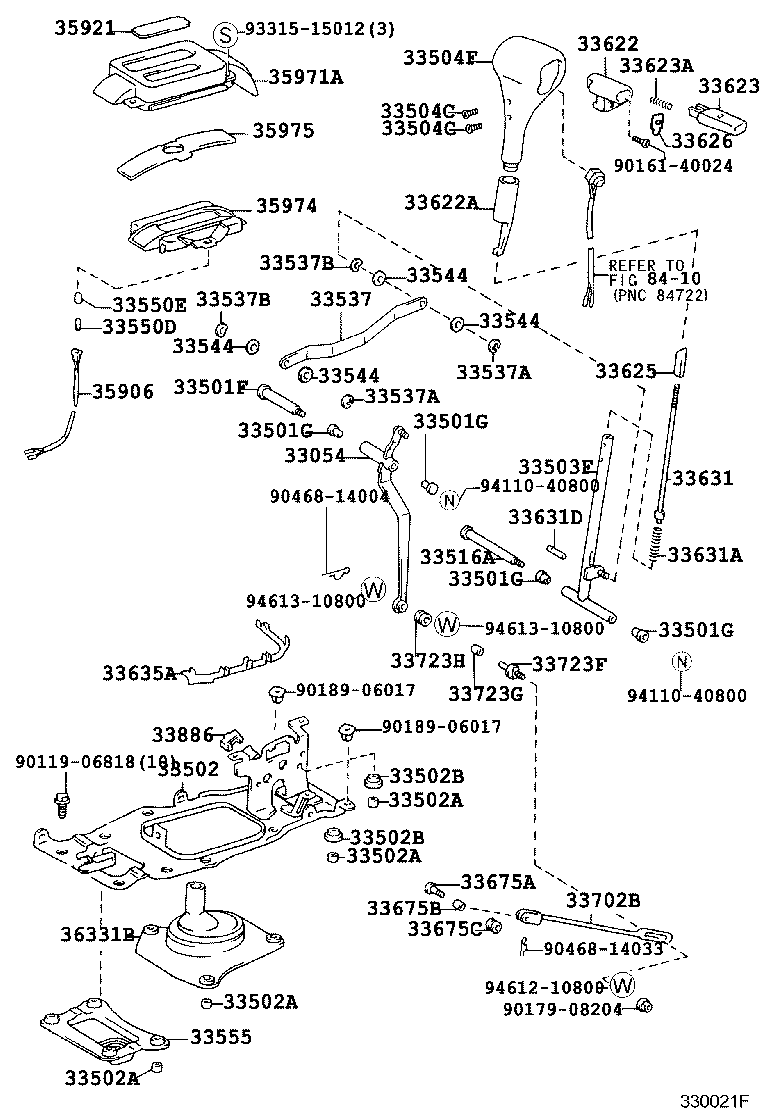

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33054 — Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-60010 |
Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33054-60020 |
Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33054-60010 |
Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 33054-60020 |
Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 33501F — Shaft Sub-assy, Control (FOR FLOOR SHIFT) | ||||
| 33511-35180 |
Shaft Sub-assy, Control (FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33511-35180 |
Shaft Sub-assy, Control (FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33501G — Bush (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
Bush (FOR FLOOR SHIFT CONTROL SHAFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90385-11003 |
Bush (FOR FLOOR SHIFT CONTROL SHAFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33502 — Plate Sub-assy, Shift Lever | ||||
| 33502-60210 |
Plate Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33502-60220 |
Plate Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33502-60210 |
Plate Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 33502-60220 |
Plate Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 33502A — Collar (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 note |
Collar (FOR FLOOR SHIFT SETTING)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90387-06065 note |
Collar (FOR FLOOR SHIFT SETTING)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33502B — Grommet (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
Grommet (FOR SHIFT LEVER PLATE)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90480-13018 |
Grommet (FOR SHIFT LEVER PLATE)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT) | ||||
| 33055-60030 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33055-60040 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33055-60030 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 33055-60040 |
Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 33504C — Screw (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
Screw (FOR SHIFT LEVER KNOB SETTING)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90159-40109 |
Screw (FOR SHIFT LEVER KNOB SETTING)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-20100-C0 note |
Knob Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 33504-20120-C0 note |
Knob Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 33542-33030-C0 note |
Knob Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33542-33040-C0 note |
Knob Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33542-33050-C0 note |
Knob Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33542-33060-C0 note |
Knob Sub-assy, Shift Lever
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33504-20100-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2000-08
ended
|
VZJ95 MTM | — | |
| 33504-20100-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KDJ90,KZJ9#,VZJ90 MTM | — | |
| 33504-20100-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-09
ended
|
KDJ95,VZJ95 MTM | — | |
| 33504-20100-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
KDJ95,VZJ95 MTM | — | |
| 33504-20120-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-09
ended
|
KDJ9#,VZJ9# MTM | — | |
| 33504-20120-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KZJ9# MTM | — | |
| 33504-20120-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
KDJ9#,VZJ9# MTM | — | |
| 33504-20120-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2000-08
ended
|
VZJ9# MTM | — | |
| 33542-33030-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-09
ended
|
KDJ9#,VZJ9# LHD ATM | — | |
| 33542-33030-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
KDJ9#,VZJ9# LHD ATM | — | |
| 33542-33030-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2000-08
ended
|
VZJ9# LHD ATM | — | |
| 33542-33030-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KZJ9# LHD ATM | — | |
| 33542-33040-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
KDJ9#,VZJ9# LHD ATM | — | |
| 33542-33040-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-09
ended
|
KDJ9#,VZJ9# LHD ATM | — | |
| 33542-33040-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KZJ9# LHD ATM | — | |
| 33542-33040-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2000-08
ended
|
VZJ9# LHD ATM | — | |
| 33542-33050-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KZJ95 RHD ATM | — | |
| 33542-33050-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
KDJ95,VZJ95 RHD ATM | — | |
| 33542-33050-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2000-08
ended
|
VZJ95 RHD | — | |
| 33542-33050-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-09
ended
|
KDJ95,VZJ95 RHD ATM | — | |
| 33542-33060-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2002-09
ended
|
KZJ95 RHD ATM | — | |
| 33542-33060-C0 note |
Knob Sub-assy, Shift Lever
1999-06 → 2000-08
ended
|
VZJ95 RHD | — | |
| 33542-33060-C0 note |
Knob Sub-assy, Shift Lever
2001-08 → 2002-09
ended
|
KDJ95,VZJ95 RHD ATM | — | |
| 33542-33060-C0 note |
Knob Sub-assy, Shift Lever
2000-08 → 2001-08
ended
|
KDJ95,VZJ95 RHD ATM | — | |
| 33516A — Shaft, Control, NO.3 | ||||
| 33516-35010 |
Shaft, Control, NO.3
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33516-35010 |
Shaft, Control, NO.3
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33537 — Plate, Control Lever | ||||
| 33537-60010 |
Plate, Control Lever
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33537-60020 |
Plate, Control Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33537-60010 |
Plate, Control Lever
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 33537-60020 |
Plate, Control Lever
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 33537A — Ring, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
Ring, E (FOR CONTROL LEVER PLATE)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90523-06019 |
Ring, E (FOR CONTROL LEVER PLATE)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33537B — Washer, Wave (FOR TRANSMISSION SHIFT LEVER) | ||||
| 90206-08011 |
Washer, Wave (FOR TRANSMISSION SHIFT LEVER)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90206-08011 |
Washer, Wave (FOR TRANSMISSION SHIFT LEVER)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33544 — Insert, Shift Lever, NO.1 | ||||
| 33544-27010 |
Insert, Shift Lever, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33544-27010 |
Insert, Shift Lever, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 90981-11036 note |
Bulb, Position Indicator Lamp
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90981-11036 note |
Bulb, Position Indicator Lamp
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33550E — Cap, Position Indicator Lamp | ||||
| 90339-09001 |
Cap, Position Indicator Lamp
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90339-09001 |
Cap, Position Indicator Lamp
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33555 — Boot, Shift Lever | ||||
| 33555-60030 |
Boot, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 33555-60080 |
Boot, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33555-60030 |
Boot, Shift Lever
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# MTM | — | |
| 33555-60080 |
Boot, Shift Lever
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33622 — Cover, Shift Lever Knob, NO.1 | ||||
| 33622-33030-C0 note |
Cover, Shift Lever Knob, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33622-33060-C0 note |
Cover, Shift Lever Knob, NO.1
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33622-33030-C0 note |
Cover, Shift Lever Knob, NO.1
1999-06 → 2000-08
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 33622-33030-C0 note |
Cover, Shift Lever Knob, NO.1
2000-08 → 2001-08
ended
|
KZJ95 LHD ATM | — | |
| 33622-33030-C0 note |
Cover, Shift Lever Knob, NO.1
2000-08 → 2001-08
ended
|
KDJ9#,VZJ9# LHD ATM | — | |
| 33622-33030-C0 note |
Cover, Shift Lever Knob, NO.1
2001-08 → 2002-09
ended
|
KDJ9#,KZJ95,VZJ9# LHD ATM | — | |
| 33622-33060-C0 note |
Cover, Shift Lever Knob, NO.1
1999-06 → 2000-08
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 33622-33060-C0 note |
Cover, Shift Lever Knob, NO.1
2001-08 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 33622-33060-C0 note |
Cover, Shift Lever Knob, NO.1
2000-08 → 2001-08
ended
|
KDJ95,VZJ95 RHD ATM | — | |
| 33622-33060-C0 note |
Cover, Shift Lever Knob, NO.1
2000-08 → 2001-08
ended
|
KZJ95 RHD ATM | — | |
| 33622A — Cover, Shift Lever Knob, NO.2 | ||||
| 33622-60030 |
Cover, Shift Lever Knob, NO.2
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33622-60030 |
Cover, Shift Lever Knob, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33623 — Button, Shift Lever Knob | ||||
| 33623-33040-C0 note |
Button, Shift Lever Knob
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33623-33040-C0 note |
Button, Shift Lever Knob
1999-06 → 2000-08
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33623-33040-C0 note |
Button, Shift Lever Knob
2000-08 → 2001-08
ended
|
KZJ95 ATM | — | |
| 33623-33040-C0 note |
Button, Shift Lever Knob
2000-08 → 2001-08
ended
|
KDJ9#,VZJ9# ATM | — | |
| 33623-33040-C0 note |
Button, Shift Lever Knob
2001-08 → 2002-09
ended
|
KDJ9#,KZJ95,VZJ9# ATM | — | |
| 33623A — Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90501-07009 |
Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33625 — Sleeve, Shift Lever Knob | ||||
| 33625-33020 |
Sleeve, Shift Lever Knob
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33625-33020 |
Sleeve, Shift Lever Knob
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33626 — Stopper, Shift Lever Button | ||||
| 33626-20010 |
Stopper, Shift Lever Button
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33626-20010 |
Stopper, Shift Lever Button
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33631 — Rod, Detent | ||||
| 33631-60060 |
Rod, Detent
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33631-60060 |
Rod, Detent
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33631A — Spring, Compression (FOR DETENT ROD) | ||||
| 90501-07074 |
Spring, Compression (FOR DETENT ROD)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90501-07074 |
Spring, Compression (FOR DETENT ROD)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33631D — Pin, Grooved (FOR DETENT ROD) | ||||
| 90256-04007 |
Pin, Grooved (FOR DETENT ROD)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90256-04007 |
Pin, Grooved (FOR DETENT ROD)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33635A — Guide, Wire, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-60050 |
Guide, Wire, NO.1 (FOR SHIFT LEVER)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33635-60050 |
Guide, Wire, NO.1 (FOR SHIFT LEVER)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33675A — Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90240-08054 |
Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33675B — Bush (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
Bush (FOR TRANSMISSION CONTROL ROD)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90389-08005 |
Bush (FOR TRANSMISSION CONTROL ROD)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33675C — Grommet (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
Grommet (FOR TRANSMISSION CONTROL ROD)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90480-17177 |
Grommet (FOR TRANSMISSION CONTROL ROD)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33702B — Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-35210 |
Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
VZJ9# ATM | — | |
| 33702-35230 |
Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ9# ATM | — | |
| 33702-35210 |
Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
VZJ9# ATM | — | |
| 33702-35230 |
Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# ATM | — | |
| 33723F — Swivel, Connecting Rod (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
Swivel, Connecting Rod (FOR FLOOR SHIFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33723-22010 |
Swivel, Connecting Rod (FOR FLOOR SHIFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33723G — Bush (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
Bush (FOR FLOOR SHIFT CONTROL SHAFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90389-08005 |
Bush (FOR FLOOR SHIFT CONTROL SHAFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33723H — Grommet (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22010 |
Grommet (FOR FLOOR SHIFT CONTROL SHAFT)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33572-22010 |
Grommet (FOR FLOOR SHIFT CONTROL SHAFT)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 33886 — Stopper, Shift Lever | ||||
| 33886-22010 |
Stopper, Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 33886-22010 |
Stopper, Shift Lever
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-60110 |
Wire Sub-assy, Indicator Lamp
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 35906-60120 |
Wire Sub-assy, Indicator Lamp
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 35906-60110 |
Wire Sub-assy, Indicator Lamp
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 35906-60120 |
Wire Sub-assy, Indicator Lamp
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 35921 — Plate, Control Position Indicator | ||||
| 35921-60150 |
Plate, Control Position Indicator
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 35921-60160 |
Plate, Control Position Indicator
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 35921-60150 |
Plate, Control Position Indicator
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 35921-60160 |
Plate, Control Position Indicator
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 35971A — Housing, Position Indicator, Upper | ||||
| 35971-60110 |
Housing, Position Indicator, Upper
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 35971-60120 |
Housing, Position Indicator, Upper
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 35971-60110 |
Housing, Position Indicator, Upper
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 35971-60120 |
Housing, Position Indicator, Upper
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-60080 |
Housing, Position Indicator, Lower
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 35974-60090 |
Housing, Position Indicator, Lower
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 35974-60080 |
Housing, Position Indicator, Lower
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 35974-60090 |
Housing, Position Indicator, Lower
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-60090 |
Cover, Slide (FOR POSITION INDICATOR)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 35975-60090 |
Cover, Slide (FOR POSITION INDICATOR)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# ATM | — | |
| 36331B — Boot, Transfer Shift Lever | ||||
| 36331-60050 |
Boot, Transfer Shift Lever
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 36331-60060 |
Boot, Transfer Shift Lever
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 36331-60050 |
Boot, Transfer Shift Lever
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 RHD ATM | — | |
| 36331-60060 |
Boot, Transfer Shift Lever
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
