Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

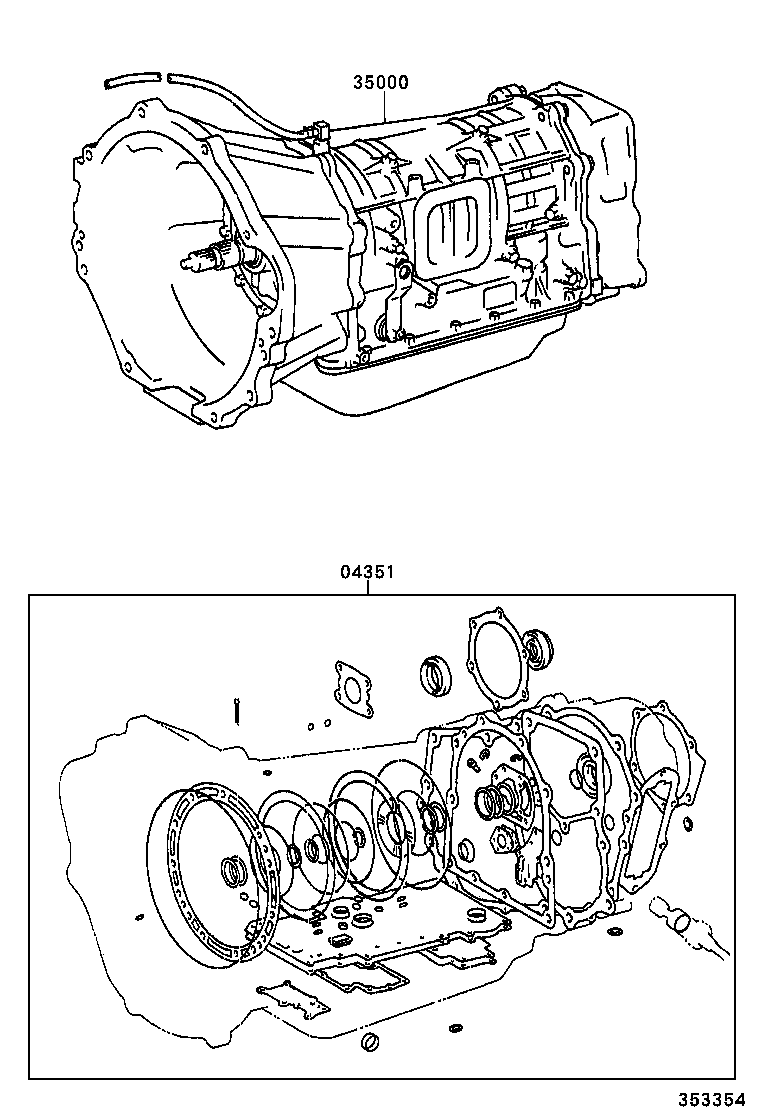

| 04351 — Gasket Kit, Automatic Transmission Overhaul | ||||
| 04351-34030 |
Gasket Kit, Automatic Transmission Overhaul
1996-04 → 1999-06
ended
|
VZJ9# ATM | — | |
| 04351-60041 |
Gasket Kit, Automatic Transmission Overhaul
1996-04 → 1999-06
ended
|
KZJ9# ATM | — | |
| 04351-60041 |
Gasket Kit, Automatic Transmission Overhaul
1999-06 → 2000-08
ended
|
KZJ9# ATM | — | |
| 04351-60170 |
Gasket Kit, Automatic Transmission Overhaul
1999-06 → 2002-09
ended
|
VZJ9# ATM | — | |
| 04351-60180 |
Gasket Kit, Automatic Transmission Overhaul
2000-08 → 2002-09
ended
|
KDJ9#,KZJ95 ATM | — | |
| 35000 — Transmission Assy, Automatic | ||||
| 35000-60480 |
Transmission Assy, Automatic
1996-04 → 1999-06
ended
|
VZJ9# LHD ATM | — | |
| 35000-60490 |
Transmission Assy, Automatic
1996-04 → 1999-06
ended
|
VZJ95 RHD | — | |
| 35000-60510 |
Transmission Assy, Automatic
1996-04 → 1999-06
ended
|
KZJ9# LHD ATM | — | |
| 35000-60520 |
Transmission Assy, Automatic
1996-04 → 1999-06
ended
|
KZJ95 RHD ATM | — | |
| 35000-60640 note |
Transmission Assy, Automatic
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 35000-60650 note |
Transmission Assy, Automatic
1999-06 → 2002-09
ended
|
VZJ9# LHD ATM | — | |
| 35000-60690 |
Transmission Assy, Automatic
1999-06 → 2000-08
ended
|
KZJ95 RHD ATM | — | |
| 35000-60710 |
Transmission Assy, Automatic
1999-06 → 2000-08
ended
|
KZJ9# LHD ATM | — | |
| 35000-60890 note |
Transmission Assy, Automatic
2000-08 → 2002-09
ended
|
KDJ9#,KZJ95 ATM | — | |
| 35000-6A010 note |
Transmission Assy, Automatic
2000-08 → 2002-09
ended
|
KDJ9# ATM | — | |
| 35000-6A040 note |
Transmission Assy, Automatic
2001-08 → 2002-09
ended
|
VZJ9# LHD ATM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
