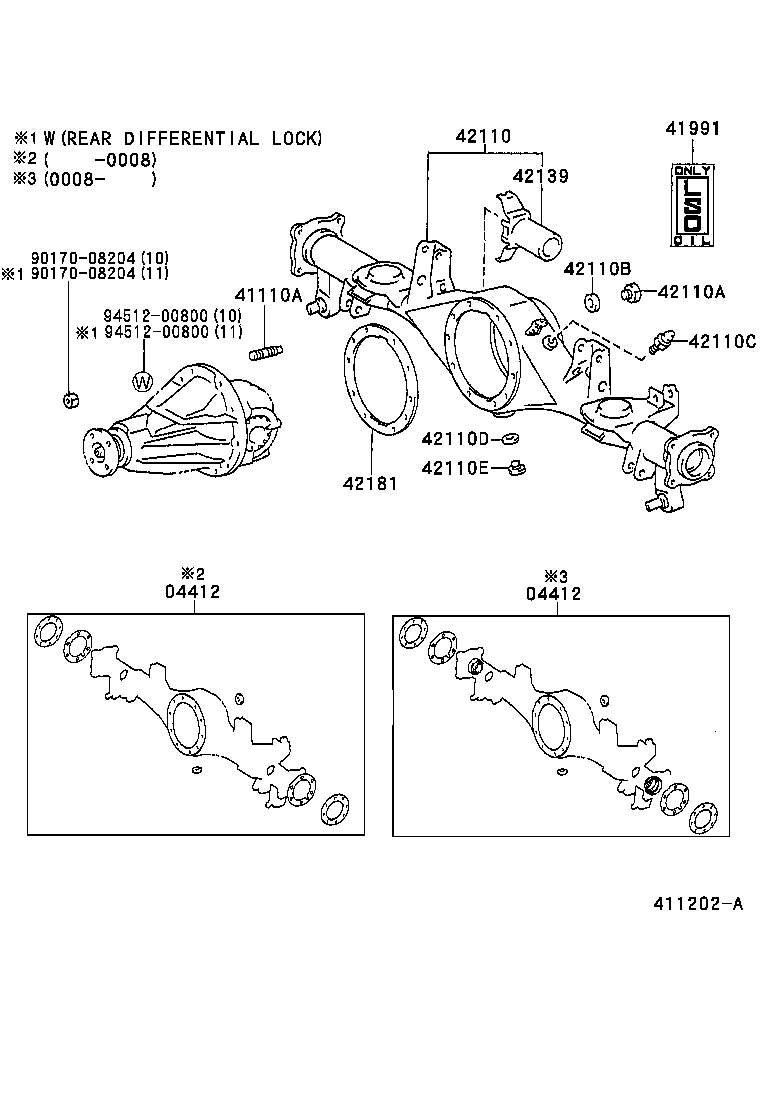

Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04412 — Gasket Kit, Rear Differential Carrier | ||||
| 04412-60100 |
Gasket Kit, Rear Differential Carrier
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 04412-60160 note |
Gasket Kit, Rear Differential Carrier
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 04412-60100 |
Gasket Kit, Rear Differential Carrier
1999-06 → 2000-08
ended
|
KZJ9#,VZJ9# | — | |
| 04412-60101 |
Gasket Kit, Rear Differential Carrier
2000-08 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 04412-60160 note |
Gasket Kit, Rear Differential Carrier
1999-06 → 2000-08
ended
|
KZJ9#,VZJ9# | — | |
| 04412-60160 note |
Gasket Kit, Rear Differential Carrier
2000-08 → 2002-09
ended
|
KDJ9# | — | |
| 04412-60161 note |
Gasket Kit, Rear Differential Carrier
2000-08 → 2002-09
ended
|
KZJ9#,VZJ9# | — | |
| 04412-60161 note |
Gasket Kit, Rear Differential Carrier
2000-08 → 2002-09
ended
|
KDJ9# | — | |
| 04412-60161 note |
Gasket Kit, Rear Differential Carrier
2000-08 → 2002-09
ended
|
KDJ9# | — | |
| 41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90116-08329 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90116-08329 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90116-08330 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90116-08233 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 90116-08329 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 90116-08329 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 90116-08330 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 41991 — Caution Plate, Rear Differential | ||||
| 41991-22010 |
Caution Plate, Rear Differential
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 41991-22010 |
Caution Plate, Rear Differential
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-60540 |
Housing Assy, Rear Axle
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42110-60550 note |
Housing Assy, Rear Axle
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42110-60570 note |
Housing Assy, Rear Axle
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42110-60580 note |
Housing Assy, Rear Axle
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42110-60540 |
Housing Assy, Rear Axle
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110-60550 note |
Housing Assy, Rear Axle
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110-60570 note |
Housing Assy, Rear Axle
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110-60580 note |
Housing Assy, Rear Axle
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 note |
Plug (FOR REAR AXLE HOUSING FILLER)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90341-18049 |
Plug (FOR REAR AXLE HOUSING FILLER)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90341-18006 note |
Plug (FOR REAR AXLE HOUSING FILLER)
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# | — | |
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2000-08 → 2002-09
ended
|
KDJ9# | — | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110C — Plug, Breather (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42139 — Deflector, Rear Axle Housing Oil | ||||
| 42139-40010 |
Deflector, Rear Axle Housing Oil
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42139-40010 |
Deflector, Rear Axle Housing Oil
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42181 — Gasket, Rear Differential Carrier | ||||
| 42181-60020 |
Gasket, Rear Differential Carrier
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42181-60050 note |
Gasket, Rear Differential Carrier
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 42181-60020 |
Gasket, Rear Differential Carrier
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 42181-60050 note |
Gasket, Rear Differential Carrier
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
