Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

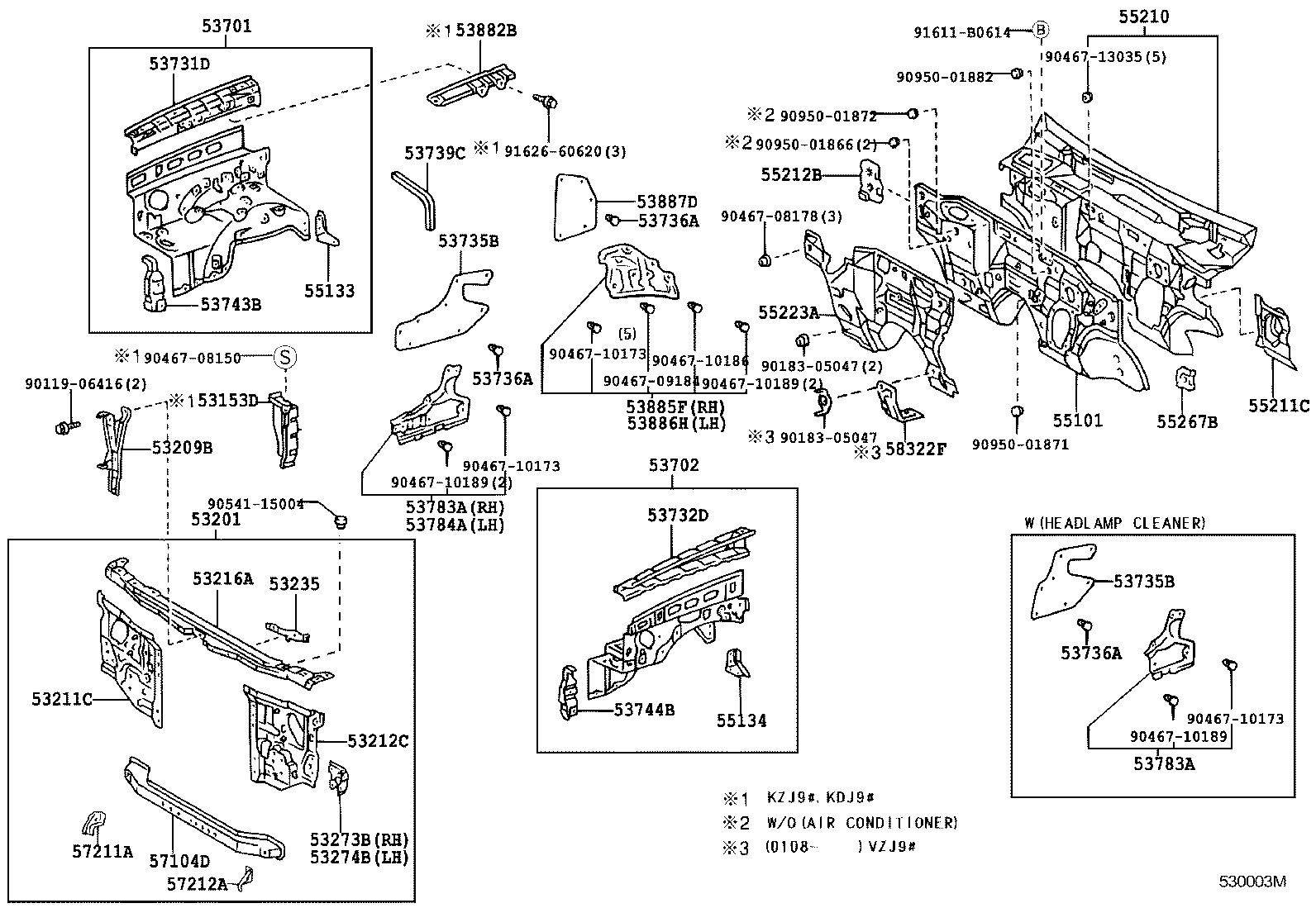

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53153D — Guide, Radiator Grille Side Air, RH | ||||
| 53153-60020 |
Guide, Radiator Grille Side Air, RH
1996-04 → 1999-06
ended
|
KZJ9# LHD | — | |
| 53153-60020 |
Guide, Radiator Grille Side Air, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# LHD | — | |
| 53201 — Support Sub-assy, Radiator | ||||
| 53201-60060 |
Support Sub-assy, Radiator
1996-04 → 1998-11
ended
|
KZJ9#,VZJ9# | — | |
| 53201-60080 |
Support Sub-assy, Radiator
1998-11 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53201-60080 |
Support Sub-assy, Radiator
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53209B — Brace Sub-assy, Hood Lock Support | ||||
| 53209-60040 |
Brace Sub-assy, Hood Lock Support
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53209-60040 |
Brace Sub-assy, Hood Lock Support
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53211C — Support, Radiator, RH | ||||
| 53211-60900 |
Support, Radiator, RH
1996-04 → 1998-11
ended
|
KZJ9#,VZJ9# | — | |
| 53211-60901 |
Support, Radiator, RH
1998-11 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53211-60901 |
Support, Radiator, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53212C — Support, Radiator, LH | ||||
| 53212-60900 |
Support, Radiator, LH
1996-04 → 1998-11
ended
|
KZJ9#,VZJ9# | — | |
| 53212-60901 |
Support, Radiator, LH
1998-11 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53212-60901 |
Support, Radiator, LH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53216A — Support, Radiator, Upper | ||||
| 53216-60050 |
Support, Radiator, Upper
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53216-60050 |
Support, Radiator, Upper
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53235 — Bracket, Horn Mounting | ||||
| 53235-60010 |
Bracket, Horn Mounting
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53235-60010 |
Bracket, Horn Mounting
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53273B — Bracket, Radiator Support TO Front Fender, RH | ||||
| 53273-60010 |
Bracket, Radiator Support TO Front Fender, RH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53273-60010 |
Bracket, Radiator Support TO Front Fender, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53274B — Bracket, Radiator Support TO Front Fender, LH | ||||
| 53274-60010 |
Bracket, Radiator Support TO Front Fender, LH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53274-60010 |
Bracket, Radiator Support TO Front Fender, LH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-60550 note |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
VZJ95 RHD | — | |
| 53701-60551 note |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
VZJ95 RHD | — | |
| 53701-60552 note |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
VZJ95 RHD | — | |
| 53701-60560 |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
KZJ9# LHD | — | |
| 53701-60570 note |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
KZJ9# LHD | — | |
| 53701-60571 |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
KZJ9# LHD | — | |
| 53701-60572 |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
KZJ9# LHD | — | |
| 53701-60590 note |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
VZJ9# LHD | — | |
| 53701-60591 note |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
VZJ9# LHD | — | |
| 53701-60592 note |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
VZJ9# LHD | — | |
| 53701-60610 |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
VZJ9# | — | |
| 53701-60611 |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
VZJ9# | — | |
| 53701-60612 |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
VZJ9# | — | |
| 53701-60660 |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
KZJ9# RHD | — | |
| 53701-60661 |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
KZJ9# RHD | — | |
| 53701-60662 |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
KZJ9# RHD | — | |
| 53701-60670 note |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
KZJ9# LHD | — | |
| 53701-60680 note |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
KZJ9# LHD | — | |
| 53701-60681 note |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
KZJ9# LHD | — | |
| 53701-60682 note |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
KZJ9# LHD | — | |
| 53701-60700 note |
Apron Sub-assy, Front Fender, RH
1996-04 → 1998-01
ended
|
KZJ9# RHD | — | |
| 53701-60701 note |
Apron Sub-assy, Front Fender, RH
1998-01 → 1999-01
ended
|
KZJ9# RHD | — | |
| 53701-60702 note |
Apron Sub-assy, Front Fender, RH
1999-01 → 1999-06
ended
|
KZJ9# RHD | — | |
| 53701-60552 note |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 53701-60572 |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# LHD | — | |
| 53701-60592 note |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
VZJ9# LHD | — | |
| 53701-60612 |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
VZJ9# | — | |
| 53701-60662 |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# RHD | — | |
| 53701-60682 note |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# LHD | — | |
| 53701-60702 note |
Apron Sub-assy, Front Fender, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# RHD | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-6A031 |
Apron Sub-assy, Front Fender, LH
1996-04 → 1998-01
ended
|
VZJ9# | — | |
| 53702-6A032 |
Apron Sub-assy, Front Fender, LH
1998-01 → 1999-06
ended
|
VZJ9# | — | |
| 53702-6A070 note |
Apron Sub-assy, Front Fender, LH
1996-04 → 1996-08
ended
|
KZJ9# RHD | — | |
| 53702-6A071 note |
Apron Sub-assy, Front Fender, LH
1996-08 → 1998-01
ended
|
KZJ9# RHD | — | |
| 53702-6A072 |
Apron Sub-assy, Front Fender, LH
1998-01 → 1999-06
ended
|
KZJ9# RHD | — | |
| 53702-6A080 |
Apron Sub-assy, Front Fender, LH
1996-04 → 1996-08
ended
|
KZJ9# RHD | — | |
| 53702-6A081 |
Apron Sub-assy, Front Fender, LH
1996-08 → 1998-01
ended
|
KZJ9# RHD | — | |
| 53702-6A111 |
Apron Sub-assy, Front Fender, LH
1996-04 → 1998-01
ended
|
KZJ9# LHD | — | |
| 53702-6A112 |
Apron Sub-assy, Front Fender, LH
1998-01 → 1999-06
ended
|
KZJ9# LHD | — | |
| 53702-6A032 |
Apron Sub-assy, Front Fender, LH
1999-06 → 2000-01
ended
|
VZJ9# | — | |
| 53702-6A033 |
Apron Sub-assy, Front Fender, LH
2000-01 → 2002-09
ended
|
VZJ9# | — | |
| 53702-6A072 |
Apron Sub-assy, Front Fender, LH
1999-06 → 2000-01
ended
|
KZJ9# RHD | — | |
| 53702-6A073 |
Apron Sub-assy, Front Fender, LH
2000-01 → 2002-09
ended
|
KZJ9# RHD | — | |
| 53702-6A112 |
Apron Sub-assy, Front Fender, LH
1999-06 → 2000-01
ended
|
KZJ9# LHD | — | |
| 53702-6A113 |
Apron Sub-assy, Front Fender, LH
2000-01 → 2002-09
ended
|
KZJ9# LHD | — | |
| 53702-6A390 |
Apron Sub-assy, Front Fender, LH
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 53702-6A400 |
Apron Sub-assy, Front Fender, LH
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 53731D — Member, Front Apron TO Cowl Side, Upper RH | ||||
| 53731-60040 |
Member, Front Apron TO Cowl Side, Upper RH
1996-04 → 1998-01
ended
|
KZJ9#,VZJ9# | — | |
| 53731-60040 |
Member, Front Apron TO Cowl Side, Upper RH
1998-01 → 1999-06
ended
|
VZJ9#;KZJ9# RHD | — | |
| 53731-60040 |
Member, Front Apron TO Cowl Side, Upper RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53732D — Member, Front Apron TO Cowl Side, Upper LH | ||||
| 53732-60030 |
Member, Front Apron TO Cowl Side, Upper LH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53732-60030 |
Member, Front Apron TO Cowl Side, Upper LH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
| 53732-60030 |
Member, Front Apron TO Cowl Side, Upper LH
2000-01 → 2002-09
ended
|
VZJ9# | — | |
| 53735B — Seal, Front Fender Apron, Upper | ||||
| 53735-35020 note |
Seal, Front Fender Apron, Upper
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 53735-35020 |
Seal, Front Fender Apron, Upper
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 53735-35020 note |
Seal, Front Fender Apron, Upper
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53735-35020 |
Seal, Front Fender Apron, Upper
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53735-35030 note |
Seal, Front Fender Apron, Upper
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 53735-35030 note |
Seal, Front Fender Apron, Upper
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53735-35020 note |
Seal, Front Fender Apron, Upper
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53735-35020 |
Seal, Front Fender Apron, Upper
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 53735-35020 note |
Seal, Front Fender Apron, Upper
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 53735-35020 |
Seal, Front Fender Apron, Upper
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53735-35030 note |
Seal, Front Fender Apron, Upper
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 53735-35030 note |
Seal, Front Fender Apron, Upper
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53736A — Clip(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10186 note |
Clip(FOR FRONT FENDER APRON SEAL)
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 90467-10186 |
Clip(FOR FRONT FENDER APRON SEAL)
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 90467-10186 note |
Clip(FOR FRONT FENDER APRON SEAL)
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90467-10186 |
Clip(FOR FRONT FENDER APRON SEAL)
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90467-10186 |
Clip(FOR FRONT FENDER APRON SEAL)
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 90467-10186 note |
Clip(FOR FRONT FENDER APRON SEAL)
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 90467-10186 |
Clip(FOR FRONT FENDER APRON SEAL)
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 90467-10186 note |
Clip(FOR FRONT FENDER APRON SEAL)
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53739C — Seal, Front Fender Apron TO Frame, Rear | ||||
| 53739-35010 |
Seal, Front Fender Apron TO Frame, Rear
1997-06 → 1998-07
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53739-35010 |
Seal, Front Fender Apron TO Frame, Rear
1997-06 → 1998-07
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53739-35011 |
Seal, Front Fender Apron TO Frame, Rear
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53739-35011 |
Seal, Front Fender Apron TO Frame, Rear
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53739-60020 |
Seal, Front Fender Apron TO Frame, Rear
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 53739-60020 |
Seal, Front Fender Apron TO Frame, Rear
1996-04 → 1996-08
ended
|
KZJ9#;VZJ9# MTM | — | |
| 53739-60020 |
Seal, Front Fender Apron TO Frame, Rear
1996-08 → 1997-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53739-60020 |
Seal, Front Fender Apron TO Frame, Rear
1996-08 → 1997-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53739-35011 |
Seal, Front Fender Apron TO Frame, Rear
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53739-35011 |
Seal, Front Fender Apron TO Frame, Rear
1999-06 → 2002-09
ended
|
KDJ9#;KZJ9#,VZJ9# MTM | — | |
| 53743B — Reinforcement, Front Fender Apron, Front RH | ||||
| 53743-60040 |
Reinforcement, Front Fender Apron, Front RH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53743-60040 |
Reinforcement, Front Fender Apron, Front RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53744B — Reinforcement, Front Fender Apron, Front LH | ||||
| 53744-60040 |
Reinforcement, Front Fender Apron, Front LH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53744-60040 |
Reinforcement, Front Fender Apron, Front LH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
| 53744-60040 |
Reinforcement, Front Fender Apron, Front LH
2000-01 → 2002-09
ended
|
VZJ9# | — | |
| 53783A — Insulator, Apron Front Fender, RH | ||||
| 53783-35010 |
Insulator, Apron Front Fender, RH
1996-04 → 1996-08
ended
|
KZJ9# ATM;VZJ9# MTM | — | |
| 53783-35010 |
Insulator, Apron Front Fender, RH
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53783-35020 note |
Insulator, Apron Front Fender, RH
1996-04 → 1996-08
ended
|
KZJ9# ATM;VZJ9# MTM | — | |
| 53783-35020 note |
Insulator, Apron Front Fender, RH
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53783-60030 |
Insulator, Apron Front Fender, RH
1996-04 → 1996-08
ended
|
KZJ9# MTM | — | |
| 53783-60040 note |
Insulator, Apron Front Fender, RH
1996-04 → 1996-08
ended
|
KZJ9# MTM | — | |
| 53783-35010 |
Insulator, Apron Front Fender, RH
1999-06 → 2000-04
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53783-35011 |
Insulator, Apron Front Fender, RH
2000-04 → 2002-09
ended
|
KDJ9#;KZJ9#,VZJ9# MTM | — | |
| 53783-35020 note |
Insulator, Apron Front Fender, RH
1999-06 → 2000-04
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53783-35021 note |
Insulator, Apron Front Fender, RH
2000-04 → 2002-09
ended
|
KDJ9#;KZJ9#,VZJ9# MTM | — | |
| 53784A — Insulator, Apron Front Fender, LH | ||||
| 53784-35010 |
Insulator, Apron Front Fender, LH
1996-04 → 1996-08
ended
|
KZJ9# ATM;VZJ9# MTM | — | |
| 53784-35010 |
Insulator, Apron Front Fender, LH
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53784-60030 |
Insulator, Apron Front Fender, LH
1996-04 → 1996-08
ended
|
KZJ9# MTM | — | |
| 53784-35010 |
Insulator, Apron Front Fender, LH
1999-06 → 2000-04
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53784-35011 |
Insulator, Apron Front Fender, LH
2000-04 → 2002-09
ended
|
KDJ9#;KZJ9#,VZJ9# MTM | — | |
| 53882B — Seal, Front Fender, RH | ||||
| 53882-60050 |
Seal, Front Fender, RH
1996-04 → 1999-06
ended
|
KZJ9# LHD | — | |
| 53882-60050 |
Seal, Front Fender, RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# LHD | — | |
| 53885F — Shield, Front Fender Splash, Rear RH | ||||
| 53885-60010 |
Shield, Front Fender Splash, Rear RH
1996-04 → 1996-08
ended
|
KZJ9# ATM;VZJ9# MTM | — | |
| 53885-60010 |
Shield, Front Fender Splash, Rear RH
1996-08 → 1998-07
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53885-60011 |
Shield, Front Fender Splash, Rear RH
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53885-60020 |
Shield, Front Fender Splash, Rear RH
1996-04 → 1996-08
ended
|
KZJ9# MTM | — | |
| 53885-60011 |
Shield, Front Fender Splash, Rear RH
1999-06 → 2000-04
ended
|
KZJ9#,VZJ9# MTM | — | |
| 53885-60012 |
Shield, Front Fender Splash, Rear RH
2000-04 → 2002-09
ended
|
KDJ9#;KZJ9#,VZJ9# MTM | — | |
| 53886H — Shield, Front Fender Splash, Rear LH | ||||
| 53886-60010 |
Shield, Front Fender Splash, Rear LH
1996-04 → 1996-08
ended
|
VZJ9#;KZJ9# ATM | — | |
| 53886-60010 |
Shield, Front Fender Splash, Rear LH
1996-08 → 1998-07
ended
|
KZJ9#,VZJ9# | — | |
| 53886-60011 |
Shield, Front Fender Splash, Rear LH
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 53886-60020 |
Shield, Front Fender Splash, Rear LH
1996-04 → 1996-08
ended
|
KZJ9# MTM | — | |
| 53886-60012 |
Shield, Front Fender Splash, Rear LH
1999-06 → 2000-04
ended
|
KZJ9#,VZJ9# | — | |
| 53886-60013 |
Shield, Front Fender Splash, Rear LH
2000-04 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 53887D — Seal, Front Fender Splash Shield, NO.1 | ||||
| 53887-35010 |
Seal, Front Fender Splash Shield, NO.1
1996-04 → 1996-08
ended
|
VZJ9# ATM | — | |
| 53887-35010 |
Seal, Front Fender Splash Shield, NO.1
1996-08 → 1999-06
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53887-35010 |
Seal, Front Fender Splash Shield, NO.1
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# ATM | — | |
| 53887-35010 |
Seal, Front Fender Splash Shield, NO.1
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-6C780 |
Panel Sub-assy, Dash
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD MTM | — | |
| 55101-6C800 |
Panel Sub-assy, Dash
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 55101-6C820 note |
Panel Sub-assy, Dash
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD MTM | — | |
| 55101-6C840 note |
Panel Sub-assy, Dash
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 55101-6C860 |
Panel Sub-assy, Dash
1996-04 → 1999-06
ended
|
KZJ9# RHD MTM | — | |
| 55101-6C890 |
Panel Sub-assy, Dash
1996-04 → 1999-06
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 55101-6C780 |
Panel Sub-assy, Dash
1999-06 → 2000-01
ended
|
KZJ9#,VZJ9# LHD MTM | — | |
| 55101-6C781 |
Panel Sub-assy, Dash
2000-01 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD MTM | — | |
| 55101-6C800 |
Panel Sub-assy, Dash
1999-06 → 2000-01
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 55101-6C801 |
Panel Sub-assy, Dash
2000-01 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 55101-6C820 note |
Panel Sub-assy, Dash
1999-06 → 2000-01
ended
|
KZJ9#,VZJ9# LHD MTM | — | |
| 55101-6C821 note |
Panel Sub-assy, Dash
2000-01 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD MTM | — | |
| 55101-6C840 note |
Panel Sub-assy, Dash
1999-06 → 2000-01
ended
|
KZJ9#,VZJ9# LHD ATM | — | |
| 55101-6C841 note |
Panel Sub-assy, Dash
2000-01 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD ATM | — | |
| 55101-6C860 |
Panel Sub-assy, Dash
1999-06 → 2000-08
ended
|
KZJ9# RHD MTM | — | |
| 55101-6C890 |
Panel Sub-assy, Dash
1999-06 → 2000-08
ended
|
KZJ95 RHD ATM | — | |
| 55101-6C890 |
Panel Sub-assy, Dash
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 55101-6D010 |
Panel Sub-assy, Dash
2000-08 → 2002-09
ended
|
KDJ9#,KZJ95 RHD MTM | — | |
| 55101-6D020 |
Panel Sub-assy, Dash
2000-08 → 2002-09
ended
|
KDJ95,KZJ95 RHD ATM | — | |
| 55101-6D550 note |
Panel Sub-assy, Dash
2000-08 → 2002-09
ended
|
KDJ95 RHD ATM | — | |
| 55101-6D840 note |
Panel Sub-assy, Dash
2000-08 → 2002-09
ended
|
KDJ9# LHD ATM | — | |
| 55101-6D840 note |
Panel Sub-assy, Dash
2001-08 → 2002-09
ended
|
VZJ9# LHD ATM | — | |
| 55133 — Plate, Front Fender Apron Set, Lower RH | ||||
| 55133-35010 |
Plate, Front Fender Apron Set, Lower RH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 55133-35010 |
Plate, Front Fender Apron Set, Lower RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 55134 — Plate, Front Fender Apron Set, Lower LH | ||||
| 55134-35010 |
Plate, Front Fender Apron Set, Lower LH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 55134-35010 |
Plate, Front Fender Apron Set, Lower LH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
| 55134-35010 |
Plate, Front Fender Apron Set, Lower LH
2000-01 → 2002-09
ended
|
VZJ9# | — | |
| 55210 — Insulator Assy, Dash Panel | ||||
| 55210-60050 |
Insulator Assy, Dash Panel
1996-04 → 1999-01
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55210-60051 |
Insulator Assy, Dash Panel
1999-01 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55210-60060 |
Insulator Assy, Dash Panel
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 55210-60051 |
Insulator Assy, Dash Panel
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 55210-60060 |
Insulator Assy, Dash Panel
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 55211C — Cover, Dash Panel Insulator | ||||
| 55211-35010 |
Cover, Dash Panel Insulator
1996-04 → 1996-05
ended
|
KZJ9#,VZJ9# LHD | — | |
| 55211-35011 |
Cover, Dash Panel Insulator
1996-05 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 55211-35020 |
Cover, Dash Panel Insulator
1996-04 → 1999-02
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55211-35021 |
Cover, Dash Panel Insulator
1999-02 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55211-35011 |
Cover, Dash Panel Insulator
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 55211-35021 |
Cover, Dash Panel Insulator
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 55212B — Cover, Dash Panel Insulator, NO.2 | ||||
| 55212-35010 |
Cover, Dash Panel Insulator, NO.2
1996-04 → 1998-07
ended
|
KZJ9#,VZJ9# | — | |
| 55212-35020 |
Cover, Dash Panel Insulator, NO.2
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 55212-35020 |
Cover, Dash Panel Insulator, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 55223A — Insulator, Dash Panel, Outer | ||||
| 55223-35010 |
Insulator, Dash Panel, Outer
1996-04 → 1996-08
ended
|
KZJ95,VZJ95 RHD ATM | — | |
| 55223-35010 |
Insulator, Dash Panel, Outer
1996-08 → 1998-07
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55223-35011 |
Insulator, Dash Panel, Outer
1998-07 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55223-60180 |
Insulator, Dash Panel, Outer
1996-04 → 1996-08
ended
|
VZJ9# LHD;KZJ9# LHD ATM | — | |
| 55223-60180 |
Insulator, Dash Panel, Outer
1996-08 → 1998-07
ended
|
KZJ9#,VZJ9# LHD | — | |
| 55223-60181 |
Insulator, Dash Panel, Outer
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 55223-60190 |
Insulator, Dash Panel, Outer
1996-04 → 1996-08
ended
|
KZJ9# RHD MTM | — | |
| 55223-60200 |
Insulator, Dash Panel, Outer
1996-04 → 1996-08
ended
|
KZJ9# LHD MTM | — | |
| 55223-35011 |
Insulator, Dash Panel, Outer
1999-06 → 2000-04
ended
|
KZJ9#,VZJ95 RHD | — | |
| 55223-35012 |
Insulator, Dash Panel, Outer
2000-04 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 55223-60181 |
Insulator, Dash Panel, Outer
1999-06 → 2000-04
ended
|
KZJ9#,VZJ9# LHD | — | |
| 55223-60182 |
Insulator, Dash Panel, Outer
2000-04 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 55267B — Cover, Dash Panel Insulator, NO.3 | ||||
| 55267-35010 |
Cover, Dash Panel Insulator, NO.3
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 55267-35010 |
Cover, Dash Panel Insulator, NO.3
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 57104D — Member Sub-assy, Front Cross | ||||
| 57104-60030 |
Member Sub-assy, Front Cross
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 57104-60030 |
Member Sub-assy, Front Cross
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 57211A — Bracket, Body Mounting, NO.1 RH | ||||
| 57211-35010 |
Bracket, Body Mounting, NO.1 RH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 57211-35010 |
Bracket, Body Mounting, NO.1 RH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 57212A — Bracket, Body Mounting, NO.1 LH | ||||
| 57212-35030 |
Bracket, Body Mounting, NO.1 LH
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 57212-35030 |
Bracket, Body Mounting, NO.1 LH
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 58322F — Insulator, Dash Panel Heat | ||||
| 55225-35110 |
Insulator, Dash Panel Heat
2001-08 → 2002-09
ended
|
VZJ9# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
