Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

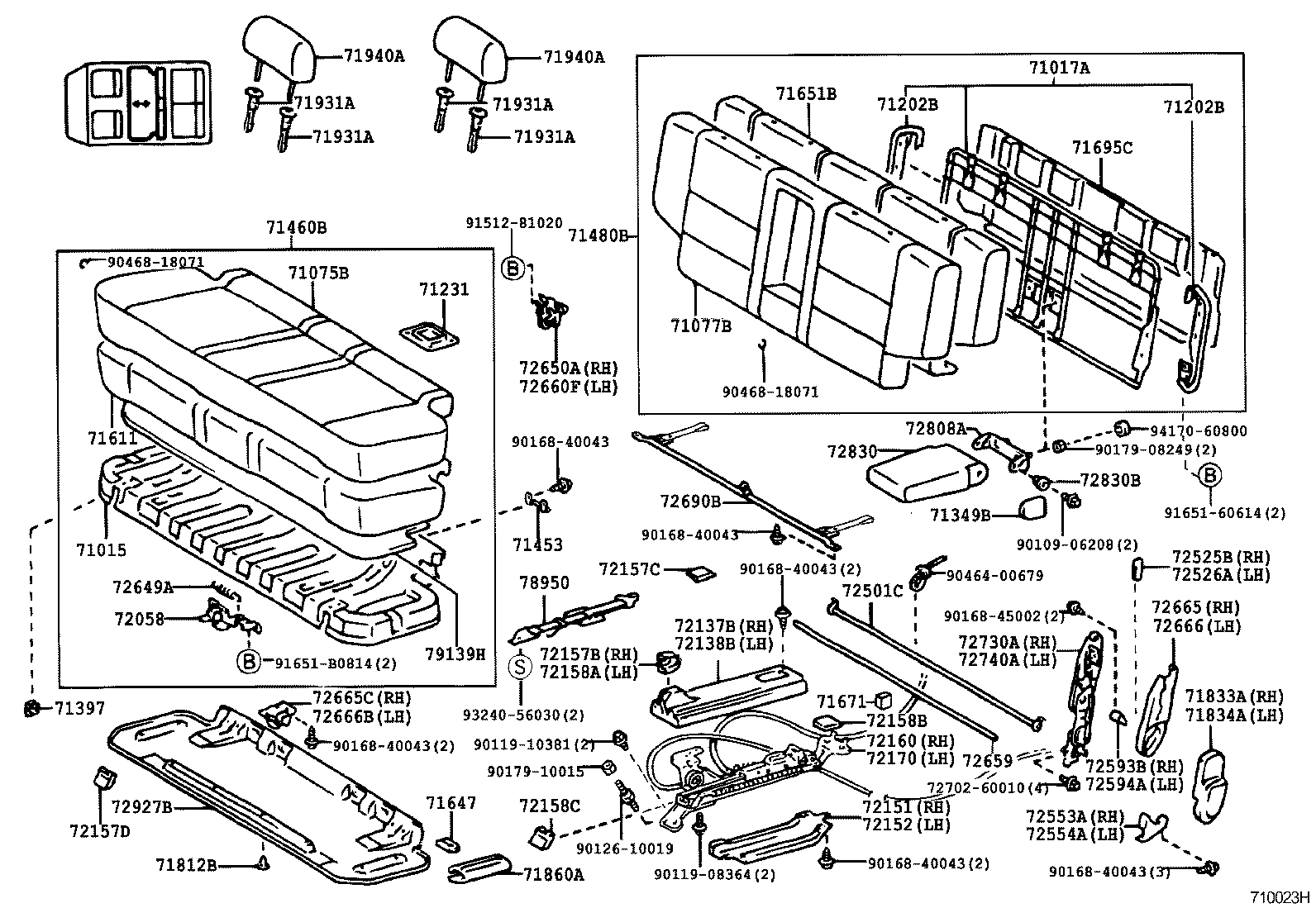

Exploded illustration 710023H 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71940A — HEADREST ASSY, REAR SEAT (11 parts) 71940A — HEADREST ASSY, REAR SEAT (11 parts) 9017908249 — not listed in this catalogue 9151281020 — not listed in this catalogue 72660F — LOCK ASSY, REAR SEAT, LH (4 parts) 71077B — COVER, REAR SEATBACK (FOR BENCH TYPE) (2 parts) 71017A — FRAME SUB-ASSY, REAR SEATBACK (1 parts) 71202B — PANEL, REAR SEATBACK (2 parts) 71202B — PANEL, REAR SEATBACK (2 parts) 71695C — PROTECTOR, REAR SEAT, NO.1 (3 parts) 72808A — BRACKET SUB-ASSY, SEAT CENTER ARMREST (2 parts) 72830B — BUSH(FOR REAR SEAT CENTER ARMREST) (2 parts) 71349B — COVER, REAR SEATBACK STAY, RH (17 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (9 parts) 72690B — LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH (1 parts) 71651B — PAD, REAR SEATBACK(FOR BENCH TYPE) (1 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (8 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (7 parts) 72593B — KNOB, RECLINING REMOTE CONTROL LEVER, RH (1 parts) 72594A — KNOB, RECLINING REMOTE CONTROL LEVER, LH (1 parts) 72553A — PROTECTOR, RECLINING COVER, RH (1 parts) 72554A — PROTECTOR, RECLINING COVER, LH (1 parts) 72665 — COVER, REAR SEATBACK LOCK, RH (1 parts) 72666 — COVER, REAR SEATBACK LOCK, LH (1 parts) 72525B — HANDLE, RECLINING ADJUSTER RELEASE, RH (8 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (8 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (5 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (5 parts) 71480B — BACK ASSY, REAR SEAT (FOR BENCH TYPE) (2 parts) 9417060800 — not listed in this catalogue 72659 — ROD, REAR SEATBACK LOCK CONNECTING (3 parts) 71647 — PROTECTOR, REAR SEAT CUSHION EDGE (15 parts) 71453 — WIRE, REAR SEAT CUSHION SPRING (1 parts) 71397 — STOPPER, REAR SEAT (2 parts) 72157D — COVER, SEAT TRACK BRACKER, INNER RH (1 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (13 parts) 72927B — COVER, REAR SEAT CUSHION UNDER (13 parts) 72665C — COVER, REAR SEAT LOCK, RH (1 parts) 72666B — COVER, REAR SEAT LOCK, LH (1 parts) 72158C — COVER, SEAT TRACK BRACKET, INNER LH (1 parts) 71860A — CARPET ASSY, REAR SEAT CUSHION BOARD (1 parts) 72157B — COVER, REAR SEAT TRACK BRACKET, INNER RH (1 parts) 72158A — COVER, REAR SEAT TRACK BRACKET, INNER LH (1 parts) 72137B — COVER, SEAT TRACK, RH (1 parts) 72138B — COVER, SEAT TRACK, LH (1 parts) 72157C — COVER, SEAT TRACK BRACKET, INNER RH (1 parts) 78950 — BAND ASSY, FOLD SEAT STOPPER, NO.1 (13 parts) 72501C — PIPE SUB-ASSY, RECLINING CONNECTING (1 parts) 71231 — PLATE, REAR SEAT SPRING SET, NO.1 (14 parts) 72158B — COVER, SEAT TRACK BRACKET, INNER LH (1 parts) 72160 — TRACK ASSY, REAR SEAT, OUTER RH (2 parts) 72170 — TRACK ASSY, REAR SEAT, OUTER LH (2 parts) 72151 — RAIL, SEAT TRACK, LOWER RH (1 parts) 72152 — RAIL, SEAT TRACK, LOWER LH (1 parts) 9016840043 — not listed in this catalogue 9324056030 — not listed in this catalogue 9017910015 — not listed in this catalogue 9012610019 — not listed in this catalogue 9011908364 — not listed in this catalogue 9016840043 — not listed in this catalogue 9016840043 — not listed in this catalogue 9016840043 — not listed in this catalogue 9016840043 — not listed in this catalogue 7270260010 — not listed in this catalogue 9010906208 — not listed in this catalogue 9165160614 — not listed in this catalogue 71460B — CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) (14 parts) 9046400679 — not listed in this catalogue 9016840043 — not listed in this catalogue 9046818071 — not listed in this catalogue 9011910381 — not listed in this catalogue 9016845002 — not listed in this catalogue 72650A — LOCK ASSY, REAR SEAT, RH (5 parts) 71611 — PAD, REAR SEAT CUSHION (7 parts) 71015 — FRAME SUB-ASSY, REAR SEAT CUSHION (5 parts) 72649A — TENSION SPRING, REAR SEAT LOCK CONTROL (1 parts) 72058 — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL (1 parts) 71671 — PAD, REAR SEATBACK SILENCER, A (2 parts) 79139H — CLOTH, NO.3 SEAT CUSHION (3 parts) 91651B0814 — not listed in this catalogue 9046818071 — not listed in this catalogue 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (14 parts)
710023H · 64 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
262 parts on this figure
Part number Description Fitment Price
71015 — Frame Sub-assy, Rear Seat Cushion
71015-60090 Frame Sub-assy, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71015-60100 note Frame Sub-assy, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71015-60110 Frame Sub-assy, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71015-60190 Frame Sub-assy, Rear Seat Cushion
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71015-60200 Frame Sub-assy, Rear Seat Cushion
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71017A — Frame Sub-assy, Rear Seatback
71017-60280 Frame Sub-assy, Rear Seatback
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-60750-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71075-60760-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71075-60810-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71075-60830-B1 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71075-60880-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71065-60330-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71065-60330-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71065-60420-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71065-60430-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71065-60440-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71065-60440-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71065-60450-B0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71065-60450-E0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71065-60600-A0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71077B — Cover, Rear Seatback (FOR BENCH TYPE)
71077-60870-B1 note Cover, Rear Seatback (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71077-60880-B0 note Cover, Rear Seatback (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71202B — Panel, Rear Seatback
71202-60010 note Panel, Rear Seatback
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71203-60010 note Panel, Rear Seatback
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71231 — Plate, Rear Seat Spring Set, NO.1
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2001-08 → 2002-09 ended
KDJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2001-08 → 2002-09 ended
VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2000-08 → 2002-09 ended
KDJ90 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KZJ9#,VZJ90 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2000-08 ended
VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2000-08 ended
VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71349B — Cover, Rear Seatback Stay, RH
71349-60020-B0 note Cover, Rear Seatback Stay, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71349-60030-B0 note Cover, Rear Seatback Stay, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71349-60020-B0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71349-60020-B0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2000-08 ended
VZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2000-08 ended
VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KZJ95 —
71349-60030-B0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2000-08 ended
VZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71397 — Stopper, Rear Seat
71397-60010 Stopper, Rear Seat
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71397-60010 Stopper, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71453 — Wire, Rear Seat Cushion Spring
71453-60020 Wire, Rear Seat Cushion Spring
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-60870-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71560-60030-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71560-60110-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71560-60140-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71560-60160-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71560-60530-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71560-60550-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71560-60550-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71560-60580-B1 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71560-60580-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71560-60590-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71560-60680-B0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71560-60680-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71560-60760-E0 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71480B — Back Assy, Rear Seat (FOR BENCH TYPE)
71480-6A420-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71480-6A430-B0 note Back Assy, Rear Seat (FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71611 — Pad, Rear Seat Cushion
71611-60120 note Pad, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71611-60140 note Pad, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71611-60150 Pad, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71611-60180 note Pad, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71611-60190 note Pad, Rear Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71611-60290 Pad, Rear Seat Cushion
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71611-60300 Pad, Rear Seat Cushion
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71647 — Protector, Rear Seat Cushion Edge
71647-60130-B0 note Protector, Rear Seat Cushion Edge
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71647-60130-B0 note Protector, Rear Seat Cushion Edge
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
1999-06 → 2001-08 ended
KDJ90 —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
2000-08 → 2001-08 ended
VZJ90 —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
1999-06 → 2000-08 ended
VZJ90;KZJ90 LHD MTM —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
1999-06 → 2002-09 ended
KZJ90 RHD;KZJ90 ATM —
71647-60130-E0 note Protector, Rear Seat Cushion Edge
2000-08 → 2002-09 ended
KZJ90 —
71647-60130-E1 note Protector, Rear Seat Cushion Edge
2000-08 → 2002-09 ended
KZJ90 —
71647-60130-E1 note Protector, Rear Seat Cushion Edge
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71647-60130-E1 note Protector, Rear Seat Cushion Edge
1999-06 → 2000-08 ended
VZJ95 —
71647-60130-E1 note Protector, Rear Seat Cushion Edge
1999-06 → 2002-09 ended
KZJ95 —
71647-60130-E1 note Protector, Rear Seat Cushion Edge
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71647-60130-E1 note Protector, Rear Seat Cushion Edge
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71651B — Pad, Rear Seatback(FOR BENCH TYPE)
71651-60160 Pad, Rear Seatback(FOR BENCH TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71671 — Pad, Rear Seatback Silencer, A
71671-60020 Pad, Rear Seatback Silencer, A
1996-04 → 1996-05 ended
KZJ9#,VZJ9# —
71672-60040 note Pad, Rear Seatback Silencer, A
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71695C — Protector, Rear Seat, NO.1
71695-60050 note Protector, Rear Seat, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71695-60080 Protector, Rear Seat, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71695-60090 Protector, Rear Seat, NO.1
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71812B — Clip(FOR REAR SEAT CUSHION COVER)
71769-60010-B0 note Clip(FOR REAR SEAT CUSHION COVER)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71769-60010-B0 note Clip(FOR REAR SEAT CUSHION COVER)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71769-60010-B0 note Clip(FOR REAR SEAT CUSHION COVER)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71769-60010-B0 note Clip(FOR REAR SEAT CUSHION COVER)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71769-60010-B0 note Clip(FOR REAR SEAT CUSHION COVER)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
1999-06 → 2000-08 ended
VZJ90 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
1999-06 → 2002-09 ended
KZJ95 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
1999-06 → 2002-09 ended
KZJ90 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71769-60010-E0 note Clip(FOR REAR SEAT CUSHION COVER)
1999-06 → 2000-08 ended
VZJ95 —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-60030-B0 note Cover, Rear Seat Reclining, NO.1 RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71833-60040-B0 note Cover, Rear Seat Reclining, NO.1 RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71833-60110-B0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
71833-60110-B0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2000-08 ended
VZJ9#;KZJ90 RHD;KZJ90 ATM —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD MTM —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-60030-B0 note Cover, Rear Seat Reclining, NO.1 LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71834-60040-B0 note Cover, Rear Seat Reclining, NO.1 LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71834-60110-B0 note Cover, Rear Seat Reclining, NO.1 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-08 → 2001-08 ended
KZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71860A — Carpet Assy, Rear Seat Cushion Board
71860-60010-B2 note Carpet Assy, Rear Seat Cushion Board
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71931A — Support, Rear Seat Headrest
71930-13030-B2 note Support, Rear Seat Headrest
1998-08 → 1999-06 ended
KZJ9#,VZJ9# —
71930-32020-B2 note Support, Rear Seat Headrest
1996-04 → 1997-02 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Rear Seat Headrest
1997-02 → 1998-08 ended
KZJ9#,VZJ9# —
71931-12040-P6 note Support, Rear Seat Headrest
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71931-12040-P6 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71940A — Headrest Assy, Rear Seat
71910-60250-B1 note Headrest Assy, Rear Seat
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71910-60280-B0 note Headrest Assy, Rear Seat
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71910-60460-B0 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E1 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E2 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60480-B2 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60480-E1 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60490-B2 note Headrest Assy, Rear Seat
2000-08 → 2002-09 ended
KZJ90 —
71910-60490-E1 note Headrest Assy, Rear Seat
2000-08 → 2002-09 ended
KZJ90 —
71940-60290-A0 note Headrest Assy, Rear Seat
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71940-60290-A0 note Headrest Assy, Rear Seat
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72058 — Lever Sub-assy, Rear Seat Lock Control
72058-60040 Lever Sub-assy, Rear Seat Lock Control
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72137B — Cover, Seat Track, RH
72137-60050-B0 note Cover, Seat Track, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72138B — Cover, Seat Track, LH
72138-60040-B0 note Cover, Seat Track, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72151 — Rail, Seat Track, Lower RH
72137-60060-B0 note Rail, Seat Track, Lower RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72152 — Rail, Seat Track, Lower LH
72138-60030-B0 note Rail, Seat Track, Lower LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72157B — Cover, Rear Seat Track Bracket, Inner RH
72127-60020-B0 note Cover, Rear Seat Track Bracket, Inner RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72157C — Cover, Seat Track Bracket, Inner RH
72157-60060-B0 note Cover, Seat Track Bracket, Inner RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72157D — Cover, Seat Track Bracker, Inner RH
72157-60070-B0 note Cover, Seat Track Bracker, Inner RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72158A — Cover, Rear Seat Track Bracket, Inner LH
72128-60020-B0 note Cover, Rear Seat Track Bracket, Inner LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72158B — Cover, Seat Track Bracket, Inner LH
72158-60030-B0 note Cover, Seat Track Bracket, Inner LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72158C — Cover, Seat Track Bracket, Inner LH
72158-60040-B0 note Cover, Seat Track Bracket, Inner LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72160 — Track Assy, Rear Seat, Outer RH
72160-60020 Track Assy, Rear Seat, Outer RH
1996-04 → 1997-04 ended
KZJ95,VZJ95 —
72160-60021 Track Assy, Rear Seat, Outer RH
1997-04 → 1999-06 ended
KZJ95,VZJ95 —
72170 — Track Assy, Rear Seat, Outer LH
72170-60020 Track Assy, Rear Seat, Outer LH
1996-04 → 1997-04 ended
KZJ95,VZJ95 —
72170-60021 Track Assy, Rear Seat, Outer LH
1997-04 → 1999-06 ended
KZJ95,VZJ95 —
72501C — Pipe Sub-assy, Reclining Connecting
72501-60070 Pipe Sub-assy, Reclining Connecting
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72525B — Handle, Reclining Adjuster Release, RH
72525-60030-B1 note Handle, Reclining Adjuster Release, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72525-60040-B0 note Handle, Reclining Adjuster Release, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72525-60080-B0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72525-60080-B0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2000-08 ended
VZJ9#;KZJ90 RHD;KZJ90 ATM —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD MTM —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72526A — Handle, Reclining Adjuster Release, LH
72525-60030-B1 note Handle, Reclining Adjuster Release, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72526-60010-B0 note Handle, Reclining Adjuster Release, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72526-60050-B0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72526-60050-B0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2000-08 ended
VZJ9#;KZJ90 RHD;KZJ90 ATM —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD MTM —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72553A — Protector, Reclining Cover, RH
72553-60010-B0 note Protector, Reclining Cover, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72554A — Protector, Reclining Cover, LH
72554-60010-B0 note Protector, Reclining Cover, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72593B — Knob, Reclining Remote Control Lever, RH
72593-60020-B0 note Knob, Reclining Remote Control Lever, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72594A — Knob, Reclining Remote Control Lever, LH
72594-60010-B0 note Knob, Reclining Remote Control Lever, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72649A — Tension Spring, Rear Seat Lock Control
90506-09055 Tension Spring, Rear Seat Lock Control
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72650A — Lock Assy, Rear Seat, RH
72650-60070 Lock Assy, Rear Seat, RH
1996-04 → 1998-01 ended
KZJ9#,VZJ9# —
72650-60071 Lock Assy, Rear Seat, RH
1998-01 → 1999-06 ended
KZJ9#,VZJ9# —
72650-60080 note Lock Assy, Rear Seat, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72650-60130 Lock Assy, Rear Seat, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72650-60140 Lock Assy, Rear Seat, RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72659 — Rod, Rear Seatback Lock Connecting
72659-60050 Rod, Rear Seatback Lock Connecting
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
72659-60060 Rod, Rear Seatback Lock Connecting
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72659-60080 note Rod, Rear Seatback Lock Connecting
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72660F — Lock Assy, Rear Seat, LH
72660-60020 Lock Assy, Rear Seat, LH
1996-04 → 1998-01 ended
KZJ9#,VZJ9# —
72660-60021 Lock Assy, Rear Seat, LH
1998-01 → 1999-06 ended
KZJ9#,VZJ9# —
72660-60070 note Lock Assy, Rear Seat, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72660-60140 Lock Assy, Rear Seat, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72665 — Cover, Rear Seatback Lock, RH
72665-60060-B0 note Cover, Rear Seatback Lock, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72665C — Cover, Rear Seat Lock, RH
72665-60010-B0 note Cover, Rear Seat Lock, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72666 — Cover, Rear Seatback Lock, LH
72666-60060-B0 note Cover, Rear Seatback Lock, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72666B — Cover, Rear Seat Lock, LH
72666-60010-B0 note Cover, Rear Seat Lock, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72690B — Lever Assy, Seat Cushion Lock Release, RH
72690-60020 Lever Assy, Seat Cushion Lock Release, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-60090 Adjuster Assy, Rear Seat Reclining, RH
1996-04 → 1996-11 ended
KZJ9#,VZJ9# —
72730-60100 note Adjuster Assy, Rear Seat Reclining, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72730-60110 Adjuster Assy, Rear Seat Reclining, RH
1996-11 → 1999-06 ended
KZJ9#,VZJ9# —
72730-60200 Adjuster Assy, Rear Seat Reclining, RH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72730-60200 Adjuster Assy, Rear Seat Reclining, RH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-60090 Adjuster Assy, Rear Seat Reclining, LH
1996-04 → 1996-11 ended
KZJ9#,VZJ9# —
72740-60100 note Adjuster Assy, Rear Seat Reclining, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72740-60110 Adjuster Assy, Rear Seat Reclining, LH
1996-11 → 1999-06 ended
KZJ9#,VZJ9# —
72710-60100 Adjuster Assy, Rear Seat Reclining, LH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72710-60100 Adjuster Assy, Rear Seat Reclining, LH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72808A — Bracket Sub-assy, Seat Center Armrest
72883-60020 Bracket Sub-assy, Seat Center Armrest
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72883-60020 Bracket Sub-assy, Seat Center Armrest
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72830 — Armrest Assy, Rear Seat, Center
72830-60010-B0 note Armrest Assy, Rear Seat, Center
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72830-60030-B0 note Armrest Assy, Rear Seat, Center
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72830-60080-E0 note Armrest Assy, Rear Seat, Center
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72830-60110-B1 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72830-60110-E0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72830-60120-B0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72830-60120-B0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72830-60120-E0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72830-60120-E0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72830B — Bush(FOR REAR SEAT CENTER ARMREST)
90386-11015 Bush(FOR REAR SEAT CENTER ARMREST)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
90386-11015 Bush(FOR REAR SEAT CENTER ARMREST)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72927B — Cover, Rear Seat Cushion Under
72907-60010-B0 note Cover, Rear Seat Cushion Under
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72907-60020-B0 note Cover, Rear Seat Cushion Under
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72907-60030-B0 note Cover, Rear Seat Cushion Under
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
72907-60030-B0 note Cover, Rear Seat Cushion Under
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72907-60030-E0 note Cover, Rear Seat Cushion Under
1999-06 → 2000-08 ended
VZJ90 —
72907-60030-E0 note Cover, Rear Seat Cushion Under
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72907-60030-E0 note Cover, Rear Seat Cushion Under
1999-06 → 2002-09 ended
KZJ90 —
72907-60030-E0 note Cover, Rear Seat Cushion Under
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72907-60060-B0 note Cover, Rear Seat Cushion Under
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72907-60060-E0 note Cover, Rear Seat Cushion Under
1999-06 → 2000-08 ended
VZJ95 —
72907-60060-E0 note Cover, Rear Seat Cushion Under
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72907-60060-E0 note Cover, Rear Seat Cushion Under
1999-06 → 2002-09 ended
KZJ95 —
72907-60060-E0 note Cover, Rear Seat Cushion Under
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
78950 — Band Assy, Fold Seat Stopper, NO.1
78950-60060-B0 note Band Assy, Fold Seat Stopper, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
78950-60080-B0 note Band Assy, Fold Seat Stopper, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
78950-60090-B0 note Band Assy, Fold Seat Stopper, NO.1
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
78950-60090-B0 note Band Assy, Fold Seat Stopper, NO.1
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
78950-60090-E0 note Band Assy, Fold Seat Stopper, NO.1
1999-06 → 2000-08 ended
VZJ90 —
78950-60090-E0 note Band Assy, Fold Seat Stopper, NO.1
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
78950-60090-E0 note Band Assy, Fold Seat Stopper, NO.1
1999-06 → 2002-09 ended
KZJ90 —
78950-60090-E0 note Band Assy, Fold Seat Stopper, NO.1
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
78950-60120-B0 note Band Assy, Fold Seat Stopper, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
78950-60120-E0 note Band Assy, Fold Seat Stopper, NO.1
1999-06 → 2000-08 ended
VZJ95 —
78950-60120-E0 note Band Assy, Fold Seat Stopper, NO.1
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
78950-60120-E0 note Band Assy, Fold Seat Stopper, NO.1
1999-06 → 2002-09 ended
KZJ95 —
78950-60120-E0 note Band Assy, Fold Seat Stopper, NO.1
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
79139H — Cloth, NO.3 Seat Cushion
79139-60010 Cloth, NO.3 Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
79139-60020 Cloth, NO.3 Seat Cushion
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
79139-60030 note Cloth, NO.3 Seat Cushion
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
