Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 710024F 71704 — BAND SUB-ASSY, REAR SIDE SEAT (1 parts) 71530B — CUSHION ASSY, REAR SIDE SEAT (1 parts) 71560 — CUSHION ASSY, REAR SIDE SEAT, LH (1 parts) 71067 — FRAME SUB-ASSY, REAR SIDE SEATBACK, RH (1 parts) 71761A — PAD, REAR SIDE SEATBACK, RH (1 parts) 71088B — COVER SUB-ASSY, REAR SIDE SEATBACK, RH (1 parts) 71540A — BACK ASSY, REAR SIDE SEAT, RH (1 parts) 71761B — PAD, REAR SIDE SEATBACK, LH (1 parts) 71089B — COVER SUB-ASSY, REAR SIDE SEATBACK, LH (1 parts) 71550A — BACK ASSY, REAR SIDE SEAT, LH (1 parts) 71085B — COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH (1 parts) 71086B — COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH (1 parts) 71721 — PAD, REAR SIDE SEAT CUSHION, RH (1 parts) 71722 — PAD, REAR SIDE SEAT CUSHION, LH (1 parts) 71065 — FRAME SUB-ASSY, REAR SIDE SEAT CUSHION, RH (1 parts) 71066 — FRAME SUB-ASSY, REAR SIDE SEAT CUSHION, LH (1 parts) 72966 — BRACKET, REAR SEAT TURN LOCK (1 parts) 71033B — LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH (1 parts) 71034A — LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH (1 parts) 9015960555 — not listed in this catalogue 9011910825 — not listed in this catalogue 71068 — FRAME SUB-ASSY, REAR SIDE SEATBACK, LH (1 parts) 9010908130 — not listed in this catalogue 9011910823 — not listed in this catalogue 9046814018 — not listed in this catalogue 9046814018 — not listed in this catalogue 9015960555 — not listed in this catalogue 9050820072 — not listed in this catalogue 9616000600 — not listed in this catalogue 9024908155 — not listed in this catalogue 71774 — PLATE, REAR SIDE SEAT HINGE (2 parts) 71774 — PLATE, REAR SIDE SEAT HINGE (2 parts)

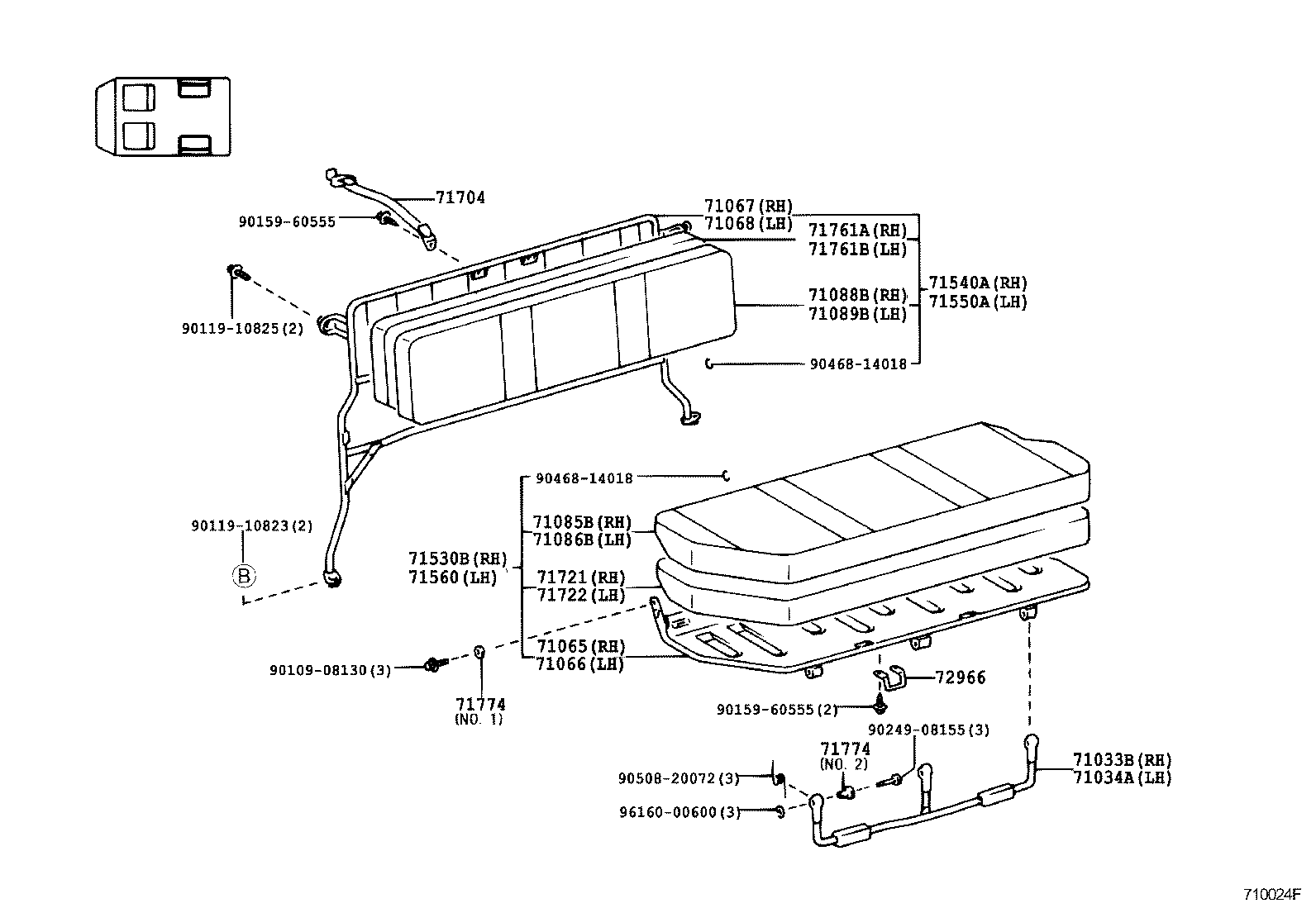

710024F · 22 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
71033B — Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
71033-60270 Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71034A — Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71034-60160 Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71065 — Frame Sub-assy, Rear Side Seat Cushion, RH
71075-60720 Frame Sub-assy, Rear Side Seat Cushion, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71066 — Frame Sub-assy, Rear Side Seat Cushion, LH
71066-60030 Frame Sub-assy, Rear Side Seat Cushion, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71067 — Frame Sub-assy, Rear Side Seatback, RH
71067-60070 Frame Sub-assy, Rear Side Seatback, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71068 — Frame Sub-assy, Rear Side Seatback, LH
71068-60060 Frame Sub-assy, Rear Side Seatback, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71085B — Cover Sub-assy, Rear Side Seat Cushion, RH
71085-60330-B1 note Cover Sub-assy, Rear Side Seat Cushion, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71086B — Cover Sub-assy, Rear Side Seat Cushion, LH
71086-60310-B1 note Cover Sub-assy, Rear Side Seat Cushion, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71088B — Cover Sub-assy, Rear Side Seatback, RH
71088-60400-B1 note Cover Sub-assy, Rear Side Seatback, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71089B — Cover Sub-assy, Rear Side Seatback, LH
71089-60300-B1 note Cover Sub-assy, Rear Side Seatback, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71530B — Cushion Assy, Rear Side Seat
71530-60070-B0 note Cushion Assy, Rear Side Seat
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71540A — Back Assy, Rear Side Seat, RH
71540-60050-B0 note Back Assy, Rear Side Seat, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71550A — Back Assy, Rear Side Seat, LH
71550-60070-B0 note Back Assy, Rear Side Seat, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71560 — Cushion Assy, Rear Side Seat, LH
71560-60220-B0 note Cushion Assy, Rear Side Seat, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71704 — Band Sub-assy, Rear Side Seat
71704-60060-B0 note Band Sub-assy, Rear Side Seat
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71721 — Pad, Rear Side Seat Cushion, RH
71721-60070 Pad, Rear Side Seat Cushion, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71722 — Pad, Rear Side Seat Cushion, LH
71722-60070 Pad, Rear Side Seat Cushion, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71761A — Pad, Rear Side Seatback, RH
71761-60060 Pad, Rear Side Seatback, RH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71761B — Pad, Rear Side Seatback, LH
71762-60030 Pad, Rear Side Seatback, LH
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71774 — Plate, Rear Side Seat Hinge
71717-60020 note Plate, Rear Side Seat Hinge
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71774-60030 note Plate, Rear Side Seat Hinge
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
72966 — Bracket, Rear Seat Turn Lock
72966-60010 Bracket, Rear Seat Turn Lock
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
