Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

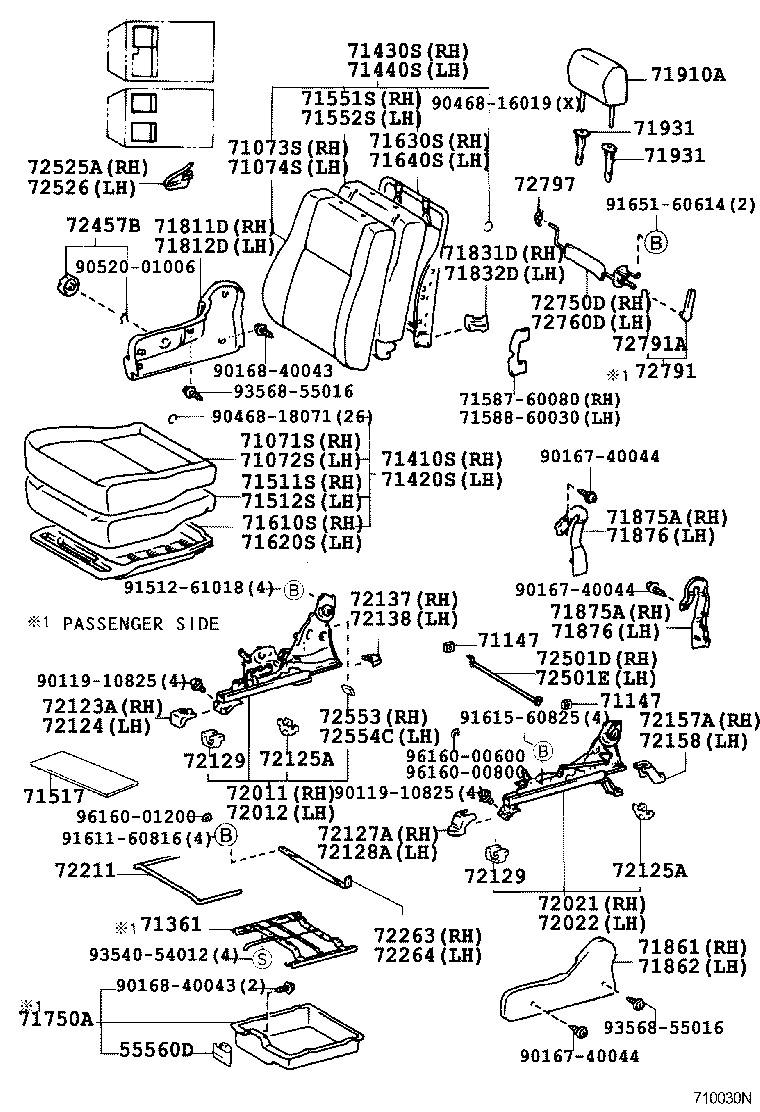

Exploded illustration 710030N 9046816019 — not listed in this catalogue 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (14 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (16 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (22 parts) 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (24 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (5 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (6 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (6 parts) 72457B — KNOB, VERTICAL SEAT ADJUSTER, RH (6 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (14 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (14 parts) 72797 — SPACER, LUMBAR SUPPORT (2 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (26 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (31 parts) 9165160614 — not listed in this catalogue 71831D — COVER, FRONT SEAT HINGE, RH (2 parts) 71832D — COVER, FRONT SEAT HINGE, LH (2 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72791 — LEVER, LUMBAR SUPPORT (6 parts) 72791A — RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) (2 parts) 9016840043 — not listed in this catalogue 9356855016 — not listed in this catalogue 9046818071 — not listed in this catalogue 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (18 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (18 parts) 9151261018 — not listed in this catalogue 9011910825 — not listed in this catalogue 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (3 parts) 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (17 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (17 parts) 71610S — SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (2 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (29 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (4 parts) 9016740044 — not listed in this catalogue 9011910825 — not listed in this catalogue 9616000600 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (29 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (29 parts) 9016740044 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (10 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (13 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (12 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (13 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (14 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (12 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (12 parts) 9161560825 — not listed in this catalogue 72263 — REINFORCEMENT, INNER SEAT TRACK, RH (2 parts) 72264 — REINFORCEMENT, INNER SEAT TRACK, LH (2 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (9 parts) 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (11 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (6 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (6 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (6 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (6 parts) 72137 — COVER, SEAT TRACK, OUTER RH (12 parts) 72138 — COVER, SEAT TRACK, OUTER LH (12 parts) 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (3 parts) 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (3 parts) 72554C — COVER, RECLINING PEDAL, LH (1 parts) 71361 — BRACKET, FRONT SEAT SET, NO.1 (8 parts) 71750A — TRAY ASSY, FRONT SEAT UNDER (11 parts) 9354054012 — not listed in this catalogue 9016840043 — not listed in this catalogue 9356855016 — not listed in this catalogue 9016740044 — not listed in this catalogue 9161160816 — not listed in this catalogue 72211 — HANDLE, SEAT TRACK ADJUSTING (6 parts) 9616000800 — not listed in this catalogue 55560D — LOCK ASSY, SEAT UNDER TRAY (10 parts) 7158760080 — not listed in this catalogue 7158860030 — not listed in this catalogue 9616001200 — not listed in this catalogue 71147 — SILENCER, SEAT SPRING (2 parts) 71147 — SILENCER, SEAT SPRING (2 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (4 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (4 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (4 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (29 parts) 72553 — COVER, RECLINING PEDAL (1 parts) 9052001006 — not listed in this catalogue 71517 — CLOTH, FRONT SEAT CUSHION UNDER (1 parts)
710030N · 66 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
552 parts on this figure
Part number Description Fitment Price
55560D — Lock Assy, Seat Under Tray
72250-36010-B0 note Lock Assy, Seat Under Tray
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
55560-95J00-C0 note Lock Assy, Seat Under Tray
1999-06 → 2000-08 ended
KZJ9#,VZJ9# —
55560-95J00-C0 note Lock Assy, Seat Under Tray
2000-08 → 2001-08 ended
KZJ9# —
55560-95J00-C0 note Lock Assy, Seat Under Tray
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
55560-95J00-C0 note Lock Assy, Seat Under Tray
2001-08 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72250-36010-C0 note Lock Assy, Seat Under Tray
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
72250-36010-C0 note Lock Assy, Seat Under Tray
2000-08 → 2001-08 ended
KZJ95 —
72250-36010-C0 note Lock Assy, Seat Under Tray
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72250-36010-C0 note Lock Assy, Seat Under Tray
2000-08 → 2002-09 ended
VZJ90 —
72250-36010-C0 note Lock Assy, Seat Under Tray
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-60710-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ95,VZJ95 —
71071-60730-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ9#,VZJ95 RHD —
71071-60830-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ9#,VZJ9# LHD —
71071-60860-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-10 → 1999-06 ended
KZJ95,VZJ95 —
71071-6A100-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-10 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71072-60740-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1998-10 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71071-6A110-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71071-6A130-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71071-6A130-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71071-6A180-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A180-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A190-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A190-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A210-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A210-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A220-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A220-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A230-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71071-60730-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ9#,VZJ9# LHD —
71071-60830-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ9#,VZJ95 RHD —
71071-6A100-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1998-10 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71072-60600-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ95,VZJ95 —
71072-60650-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1998-10 → 1999-06 ended
KZJ95,VZJ95 —
71072-60740-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1998-10 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71071-6A130-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71071-6A130-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71071-6A180-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A180-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A190-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A190-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A210-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A210-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71071-6A220-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71071-6A220-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71072-60770-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71072-60790-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-60710-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71073-60730-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71073-60790-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71027-60010-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2001-08 ended
KDJ90 RHD —
71073-6A120-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71073-6A120-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71073-6A170-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71073-6A170-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71073-6A180-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71073-6A180-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71073-6A260-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71073-6A260-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71073-6A270-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-08 → 2000-09 ended
KDJ90 RHD —
71073-6A270-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95;KDJ90,VZJ90 LHD —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71073-60730-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 LHD —
71073-60730-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71074-60650-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71074-60670-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71073-6A120-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71073-6A120-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71073-6A180-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71073-6A180-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71074-60760-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71074-60760-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71074-60790-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71074-60790-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71074-60790-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71074-60800-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2000-09 ended
KDJ90,VZJ90 LHD —
71074-60800-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90 RHD;KDJ95,VZJ95 —
71074-60820-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2001-08 ended
KDJ90,VZJ90 LHD —
71147 — Silencer, Seat Spring
71147-35010 Silencer, Seat Spring
1997-03 → 1999-06 ended
KZJ9#,VZJ9# —
71147-35010 Silencer, Seat Spring
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71361 — Bracket, Front Seat Set, NO.1
71361-60040 note Bracket, Front Seat Set, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
71361-60050 Bracket, Front Seat Set, NO.1
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71362-60030 note Bracket, Front Seat Set, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
71362-60040 Bracket, Front Seat Set, NO.1
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71361-60040 note Bracket, Front Seat Set, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71361-60050 Bracket, Front Seat Set, NO.1
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71362-60030 note Bracket, Front Seat Set, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71362-60040 Bracket, Front Seat Set, NO.1
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-6A300-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71410-6A340-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71410-6A400-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71410-6A640-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71410-6A650-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71410-6A760-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71410-6A780-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71410-6A890-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6A890-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B010-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B010-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B020-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B020-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B030-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B030-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B050-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71410-6B050-E0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71410-6A340-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71410-6A400-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71410-6A560-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71410-6A640-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71410-6A650-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71410-6A790-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71410-6A890-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6A890-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B010-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B010-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B020-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B020-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71410-6B030-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B030-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71410-6B050-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71410-6B050-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71420-6A630-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-60880-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
71430-6A060-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71430-6A070-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
71430-6A160-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71430-6A210-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71430-6A290-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71040-60310-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71040-60340-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71040-60340-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71040-60360-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60360-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60370-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ90,VZJ90 LHD —
71040-60370-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-01 → 2002-09 ended
KZJ95,VZJ95 LHD —
71040-60370-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ90,VZJ90 LHD —
71040-60370-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-01 → 2002-09 ended
KZJ95,VZJ95 LHD —
71040-60390-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60390-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60420-B1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71040-60420-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71040-60530-E1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90 RHD —
71040-60550-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71040-60551 Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71040-60580-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71040-60620-E0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ9#,VZJ9# LHD —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71430-60890-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
71430-6A030-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71430-6A080-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
71430-6A150-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71430-6A160-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71430-6A220-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71040-60340-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60340-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60350-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71040-60350-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71040-60380-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71040-60380-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71040-60400-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60400-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71040-60420-B1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71040-60420-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71040-60540-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71040-60541 Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71040-60590-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71040-60640-E1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 LHD —
71070-60220-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ9#,VZJ95 RHD —
71070-60240-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71501-60030 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ9#,VZJ9# —
71511-60110 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71501-60120 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71501-60030 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1996-04 → 1998-10 ended
KZJ9#,VZJ9# —
71511-60110 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71501-60120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71517 — Cloth, Front Seat Cushion Under
71517-35060 Cloth, Front Seat Cushion Under
2001-02 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71505-60050 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71551-60180 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71505-60050 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71551-60180 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71506-60050 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71551-60180 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71506-60050 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71551-60180 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71610S — Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71610-35060 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71610-35060 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71610-35060 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71610-35060 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-60110 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71630-60120 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71630-60110 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71630-60120 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71630-60110 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71630-60120 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71630-60110 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95;KDJ90,KZJ90,VZJ90 LHD —
71630-60120 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71630-60120 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71750A — Tray Assy, Front Seat Under
71750-60010-B0 note Tray Assy, Front Seat Under
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71750-60020-B0 note Tray Assy, Front Seat Under
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71750-60010-C0 note Tray Assy, Front Seat Under
1999-06 → 2000-08 ended
KZJ9#,VZJ9# —
71750-60010-C0 note Tray Assy, Front Seat Under
2000-08 → 2001-08 ended
KZJ9# —
71750-60010-C0 note Tray Assy, Front Seat Under
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71750-60010-C0 note Tray Assy, Front Seat Under
2001-08 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71750-60030-C0 note Tray Assy, Front Seat Under
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71750-60030-C0 note Tray Assy, Front Seat Under
2000-08 → 2001-08 ended
KZJ95 —
71750-60030-C0 note Tray Assy, Front Seat Under
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71750-60030-C0 note Tray Assy, Front Seat Under
2000-08 → 2002-09 ended
VZJ90 —
71750-60030-C0 note Tray Assy, Front Seat Under
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71811D — Shield, Front Seat Cushion, RH
71811-60050 Shield, Front Seat Cushion, RH
1996-04 → 1998-01 ended
KZJ9#,VZJ9# LHD —
71811-60051-B0 note Shield, Front Seat Cushion, RH
1998-12 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71811-60060-B0 note Shield, Front Seat Cushion, RH
1996-04 → 1998-01 ended
KZJ9#,VZJ95 RHD —
71811-60061-B0 note Shield, Front Seat Cushion, RH
1998-01 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71811-60070-B0 note Shield, Front Seat Cushion, RH
1996-04 → 1997-12 ended
KZJ95,VZJ95 RHD —
71811-60071-B0 note Shield, Front Seat Cushion, RH
1997-12 → 1999-06 ended
KZJ95,VZJ95 RHD —
71811-60080-B0 note Shield, Front Seat Cushion, RH
1996-04 → 1997-12 ended
KZJ95,VZJ95 LHD —
71811-60081-B0 note Shield, Front Seat Cushion, RH
1997-12 → 1999-06 ended
KZJ95,VZJ95 LHD —
71811-60051-B0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71811-60051-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2000-08 ended
VZJ9# LHD —
71811-60051-E0 note Shield, Front Seat Cushion, RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# LHD —
71811-60051-E0 note Shield, Front Seat Cushion, RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# LHD —
71811-60051-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KZJ9# LHD —
71811-60061-B0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71811-60061-E0 note Shield, Front Seat Cushion, RH
2001-08 → 2002-09 ended
KDJ90 RHD —
71811-60061-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 RHD —
71811-60061-E0 note Shield, Front Seat Cushion, RH
2000-08 → 2001-08 ended
KDJ90 RHD —
71811-60071-E0 note Shield, Front Seat Cushion, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71811-60071-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KZJ95 RHD —
71811-60071-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2000-08 ended
VZJ95 RHD —
71811-60071-E0 note Shield, Front Seat Cushion, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 RHD —
71811-60081-B0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71811-60081-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2002-09 ended
KZJ95 LHD —
71811-60081-E0 note Shield, Front Seat Cushion, RH
1999-06 → 2000-08 ended
VZJ95 LHD —
71811-60081-E0 note Shield, Front Seat Cushion, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
71811-60081-E0 note Shield, Front Seat Cushion, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71812D — Shield, Front Seat Cushion, LH
71812-60050-B0 note Shield, Front Seat Cushion, LH
1996-04 → 1998-01 ended
KZJ9#,VZJ95 RHD —
71812-60051-B0 note Shield, Front Seat Cushion, LH
1998-01 → 1999-06 ended
KZJ9#,VZJ95 RHD —
71812-60060-B0 note Shield, Front Seat Cushion, LH
1996-04 → 1998-01 ended
KZJ9#,VZJ9# LHD —
71812-60061-B0 note Shield, Front Seat Cushion, LH
1998-01 → 1999-06 ended
KZJ9#,VZJ9# LHD —
71812-60070-B0 note Shield, Front Seat Cushion, LH
1996-04 → 1997-12 ended
KZJ95,VZJ95 LHD —
71812-60071-B0 note Shield, Front Seat Cushion, LH
1997-12 → 1999-06 ended
KZJ95,VZJ95 LHD —
71812-60080-B0 note Shield, Front Seat Cushion, LH
1996-04 → 1997-12 ended
KZJ95,VZJ95 RHD —
71812-60081-B0 note Shield, Front Seat Cushion, LH
1997-12 → 1999-06 ended
KZJ95,VZJ95 RHD —
71812-60051-B0 note Shield, Front Seat Cushion, LH
2000-08 → 2002-09 ended
KZJ90 —
71812-60051-B0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
71812-60051-E0 note Shield, Front Seat Cushion, LH
2001-08 → 2002-09 ended
KDJ90 RHD —
71812-60051-E0 note Shield, Front Seat Cushion, LH
2000-08 → 2002-09 ended
KZJ90 —
71812-60051-E0 note Shield, Front Seat Cushion, LH
2000-08 → 2001-08 ended
KDJ90 RHD —
71812-60051-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 RHD —
71812-60061-B0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
71812-60061-E0 note Shield, Front Seat Cushion, LH
2000-08 → 2001-08 ended
KDJ90,VZJ90 LHD —
71812-60061-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 LHD —
71812-60061-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2000-08 ended
VZJ90 —
71812-60061-E0 note Shield, Front Seat Cushion, LH
2001-08 → 2002-09 ended
KDJ90,VZJ90 LHD —
71812-60071-B0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KZJ95,VZJ95 LHD —
71812-60071-B0 note Shield, Front Seat Cushion, LH
2000-08 → 2002-09 ended
KDJ95 LHD —
71812-60071-E0 note Shield, Front Seat Cushion, LH
2000-08 → 2001-08 ended
VZJ95 LHD —
71812-60071-E0 note Shield, Front Seat Cushion, LH
2000-08 → 2001-08 ended
KDJ95 LHD —
71812-60071-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KZJ95 LHD —
71812-60071-E0 note Shield, Front Seat Cushion, LH
2001-08 → 2002-09 ended
VZJ95 LHD —
71812-60071-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2000-08 ended
VZJ95 LHD —
71812-60071-E0 note Shield, Front Seat Cushion, LH
2001-08 → 2002-09 ended
KDJ95 LHD —
71812-60081-E0 note Shield, Front Seat Cushion, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71812-60081-E0 note Shield, Front Seat Cushion, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 RHD —
71812-60081-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2000-08 ended
VZJ95 RHD —
71812-60081-E0 note Shield, Front Seat Cushion, LH
1999-06 → 2002-09 ended
KZJ95 RHD —
71831D — Cover, Front Seat Hinge, RH
71831-35050 Cover, Front Seat Hinge, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71831-35050 Cover, Front Seat Hinge, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71832D — Cover, Front Seat Hinge, LH
71832-35050 Cover, Front Seat Hinge, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71832-35050 Cover, Front Seat Hinge, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71861 — Shield, Front Seat Cushion, Inner RH
71861-60040-B0 note Shield, Front Seat Cushion, Inner RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71861-60040-B0 note Shield, Front Seat Cushion, Inner RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71861-60040-E0 note Shield, Front Seat Cushion, Inner RH
1999-06 → 2000-08 ended
VZJ9# —
71861-60040-E0 note Shield, Front Seat Cushion, Inner RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71861-60040-E0 note Shield, Front Seat Cushion, Inner RH
1999-06 → 2002-09 ended
KZJ9# —
71861-60040-E0 note Shield, Front Seat Cushion, Inner RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71862 — Shield, Front Seat Cushion, Inner LH
71862-60040-B0 note Shield, Front Seat Cushion, Inner LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71862-60040-B0 note Shield, Front Seat Cushion, Inner LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71862-60040-E0 note Shield, Front Seat Cushion, Inner LH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71862-60040-E0 note Shield, Front Seat Cushion, Inner LH
1999-06 → 2002-09 ended
KZJ9# —
71862-60040-E0 note Shield, Front Seat Cushion, Inner LH
1999-06 → 2000-08 ended
VZJ9# —
71862-60040-E0 note Shield, Front Seat Cushion, Inner LH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71875A — Cover, Reclining Adjuster Inside, RH
71875-60030-B0 note Cover, Reclining Adjuster Inside, RH
1996-04 → 1999-06 ended
KZJ90 RHD;KZJ95,VZJ95 —
71875-60040-B0 note Cover, Reclining Adjuster Inside, RH
1996-04 → 1999-06 ended
KZJ90,VZJ90 LHD —
71875-60050-B0 note Cover, Reclining Adjuster Inside, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71875-60060-B0 note Cover, Reclining Adjuster Inside, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71876-60060-B0 note Cover, Reclining Adjuster Inside, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71875-60030-B0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD;KDJ95,KZJ95,VZJ95 —
71875-60030-E0 note Cover, Reclining Adjuster Inside, RH
2001-08 → 2002-09 ended
KDJ90 RHD —
71875-60030-E0 note Cover, Reclining Adjuster Inside, RH
2000-08 → 2001-08 ended
KDJ90 RHD —
71875-60030-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KZJ90 RHD;KDJ95,KZJ95,VZJ95 —
71875-60040-B0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 LHD —
71875-60040-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2000-08 ended
VZJ90 —
71875-60040-E0 note Cover, Reclining Adjuster Inside, RH
2001-08 → 2002-09 ended
KDJ90,VZJ90 LHD —
71875-60040-E0 note Cover, Reclining Adjuster Inside, RH
2000-08 → 2001-08 ended
KDJ90,VZJ90 LHD —
71875-60040-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KZJ90 LHD —
71875-60050-B0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71875-60050-E0 note Cover, Reclining Adjuster Inside, RH
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71875-60050-E0 note Cover, Reclining Adjuster Inside, RH
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
71875-60050-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
71875-60050-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2000-08 ended
VZJ90 —
71875-60060-B0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71875-60060-E0 note Cover, Reclining Adjuster Inside, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71875-60060-E0 note Cover, Reclining Adjuster Inside, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71875-60060-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2000-08 ended
VZJ95 —
71875-60060-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KZJ95 —
71876-60060-B0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71876-60060-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KZJ95 —
71876-60060-E0 note Cover, Reclining Adjuster Inside, RH
1999-06 → 2000-08 ended
VZJ95 —
71876-60060-E0 note Cover, Reclining Adjuster Inside, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71876-60060-E0 note Cover, Reclining Adjuster Inside, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71876 — Cover, Reclining Adjuster Inside, LH
71875-60070-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71876-60030-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95;KZJ90,VZJ90 LHD —
71876-60040-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ90 RHD —
71876-60050-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71876-60070-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71875-60070-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71876-60030-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95;KDJ90,KZJ90,VZJ90 LHD —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ90,VZJ90 LHD —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ90,VZJ90 LHD —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ90 LHD;KDJ95,KZJ95,VZJ95 —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ90 —
71876-60040-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD —
71876-60040-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ90 RHD —
71876-60040-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ90 RHD —
71876-60040-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ90 RHD —
71876-60050-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ90 —
71876-60070-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71910A — Headrest Assy, Front Seat
71910-60250-B1 note Headrest Assy, Front Seat
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71910-60280-B0 note Headrest Assy, Front Seat
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71910-60460-B0 note Headrest Assy, Front Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E1 note Headrest Assy, Front Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E2 note Headrest Assy, Front Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60480-B2 note Headrest Assy, Front Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60480-E1 note Headrest Assy, Front Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60490-B2 note Headrest Assy, Front Seat
2000-08 → 2002-09 ended
KZJ90 —
71910-60490-E1 note Headrest Assy, Front Seat
2000-08 → 2002-09 ended
KZJ90 —
71940-60290-A0 note Headrest Assy, Front Seat
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71931 — Support, Front Seat Headrest
71930-13030-B2 note Support, Front Seat Headrest
1998-08 → 1999-06 ended
KZJ9#,VZJ9# —
71930-32020-B2 note Support, Front Seat Headrest
1996-04 → 1997-02 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Front Seat Headrest
1997-02 → 1998-08 ended
KZJ9#,VZJ9# —
71931-12040-P6 note Support, Front Seat Headrest
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71930-13030-B2 note Support, Front Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71930-13030-E0 note Support, Front Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71930-13030-E0 note Support, Front Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71930-13030-E0 note Support, Front Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71930-13030-E0 note Support, Front Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71931-12040-E8 note Support, Front Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71931-12040-E8 note Support, Front Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71931-12040-E8 note Support, Front Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71931-12040-E8 note Support, Front Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71931-12040-P6 note Support, Front Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-60090 note Adjuster Sub-assy, Front Seat, Outer RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
72010-60100 note Adjuster Sub-assy, Front Seat, Outer RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
72011-60010 Adjuster Sub-assy, Front Seat, Outer RH
1996-04 → 1998-01 ended
KZJ95,VZJ95 LHD —
72011-60011 Adjuster Sub-assy, Front Seat, Outer RH
1998-01 → 1999-06 ended
KZJ95,VZJ95 LHD —
72011-60020 Adjuster Sub-assy, Front Seat, Outer RH
1996-04 → 1998-01 ended
KZJ9#,VZJ95 RHD —
72011-60021 Adjuster Sub-assy, Front Seat, Outer RH
1998-01 → 1999-06 ended
KZJ9#,VZJ95 RHD —
72011-60030 Adjuster Sub-assy, Front Seat, Outer RH
1996-04 → 1998-01 ended
KZJ90,VZJ90 LHD —
72011-60031 Adjuster Sub-assy, Front Seat, Outer RH
1998-01 → 1999-06 ended
KZJ90,VZJ90 LHD —
72010-60091 note Adjuster Sub-assy, Front Seat, Outer RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72010-60101 note Adjuster Sub-assy, Front Seat, Outer RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72011-60022 Adjuster Sub-assy, Front Seat, Outer RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
72011-60032 Adjuster Sub-assy, Front Seat, Outer RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 LHD —
72011-60090 Adjuster Sub-assy, Front Seat, Outer RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-60010 Adjuster Sub-assy, Front Seat, Outer LH
1996-04 → 1998-01 ended
KZJ95,VZJ95 RHD —
72012-60011 Adjuster Sub-assy, Front Seat, Outer LH
1998-01 → 1999-06 ended
KZJ95,VZJ95 RHD —
72012-60020 Adjuster Sub-assy, Front Seat, Outer LH
1996-04 → 1998-01 ended
KZJ9#,VZJ9# LHD —
72012-60021 Adjuster Sub-assy, Front Seat, Outer LH
1998-01 → 1999-06 ended
KZJ9#,VZJ9# LHD —
72012-60030 Adjuster Sub-assy, Front Seat, Outer LH
1996-04 → 1998-01 ended
KZJ90 RHD —
72012-60031 Adjuster Sub-assy, Front Seat, Outer LH
1998-01 → 1999-06 ended
KZJ90 RHD —
72020-60110 note Adjuster Sub-assy, Front Seat, Outer LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
72020-60120 note Adjuster Sub-assy, Front Seat, Outer LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
72012-60012 Adjuster Sub-assy, Front Seat, Outer LH
2000-08 → 2002-09 ended
KZJ90 —
72012-60022 note Adjuster Sub-assy, Front Seat, Outer LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
72012-60032 Adjuster Sub-assy, Front Seat, Outer LH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD —
72012-60100 Adjuster Sub-assy, Front Seat, Outer LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72020-60111 note Adjuster Sub-assy, Front Seat, Outer LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72020-60121 note Adjuster Sub-assy, Front Seat, Outer LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-60010 Adjuster Sub-assy, Front Seat, Inner RH
1996-04 → 1998-01 ended
KZJ95,VZJ95 LHD —
72021-60011 Adjuster Sub-assy, Front Seat, Inner RH
1998-01 → 1999-06 ended
KZJ95,VZJ95 LHD —
72021-60020 Adjuster Sub-assy, Front Seat, Inner RH
1996-04 → 1998-01 ended
KZJ9#,VZJ95 RHD —
72021-60021 Adjuster Sub-assy, Front Seat, Inner RH
1998-01 → 1999-06 ended
KZJ9#,VZJ95 RHD —
72021-60030 Adjuster Sub-assy, Front Seat, Inner RH
1996-04 → 1998-01 ended
KZJ90,VZJ90 LHD —
72021-60031 Adjuster Sub-assy, Front Seat, Inner RH
1998-01 → 1999-06 ended
KZJ90,VZJ90 LHD —
72021-60022 Adjuster Sub-assy, Front Seat, Inner RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
72021-60032 Adjuster Sub-assy, Front Seat, Inner RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 LHD —
72021-60070 Adjuster Sub-assy, Front Seat, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-60010 Adjuster Sub-assy, Front Seat, Inner LH
1996-04 → 1998-01 ended
KZJ95,VZJ95 RHD —
72022-60011 Adjuster Sub-assy, Front Seat, Inner LH
1998-01 → 1999-06 ended
KZJ95,VZJ95 RHD —
72022-60020 Adjuster Sub-assy, Front Seat, Inner LH
1996-04 → 1998-01 ended
KZJ9#,VZJ9# LHD —
72022-60021 Adjuster Sub-assy, Front Seat, Inner LH
1998-01 → 1999-06 ended
KZJ9#,VZJ9# LHD —
72022-60030 Adjuster Sub-assy, Front Seat, Inner LH
1996-04 → 1998-01 ended
KZJ90 RHD —
72022-60031 Adjuster Sub-assy, Front Seat, Inner LH
1998-01 → 1999-06 ended
KZJ90 RHD —
72022-60012 Adjuster Sub-assy, Front Seat, Inner LH
2000-08 → 2002-09 ended
KZJ90 —
72022-60022 note Adjuster Sub-assy, Front Seat, Inner LH
1999-06 → 2002-09 ended
KZJ9#,VZJ9# LHD —
72022-60022 Adjuster Sub-assy, Front Seat, Inner LH
2000-08 → 2002-09 ended
KDJ9# LHD —
72022-60032 Adjuster Sub-assy, Front Seat, Inner LH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD —
72022-60080 Adjuster Sub-assy, Front Seat, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-60050-B0 note Cover, Seat Track Bracket, Outer Front RH
1996-04 → 1996-09 ended
KZJ9#,VZJ9# —
72123-60050-B0 note Cover, Seat Track Bracket, Outer Front RH
1996-09 → 1999-06 ended
KZJ90,VZJ90 LHD —
72123-60070-B0 note Cover, Seat Track Bracket, Outer Front RH
1996-09 → 1999-06 ended
KZJ90 RHD;KZJ95,VZJ95 —
72123-60050-B0 note Cover, Seat Track Bracket, Outer Front RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 LHD —
72123-60050-E0 note Cover, Seat Track Bracket, Outer Front RH
2000-08 → 2001-08 ended
KDJ90,VZJ90 LHD —
72123-60050-E0 note Cover, Seat Track Bracket, Outer Front RH
1999-06 → 2000-08 ended
VZJ90 —
72123-60050-E0 note Cover, Seat Track Bracket, Outer Front RH
1999-06 → 2002-09 ended
KZJ90 LHD —
72123-60050-E0 note Cover, Seat Track Bracket, Outer Front RH
2001-08 → 2002-09 ended
KDJ90,VZJ90 LHD —
72123-60070-B0 note Cover, Seat Track Bracket, Outer Front RH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD;KDJ95,KZJ95,VZJ95 —
72123-60070-E0 note Cover, Seat Track Bracket, Outer Front RH
2000-08 → 2001-08 ended
KDJ90 RHD;KDJ95,VZJ95 —
72123-60070-E0 note Cover, Seat Track Bracket, Outer Front RH
1999-06 → 2002-09 ended
KZJ95;KZJ90 RHD —
72123-60070-E0 note Cover, Seat Track Bracket, Outer Front RH
2001-08 → 2002-09 ended
KDJ90 RHD;KDJ95,VZJ95 —
72123-60070-E0 note Cover, Seat Track Bracket, Outer Front RH
1999-06 → 2000-08 ended
VZJ95 —
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-60030-B0 note Cover, Seat Track Bracket, Outer Front LH
1996-04 → 1996-09 ended
KZJ9#,VZJ9# —
72124-60030-B0 note Cover, Seat Track Bracket, Outer Front LH
1996-09 → 1999-06 ended
KZJ90 RHD —
72124-60040-B0 note Cover, Seat Track Bracket, Outer Front LH
1996-09 → 1999-06 ended
KZJ95,VZJ95;KZJ90,VZJ90 LHD —
72124-60030-B0 note Cover, Seat Track Bracket, Outer Front LH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD —
72124-60030-E0 note Cover, Seat Track Bracket, Outer Front LH
1999-06 → 2002-09 ended
KZJ90 RHD —
72124-60030-E0 note Cover, Seat Track Bracket, Outer Front LH
2001-08 → 2002-09 ended
KDJ90 RHD —
72124-60030-E0 note Cover, Seat Track Bracket, Outer Front LH
2000-08 → 2001-08 ended
KDJ90 RHD —
72124-60040-B0 note Cover, Seat Track Bracket, Outer Front LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95;KDJ90,KZJ90,VZJ90 LHD —
72124-60040-E0 note Cover, Seat Track Bracket, Outer Front LH
2000-08 → 2001-08 ended
KDJ95,VZJ95;KDJ90,VZJ90 LHD —
72124-60040-E0 note Cover, Seat Track Bracket, Outer Front LH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD —
72124-60040-E0 note Cover, Seat Track Bracket, Outer Front LH
2001-08 → 2002-09 ended
KDJ95,VZJ95;KDJ90,VZJ90 LHD —
72124-60040-E0 note Cover, Seat Track Bracket, Outer Front LH
1999-06 → 2000-08 ended
VZJ9# —
72125A — Cover, Seat Track, Upper Rear
72125-60070 Cover, Seat Track, Upper Rear
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72125-60070 Cover, Seat Track, Upper Rear
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-60010-B0 note Cover, Seat Track Bracket, Inner Front RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72127-60010-B0 note Cover, Seat Track Bracket, Inner Front RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front RH
1999-06 → 2000-08 ended
VZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front RH
1999-06 → 2002-09 ended
KZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72128A — Cover, Seat Track Bracket, Inner Front LH
72127-60010-B0 note Cover, Seat Track Bracket, Inner Front LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72127-60010-B0 note Cover, Seat Track Bracket, Inner Front LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front LH
1999-06 → 2002-09 ended
KZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front LH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front LH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72127-60010-E0 note Cover, Seat Track Bracket, Inner Front LH
1999-06 → 2000-08 ended
VZJ9# —
72129 — Protector, Seat Track Lower Rail, NO.1
72129-60030 Protector, Seat Track Lower Rail, NO.1
1996-04 → 1998-01 ended
KZJ9#,VZJ9# —
72129-60040 Protector, Seat Track Lower Rail, NO.1
1998-01 → 1999-06 ended
KZJ9#,VZJ9# —
72129-60040 Protector, Seat Track Lower Rail, NO.1
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72129-60040 Protector, Seat Track Lower Rail, NO.1
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72137 — Cover, Seat Track, Outer RH
72137-60030-B0 note Cover, Seat Track, Outer RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72137-60070 note Cover, Seat Track, Outer RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72137-60030-B0 note Cover, Seat Track, Outer RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer RH
1999-06 → 2000-08 ended
VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer RH
1999-06 → 2002-09 ended
KZJ9# —
72137-60070-B0 note Cover, Seat Track, Outer RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72137-60070-E0 note Cover, Seat Track, Outer RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
72137-60070-E0 note Cover, Seat Track, Outer RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72137-60070-E0 note Cover, Seat Track, Outer RH
1999-06 → 2000-08 ended
VZJ95 —
72137-60070-E0 note Cover, Seat Track, Outer RH
1999-06 → 2002-09 ended
KZJ95 —
72138 — Cover, Seat Track, Outer LH
72137-60030-B0 note Cover, Seat Track, Outer LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72138-60050 note Cover, Seat Track, Outer LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72137-60030-B0 note Cover, Seat Track, Outer LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer LH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer LH
1999-06 → 2000-08 ended
VZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer LH
1999-06 → 2002-09 ended
KZJ9# —
72137-60030-E0 note Cover, Seat Track, Outer LH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72138-60050-B0 note Cover, Seat Track, Outer LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72138-60050-E0 note Cover, Seat Track, Outer LH
1999-06 → 2000-08 ended
VZJ95 —
72138-60050-E0 note Cover, Seat Track, Outer LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72138-60050-E0 note Cover, Seat Track, Outer LH
1999-06 → 2002-09 ended
KZJ95 —
72138-60050-E0 note Cover, Seat Track, Outer LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-60050-B0 note Cover, Seat Track Bracket, Inner RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72157-60080 note Cover, Seat Track Bracket, Inner RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72157-60050-B0 note Cover, Seat Track Bracket, Inner RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72157-60050-E0 note Cover, Seat Track Bracket, Inner RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72157-60050-E0 note Cover, Seat Track Bracket, Inner RH
1999-06 → 2002-09 ended
KZJ9# —
72157-60050-E0 note Cover, Seat Track Bracket, Inner RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72157-60050-E0 note Cover, Seat Track Bracket, Inner RH
1999-06 → 2000-08 ended
VZJ9# —
72157-60080-B0 note Cover, Seat Track Bracket, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72157-60080-E0 note Cover, Seat Track Bracket, Inner RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72157-60080-E0 note Cover, Seat Track Bracket, Inner RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
72157-60080-E0 note Cover, Seat Track Bracket, Inner RH
1999-06 → 2000-08 ended
VZJ95 —
72157-60080-E0 note Cover, Seat Track Bracket, Inner RH
1999-06 → 2002-09 ended
KZJ95 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-60020-B0 note Cover, Seat Track Bracket, Inner LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72158-60050 note Cover, Seat Track Bracket, Inner LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72158-60020-B0 note Cover, Seat Track Bracket, Inner LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72158-60020-E0 note Cover, Seat Track Bracket, Inner LH
1999-06 → 2000-08 ended
VZJ9# —
72158-60020-E0 note Cover, Seat Track Bracket, Inner LH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72158-60020-E0 note Cover, Seat Track Bracket, Inner LH
1999-06 → 2002-09 ended
KZJ9# —
72158-60020-E0 note Cover, Seat Track Bracket, Inner LH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72158-60050-B0 note Cover, Seat Track Bracket, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72158-60050-E0 note Cover, Seat Track Bracket, Inner LH
1999-06 → 2000-08 ended
VZJ95 —
72158-60050-E0 note Cover, Seat Track Bracket, Inner LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72158-60050-E0 note Cover, Seat Track Bracket, Inner LH
1999-06 → 2002-09 ended
KZJ95 —
72158-60050-E0 note Cover, Seat Track Bracket, Inner LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
72211 — Handle, Seat Track Adjusting
72211-60090 note Handle, Seat Track Adjusting
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72211-60100 note Handle, Seat Track Adjusting
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
72211-60110 note Handle, Seat Track Adjusting
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72211-60090 note Handle, Seat Track Adjusting
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72211-60100 note Handle, Seat Track Adjusting
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72211-60110 note Handle, Seat Track Adjusting
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72263 — Reinforcement, Inner Seat Track, RH
72263-60030 Reinforcement, Inner Seat Track, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72263-60030 Reinforcement, Inner Seat Track, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72264 — Reinforcement, Inner Seat Track, LH
72263-60030 Reinforcement, Inner Seat Track, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72263-60030 Reinforcement, Inner Seat Track, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72457B — Knob, Vertical Seat Adjuster, RH
72457-22020-B4 note Knob, Vertical Seat Adjuster, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72457-22020-B4 note Knob, Vertical Seat Adjuster, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72457-22020-E0 note Knob, Vertical Seat Adjuster, RH
1999-06 → 2000-08 ended
VZJ90 —
72457-22020-E0 note Knob, Vertical Seat Adjuster, RH
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72457-22020-E0 note Knob, Vertical Seat Adjuster, RH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
72457-22020-E0 note Knob, Vertical Seat Adjuster, RH
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72501-60040 Pipe Sub-assy, Reclining Connecting, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72501-60040 Pipe Sub-assy, Reclining Connecting, RH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72501-60040 Pipe Sub-assy, Reclining Connecting, RH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72501-60040 Pipe Sub-assy, Reclining Connecting, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72501-60040 Pipe Sub-assy, Reclining Connecting, LH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72501-60040 Pipe Sub-assy, Reclining Connecting, LH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-B7 note Handle, Reclining Adjuster Release, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72525-16010-B7 note Handle, Reclining Adjuster Release, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72525-16010-E1 note Handle, Reclining Adjuster Release, RH
1999-06 → 2000-08 ended
VZJ90 —
72525-16010-E1 note Handle, Reclining Adjuster Release, RH
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72525-16010-E1 note Handle, Reclining Adjuster Release, RH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
72525-16010-E1 note Handle, Reclining Adjuster Release, RH
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72526 — Handle, Reclining Adjuster Release, LH
72526-16010-B7 note Handle, Reclining Adjuster Release, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72526-16010-B7 note Handle, Reclining Adjuster Release, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72526-16010-E1 note Handle, Reclining Adjuster Release, LH
1999-06 → 2000-08 ended
VZJ90 —
72526-16010-E1 note Handle, Reclining Adjuster Release, LH
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72526-16010-E1 note Handle, Reclining Adjuster Release, LH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
72526-16010-E1 note Handle, Reclining Adjuster Release, LH
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72553 — Cover, Reclining Pedal
72553-12040 Cover, Reclining Pedal
1998-01 → 1999-06 ended
KZJ90,VZJ90 LHD —
72554C — Cover, Reclining Pedal, LH
72553-12040 Cover, Reclining Pedal, LH
1998-01 → 1999-06 ended
KZJ90 RHD —
72750D — Adjuster Assy, Lumbar Support, RH
72750-60030 Adjuster Assy, Lumbar Support, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ95 RHD —
72750-60040 note Adjuster Assy, Lumbar Support, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
72750-60030 Adjuster Assy, Lumbar Support, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ95 RHD —
72750-60040 note Adjuster Assy, Lumbar Support, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72760D — Adjuster Assy, Lumbar Support, LH
72760-60020 Adjuster Assy, Lumbar Support, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
72760-60030 note Adjuster Assy, Lumbar Support, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
72760-60020 Adjuster Assy, Lumbar Support, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# LHD —
72760-60030 note Adjuster Assy, Lumbar Support, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72791 — Lever, Lumbar Support
72791-12010-B3 note Lever, Lumbar Support
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72791-12010-B3 note Lever, Lumbar Support
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72791-12010-E0 note Lever, Lumbar Support
1999-06 → 2000-08 ended
VZJ90 —
72791-12010-E0 note Lever, Lumbar Support
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72791-12010-E0 note Lever, Lumbar Support
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
72791-12010-E0 note Lever, Lumbar Support
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72791A — Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
90520-01006 Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
90520-01006 Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
72797 — Spacer, Lumbar Support
72797-50010 Spacer, Lumbar Support
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72797-50010 Spacer, Lumbar Support
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
