Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

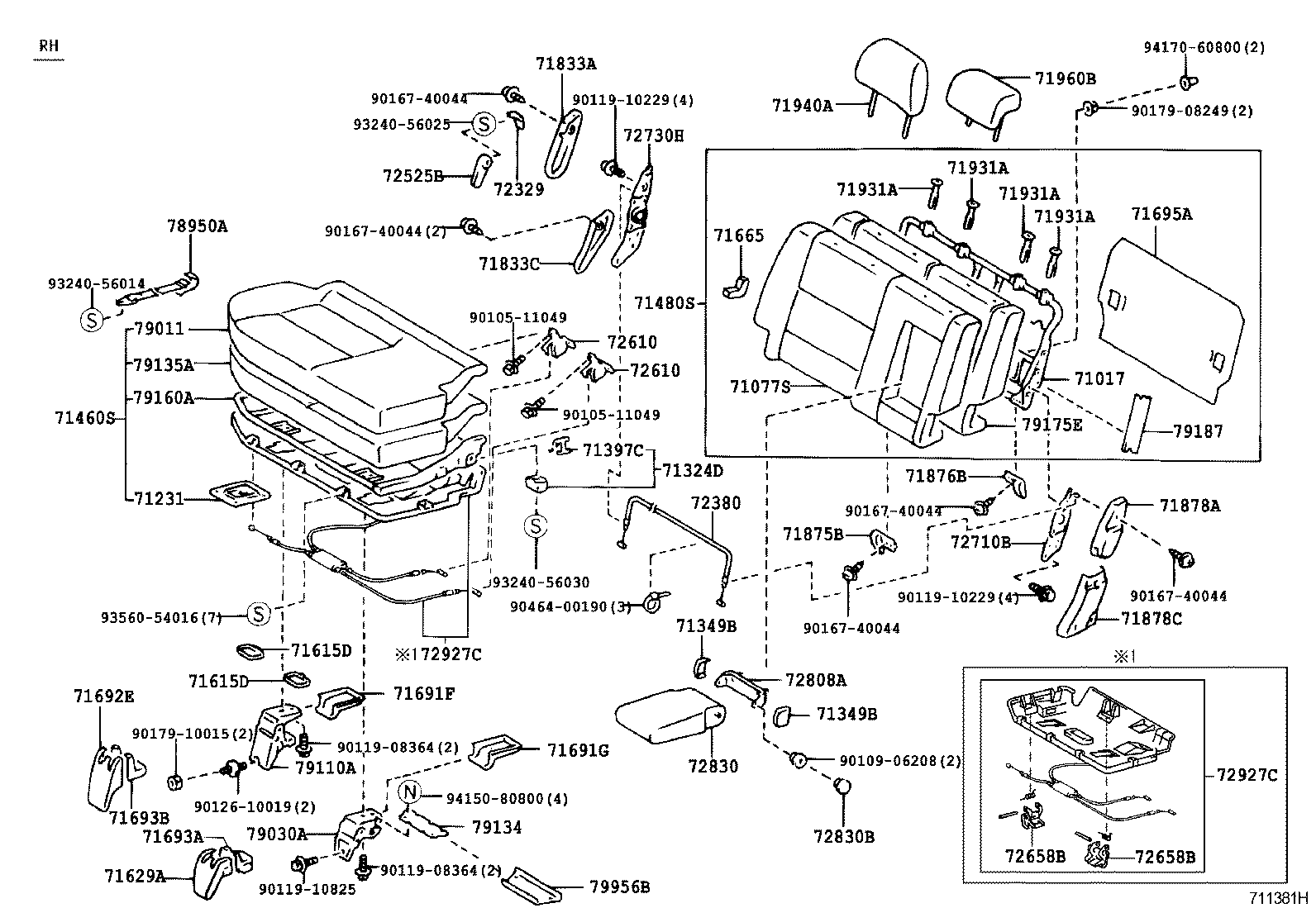

Exploded illustration 711381H 79187 — COVER, NO.1 SEAT INNER BRACKET (1 parts) 72380 — CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 (3 parts) 78950A — BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.1 (5 parts) 79011 — COVER SUB-ASSY, NO.1 SEAT CUSHION, RH (10 parts) 79135A — PAD, NO.1 SEAT CUSHION, RH (2 parts) 79160A — SPRING ASSY, NO.1 SEAT CUSHION, RH (2 parts) 71460S — CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) (9 parts) 9324056014 — not listed in this catalogue 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (8 parts) 9016740044 — not listed in this catalogue 71833C — COVER, REAR SEAT RECLINING, NO.2 RH (5 parts) 72329 — COVER, SEAT ADJUSTER BOLT (11 parts) 72525B — HANDLE, RECLINING ADJUSTER RELEASE, RH (8 parts) 9010511049 — not listed in this catalogue 71629A — COVER, REAR SEAT CUSHION HINGE, RH (5 parts) 71693B — CAP, REAR SEAT CUSHION HINGE (5 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (5 parts) 71615D — COVER, REAR SEAT LOCK STRIKER (10 parts) 71615D — COVER, REAR SEAT LOCK STRIKER (10 parts) 71231 — PLATE, REAR SEAT SPRING SET, NO.1 (14 parts) 9356054016 — not listed in this catalogue 9017910015 — not listed in this catalogue 9012610019 — not listed in this catalogue 79030A — LEG ASSY, REAR NO.1 SEAT, INNER RH (1 parts) 71693A — COVER, REAR SEAT CUSHION HINGE, NO.3 (5 parts) 9011910825 — not listed in this catalogue 9011908364 — not listed in this catalogue 79134 — LEG, NO.1 SEAT CONNECTOR, NO.1 (1 parts) 9415080800 — not listed in this catalogue 9011908364 — not listed in this catalogue 79110A — LEG ASSY, NO.1 SEAT, RH (1 parts) 71691F — COVER, REAR NO.1 SEAT CUSHION HINGE, INNER RH (5 parts) 71691G — COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER RH (5 parts) 9324056030 — not listed in this catalogue 71324D — CUSHION, REAR SEAT, RH (2 parts) 71397C — STOPPER, REAR SEAT (1 parts) 9010511049 — not listed in this catalogue 71349B — COVER, REAR SEATBACK STAY, RH (17 parts) 72610 — LOCK ASSY, REAR SEAT CUSHION (1 parts) 72610 — LOCK ASSY, REAR SEAT CUSHION (1 parts) 71480S — BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) (22 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (20 parts) 71940A — HEADREST ASSY, REAR SEAT (11 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71665 — PAD, REAR SEATBACK SIDE, RH (1 parts) 72730H — ADJUSTER ASSY, REAR SEAT RECLINING, RH (2 parts) 9011910229 — not listed in this catalogue 71960B — HEADREST ASSY, REAR SEAT, CENTER (8 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71695A — PROTECTOR, REAR SEAT, NO.1 RH (3 parts) 9417060800 — not listed in this catalogue 9017908249 — not listed in this catalogue 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (6 parts) 79175E — PAD, NO.1 SEATBACK, RH (3 parts) 71878A — COVER, REAR SEAT RECLINING, INNER RH (6 parts) 9016740044 — not listed in this catalogue 72710B — ADJUSTER ASSY, REAR SEATBACK, INNER RH (3 parts) 9011910229 — not listed in this catalogue 9016740044 — not listed in this catalogue 71876B — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 9016740044 — not listed in this catalogue 72808A — BRACKET SUB-ASSY, SEAT CENTER ARMREST (2 parts) 71349B — COVER, REAR SEATBACK STAY, RH (17 parts) 9010906208 — not listed in this catalogue 72830 — ARMREST ASSY, REAR SEAT, CENTER (9 parts) 72830B — BUSH(FOR REAR SEAT CENTER ARMREST) (2 parts) 79956B — COVER, REAR SEAT LEG SIDE, RH (5 parts) 71878C — COVER, REAR SEAT RECLINING, INNER RH (10 parts) 72927C — COVER, REAR SEAT CUSHION UNDER RH (10 parts) 9016740044 — not listed in this catalogue 9324056025 — not listed in this catalogue 9046400190 — not listed in this catalogue 72927C — COVER, REAR SEAT CUSHION UNDER RH (10 parts) 72658B — KNOB, REAR SEAT LOCK HANDLE (8 parts) 72658B — KNOB, REAR SEAT LOCK HANDLE (8 parts)
711381H · 55 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
289 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-60240 Frame Sub-assy, Rear Seatback, RH
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71017-60260 Frame Sub-assy, Rear Seatback, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71017-60410 note Frame Sub-assy, Rear Seatback, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71017-60430 note Frame Sub-assy, Rear Seatback, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71017-60440 Frame Sub-assy, Rear Seatback, RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71017-60480 note Frame Sub-assy, Rear Seatback, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-60760-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71077-60790-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71077-60810-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71077-6A220-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71077-6A220-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71077-6A250-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71077-6A270-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71077-6A270-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71077-6A280-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71077-6A280-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71077-6A280-E2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71077-6A290-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71077-6A290-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71077-6A320-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71077-6A320-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71077-6A360-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71077-6A360-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71077-6A410-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71077-6A420-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71077-6A430-A0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71231 — Plate, Rear Seat Spring Set, NO.1
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1996-04 → 1999-06 ended
KZJ90 LHD MTM —
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71231-60010-B0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2000-08 ended
VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2000-08 ended
VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
1999-06 → 2002-09 ended
KZJ9#,VZJ90 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2000-08 → 2002-09 ended
KDJ90 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2001-08 → 2002-09 ended
VZJ95 —
71231-60010-E0 note Plate, Rear Seat Spring Set, NO.1
2001-08 → 2002-09 ended
KDJ95 —
71324D — Cushion, Rear Seat, RH
71324-60110 Cushion, Rear Seat, RH
1999-06 → 2000-07 ended
KZJ95,VZJ95 —
71324-60190 Cushion, Rear Seat, RH
2000-07 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71349B — Cover, Rear Seatback Stay, RH
71349-60020-B0 note Cover, Rear Seatback Stay, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71349-60030-B0 note Cover, Rear Seatback Stay, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71349-60020-B0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71349-60020-B0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2000-08 ended
VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71349-60020-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2000-08 ended
VZJ95 —
71349-60030-B0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2002-09 ended
KZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
1999-06 → 2000-08 ended
VZJ95 —
71349-60030-E0 note Cover, Rear Seatback Stay, RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71397C — Stopper, Rear Seat
71397-60010 Stopper, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71460S — Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71560-60490-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71560-60510-B0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71560-60510-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71560-60520-B1 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71560-60520-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71560-60610-B1 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71560-60610-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71560-60740-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71560-60750-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71480S — Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480-6A340-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71480-6A370-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71480-6A390-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71480-6A660-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71480-6A680-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71480-6A680-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71480-6A680-E1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71480-6A690-E1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71480-6A710-B1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71480-6A710-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71480-6A740-B1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71480-6A740-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71480-6A750-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71480-6A760-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71480-6A770-B1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71480-6A770-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71480-6A790-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71480-6A820-E1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71480-6A830-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71480-6A830-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71480-6A871-B1 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71480-6A871-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71615D — Cover, Rear Seat Lock Striker
72615-60020-B0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72615-60020-B0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2001-08 → 2002-09 ended
KDJ95,VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2000-08 ended
VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2000-08 ended
VZJ95 LHD —
71629A — Cover, Rear Seat Cushion Hinge, RH
71629-60210-B0 note Cover, Rear Seat Cushion Hinge, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71629-60210-E0 note Cover, Rear Seat Cushion Hinge, RH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71629-60210-E0 note Cover, Rear Seat Cushion Hinge, RH
2000-08 → 2001-08 ended
KZJ95 —
71629-60210-E0 note Cover, Rear Seat Cushion Hinge, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71629-60210-E0 note Cover, Rear Seat Cushion Hinge, RH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71665 — Pad, Rear Seatback Side, RH
71665-60040 Pad, Rear Seatback Side, RH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71691F — Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
71691-60030-B0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
1999-06 → 2000-08 ended
VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
1999-06 → 2002-09 ended
KZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71691G — Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
71691-60030-B0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
1999-06 → 2000-08 ended
VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
1999-06 → 2002-09 ended
KZJ95 —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-60030-B0 note Cover, Rear Seat Cushion Hinge, NO.2
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-08 → 2001-08 ended
KZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71693A — Cover, Rear Seat Cushion Hinge, NO.3
71693-60050-B0 note Cover, Rear Seat Cushion Hinge, NO.3
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71693-60050-E0 note Cover, Rear Seat Cushion Hinge, NO.3
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71693-60050-E0 note Cover, Rear Seat Cushion Hinge, NO.3
2000-08 → 2001-08 ended
KZJ95 —
71693-60050-E0 note Cover, Rear Seat Cushion Hinge, NO.3
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71693-60050-E0 note Cover, Rear Seat Cushion Hinge, NO.3
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71693B — Cap, Rear Seat Cushion Hinge
71693-60040-B0 note Cap, Rear Seat Cushion Hinge
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
2000-08 → 2001-08 ended
KZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71695A — Protector, Rear Seat, NO.1 RH
71695-60200 note Protector, Rear Seat, NO.1 RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71696-60060 Protector, Rear Seat, NO.1 RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71696-60070 Protector, Rear Seat, NO.1 RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-60030-B0 note Cover, Rear Seat Reclining, NO.1 RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71833-60040-B0 note Cover, Rear Seat Reclining, NO.1 RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71833-60110-B0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
71833-60110-B0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2000-08 ended
VZJ9#;KZJ90 RHD;KZJ90 ATM —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD MTM —
71833-60110-E0 note Cover, Rear Seat Reclining, NO.1 RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71833C — Cover, Rear Seat Reclining, NO.2 RH
71833-60120-B0 note Cover, Rear Seat Reclining, NO.2 RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71833-60120-E0 note Cover, Rear Seat Reclining, NO.2 RH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71833-60120-E0 note Cover, Rear Seat Reclining, NO.2 RH
2000-08 → 2001-08 ended
KZJ95 —
71833-60120-E0 note Cover, Rear Seat Reclining, NO.2 RH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71833-60120-E0 note Cover, Rear Seat Reclining, NO.2 RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-60120 Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71876B — Cover, Reclining Adjuster Inside, LH
71876-60120 Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71878A — Cover, Rear Seat Reclining, Inner RH
71878-60010-B0 note Cover, Rear Seat Reclining, Inner RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71878-60040-B0 note Cover, Rear Seat Reclining, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71878-60040-E0 note Cover, Rear Seat Reclining, Inner RH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71878-60040-E0 note Cover, Rear Seat Reclining, Inner RH
2000-08 → 2001-08 ended
KZJ95 —
71878-60040-E0 note Cover, Rear Seat Reclining, Inner RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71878-60040-E0 note Cover, Rear Seat Reclining, Inner RH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71878C — Cover, Rear Seat Reclining, Inner RH
71878-60060-B0 note Cover, Rear Seat Reclining, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71878-60060-E0 note Cover, Rear Seat Reclining, Inner RH
2000-08 → 2001-08 ended
KZJ95 RHD —
71878-60060-E0 note Cover, Rear Seat Reclining, Inner RH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71878-60060-E0 note Cover, Rear Seat Reclining, Inner RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71878-60060-E0 note Cover, Rear Seat Reclining, Inner RH
1999-06 → 2000-08 ended
KZJ95,VZJ95 RHD —
71878-60070-B0 note Cover, Rear Seat Reclining, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71878-60070-E0 note Cover, Rear Seat Reclining, Inner RH
2000-08 → 2001-08 ended
KZJ95 LHD —
71878-60070-E0 note Cover, Rear Seat Reclining, Inner RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71878-60070-E0 note Cover, Rear Seat Reclining, Inner RH
1999-06 → 2000-08 ended
KZJ95,VZJ95 LHD —
71878-60070-E0 note Cover, Rear Seat Reclining, Inner RH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71931A — Support, Rear Seat Headrest
71930-13030-B2 note Support, Rear Seat Headrest
1998-08 → 1999-06 ended
KZJ9#,VZJ9# —
71930-32020-B2 note Support, Rear Seat Headrest
1996-04 → 1997-02 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Rear Seat Headrest
1997-02 → 1998-08 ended
KZJ9#,VZJ9# —
71931-12040-P6 note Support, Rear Seat Headrest
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71931-12040-P6 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71940A — Headrest Assy, Rear Seat
71910-60250-B1 note Headrest Assy, Rear Seat
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71910-60280-B0 note Headrest Assy, Rear Seat
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71910-60460-B0 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E1 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E2 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60480-B2 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60480-E1 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60490-B2 note Headrest Assy, Rear Seat
2000-08 → 2002-09 ended
KZJ90 —
71910-60490-E1 note Headrest Assy, Rear Seat
2000-08 → 2002-09 ended
KZJ90 —
71940-60290-A0 note Headrest Assy, Rear Seat
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71940-60290-A0 note Headrest Assy, Rear Seat
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71960B — Headrest Assy, Rear Seat, Center
71960-60070-B0 note Headrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71960-60070-E1 note Headrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71960-60070-E2 note Headrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71960-60090-B2 note Headrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71960-60090-E1 note Headrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71960-60100-B4 note Headrest Assy, Rear Seat, Center
2000-08 → 2002-09 ended
KZJ90 —
71960-60100-E1 note Headrest Assy, Rear Seat, Center
2000-08 → 2002-09 ended
KZJ90 —
71960-60110-A0 note Headrest Assy, Rear Seat, Center
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72329 — Cover, Seat Adjuster Bolt
72329-60020-B1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KDJ90,VZJ90;KZJ90 LHD MTM —
72329-60020-B1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72329-60020-B1 note Cover, Seat Adjuster Bolt
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2000-08 ended
VZJ90;KZJ90 RHD;KZJ90 ATM —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KZJ90 LHD MTM —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2000-08 ended
VZJ95 —
72380 — Cable Assy, Seat Adjuster Control, NO.2
72380-60020 Cable Assy, Seat Adjuster Control, NO.2
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72380-60060 Cable Assy, Seat Adjuster Control, NO.2
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72380-60060 Cable Assy, Seat Adjuster Control, NO.2
1999-06 → 2002-09 ended
KDJ90,VZJ90;KZJ90 LHD MTM —
72525B — Handle, Reclining Adjuster Release, RH
72525-60030-B1 note Handle, Reclining Adjuster Release, RH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72525-60040-B0 note Handle, Reclining Adjuster Release, RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72525-60080-B0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72525-60080-B0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2000-08 ended
VZJ9#;KZJ90 RHD;KZJ90 ATM —
72525-60080-E0 note Handle, Reclining Adjuster Release, RH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD MTM —
72610 — Lock Assy, Rear Seat Cushion
72610-60010 Lock Assy, Rear Seat Cushion
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658B — Knob, Rear Seat Lock Handle
72658-60020-B0 note Knob, Rear Seat Lock Handle
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
72658-60020-B0 note Knob, Rear Seat Lock Handle
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72658-60020-B0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72658-60020-B0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658-60020-E0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72658-60020-E0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658-60030-B2 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658-60030-E1 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72710B — Adjuster Assy, Rear Seatback, Inner RH
72710-60020 Adjuster Assy, Rear Seatback, Inner RH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72710-60090 Adjuster Assy, Rear Seatback, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72710-60120 Adjuster Assy, Rear Seatback, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72730H — Adjuster Assy, Rear Seat Reclining, RH
72730-60190 Adjuster Assy, Rear Seat Reclining, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72730-60200 Adjuster Assy, Rear Seat Reclining, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72808A — Bracket Sub-assy, Seat Center Armrest
72883-60020 Bracket Sub-assy, Seat Center Armrest
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72883-60020 Bracket Sub-assy, Seat Center Armrest
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72830 — Armrest Assy, Rear Seat, Center
72830-60010-B0 note Armrest Assy, Rear Seat, Center
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72830-60030-B0 note Armrest Assy, Rear Seat, Center
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72830-60080-E0 note Armrest Assy, Rear Seat, Center
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72830-60110-B1 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72830-60110-E0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72830-60120-B0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72830-60120-B0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72830-60120-E0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72830-60120-E0 note Armrest Assy, Rear Seat, Center
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72830B — Bush(FOR REAR SEAT CENTER ARMREST)
90386-11015 Bush(FOR REAR SEAT CENTER ARMREST)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
90386-11015 Bush(FOR REAR SEAT CENTER ARMREST)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72927C — Cover, Rear Seat Cushion Under RH
72907-60080-B2 note Cover, Rear Seat Cushion Under RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72907-60080-E1 note Cover, Rear Seat Cushion Under RH
1999-06 → 2000-08 ended
VZJ95 RHD —
72907-60080-E1 note Cover, Rear Seat Cushion Under RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 RHD —
72907-60080-E1 note Cover, Rear Seat Cushion Under RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
72907-60080-E1 note Cover, Rear Seat Cushion Under RH
1999-06 → 2002-09 ended
KZJ95 RHD —
72907-60090-B2 note Cover, Rear Seat Cushion Under RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72907-60090-E1 note Cover, Rear Seat Cushion Under RH
1999-06 → 2002-09 ended
KZJ95 LHD —
72907-60090-E1 note Cover, Rear Seat Cushion Under RH
1999-06 → 2000-08 ended
VZJ95 LHD —
72907-60090-E1 note Cover, Rear Seat Cushion Under RH
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
72907-60090-E1 note Cover, Rear Seat Cushion Under RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
78950A — Band Assy, NO.2 Fold Seat Stopper, NO.1
78950-60130-B0 note Band Assy, NO.2 Fold Seat Stopper, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
78950-60130-E0 note Band Assy, NO.2 Fold Seat Stopper, NO.1
1999-06 → 2000-08 ended
VZJ95 —
78950-60130-E0 note Band Assy, NO.2 Fold Seat Stopper, NO.1
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
78950-60130-E0 note Band Assy, NO.2 Fold Seat Stopper, NO.1
1999-06 → 2002-09 ended
KZJ95 —
78950-60130-E0 note Band Assy, NO.2 Fold Seat Stopper, NO.1
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
79011 — Cover Sub-assy, NO.1 Seat Cushion, RH
71065-60360-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71065-60380-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71065-60380-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71065-60390-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71065-60390-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71065-60390-E1 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71065-60400-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71065-60400-E0 note Cover Sub-assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71065-60560-A0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71065-60590-A0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
79030A — Leg Assy, Rear NO.1 Seat, Inner RH
79030-60050 Leg Assy, Rear NO.1 Seat, Inner RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
79110A — Leg Assy, NO.1 Seat, RH
79110-60010 Leg Assy, NO.1 Seat, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
79134 — Leg, NO.1 Seat Connector, NO.1
79134-60010 Leg, NO.1 Seat Connector, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
79135A — Pad, NO.1 Seat Cushion, RH
71611-60270 Pad, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71611-60280 Pad, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
79160A — Spring Assy, NO.1 Seat Cushion, RH
71015-60170 Spring Assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71015-60180 Spring Assy, NO.1 Seat Cushion, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
79175E — Pad, NO.1 Seatback, RH
71651-60270 note Pad, NO.1 Seatback, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71651-60290 Pad, NO.1 Seatback, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71651-60300 Pad, NO.1 Seatback, RH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
79187 — Cover, NO.1 Seat Inner Bracket
79187-60070 Cover, NO.1 Seat Inner Bracket
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
79956B — Cover, Rear Seat Leg Side, RH
79956-60020-B0 note Cover, Rear Seat Leg Side, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
79956-60020-E0 note Cover, Rear Seat Leg Side, RH
1999-06 → 2000-08 ended
KZJ95,VZJ95 RHD —
79956-60020-E0 note Cover, Rear Seat Leg Side, RH
2000-08 → 2001-08 ended
KZJ95 RHD —
79956-60020-E0 note Cover, Rear Seat Leg Side, RH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
79956-60020-E0 note Cover, Rear Seat Leg Side, RH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
