Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

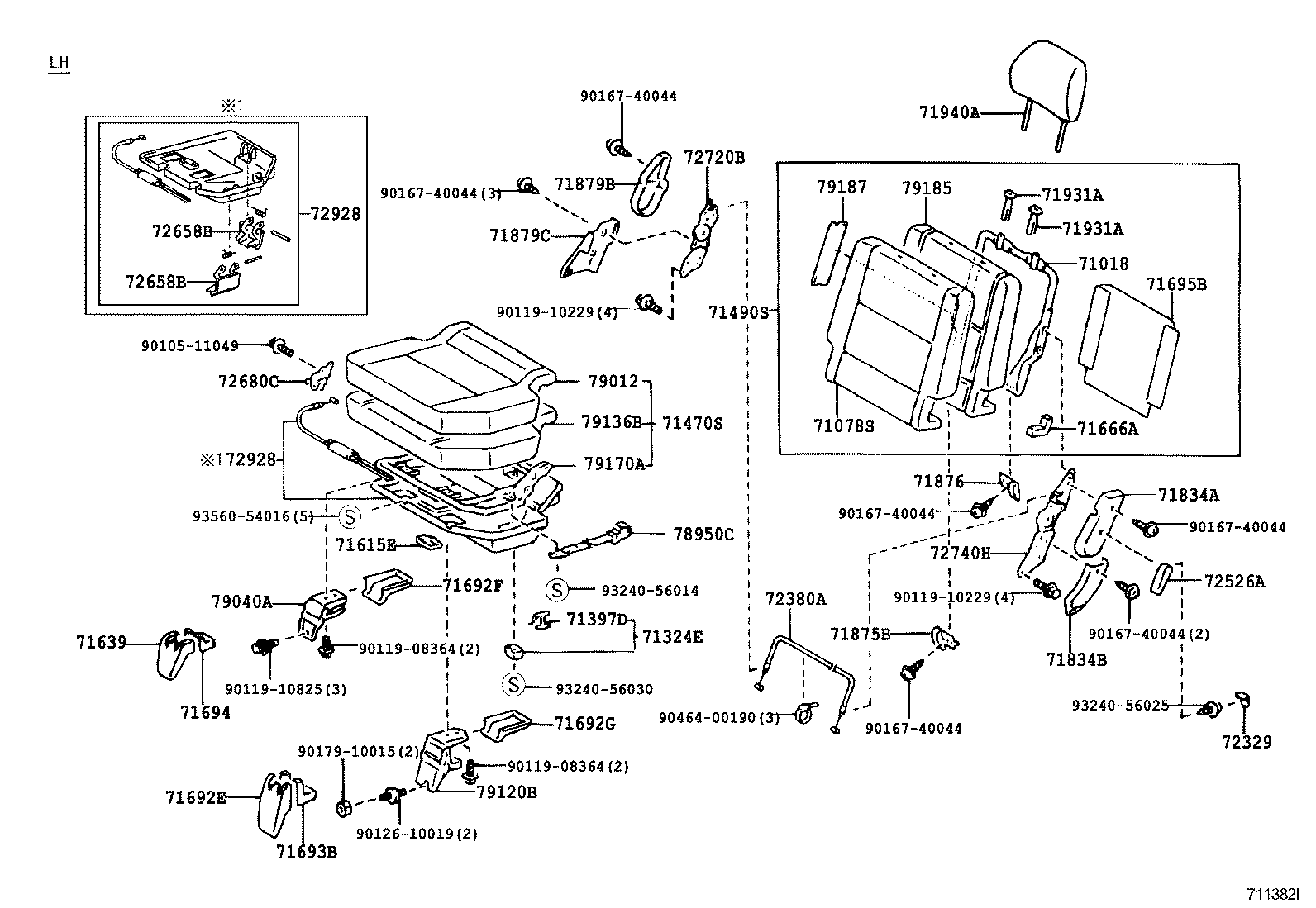

Exploded illustration 711382I 79187 — COVER, NO.1 SEAT INNER BRACKET (1 parts) 9010511049 — not listed in this catalogue 72680C — LOCK ASSY, REAR SEAT CUSHION, NO.2 LH (1 parts) 72658B — KNOB, REAR SEAT LOCK HANDLE (8 parts) 72658B — KNOB, REAR SEAT LOCK HANDLE (8 parts) 9356054016 — not listed in this catalogue 79040A — LEG ASSY, REAR NO.1 SEAT, INNER LH (2 parts) 71639 — COVER, REAR SEAT CUSHION HINGE, LH (5 parts) 71694 — COVER, REAR SEAT CUSHION HINGE, LOWER LH (5 parts) 9011910825 — not listed in this catalogue 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (5 parts) 71693B — CAP, REAR SEAT CUSHION HINGE (5 parts) 9017910015 — not listed in this catalogue 9012610019 — not listed in this catalogue 79120B — LEG ASSY, NO.1 SEAT, LH (1 parts) 9011908364 — not listed in this catalogue 71692G — COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH (5 parts) 9011908364 — not listed in this catalogue 71692F — COVER, REAR NO.1 SEAT CUSHION HINGE, INNER LH (5 parts) 71615E — COVER, REAR SEAT LOCK STRIKER (10 parts) 71397D — STOPPER, REAR SEAT (1 parts) 9324056030 — not listed in this catalogue 71324E — CUSHION, REAR SEAT, LH (2 parts) 9324056014 — not listed in this catalogue 78950C — BAND ASSY, FOLD SEAT STOPPER (5 parts) 72928 — COVER, REAR SEAT CUSHION UNDER, LH (10 parts) 72928 — COVER, REAR SEAT CUSHION UNDER, LH (10 parts) 79170A — SPRING ASSY, NO.1 SEAT CUSUION, LH (2 parts) 79136B — PAD, NO.1 SEAT CUSHION, LH (2 parts) 79012 — COVER SUB-ASSY, NO.1 SEAT CUSHION, LH (10 parts) 71470S — CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (9 parts) 9011910229 — not listed in this catalogue 71879C — COVER, REAR SEAT RECLINING, INNER LH (10 parts) 71490S — BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (22 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (22 parts) 9016740044 — not listed in this catalogue 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 9016740044 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (29 parts) 72740H — ADJUSTER ASSY, REAR SEAT RECLINING, LH (2 parts) 9011910229 — not listed in this catalogue 71834B — COVER, REAR SEAT RECLINING, NO.2 LH (5 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (7 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (8 parts) 9016740044 — not listed in this catalogue 9324056025 — not listed in this catalogue 72329 — COVER, SEAT ADJUSTER BOLT (11 parts) 9016740044 — not listed in this catalogue 71666A — PAD, REAR SEATBACK SIDE, LH (1 parts) 71695B — PROTECTOR, REAR SEAT, NO.1 LH (4 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71931A — SUPPORT, REAR SEAT HEADREST (14 parts) 71940A — HEADREST ASSY, REAR SEAT (11 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (6 parts) 79185 — PAD, NO.1 SEATBACK, LH (4 parts) 71879B — COVER, REAR SEAT RECLINING, INNER LH (5 parts) 72720B — ADJUSTER ASSY, REAR SEATBACK, INNER LH (3 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72380A — CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 (2 parts) 9046400190 — not listed in this catalogue
711382I · 42 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
261 parts on this figure
Part number Description Fitment Price
71018 — Frame Sub-assy, Rear Seatback, LH
71018-60140 Frame Sub-assy, Rear Seatback, LH
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71018-60150 Frame Sub-assy, Rear Seatback, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71018-60210 note Frame Sub-assy, Rear Seatback, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71018-60230 note Frame Sub-assy, Rear Seatback, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71018-60240 Frame Sub-assy, Rear Seatback, LH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71018-60280 note Frame Sub-assy, Rear Seatback, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-60400-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71078-60410-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71078-60430-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71078-60630-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71078-60630-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71078-60650-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71078-60650-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71078-60650-E2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71078-60660-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71078-60660-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71078-60680-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71078-60700-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71078-60700-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71078-60710-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71078-60720-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71078-60730-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71078-60730-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71078-60740-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71078-60740-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71078-60780-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71078-60790-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71078-60800-A0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71324E — Cushion, Rear Seat, LH
71324-60110 Cushion, Rear Seat, LH
1999-06 → 2000-07 ended
KZJ95,VZJ95 —
71324-60190 Cushion, Rear Seat, LH
2000-07 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71397D — Stopper, Rear Seat
71397-60010 Stopper, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71470S — Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71470-60620-B1 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71470-60620-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71470-60630-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71470-60650-B0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71470-60650-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71470-60660-B1 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71470-60660-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71470-60700-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71470-60710-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71490S — Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490-60640-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
71490-60650-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71490-60670-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71490-60850-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71490-60870-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71490-60870-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71490-60870-E1 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71490-60880-B1 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71490-60880-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71490-60890-E1 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71490-6A020-B1 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71490-6A020-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71490-6A050-B1 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71490-6A050-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71490-6A060-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71490-6A080-B1 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71490-6A080-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71490-6A090-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71490-6A120-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71490-6A120-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2002-09 ended
KZJ90 —
71490-6A150-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71490-6A170-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71615E — Cover, Rear Seat Lock Striker
72615-60020-B0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72615-60020-B0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2000-08 ended
VZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2000-08 ended
VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
1999-06 → 2002-09 ended
KZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2001-08 → 2002-09 ended
KDJ95,VZJ95 RHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
72615-60020-E0 note Cover, Rear Seat Lock Striker
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71639 — Cover, Rear Seat Cushion Hinge, LH
71639-60100-B0 note Cover, Rear Seat Cushion Hinge, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71639-60100-E0 note Cover, Rear Seat Cushion Hinge, LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71639-60100-E0 note Cover, Rear Seat Cushion Hinge, LH
2000-08 → 2001-08 ended
KZJ95 —
71639-60100-E0 note Cover, Rear Seat Cushion Hinge, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71639-60100-E0 note Cover, Rear Seat Cushion Hinge, LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71666A — Pad, Rear Seatback Side, LH
71665-60040 Pad, Rear Seatback Side, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-60030-B0 note Cover, Rear Seat Cushion Hinge, NO.2
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-08 → 2001-08 ended
KZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71692-60030-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71692F — Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
71691-60030-B0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
1999-06 → 2000-08 ended
VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
1999-06 → 2002-09 ended
KZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71692G — Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71691-60030-B0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
1999-06 → 2000-08 ended
VZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
1999-06 → 2002-09 ended
KZJ95 —
71691-60030-E0 note Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71693B — Cap, Rear Seat Cushion Hinge
71693-60040-B0 note Cap, Rear Seat Cushion Hinge
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
2000-08 → 2001-08 ended
KZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71693-60040-E0 note Cap, Rear Seat Cushion Hinge
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71694 — Cover, Rear Seat Cushion Hinge, Lower LH
71694-60010-B0 note Cover, Rear Seat Cushion Hinge, Lower LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71694-60010-E0 note Cover, Rear Seat Cushion Hinge, Lower LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71694-60010-E0 note Cover, Rear Seat Cushion Hinge, Lower LH
2000-08 → 2001-08 ended
KZJ95 —
71694-60010-E0 note Cover, Rear Seat Cushion Hinge, Lower LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71694-60010-E0 note Cover, Rear Seat Cushion Hinge, Lower LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71695B — Protector, Rear Seat, NO.1 LH
71695-60160 Protector, Rear Seat, NO.1 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71695-60170 Protector, Rear Seat, NO.1 LH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
71695-60190 note Protector, Rear Seat, NO.1 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71696-60060 note Protector, Rear Seat, NO.1 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-60030-B0 note Cover, Rear Seat Reclining, NO.1 LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71834-60040-B0 note Cover, Rear Seat Reclining, NO.1 LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71834-60110-B0 note Cover, Rear Seat Reclining, NO.1 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-08 → 2001-08 ended
KZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71834-60110-E0 note Cover, Rear Seat Reclining, NO.1 LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71834B — Cover, Rear Seat Reclining, NO.2 LH
71834-60120-B0 note Cover, Rear Seat Reclining, NO.2 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71834-60120-E0 note Cover, Rear Seat Reclining, NO.2 LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71834-60120-E0 note Cover, Rear Seat Reclining, NO.2 LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71834-60120-E0 note Cover, Rear Seat Reclining, NO.2 LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71834-60120-E0 note Cover, Rear Seat Reclining, NO.2 LH
2000-08 → 2001-08 ended
KZJ95 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-60120 Cover, Reclining Adjuster Inside, RH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71876 — Cover, Reclining Adjuster Inside, LH
71875-60070-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71876-60030-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95;KZJ90,VZJ90 LHD —
71876-60040-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ90 RHD —
71876-60050-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71876-60070-B0 note Cover, Reclining Adjuster Inside, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71875-60070-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71875-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ95 —
71876-60030-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95;KDJ90,KZJ90,VZJ90 LHD —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ90,VZJ90 LHD —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ90 LHD;KDJ95,KZJ95,VZJ95 —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ90,VZJ90 LHD —
71876-60030-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ90 —
71876-60040-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ90,KZJ90 RHD —
71876-60040-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ90 RHD —
71876-60040-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ90 RHD —
71876-60040-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ90 RHD —
71876-60050-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ9#,VZJ95 —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ90 —
71876-60050-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
71876-60070-B0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2002-09 ended
KZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
71876-60070-E0 note Cover, Reclining Adjuster Inside, LH
1999-06 → 2000-08 ended
VZJ95 —
71879B — Cover, Rear Seat Reclining, Inner LH
71879-60030-B0 note Cover, Rear Seat Reclining, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71879-60030-E0 note Cover, Rear Seat Reclining, Inner LH
2000-08 → 2001-08 ended
KZJ95 —
71879-60030-E0 note Cover, Rear Seat Reclining, Inner LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71879-60030-E0 note Cover, Rear Seat Reclining, Inner LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71879-60030-E0 note Cover, Rear Seat Reclining, Inner LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 —
71879C — Cover, Rear Seat Reclining, Inner LH
71879-60050-B0 note Cover, Rear Seat Reclining, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71879-60050-E0 note Cover, Rear Seat Reclining, Inner LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 LHD —
71879-60050-E0 note Cover, Rear Seat Reclining, Inner LH
2000-08 → 2001-08 ended
KZJ95 LHD —
71879-60050-E0 note Cover, Rear Seat Reclining, Inner LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
71879-60050-E0 note Cover, Rear Seat Reclining, Inner LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71879-60060-B0 note Cover, Rear Seat Reclining, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71879-60060-E0 note Cover, Rear Seat Reclining, Inner LH
1999-06 → 2000-08 ended
KZJ95,VZJ95 RHD —
71879-60060-E0 note Cover, Rear Seat Reclining, Inner LH
2000-08 → 2001-08 ended
KZJ95 RHD —
71879-60060-E0 note Cover, Rear Seat Reclining, Inner LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71879-60060-E0 note Cover, Rear Seat Reclining, Inner LH
2001-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71931A — Support, Rear Seat Headrest
71930-13030-B2 note Support, Rear Seat Headrest
1998-08 → 1999-06 ended
KZJ9#,VZJ9# —
71930-32020-B2 note Support, Rear Seat Headrest
1996-04 → 1997-02 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Rear Seat Headrest
1997-02 → 1998-08 ended
KZJ9#,VZJ9# —
71931-12040-P6 note Support, Rear Seat Headrest
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71930-44010-B0 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71930-44010-E3 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
71931-12040-E8 note Support, Rear Seat Headrest
1999-06 → 2000-08 ended
VZJ9# —
71931-12040-P6 note Support, Rear Seat Headrest
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71940A — Headrest Assy, Rear Seat
71910-60250-B1 note Headrest Assy, Rear Seat
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
71910-60280-B0 note Headrest Assy, Rear Seat
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
71910-60460-B0 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E1 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60460-E2 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71910-60480-B2 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60480-E1 note Headrest Assy, Rear Seat
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
71910-60490-B2 note Headrest Assy, Rear Seat
2000-08 → 2002-09 ended
KZJ90 —
71910-60490-E1 note Headrest Assy, Rear Seat
2000-08 → 2002-09 ended
KZJ90 —
71940-60290-A0 note Headrest Assy, Rear Seat
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
71940-60290-A0 note Headrest Assy, Rear Seat
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72329 — Cover, Seat Adjuster Bolt
72329-60020-B1 note Cover, Seat Adjuster Bolt
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72329-60020-B1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KDJ90,VZJ90;KZJ90 LHD MTM —
72329-60020-B1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2001-08 → 2002-09 ended
KDJ90,VZJ90 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2002-09 ended
KZJ90 LHD MTM —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2000-08 → 2001-08 ended
KDJ90,VZJ90 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2000-08 ended
VZJ90;KZJ90 RHD;KZJ90 ATM —
72329-60020-E1 note Cover, Seat Adjuster Bolt
1999-06 → 2000-08 ended
VZJ95 —
72380A — Cable Assy, Seat Adjuster Control, NO.2
72380-60040 Cable Assy, Seat Adjuster Control, NO.2
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72380-60040 Cable Assy, Seat Adjuster Control, NO.2
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72526A — Handle, Reclining Adjuster Release, LH
72525-60030-B1 note Handle, Reclining Adjuster Release, LH
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72526-60010-B0 note Handle, Reclining Adjuster Release, LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72526-60050-B0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2000-08 ended
KZJ90 RHD;KZJ90 ATM —
72526-60050-B0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2002-09 ended
KZJ90 LHD MTM;KDJ9#,KZJ95,VZJ9# —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2000-08 ended
VZJ9#;KZJ90 RHD;KZJ90 ATM —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
2000-08 → 2001-08 ended
KDJ9#,VZJ9# —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
1999-06 → 2002-09 ended
KZJ95;KZJ90 LHD MTM —
72526-60050-E0 note Handle, Reclining Adjuster Release, LH
2001-08 → 2002-09 ended
KDJ9#,VZJ9# —
72658B — Knob, Rear Seat Lock Handle
72658-60020-B0 note Knob, Rear Seat Lock Handle
1996-04 → 1999-06 ended
KZJ90,VZJ90 —
72658-60020-B0 note Knob, Rear Seat Lock Handle
1996-04 → 1999-06 ended
KZJ95,VZJ95 —
72658-60020-B0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72658-60020-B0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658-60020-E0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
72658-60020-E0 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658-60030-B2 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72658-60030-E1 note Knob, Rear Seat Lock Handle
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72680C — Lock Assy, Rear Seat Cushion, NO.2 LH
72670-60070 Lock Assy, Rear Seat Cushion, NO.2 LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
72720B — Adjuster Assy, Rear Seatback, Inner LH
72720-60020 Adjuster Assy, Rear Seatback, Inner LH
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
72720-60080 Adjuster Assy, Rear Seatback, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72720-60110 Adjuster Assy, Rear Seatback, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72740H — Adjuster Assy, Rear Seat Reclining, LH
72740-60190 Adjuster Assy, Rear Seat Reclining, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72740-60200 Adjuster Assy, Rear Seat Reclining, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72928 — Cover, Rear Seat Cushion Under, LH
72908-60050-B2 note Cover, Rear Seat Cushion Under, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
72908-60050-E1 note Cover, Rear Seat Cushion Under, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
72908-60050-E1 note Cover, Rear Seat Cushion Under, LH
1999-06 → 2000-08 ended
VZJ95 LHD —
72908-60050-E1 note Cover, Rear Seat Cushion Under, LH
1999-06 → 2002-09 ended
KZJ95 LHD —
72908-60050-E1 note Cover, Rear Seat Cushion Under, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 LHD —
72908-60060-B2 note Cover, Rear Seat Cushion Under, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
72908-60060-E1 note Cover, Rear Seat Cushion Under, LH
2001-08 → 2002-09 ended
KDJ95,VZJ95 RHD —
72908-60060-E1 note Cover, Rear Seat Cushion Under, LH
1999-06 → 2000-08 ended
VZJ95 RHD —
72908-60060-E1 note Cover, Rear Seat Cushion Under, LH
1999-06 → 2002-09 ended
KZJ95 RHD —
72908-60060-E1 note Cover, Rear Seat Cushion Under, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
78950C — Band Assy, Fold Seat Stopper
78950-60130-B0 note Band Assy, Fold Seat Stopper
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
78950-60130-E0 note Band Assy, Fold Seat Stopper
1999-06 → 2000-08 ended
VZJ95 —
78950-60130-E0 note Band Assy, Fold Seat Stopper
2000-08 → 2001-08 ended
KDJ95,VZJ95 —
78950-60130-E0 note Band Assy, Fold Seat Stopper
1999-06 → 2002-09 ended
KZJ95 —
78950-60130-E0 note Band Assy, Fold Seat Stopper
2001-08 → 2002-09 ended
KDJ95,VZJ95 —
79012 — Cover Sub-assy, NO.1 Seat Cushion, LH
71076-60500-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71076-60500-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71076-60500-E1 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71076-60520-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71076-60540-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71076-60540-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71076-60550-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71076-60550-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71076-60590-A0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 RHD —
71076-60600-A0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2000-08 → 2001-08 ended
KDJ95,VZJ95 LHD —
79040A — Leg Assy, Rear NO.1 Seat, Inner LH
71302-60030 Leg Assy, Rear NO.1 Seat, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
79030-60060 Leg Assy, Rear NO.1 Seat, Inner LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
79120B — Leg Assy, NO.1 Seat, LH
79120-60010 Leg Assy, NO.1 Seat, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
79136B — Pad, NO.1 Seat Cushion, LH
71612-60160 Pad, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71612-60170 Pad, NO.1 Seat Cushion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
79170A — Spring Assy, NO.1 Seat Cusuion, LH
71016-60070 Spring Assy, NO.1 Seat Cusuion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71016-60080 Spring Assy, NO.1 Seat Cusuion, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
79185 — Pad, NO.1 Seatback, LH
71652-60180 note Pad, NO.1 Seatback, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
71652-60190 Pad, NO.1 Seatback, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 —
71652-60200 note Pad, NO.1 Seatback, LH
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
71652-60210 Pad, NO.1 Seatback, LH
1999-06 → 2002-09 ended
KDJ90,KZJ90,VZJ90 —
79187 — Cover, NO.1 Seat Inner Bracket
79187-60070 Cover, NO.1 Seat Inner Bracket
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
