Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

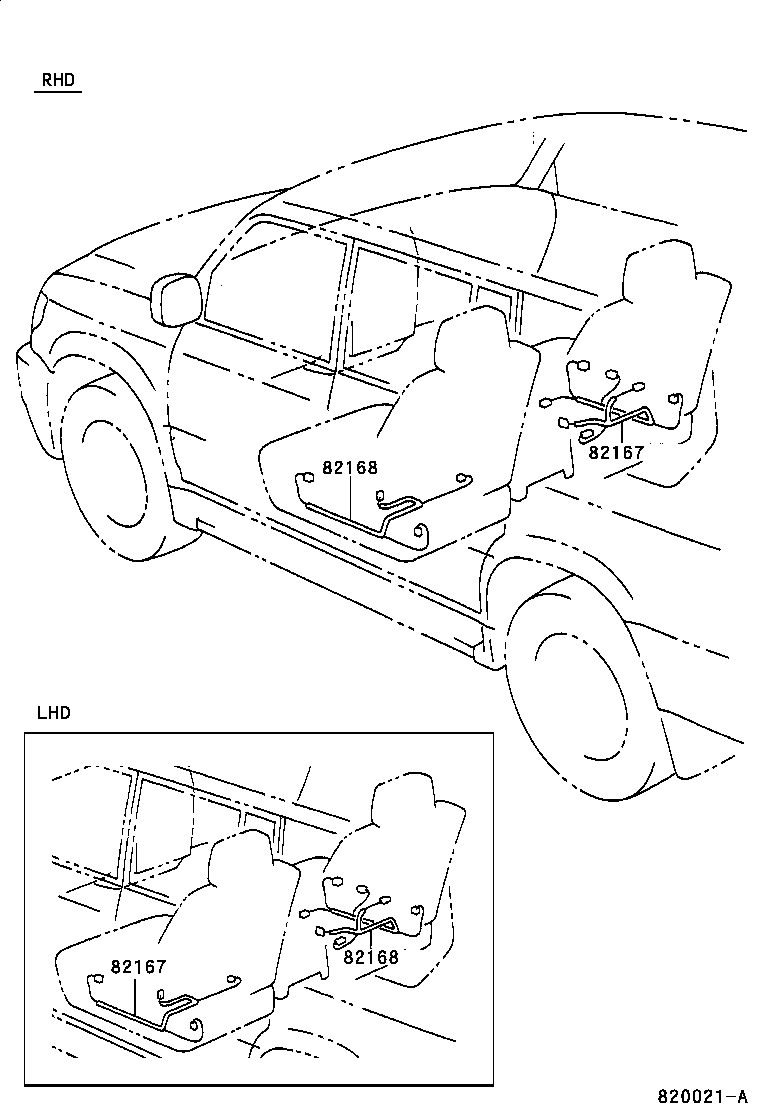

Exploded illustration 820021A 82167 — WIRE, SEAT, NO.1 (6 parts) 82168 — WIRE, SEAT, NO.2 (6 parts) 82168 — WIRE, SEAT, NO.2 (6 parts) 82167 — WIRE, SEAT, NO.1 (6 parts)
820021A · 4 callouts Full size ↗
12 parts on this figure
Part number Description Fitment Price
82167 — Wire, Seat, NO.1
82167-60030 note Wire, Seat, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
82167-60140 note Wire, Seat, NO.1
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
82168-60090 note Wire, Seat, NO.1
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
82167-60031 note Wire, Seat, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
82167-60140 note Wire, Seat, NO.1
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
82168-60091 note Wire, Seat, NO.1
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
82168 — Wire, Seat, NO.2
82167-60140 note Wire, Seat, NO.2
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
82167-60170 note Wire, Seat, NO.2
1996-04 → 1999-06 ended
KZJ95,VZJ95 LHD —
82168-60040 note Wire, Seat, NO.2
1996-04 → 1999-06 ended
KZJ95,VZJ95 RHD —
82167-60140 note Wire, Seat, NO.2
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
82167-60171 note Wire, Seat, NO.2
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
82168-60041 note Wire, Seat, NO.2
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
