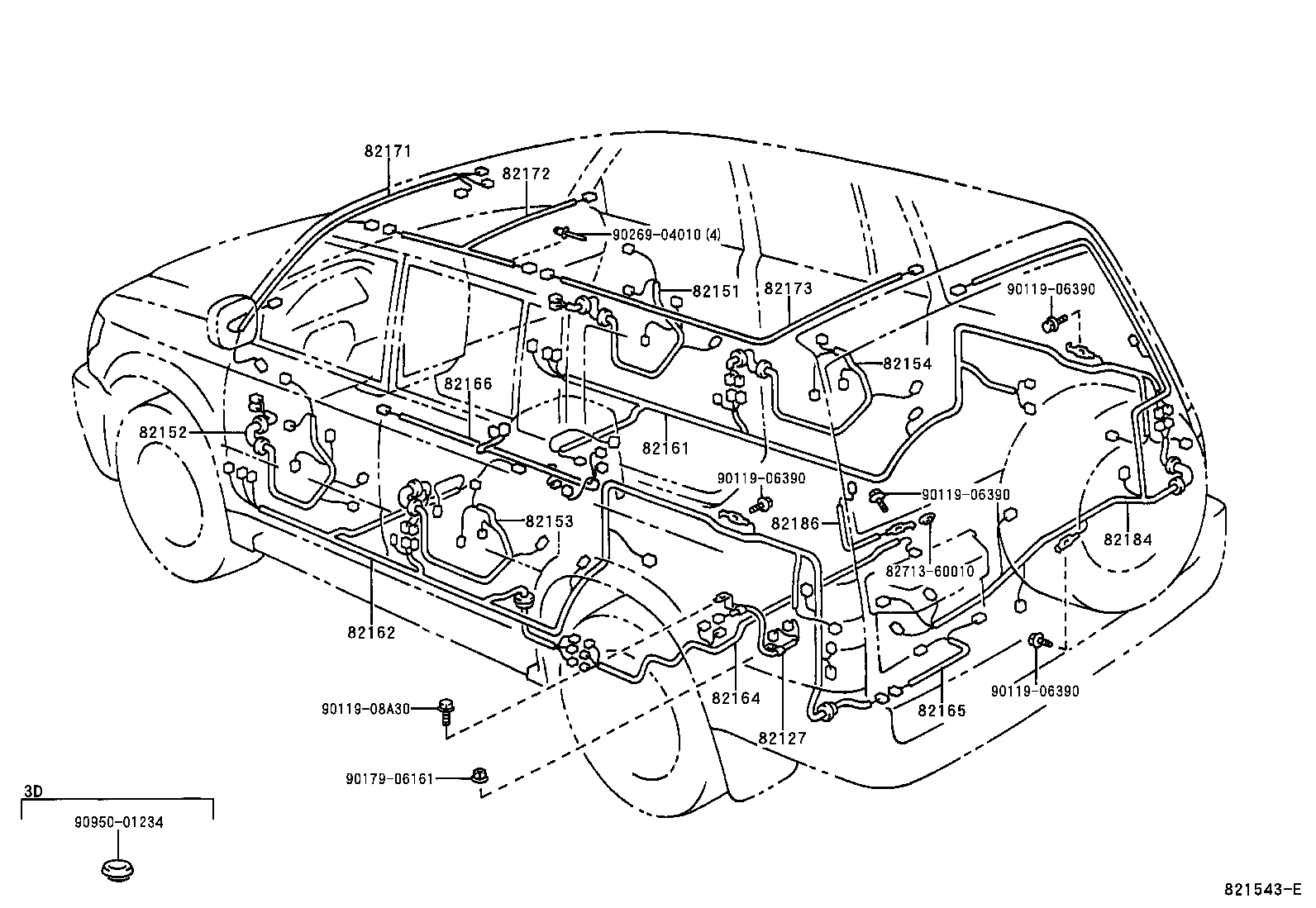

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

174 parts on this figure

Part number	Description	Fitment	Price
82127 — Wire, Differential
82127-60010	Wire, Differential 1996-04 → 1999-06 ended	KZJ9#,VZJ9#	—
82127-60010	Wire, Differential 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82151 — Wire, Front Door, RH
82151-60230 note	Wire, Front Door, RH 1996-04 → 1999-06 ended	KZJ95,VZJ95 RHD	—
82151-60240 note	Wire, Front Door, RH 1996-04 → 1999-06 ended	KZJ90 RHD	—
82505-60010 note	Wire, Front Door, RH 1996-04 → 1999-06 ended	KZJ9#,VZJ9#	—
82505-60020 note	Wire, Front Door, RH 1996-04 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82505-60030 note	Wire, Front Door, RH 1996-04 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82505-60040	Wire, Front Door, RH 1996-04 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82506-60010 note	Wire, Front Door, RH 1996-04 → 1998-01 ended	KZJ9#,VZJ9# LHD	—
82506-60011 note	Wire, Front Door, RH 1998-01 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82506-60020 note	Wire, Front Door, RH 1996-04 → 1998-01 ended	KZJ9#,VZJ9# LHD	—
82506-60021 note	Wire, Front Door, RH 1998-01 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82506-60030 note	Wire, Front Door, RH 1996-04 → 1998-01 ended	KZJ9#,VZJ9# LHD	—
82506-60031 note	Wire, Front Door, RH 1998-01 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82151-60231 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 RHD	—
82151-60231 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	VZJ95 RHD	—
82151-60231 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 RHD	—
82151-60241 note	Wire, Front Door, RH 1999-06 → 2000-08 ended	KZJ90 RHD	—
82151-60241 note	Wire, Front Door, RH 1999-06 → 2000-08 ended	KZJ90 RHD	—
82151-60241 note	Wire, Front Door, RH 2000-08 → 2002-09 ended	KDJ90 RHD	—
82151-60241 note	Wire, Front Door, RH 2000-08 → 2002-09 ended	KDJ90 RHD	—
82505-60011 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KZJ9# MTM	—
82505-60021 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KZJ9# MTM	—
82505-60021 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KZJ95 LHD MTM	—
82505-60031	Wire, Front Door, RH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82505-60041 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KZJ95 LHD;KDJ95,VZJ95 LHD ATM	—
82505-60041 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82506-60032 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KZJ95 LHD;KDJ95 LHD ATM	—
82506-60032 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9# LHD	—
82506-60032 note	Wire, Front Door, RH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9# LHD	—
82152 — Wire, Front Door, LH
82152-60200 note	Wire, Front Door, LH 1996-04 → 1999-06 ended	KZJ95,VZJ95 LHD	—
82152-60210 note	Wire, Front Door, LH 1996-04 → 1999-06 ended	KZJ90,VZJ90 LHD	—
82505-60010 note	Wire, Front Door, LH 1996-04 → 1999-06 ended	KZJ9#,VZJ9#	—
82505-60020 note	Wire, Front Door, LH 1996-04 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82505-60030 note	Wire, Front Door, LH 1996-04 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82505-60040	Wire, Front Door, LH 1996-04 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82506-60010 note	Wire, Front Door, LH 1996-04 → 1998-01 ended	KZJ9#,VZJ95 RHD	—
82506-60011 note	Wire, Front Door, LH 1998-01 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82506-60020 note	Wire, Front Door, LH 1996-04 → 1998-01 ended	KZJ9#,VZJ95 RHD	—
82506-60021 note	Wire, Front Door, LH 1998-01 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82506-60030 note	Wire, Front Door, LH 1996-04 → 1998-01 ended	KZJ9#,VZJ95 RHD	—
82506-60031	Wire, Front Door, LH 1998-01 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82152-60201 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 LHD	—
82152-60201 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 LHD	—
82152-60201 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KZJ95 LHD;KDJ95 LHD ATM	—
82152-60211 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90 LHD	—
82152-60211 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90 LHD	—
82505-60011 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KZJ9# MTM	—
82505-60021 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KZJ9# MTM	—
82505-60021 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KZJ95 LHD MTM	—
82506-60012	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82506-60022 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82506-60022 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KZJ95 LHD;VZJ95 RHD;KDJ95 LHD +1	—
82506-60032 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ95 RHD	—
82506-60032 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	VZJ95 RHD	—
82506-60032 note	Wire, Front Door, LH 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ95 RHD	—
82153 — Wire, Rear Door, NO.1
82153-60070 note	Wire, Rear Door, NO.1 1996-04 → 1996-06 ended	KZJ95,VZJ95	—
82153-60071 note	Wire, Rear Door, NO.1 1996-06 → 1999-06 ended	KZJ95,VZJ95	—
82153-60080 note	Wire, Rear Door, NO.1 1996-04 → 1996-06 ended	KZJ95,VZJ95	—
82153-60081 note	Wire, Rear Door, NO.1 1996-06 → 1999-06 ended	KZJ95,VZJ95	—
82153-60090 note	Wire, Rear Door, NO.1 1996-04 → 1996-06 ended	KZJ95,VZJ95	—
82153-60091 note	Wire, Rear Door, NO.1 1996-06 → 1999-06 ended	KZJ95,VZJ95	—
82153-60072 note	Wire, Rear Door, NO.1 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82153-60082	Wire, Rear Door, NO.1 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82153-60092 note	Wire, Rear Door, NO.1 1999-06 → 2002-09 ended	KZJ95 MTM	—
82154 — Wire, Rear Door, NO.2
82153-60070 note	Wire, Rear Door, NO.2 1996-04 → 1996-06 ended	KZJ95,VZJ95	—
82153-60071 note	Wire, Rear Door, NO.2 1996-06 → 1999-06 ended	KZJ95,VZJ95	—
82153-60080 note	Wire, Rear Door, NO.2 1996-04 → 1996-06 ended	KZJ95,VZJ95	—
82153-60081 note	Wire, Rear Door, NO.2 1996-06 → 1999-06 ended	KZJ95,VZJ95	—
82153-60090 note	Wire, Rear Door, NO.2 1996-04 → 1996-06 ended	KZJ95,VZJ95	—
82153-60091 note	Wire, Rear Door, NO.2 1996-06 → 1999-06 ended	KZJ95,VZJ95	—
82153-60072 note	Wire, Rear Door, NO.2 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82153-60082	Wire, Rear Door, NO.2 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82153-60092 note	Wire, Rear Door, NO.2 1999-06 → 2002-09 ended	KZJ95 MTM	—
82161 — Wire, Floor
82161-60520	Wire, Floor 1996-04 → 1998-01 ended	KZJ90,VZJ90	—
82161-60521	Wire, Floor 1998-01 → 1999-06 ended	KZJ90,VZJ90	—
82161-60571 note	Wire, Floor 1998-08 → 1999-06 ended	VZJ95 RHD	—
82161-60580 note	Wire, Floor 1996-04 → 1998-01 ended	KZJ95,VZJ95	—
82161-60581 note	Wire, Floor 1998-01 → 1999-06 ended	KZJ95,VZJ95	—
82161-60650	Wire, Floor 1996-04 → 1998-01 ended	KZJ95,VZJ95	—
82161-60651	Wire, Floor 1998-01 → 1999-06 ended	KZJ95,VZJ95	—
82161-60522	Wire, Floor 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90	—
82161-60572 note	Wire, Floor 1999-06 → 2000-08 ended	KZJ95 LHD ATM	—
82161-60573 note	Wire, Floor 2000-08 → 2002-09 ended	KZJ95 LHD	—
82161-60603 note	Wire, Floor 2000-08 → 2002-09 ended	KZJ95 LHD	—
82161-60612 note	Wire, Floor 1999-06 → 2000-08 ended	KZJ95 LHD ATM	—
82161-60613 note	Wire, Floor 2000-08 → 2002-09 ended	KZJ95 LHD	—
82161-60632 note	Wire, Floor 1999-06 → 2000-08 ended	VZJ95 RHD	—
82161-60633 note	Wire, Floor 2000-08 → 2002-09 ended	VZJ95 RHD	—
82161-60652	Wire, Floor 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82161-60672 note	Wire, Floor 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82161-60693 note	Wire, Floor 2000-08 → 2002-09 ended	KZJ90	—
82162 — Wire, Floor, NO.2
82162-60360 note	Wire, Floor, NO.2 1996-04 → 1998-01 ended	KZJ95,VZJ95	—
82162-60361 note	Wire, Floor, NO.2 1998-01 → 1999-06 ended	KZJ95,VZJ95	—
82162-60400	Wire, Floor, NO.2 1996-04 → 1998-01 ended	KZJ90,VZJ90	—
82162-60401	Wire, Floor, NO.2 1998-01 → 1999-06 ended	KZJ90,VZJ90	—
82162-60420 note	Wire, Floor, NO.2 1996-04 → 1998-01 ended	KZJ90,VZJ90	—
82162-60421 note	Wire, Floor, NO.2 1998-01 → 1999-06 ended	KZJ90,VZJ90	—
82162-60430 note	Wire, Floor, NO.2 1996-04 → 1998-01 ended	KZJ90,VZJ90	—
82162-60431 note	Wire, Floor, NO.2 1998-01 → 1999-06 ended	KZJ90,VZJ90	—
82162-60520	Wire, Floor, NO.2 1996-04 → 1998-01 ended	KZJ95,VZJ95	—
82162-60521	Wire, Floor, NO.2 1998-01 → 1999-06 ended	KZJ95,VZJ95	—
82162-60562 note	Wire, Floor, NO.2 1998-08 → 1999-06 ended	VZJ95 RHD	—
82162-60362 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	KDJ95	—
82162-60362 note	Wire, Floor, NO.2 1999-06 → 2002-09 ended	KZJ95,VZJ95	—
82162-60402	Wire, Floor, NO.2 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90	—
82162-60422 note	Wire, Floor, NO.2 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90	—
82162-60432 note	Wire, Floor, NO.2 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90	—
82162-60453 note	Wire, Floor, NO.2 2000-07 → 2000-08 ended	VZJ95 RHD	—
82162-60453 note	Wire, Floor, NO.2 2000-07 → 2000-08 ended	KZJ95 LHD ATM	—
82162-60463 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	KZJ95 LHD MTM	—
82162-60463 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	VZJ95 RHD	—
82162-60472 note	Wire, Floor, NO.2 1999-06 → 2000-08 ended	KZJ95 LHD ATM	—
82162-60473 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	KZJ95 LHD	—
82162-60473 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	KZJ90	—
82162-60522	Wire, Floor, NO.2 1999-06 → 1999-07 ended	KZJ95,VZJ95	—
82162-60563 note	Wire, Floor, NO.2 1999-06 → 2000-07 ended	VZJ95 RHD	—
82162-60563 note	Wire, Floor, NO.2 1999-06 → 2000-07 ended	KZJ95 LHD ATM	—
82162-60564 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	KZJ95 LHD	—
82162-60564 note	Wire, Floor, NO.2 2000-08 → 2002-09 ended	VZJ95 RHD	—
82162-60770 note	Wire, Floor, NO.2 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82162-60790	Wire, Floor, NO.2 1999-07 → 2002-09 ended	KDJ95,KZJ95,VZJ95	—
82164 — Wire, Frame
82164-60180 note	Wire, Frame 1996-04 → 1999-06 ended	KZJ9#,VZJ9#	—
82164-60240 note	Wire, Frame 1996-04 → 1999-06 ended	KZJ90,VZJ90	—
82164-60240	Wire, Frame 1998-08 → 1999-06 ended	KZJ95,VZJ95	—
82164-60181 note	Wire, Frame 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82164-60241 note	Wire, Frame 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82165 — Wire, Frame, NO.2
82165-60120	Wire, Frame, NO.2 1996-04 → 1999-06 ended	VZJ95	—
82165-60140	Wire, Frame, NO.2 1996-04 → 1999-06 ended	KZJ90,VZJ90	—
82165-60160	Wire, Frame, NO.2 1996-04 → 1999-06 ended	KZJ95	—
82165-60120	Wire, Frame, NO.2 1999-06 → 2002-09 ended	VZJ95	—
82165-60140	Wire, Frame, NO.2 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90	—
82165-60160	Wire, Frame, NO.2 1999-06 → 2002-09 ended	KDJ95,KZJ95	—
82166 — Wire, Console Box
82166-60030 note	Wire, Console Box 1996-04 → 1999-06 ended	KZJ9#,VZJ9#	—
82166-60060 note	Wire, Console Box 1996-04 → 1999-06 ended	KZJ9#,VZJ9# LHD MTM	—
82166-60070 note	Wire, Console Box 1996-04 → 1999-06 ended	KZJ9# RHD;KZJ95 LHD ATM;KZJ90,VZJ9# +1	—
82166-60020 note	Wire, Console Box 1999-06 → 2002-09 ended	VZJ95 ATM;KDJ95,KZJ95 RHD;KDJ95,KZJ95 LHD +1	—
82166-60030 note	Wire, Console Box 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82166-60040 note	Wire, Console Box 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 LHD MTM	—
82166-60060 note	Wire, Console Box 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9# LHD MTM	—
82166-60070 note	Wire, Console Box 1999-06 → 2002-09 ended	KDJ9#,KZJ9# RHD;KDJ95,KZJ95 LHD ATM;KDJ90,KZJ90,VZJ9# +1	—
82171 — Wire, Roof, NO.1
82171-60560	Wire, Roof, NO.1 1996-04 → 1999-06 ended	KZJ95,VZJ95 RHD	—
82171-60570	Wire, Roof, NO.1 1996-04 → 1999-06 ended	KZJ95,VZJ95 LHD	—
82171-60580	Wire, Roof, NO.1 1996-04 → 1999-06 ended	KZJ90,VZJ90	—
82171-60590 note	Wire, Roof, NO.1 1996-04 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82171-60600 note	Wire, Roof, NO.1 1996-04 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82171-60610 note	Wire, Roof, NO.1 1996-04 → 1996-07 ended	KZJ9#,VZJ95 RHD	—
82171-60640 note	Wire, Roof, NO.1 1996-04 → 1996-07 ended	KZJ9#,VZJ9# LHD	—
82171-60660 note	Wire, Roof, NO.1 1996-07 → 1999-06 ended	KZJ90 RHD	—
82171-60670 note	Wire, Roof, NO.1 1996-07 → 1999-06 ended	KZJ90,VZJ90 LHD	—
82171-60680 note	Wire, Roof, NO.1 1996-07 → 1999-06 ended	KZJ95,VZJ95 RHD	—
82171-60690 note	Wire, Roof, NO.1 1996-07 → 1999-06 ended	KZJ95,VZJ95 LHD	—
82171-60820	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 RHD	—
82171-60830	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 LHD	—
82171-60840	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90	—
82171-60850 note	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ95 RHD	—
82171-60860 note	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9# LHD	—
82171-60870 note	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ90,KZJ90 RHD	—
82171-60880 note	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ90,KZJ90,VZJ90 LHD	—
82171-60890 note	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 RHD	—
82171-6A010 note	Wire, Roof, NO.1 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 LHD	—
82172 — Wire, Roof, NO.2
82172-60070	Wire, Roof, NO.2 1996-04 → 1999-06 ended	KZJ9#,VZJ95 RHD	—
82172-60100	Wire, Roof, NO.2 1996-04 → 1999-06 ended	KZJ9#,VZJ9# LHD	—
82172-60070	Wire, Roof, NO.2 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ95 RHD	—
82172-60100	Wire, Roof, NO.2 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9# LHD	—
82173 — Wire, Roof, NO.3
82173-60050	Wire, Roof, NO.3 1996-04 → 1999-06 ended	KZJ95,VZJ95 RHD	—
82173-60060	Wire, Roof, NO.3 1996-04 → 1999-06 ended	KZJ95,VZJ95 LHD	—
82173-60050	Wire, Roof, NO.3 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 RHD	—
82173-60060	Wire, Roof, NO.3 1999-06 → 2002-09 ended	KDJ95,KZJ95,VZJ95 LHD	—
82184 — Wire, Back Door, NO.1
82184-60170	Wire, Back Door, NO.1 1996-04 → 1998-01 ended	KZJ9#,VZJ9#	—
82184-60171	Wire, Back Door, NO.1 1998-01 → 1999-06 ended	KZJ9#,VZJ9#	—
82184-60172	Wire, Back Door, NO.1 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—
82186 — Wire, Rear Window, NO.1
82186-60030	Wire, Rear Window, NO.1 1996-04 → 1999-06 ended	KZJ9#,VZJ9#	—
82186-60030	Wire, Rear Window, NO.1 1999-06 → 2002-09 ended	KDJ9#,KZJ9#,VZJ9#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
