Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

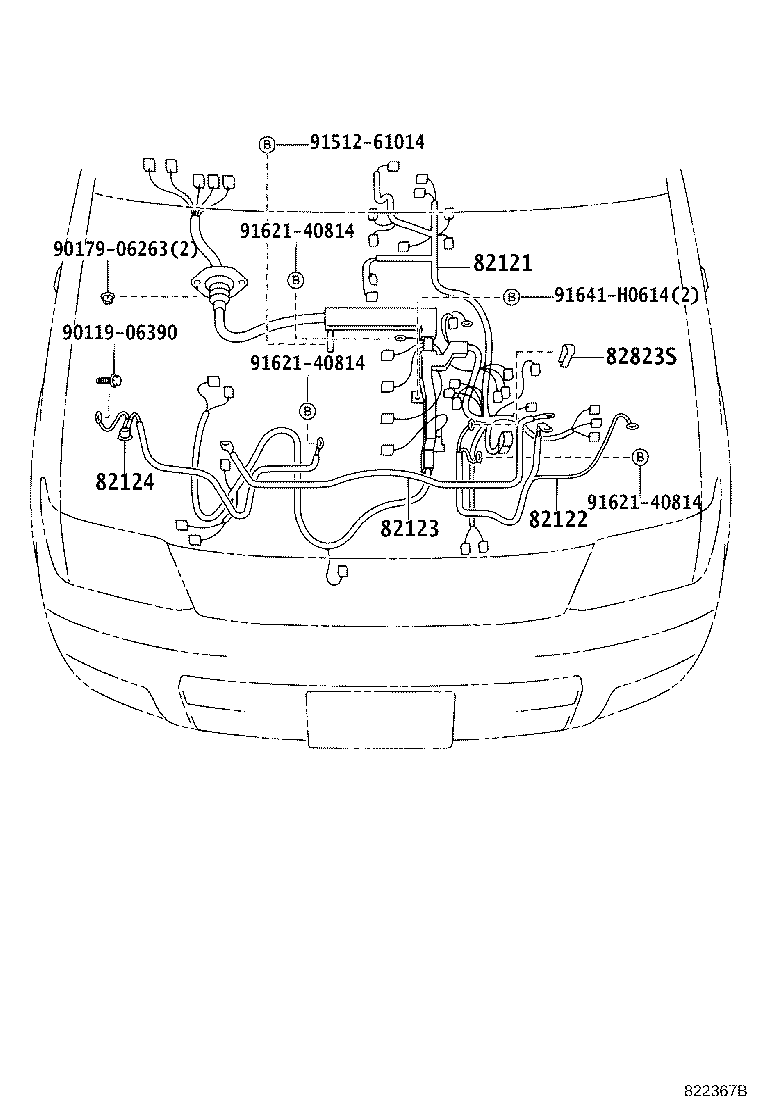

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-60600 |
Wire, Engine
1996-04 → 1999-06
ended
|
KZJ9# RHD MTM | — | |
| 82121-60620 |
Wire, Engine
1996-04 → 1999-06
ended
|
KZJ9# LHD MTM | — | |
| 82121-60660 |
Wire, Engine
1996-04 → 1999-06
ended
|
KZJ95 RHD ATM | — | |
| 82121-60670 |
Wire, Engine
1996-04 → 1999-06
ended
|
KZJ9# LHD ATM | — | |
| 82121-60700 |
Wire, Engine
1996-04 → 1999-06
ended
|
VZJ9# LHD ATM | — | |
| 82121-60710 |
Wire, Engine
1996-04 → 1999-06
ended
|
VZJ95 RHD | — | |
| 82121-60720 |
Wire, Engine
1996-04 → 1999-06
ended
|
VZJ9# MTM | — | |
| 82121-60601 |
Wire, Engine
1999-06 → 2000-08
ended
|
KZJ9# RHD MTM | — | |
| 82121-60621 |
Wire, Engine
1999-06 → 2000-08
ended
|
KZJ9# LHD MTM | — | |
| 82121-60661 |
Wire, Engine
1999-06 → 2000-08
ended
|
KZJ95 RHD ATM | — | |
| 82121-60671 |
Wire, Engine
1999-06 → 2000-08
ended
|
KZJ9# LHD ATM | — | |
| 82121-60701 |
Wire, Engine
1999-06 → 2002-09
ended
|
VZJ9# LHD ATM | — | |
| 82121-60711 |
Wire, Engine
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 82121-60721 |
Wire, Engine
1999-06 → 2002-09
ended
|
VZJ9# MTM | — | |
| 82121-6A330 |
Wire, Engine
2000-08 → 2002-09
ended
|
KDJ95 RHD ATM | — | |
| 82121-6A340 |
Wire, Engine
2000-08 → 2002-09
ended
|
KDJ9# RHD MTM | — | |
| 82121-6A350 |
Wire, Engine
2000-08 → 2002-09
ended
|
KDJ9# LHD MTM | — | |
| 82121-6A360 |
Wire, Engine
2000-08 → 2002-09
ended
|
KDJ9# LHD ATM | — | |
| 82121-6A380 |
Wire, Engine
2000-08 → 2002-09
ended
|
KZJ95 RHD ATM | — | |
| 82121-6A390 |
Wire, Engine
2000-08 → 2002-09
ended
|
KZJ95 RHD MTM | — | |
| 82121-6A400 |
Wire, Engine
2000-08 → 2002-09
ended
|
KZJ95 LHD ATM | — | |
| 82121-6A410 |
Wire, Engine
2000-08 → 2002-09
ended
|
KZJ9# LHD MTM | — | |
| 82121-6A420 note |
Wire, Engine
2000-08 → 2002-09
ended
|
KZJ95 LHD ATM | — | |
| 82121-6A430 note |
Wire, Engine
2000-08 → 2002-09
ended
|
KZJ9# LHD MTM | — | |
| 82139-60070 note |
Wire, Engine
2001-08 → 2002-09
ended
|
VZJ9# LHD ATM | — | |
| 82139-60080 note |
Wire, Engine
2001-08 → 2002-09
ended
|
VZJ9# MTM | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-35450 |
Wire, Engine, NO.2
1996-04 → 1999-06
ended
|
VZJ9# | — | |
| 82122-35460 note |
Wire, Engine, NO.2
1996-04 → 1999-06
ended
|
KZJ9# RHD MTM | — | |
| 82122-35470 note |
Wire, Engine, NO.2
1996-04 → 1999-06
ended
|
KZJ95 RHD ATM | — | |
| 82122-35480 note |
Wire, Engine, NO.2
1996-04 → 1999-06
ended
|
KZJ9# LHD MTM | — | |
| 82122-35490 note |
Wire, Engine, NO.2
1996-04 → 1999-06
ended
|
KZJ9# | — | |
| 82122-60280 note |
Wire, Engine, NO.2
1996-04 → 1999-06
ended
|
KZJ9# LHD ATM | — | |
| 82122-35450 |
Wire, Engine, NO.2
1999-06 → 2002-09
ended
|
VZJ9# | — | |
| 82122-35460 note |
Wire, Engine, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# RHD MTM | — | |
| 82122-35470 note |
Wire, Engine, NO.2
1999-06 → 2002-09
ended
|
KDJ95,KZJ95 RHD ATM | — | |
| 82122-35480 note |
Wire, Engine, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# LHD MTM | — | |
| 82122-35490 note |
Wire, Engine, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
| 82122-60280 note |
Wire, Engine, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# LHD ATM | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-35080 |
Wire, Engine, NO.3
1996-04 → 1999-06
ended
|
KZJ9# | — | |
| 82123-35080 |
Wire, Engine, NO.3
1999-06 → 2000-08
ended
|
KZJ9# | — | |
| 82123-60260 |
Wire, Engine, NO.3
2000-08 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-35050 |
Wire, Engine, NO.4
1996-04 → 1999-06
ended
|
KZJ90;KZJ95 LHD | — | |
| 82124-35050 |
Wire, Engine, NO.4
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-35050 |
Cap, Starter Terminal
1996-04 → 1999-06
ended
|
VZJ9# | — | |
| 82823-35060 note |
Cap, Starter Terminal
1996-04 → 1999-06
ended
|
KZJ9# MTM | — | |
| 82823-35070 note |
Cap, Starter Terminal
1996-04 → 1999-06
ended
|
KZJ9# | — | |
| 82823-35050 |
Cap, Starter Terminal
1999-06 → 2002-09
ended
|
VZJ9# ATM | — | |
| 82823-35050 |
Cap, Starter Terminal
1999-10 → 2002-09
ended
|
VZJ9# MTM | — | |
| 82823-35060 note |
Cap, Starter Terminal
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# MTM | — | |
| 82823-35070 note |
Cap, Starter Terminal
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
