Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

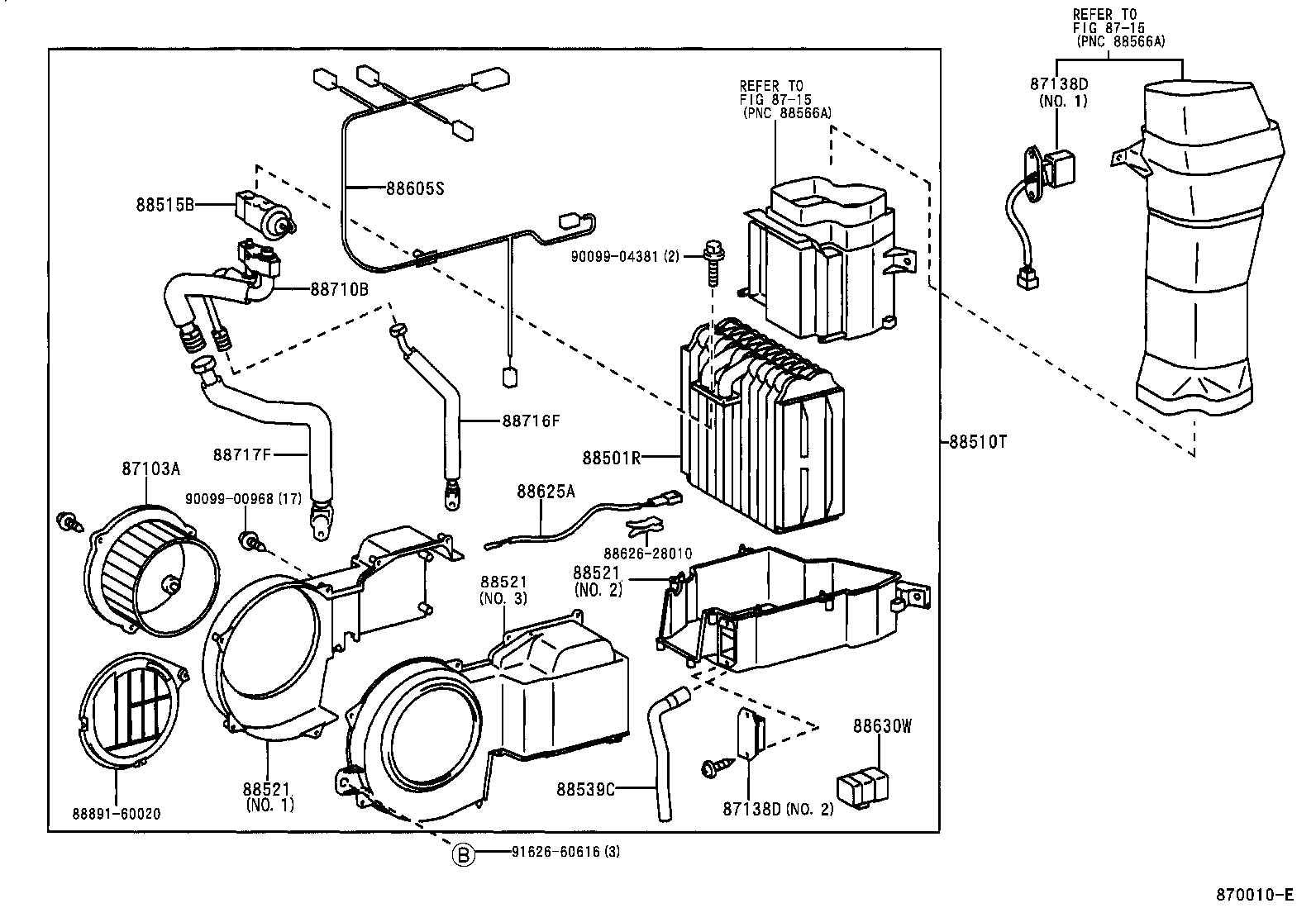

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87103A — Motor Sub-assy, Cooling Unit, W/Fan | ||||
| 87103-60180 |
Motor Sub-assy, Cooling Unit, W/Fan
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 87138D — Resistor, Blower (REAR) | ||||
| 87138-60040 note |
Resistor, Blower (REAR)
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 87138-60050 note |
Resistor, Blower (REAR)
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88501R — Evaporator Sub-assy (REAR) | ||||
| 88501-60140 |
Evaporator Sub-assy (REAR)
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88510T — Unit Assy, Cooling (REAR) | ||||
| 88510-60831 note |
Unit Assy, Cooling (REAR)
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 | — | |
| 88510-60831 |
Unit Assy, Cooling (REAR)
2000-08 → 2002-09
ended
|
KDJ95 | — | |
| 88510-60841 note |
Unit Assy, Cooling (REAR)
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 88515B — Valve, Rear Cooling Unit Expansion | ||||
| 88515-60060 |
Valve, Rear Cooling Unit Expansion
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88521 — Case, Cooler Unit | ||||
| 88521-60030 note |
Case, Cooler Unit
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88521-60040 note |
Case, Cooler Unit
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88521-60070 note |
Case, Cooler Unit
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88539C — Hose, Cooler Unit Drain, NO.2 | ||||
| 88539-60150 |
Hose, Cooler Unit Drain, NO.2
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88605S — Harness Sub-assy, Wiring Air Conditioner | ||||
| 88605-60830 |
Harness Sub-assy, Wiring Air Conditioner
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88605-60840 note |
Harness Sub-assy, Wiring Air Conditioner
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 88625A — Thermistor, Cooler NO.2 | ||||
| 88625-60090 |
Thermistor, Cooler NO.2
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88630W — Relay Assy | ||||
| 88630-16090 |
Relay Assy
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88710B — Tube Assy, Air Conditioner | ||||
| 88710-60780 |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88716F — Pipe, Cooler Refrigerant Liquid, F | ||||
| 88716-6A790 |
Pipe, Cooler Refrigerant Liquid, F
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
| 88717F — Pipe, Cooler Refrigerant Suction, F | ||||
| 88717-6A090 |
Pipe, Cooler Refrigerant Suction, F
1999-06 → 2002-09
ended
|
KDJ95,KZJ95,VZJ95 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
