Toyota Land Cruiser 90
1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe
Discontinued model
Data version 2003-02

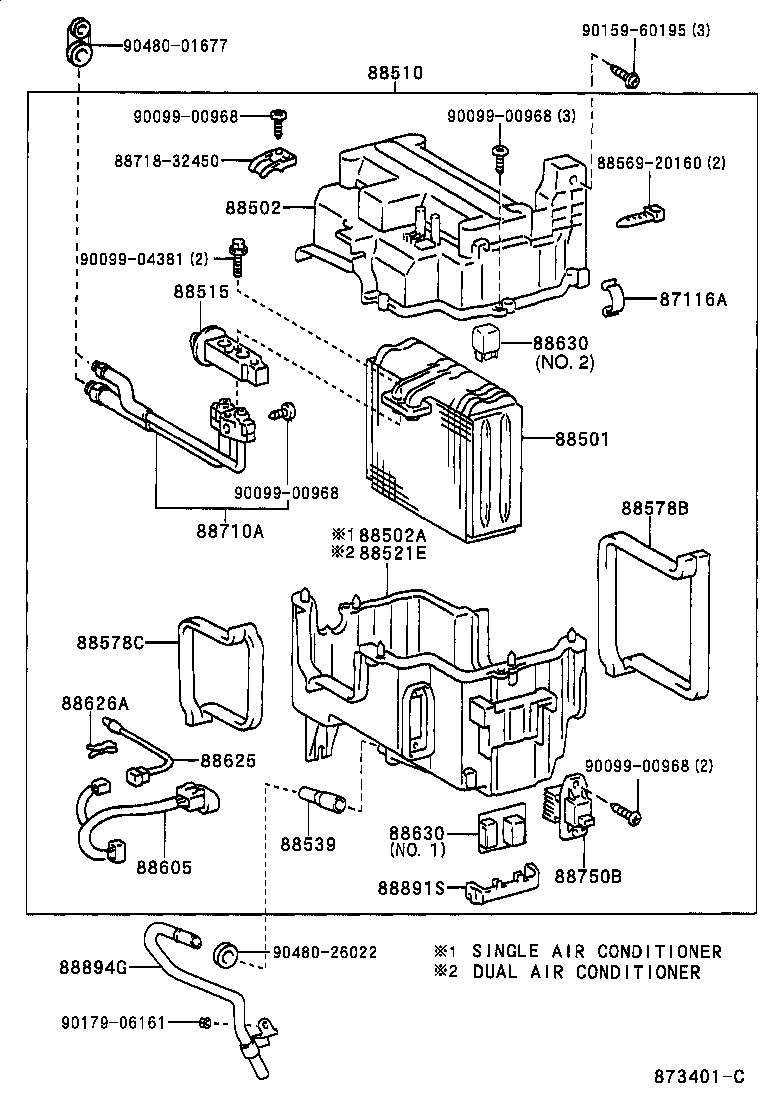

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87116A — Spring, Holding (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
Spring, Holding (FOR COOLER UNIT CASE)
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 87116-14010 |
Spring, Holding (FOR COOLER UNIT CASE)
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-35040 |
Evaporator Sub-assy, Cooler, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88501-35050 |
Evaporator Sub-assy, Cooler, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88501-35040 |
Evaporator Sub-assy, Cooler, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 88501-35050 |
Evaporator Sub-assy, Cooler, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 88502 — Case Sub-assy, Cooling Unit | ||||
| 88502-35010 |
Case Sub-assy, Cooling Unit
1996-04 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88502-35030 |
Case Sub-assy, Cooling Unit
1996-04 → 1998-04
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35030 note |
Case Sub-assy, Cooling Unit
1998-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35140 note |
Case Sub-assy, Cooling Unit
1998-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35010 |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 88502-35030 note |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35140 note |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35140 |
Case Sub-assy, Cooling Unit
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 88502A — Case Sub-assy, Cooling Unit | ||||
| 88502-35020 |
Case Sub-assy, Cooling Unit
1996-04 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88502-35040 |
Case Sub-assy, Cooling Unit
1996-04 → 1998-04
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35040 note |
Case Sub-assy, Cooling Unit
1998-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35150 note |
Case Sub-assy, Cooling Unit
1998-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35020 |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88502-35021 note |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88502-35021 |
Case Sub-assy, Cooling Unit
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 88502-35040 note |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35150 note |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88502-35150 |
Case Sub-assy, Cooling Unit
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 88510 — Unit Assy, Cooler | ||||
| 88510-35531 note |
Unit Assy, Cooler
1998-02 → 1998-07
ended
|
VZJ95 RHD | — | |
| 88510-35541 note |
Unit Assy, Cooler
1998-02 → 1998-07
ended
|
KZJ9# RHD | — | |
| 88510-35561 note |
Unit Assy, Cooler
1998-02 → 1998-07
ended
|
VZJ9# LHD | — | |
| 88510-35580 |
Unit Assy, Cooler
1996-04 → 1998-02
ended
|
VZJ9# LHD | — | |
| 88510-35580 note |
Unit Assy, Cooler
1998-02 → 1999-06
ended
|
VZJ9# LHD | — | |
| 88510-35730 note |
Unit Assy, Cooler
1998-07 → 1999-06
ended
|
VZJ9# LHD | — | |
| 88510-6A060 note |
Unit Assy, Cooler
1996-04 → 1999-06
ended
|
KZJ9# LHD | — | |
| 88510-6A070 note |
Unit Assy, Cooler
1996-04 → 1999-06
ended
|
VZJ95 RHD | — | |
| 88510-6A080 note |
Unit Assy, Cooler
1996-04 → 1999-06
ended
|
KZJ9# RHD | — | |
| 88510-6A120 note |
Unit Assy, Cooler
1998-07 → 1999-06
ended
|
VZJ95 RHD | — | |
| 88510-6A140 note |
Unit Assy, Cooler
1998-07 → 1999-06
ended
|
KZJ9# RHD | — | |
| 88510-6A180 note |
Unit Assy, Cooler
1998-07 → 1999-06
ended
|
KZJ9# LHD | — | |
| 88510-35580 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
VZJ9# LHD | — | |
| 88510-35730 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
VZJ9# LHD | — | |
| 88510-35730 note |
Unit Assy, Cooler
2000-08 → 2002-09
ended
|
KZJ9# LHD | — | |
| 88510-6A060 note |
Unit Assy, Cooler
1999-06 → 2000-08
ended
|
KZJ9# LHD | — | |
| 88510-6A070 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 88510-6A080 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
KZJ9# RHD | — | |
| 88510-6A120 note |
Unit Assy, Cooler
2000-08 → 2002-09
ended
|
KZJ95 RHD | — | |
| 88510-6A120 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 88510-6A140 note |
Unit Assy, Cooler
1999-06 → 2000-08
ended
|
KZJ9# RHD | — | |
| 88510-6A160 note |
Unit Assy, Cooler
2000-08 → 2001-09
ended
|
KDJ9# RHD | — | |
| 88510-6A160 note |
Unit Assy, Cooler
2000-08 → 2001-08
ended
|
VZJ95 RHD | — | |
| 88510-6A180 note |
Unit Assy, Cooler
1999-06 → 2000-08
ended
|
KZJ9# LHD | — | |
| 88510-6A190 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
VZJ95 RHD | — | |
| 88510-6A210 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 RHD | — | |
| 88510-6A230 note |
Unit Assy, Cooler
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 LHD | — | |
| 88510-6A260 note |
Unit Assy, Cooler
2000-08 → 2001-09
ended
|
VZJ9# LHD | — | |
| 88510-6A290 note |
Unit Assy, Cooler
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 88510-6A300 note |
Unit Assy, Cooler
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 88510-6A310 note |
Unit Assy, Cooler
2000-08 → 2001-09
ended
|
KDJ9# LHD | — | |
| 88510-6A320 note |
Unit Assy, Cooler
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 88510-6A330 note |
Unit Assy, Cooler
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-20100 |
Valve, Cooler Expansion
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 88515-20100 |
Valve, Cooler Expansion
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 88521E — Case Sub-assy, Cooling Unit | ||||
| 88521-60050 |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 RHD | — | |
| 88521-60060 |
Case Sub-assy, Cooling Unit
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 LHD | — | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-35010 |
Hose, Cooler Unit Drain, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88539-89113 |
Hose, Cooler Unit Drain, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88539-35010 |
Hose, Cooler Unit Drain, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 88539-89113 |
Hose, Cooler Unit Drain, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 88578B — Packing, Cooling Unit, NO.1 | ||||
| 88578-35040 |
Packing, Cooling Unit, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88578-35060 |
Packing, Cooling Unit, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88578-35040 |
Packing, Cooling Unit, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ95 RHD | — | |
| 88578-35060 |
Packing, Cooling Unit, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 88578C — Packing, Cooling Unit, NO.2 | ||||
| 88578-35050 |
Packing, Cooling Unit, NO.2
1996-04 → 1999-06
ended
|
KZJ9#;VZJ95 RHD | — | |
| 88578-35050 |
Packing, Cooling Unit, NO.2
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 88605 — Harness Sub-assy, Cooler Wiring, NO.1 | ||||
| 88605-35220 |
Harness Sub-assy, Cooler Wiring, NO.1
1996-04 → 1999-06
ended
|
VZJ9# | — | |
| 88605-35230 |
Harness Sub-assy, Cooler Wiring, NO.1
1996-04 → 1999-06
ended
|
KZJ9# | — | |
| 88605-35220 |
Harness Sub-assy, Cooler Wiring, NO.1
1999-06 → 2002-09
ended
|
VZJ9# | — | |
| 88605-35220 |
Harness Sub-assy, Cooler Wiring, NO.1
2000-08 → 2002-09
ended
|
KZJ9# | — | |
| 88605-35230 |
Harness Sub-assy, Cooler Wiring, NO.1
1999-06 → 2000-08
ended
|
KZJ9# | — | |
| 88605-35290 note |
Harness Sub-assy, Cooler Wiring, NO.1
2000-08 → 2001-08
ended
|
VZJ95 RHD | — | |
| 88605-35290 |
Harness Sub-assy, Cooler Wiring, NO.1
2000-08 → 2001-09
ended
|
KDJ9# | — | |
| 88605-35290 note |
Harness Sub-assy, Cooler Wiring, NO.1
2000-08 → 2001-09
ended
|
VZJ9# LHD | — | |
| 88605-60871 note |
Harness Sub-assy, Cooler Wiring, NO.1
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-3A090 |
Thermistor, Cooler, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 88625-3A090 |
Thermistor, Cooler, NO.1
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 88626A — Holder, Thermistor | ||||
| 88626-28010 |
Holder, Thermistor
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 88626-28010 |
Holder, Thermistor
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# | — | |
| 88630 — Relay Assy, Cooler | ||||
| 88630-35010 note |
Relay Assy, Cooler
2001-08 → 2001-09
ended
|
VZJ95 LHD;KDJ9#,VZJ90 | — | |
| 88630-35010 note |
Relay Assy, Cooler
2000-08 → 2001-08
ended
|
KDJ9#,VZJ9# | — | |
| 90987-02004 note |
Relay Assy, Cooler
2001-08 → 2001-09
ended
|
KDJ9# RHD | — | |
| 90987-02004 note |
Relay Assy, Cooler
1999-06 → 2001-08
ended
|
KDJ9#,VZJ95 RHD | — | |
| 88710A — Tube Assy, Air Conditioner | ||||
| 88710-35280 |
Tube Assy, Air Conditioner
1996-04 → 1998-07
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88710-35280 |
Tube Assy, Air Conditioner
1998-07 → 1999-06
ended
|
KZJ9# RHD | — | |
| 88710-35280 note |
Tube Assy, Air Conditioner
1998-07 → 1999-06
ended
|
VZJ95 RHD | — | |
| 88710-35290 |
Tube Assy, Air Conditioner
1996-04 → 1998-07
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88710-35290 note |
Tube Assy, Air Conditioner
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88710-35370 note |
Tube Assy, Air Conditioner
1998-07 → 1999-06
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88710-35380 note |
Tube Assy, Air Conditioner
1998-07 → 1999-06
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88710-35280 |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KZJ9# RHD | — | |
| 88710-35280 note |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KDJ9#,VZJ95 RHD | — | |
| 88710-35290 note |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KDJ9#,KZJ9#,VZJ9# LHD | — | |
| 88710-35370 note |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KZJ9#,VZJ95 RHD | — | |
| 88710-35370 |
Tube Assy, Air Conditioner
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 88710-35380 note |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KZJ9#,VZJ9# LHD | — | |
| 88710-35380 |
Tube Assy, Air Conditioner
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 88710-6A310 note |
Tube Assy, Air Conditioner
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 LHD | — | |
| 88710-6A310 note |
Tube Assy, Air Conditioner
2000-08 → 2002-09
ended
|
KDJ9# LHD | — | |
| 88750B — Transistor Assy, Blower Resistor | ||||
| 88750-35010 |
Transistor Assy, Blower Resistor
1999-06 → 2000-08
ended
|
VZJ95 RHD | — | |
| 88750-35010 |
Transistor Assy, Blower Resistor
2000-08 → 2001-09
ended
|
KDJ9#,VZJ9# | — | |
| 88750-35010 |
Transistor Assy, Blower Resistor
2001-09 → 2002-09
ended
|
VZJ95 RHD | — | |
| 88891S — Cover, Cooler, NO.1 | ||||
| 88891-35010 |
Cover, Cooler, NO.1
1996-04 → 1999-06
ended
|
KZJ9#,VZJ9# | — | |
| 88891-35010 |
Cover, Cooler, NO.1
1999-06 → 2002-09
ended
|
KZJ9#,VZJ95;KDJ9#,VZJ90 LHD | — | |
| 88891-35010 note |
Cover, Cooler, NO.1
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 88891-60010 note |
Cover, Cooler, NO.1
1999-06 → 2002-09
ended
|
KZJ95,VZJ95 | — | |
| 88891-60010 note |
Cover, Cooler, NO.1
2000-08 → 2002-09
ended
|
KDJ9# RHD | — | |
| 88894G — Connector, Drain Hose | ||||
| 88894-60010 |
Connector, Drain Hose
2001-08 → 2002-09
ended
|
VZJ9# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
