Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

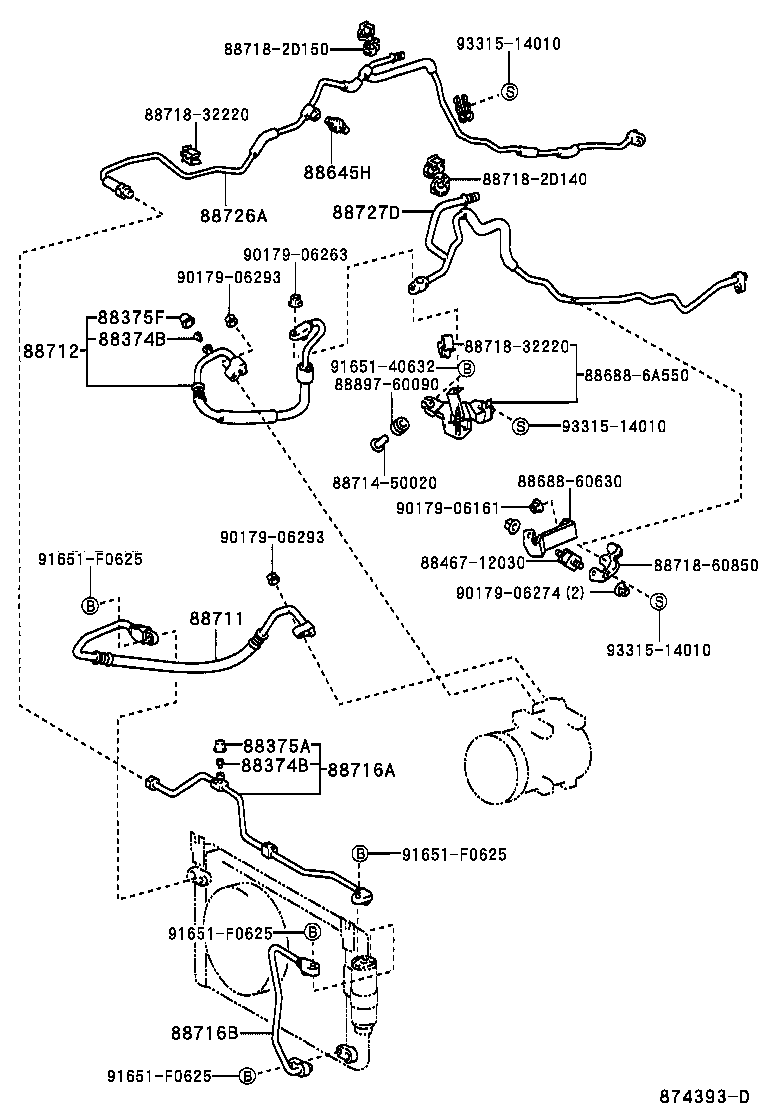

Exploded illustration 874393D 9331514010 — not listed in this catalogue 887182D150 — not listed in this catalogue 8871832220 — not listed in this catalogue 88645H — SWITCH, PRESSURE NO.1 (7 parts) 887182D140 — not listed in this catalogue 88727D — PIPE, COOLER REFRIGERANT SUCTION, D (2 parts) 88726A — PIPE, COOLER REFRIGERANT LIQUID, A (3 parts) 9017906263 — not listed in this catalogue 9017906293 — not listed in this catalogue 88375F — CAP, SERVICE VALVE, NO.3 (2 parts) 88374B — VALVE, SERVICE, NO.1 (2 parts) 8871832220 — not listed in this catalogue 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (19 parts) 9165140632 — not listed in this catalogue 886886A550 — not listed in this catalogue 8889760090 — not listed in this catalogue 9331514010 — not listed in this catalogue 8868860630 — not listed in this catalogue 8871450020 — not listed in this catalogue 9017906161 — not listed in this catalogue 9017906293 — not listed in this catalogue 91651F0625 — not listed in this catalogue 8846712030 — not listed in this catalogue 8871860850 — not listed in this catalogue 9017906274 — not listed in this catalogue 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (7 parts) 9331514010 — not listed in this catalogue 88375A — CAP, SERVICE VALVE (FOR COOLER PIPE) (2 parts) 88374B — VALVE, SERVICE, NO.1 (2 parts) 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (10 parts) 91651F0625 — not listed in this catalogue 91651F0625 — not listed in this catalogue 88716B — PIPE, COOLER REFRIGERANT LIQUID, B (29 parts) 91651F0625 — not listed in this catalogue
874393D · 11 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
88374-30010 Valve, Service, NO.1
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
88375A — Cap, Service Valve (FOR COOLER PIPE)
88375-30280 Cap, Service Valve (FOR COOLER PIPE)
1996-04 → 1999-06 ended
KZJ9#,VZJ9# —
88375-30280 Cap, Service Valve (FOR COOLER PIPE)
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
88375F — Cap, Service Valve, NO.3
88375-30290 Cap, Service Valve, NO.3
1996-04 → 1999-06 ended
KZJ9#;VZJ95 RHD —
88375-30290 Cap, Service Valve, NO.3
1999-06 → 2002-09 ended
KDJ9#,KZJ9#,VZJ9# —
88645H — Switch, Pressure NO.1
88645-34010 Switch, Pressure NO.1
1996-04 → 1999-06 ended
VZJ95 LHD;KZJ9#,VZJ90 —
88645-34010 note Switch, Pressure NO.1
1998-07 → 1999-06 ended
VZJ95 RHD —
88645-60030 Switch, Pressure NO.1
1998-07 → 1999-06 ended
VZJ95 RHD —
88645-34010 Switch, Pressure NO.1
1999-06 → 2002-09 ended
VZJ95 LHD;KDJ9#,KZJ9#,VZJ90 —
88645-34010 note Switch, Pressure NO.1
1999-06 → 2002-09 ended
VZJ95 RHD —
88645-60030 note Switch, Pressure NO.1
1999-06 → 2002-09 ended
VZJ95 RHD;KDJ95,KZJ95 —
88645-60030 note Switch, Pressure NO.1
2001-08 → 2002-09 ended
VZJ95 LHD —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-35460 Hose, Cooler Refrigerant Discharge, NO.1
1996-04 → 1999-06 ended
KZJ9# —
88711-35490 Hose, Cooler Refrigerant Discharge, NO.1
1996-04 → 1999-06 ended
VZJ9# LHD —
88711-60410 Hose, Cooler Refrigerant Discharge, NO.1
1996-04 → 1999-06 ended
VZJ95 RHD —
88711-35460 Hose, Cooler Refrigerant Discharge, NO.1
1999-06 → 2002-09 ended
KZJ9# —
88711-35490 Hose, Cooler Refrigerant Discharge, NO.1
1999-06 → 2002-09 ended
VZJ9# LHD —
88711-35580 Hose, Cooler Refrigerant Discharge, NO.1
2000-08 → 2002-09 ended
KDJ9# —
88711-60410 Hose, Cooler Refrigerant Discharge, NO.1
1999-06 → 2002-09 ended
VZJ95 RHD —
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-35450 note Hose, Cooler Refrigerant Suction, NO.1
1996-04 → 1998-05 ended
KZJ9# LHD —
88712-35451 Hose, Cooler Refrigerant Suction, NO.1
1998-05 → 1999-06 ended
KZJ9# LHD —
88712-35470 Hose, Cooler Refrigerant Suction, NO.1
1996-04 → 1998-07 ended
VZJ9# LHD —
88712-35470 note Hose, Cooler Refrigerant Suction, NO.1
1998-07 → 1999-06 ended
VZJ9# LHD —
88712-35540 note Hose, Cooler Refrigerant Suction, NO.1
1998-07 → 1999-06 ended
VZJ9# LHD —
88712-60640 Hose, Cooler Refrigerant Suction, NO.1
1996-04 → 1999-06 ended
KZJ9# RHD —
88712-60650 Hose, Cooler Refrigerant Suction, NO.1
1996-04 → 1999-06 ended
VZJ95 RHD —
88712-35451 Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
KZJ9# LHD —
88712-35470 note Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
VZJ9# LHD —
88712-35540 Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
VZJ9# LHD —
88712-35560 note Hose, Cooler Refrigerant Suction, NO.1
2000-08 → 2002-09 ended
KDJ9# RHD —
88712-60640 Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
KZJ9# RHD —
88712-60650 Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
VZJ95 RHD —
88712-6A050 note Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
KZJ95 RHD —
88712-6A060 note Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
VZJ95 RHD —
88712-6A100 note Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
KZJ95 LHD —
88712-6A110 note Hose, Cooler Refrigerant Suction, NO.1
1999-06 → 2002-09 ended
VZJ95 LHD —
88712-6A140 note Hose, Cooler Refrigerant Suction, NO.1
2000-08 → 2002-09 ended
KDJ95 RHD —
88712-6A150 Hose, Cooler Refrigerant Suction, NO.1
2000-08 → 2002-09 ended
KDJ9# LHD —
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-6A650 Pipe, Cooler Refrigerant Liquid, A
1996-04 → 1999-06 ended
KZJ9# RHD —
88716-6A660 Pipe, Cooler Refrigerant Liquid, A
1996-04 → 1999-06 ended
VZJ95 RHD —
88716-6A670 Pipe, Cooler Refrigerant Liquid, A
1996-04 → 1999-06 ended
KZJ9#,VZJ9# LHD —
88716-6A650 Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
KDJ9#,KZJ9# RHD —
88716-6A660 Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
VZJ95 RHD —
88716-6A670 Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
KZJ9#,VZJ9# LHD —
88716-6A700 note Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
88716-6A710 note Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2000-08 ended
KZJ95,VZJ95 LHD —
88716-6B250 note Pipe, Cooler Refrigerant Liquid, A
2000-08 → 2002-09 ended
KDJ9# LHD —
88716-6B260 note Pipe, Cooler Refrigerant Liquid, A
2000-08 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
88716B — Pipe, Cooler Refrigerant Liquid, B
88716-35330 Pipe, Cooler Refrigerant Liquid, B
1996-04 → 1997-09 ended
KZJ9# LHD —
88716-35340 note Pipe, Cooler Refrigerant Liquid, B
1996-04 → 1998-01 ended
VZJ95 RHD —
88716-35380 Pipe, Cooler Refrigerant Liquid, B
1998-07 → 1999-06 ended
VZJ95 RHD —
88716-35390 note Pipe, Cooler Refrigerant Liquid, B
1998-07 → 1999-06 ended
VZJ9# LHD —
88716-35400 note Pipe, Cooler Refrigerant Liquid, B
1998-07 → 1999-06 ended
KZJ9# LHD —
88716-6A720 Pipe, Cooler Refrigerant Liquid, B
1996-04 → 1997-09 ended
VZJ9# LHD —
88716-6A721 note Pipe, Cooler Refrigerant Liquid, B
1998-07 → 1999-06 ended
VZJ9# LHD —
88716-6A721 Pipe, Cooler Refrigerant Liquid, B
1997-09 → 1998-07 ended
VZJ9# LHD —
88716-6A730 note Pipe, Cooler Refrigerant Liquid, B
1996-04 → 1998-01 ended
KZJ9# RHD —
88716-6A731 note Pipe, Cooler Refrigerant Liquid, B
1998-01 → 1998-07 ended
KZJ9# RHD —
88716-6A800 note Pipe, Cooler Refrigerant Liquid, B
1996-04 → 1998-01 ended
KZJ9#,VZJ95 RHD —
88716-6A801 note Pipe, Cooler Refrigerant Liquid, B
1998-01 → 1999-06 ended
KZJ9#,VZJ95 RHD —
88716-6A890 Pipe, Cooler Refrigerant Liquid, B
1997-09 → 1998-07 ended
KZJ9# LHD —
88716-6A890 note Pipe, Cooler Refrigerant Liquid, B
1998-07 → 1999-06 ended
KZJ9# LHD —
88716-6B010 note Pipe, Cooler Refrigerant Liquid, B
1998-01 → 1998-07 ended
VZJ95 RHD —
88716-6B080 note Pipe, Cooler Refrigerant Liquid, B
1998-07 → 1999-06 ended
KZJ9# RHD —
88716-35380 Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
VZJ95 RHD —
88716-35390 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
VZJ9# LHD —
88716-35400 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
KZJ9# LHD —
88716-6A680 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2000-08 ended
KZJ95,VZJ95 LHD —
88716-6A690 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
KDJ95;KZJ95,VZJ95 RHD —
88716-6A690 Pipe, Cooler Refrigerant Liquid, B
2000-08 → 2002-09 ended
KZJ95,VZJ95 LHD —
88716-6A721 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
VZJ9# LHD —
88716-6A801 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
KZJ9#,VZJ95 RHD —
88716-6A801 Pipe, Cooler Refrigerant Liquid, B
2000-08 → 2002-09 ended
KDJ9# RHD —
88716-6A890 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2002-09 ended
KZJ9# LHD —
88716-6B080 note Pipe, Cooler Refrigerant Liquid, B
1999-06 → 2000-08 ended
KZJ9# RHD —
88716-6B270 note Pipe, Cooler Refrigerant Liquid, B
2000-08 → 2002-09 ended
KDJ9# LHD —
88716-6B290 note Pipe, Cooler Refrigerant Liquid, B
2000-08 → 2002-09 ended
KDJ9#,KZJ95 RHD —
88726A — Pipe, Cooler Refrigerant Liquid, A
88716-6B200 Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
VZJ95 RHD —
88716-6B210 Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
KDJ95,KZJ95 RHD —
88716-6B220 Pipe, Cooler Refrigerant Liquid, A
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
88727D — Pipe, Cooler Refrigerant Suction, D
88717-6A400 Pipe, Cooler Refrigerant Suction, D
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 RHD —
88717-6A410 Pipe, Cooler Refrigerant Suction, D
1999-06 → 2002-09 ended
KDJ95,KZJ95,VZJ95 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
