Toyota Land Cruiser 90

1996-04 → 2002-09 · chassis KDJ9#,KZJ9#,VZJ9# · catalogue 781540 · Europe

Discontinued model Data version 2003-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 7 illustrations

Illustrations

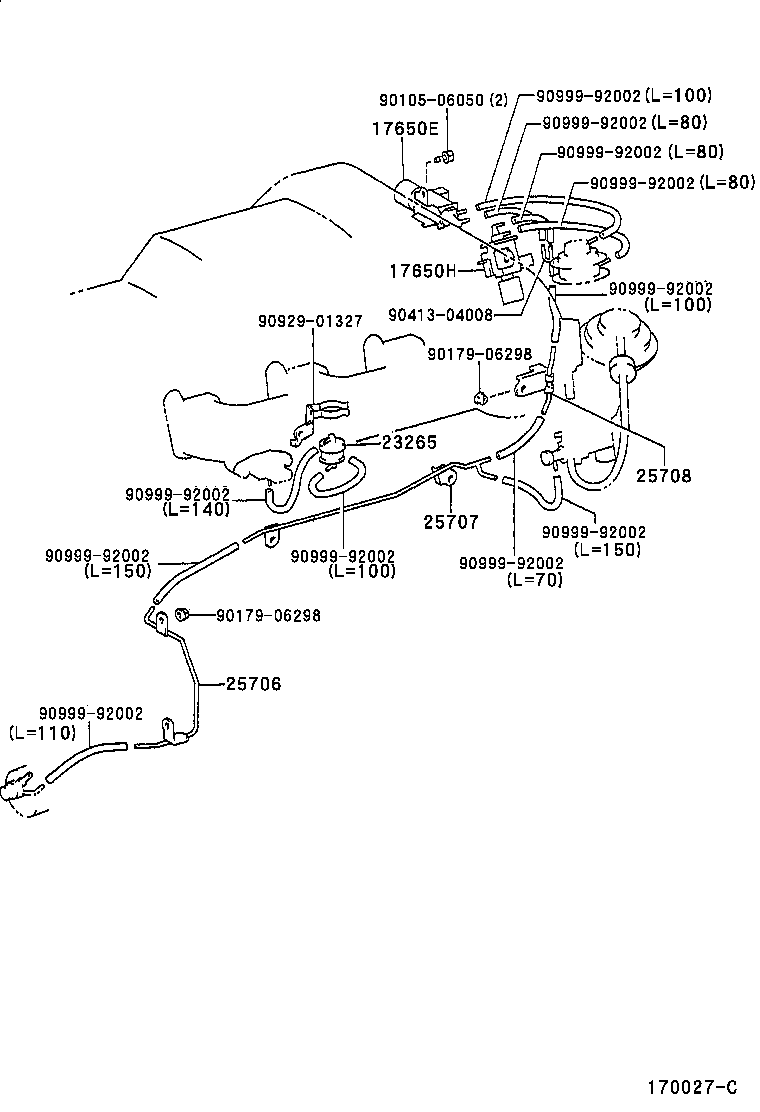

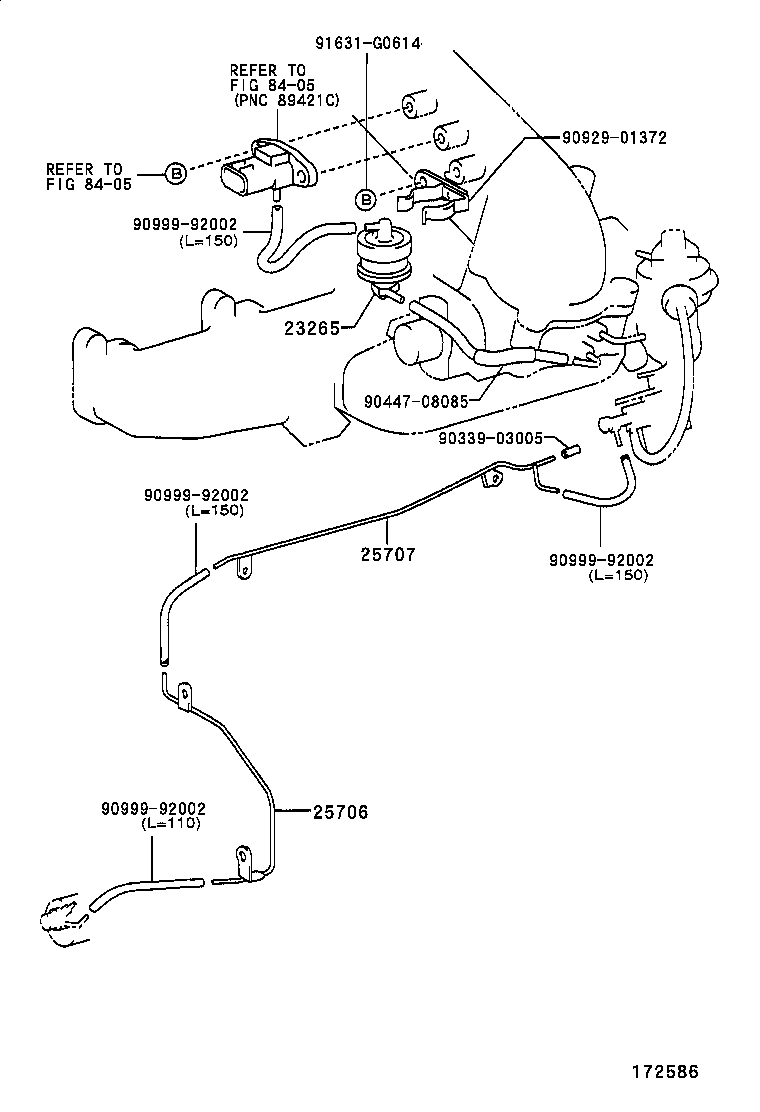

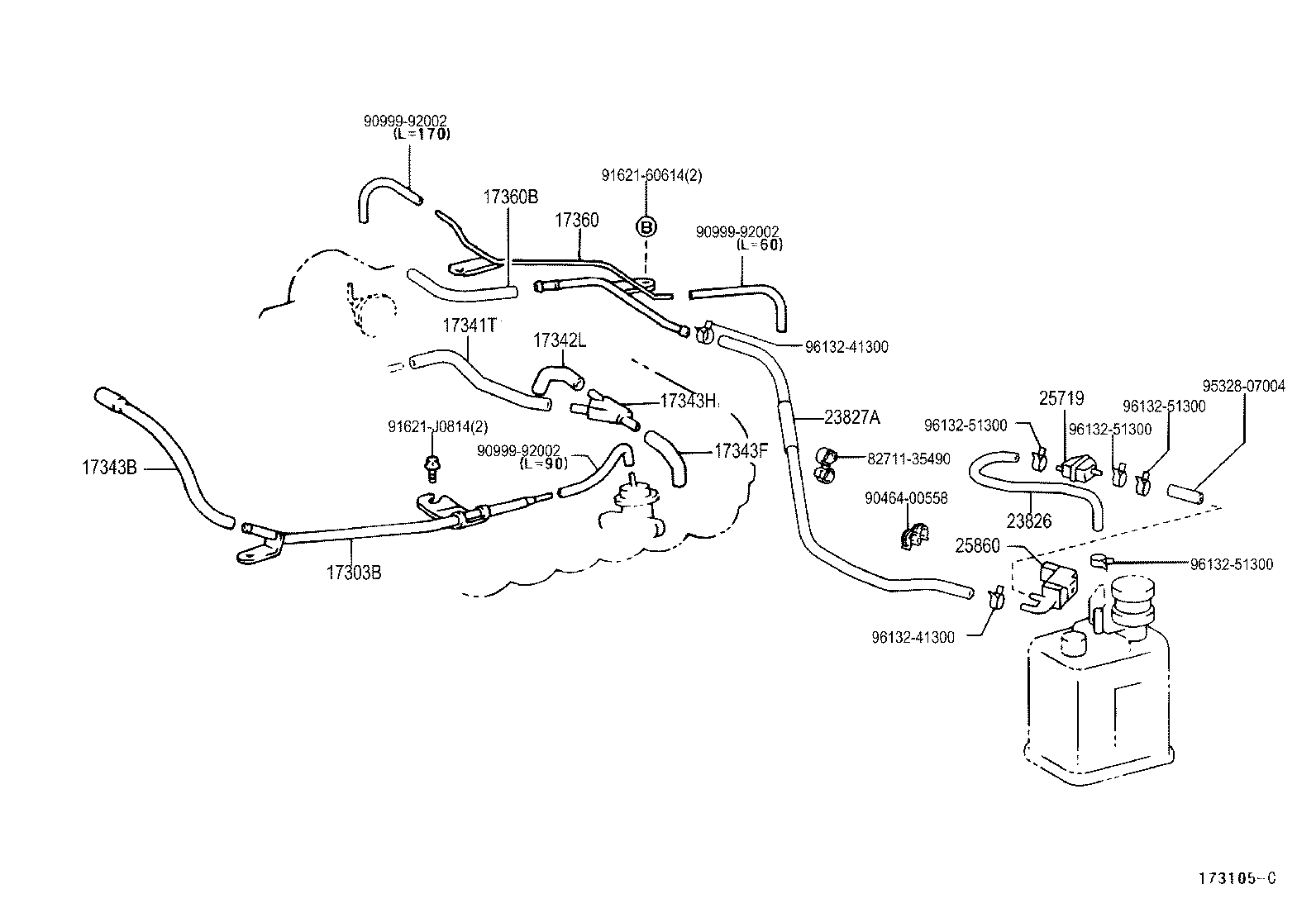

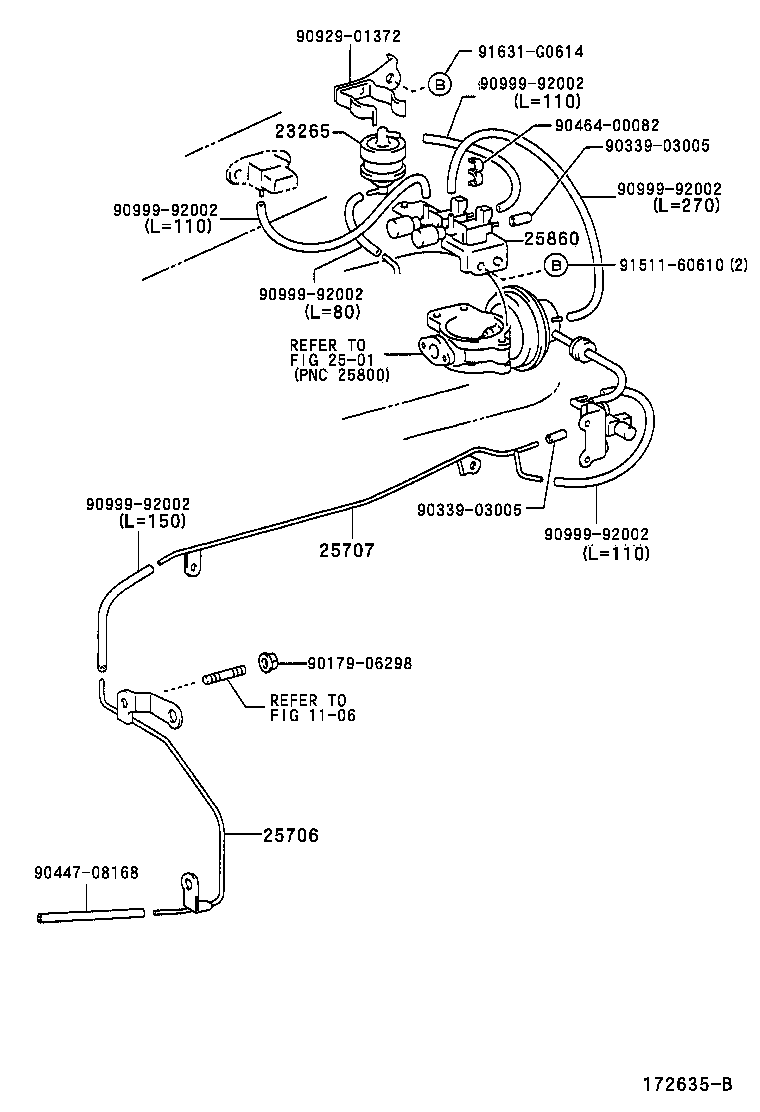

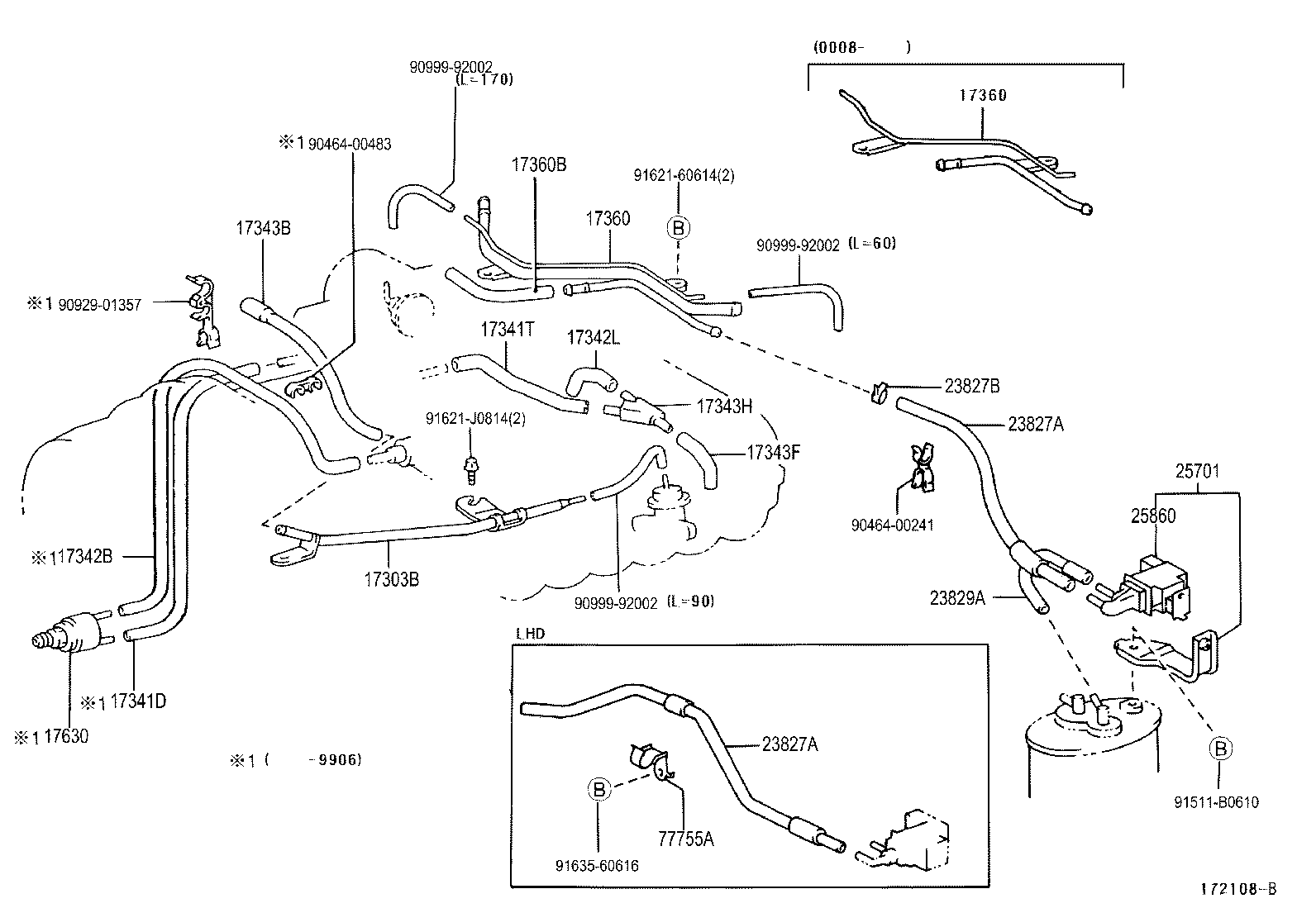

Figure 170021 170021 1996-04 → — Figure 170027C 170027C 1996-04 → 2000-08 Figure 172575 172575 2000-08 → — Figure 172586 172586 2000-08 → — Figure 172635B 172635B 2000-08 → — Figure 172108B 172108B 1996-04 → — Figure 173105C 173105C 2001-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343F Hose, Air, NO.3
17343H Way, 3(FOR AIR HOSE)
17360 Tube Assy, Air
17360B Hose(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650E Valve, Vacuum Switching
17650H Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
25701 Valve Set, Emission Control
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25719 Tank, Vacuum Surge
25860 Valve Assy, Vacuum Switching, NO.1
77755A Bracket, Charcoal Canister Outlet Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
